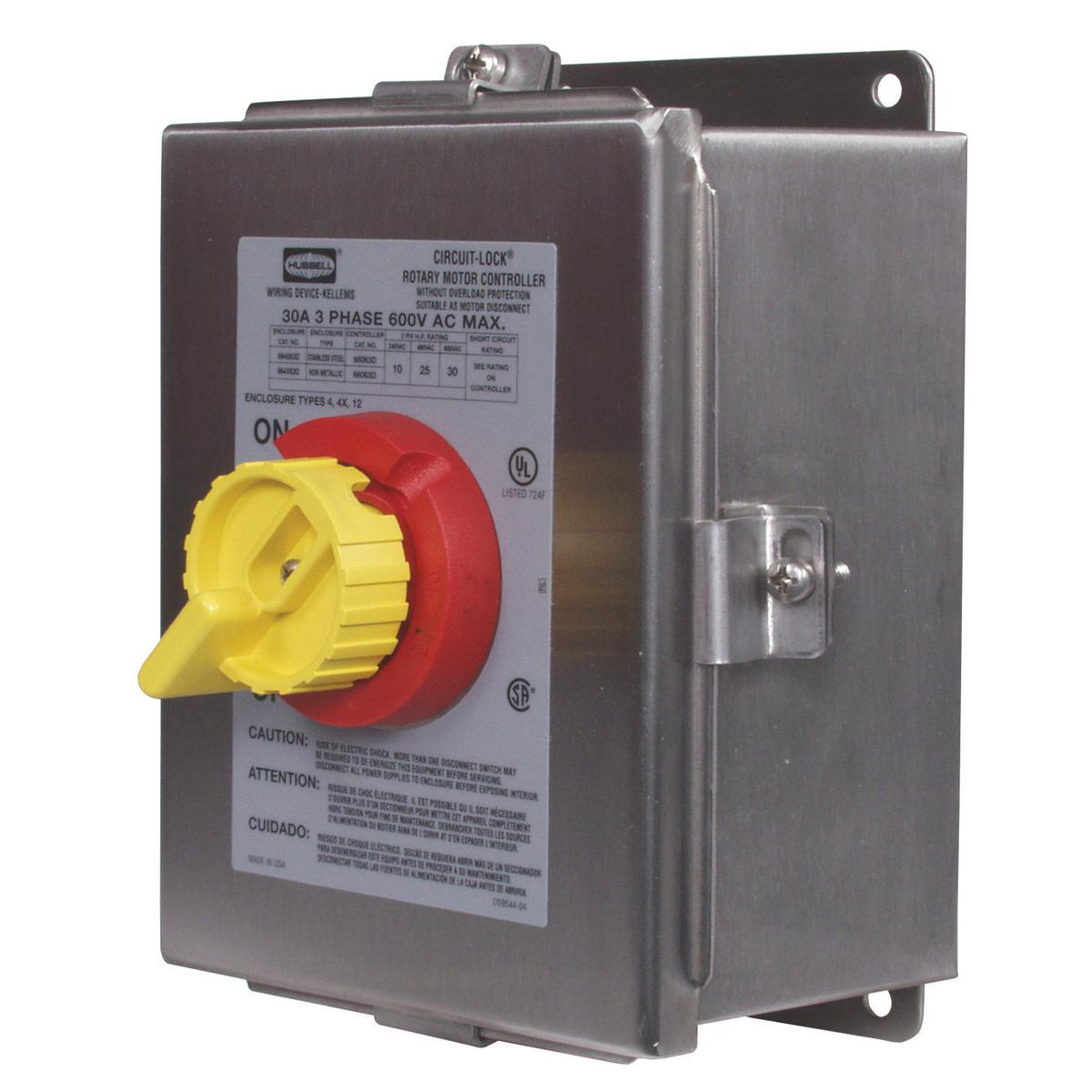

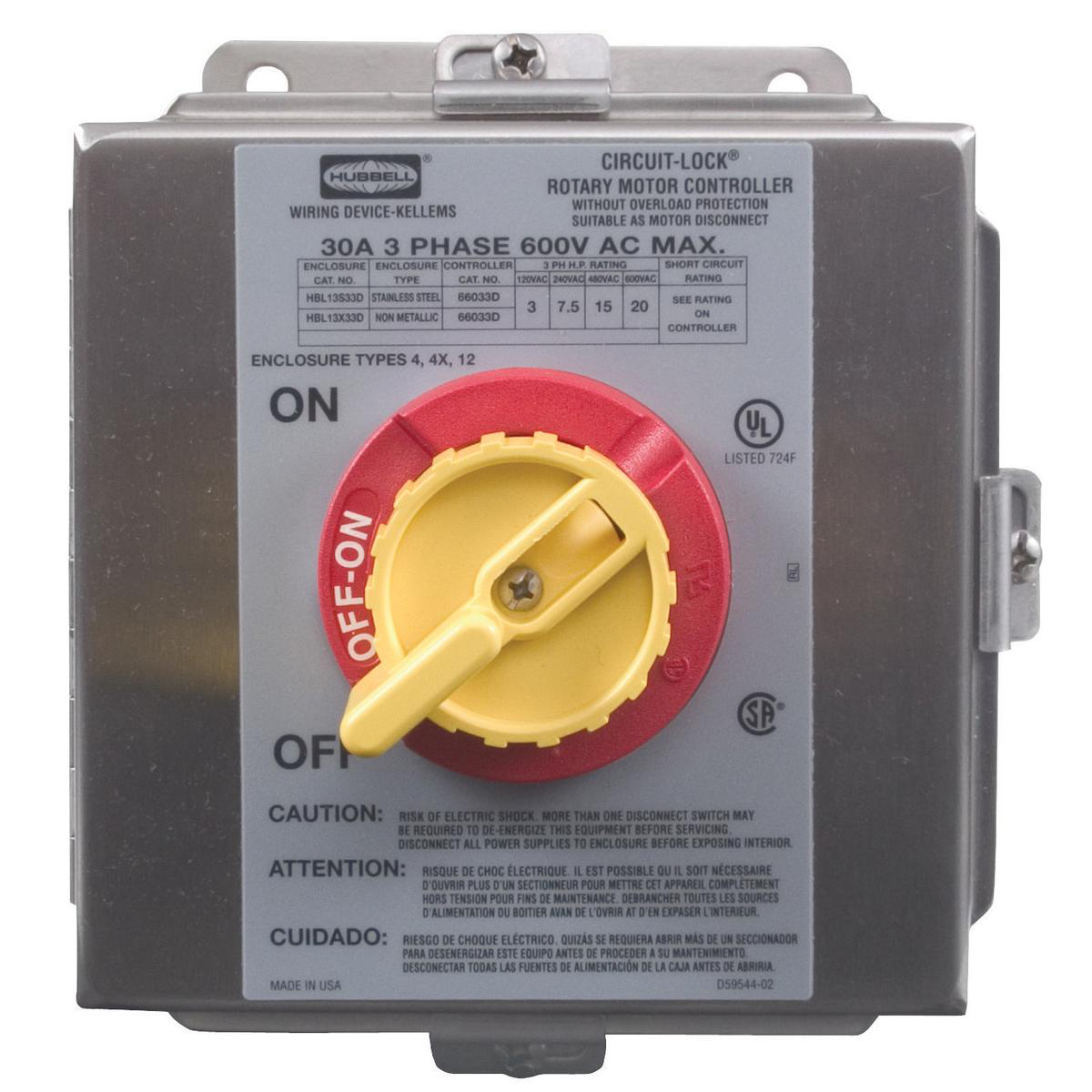

CIRCUIT-LOCK® Disconnect switch. NEMA-4X, stainless steel enclosure. 3 HP at 120 VAC, 7.5 HP at 240 VAC, 15 HP at 480 VAC, 20 HP at 600 VAC. Side-wired circuit-lock wiring style. Back and side-wired wiring style. Hinged cover with removable continuous pin. Chemical and corrosion-resistant 304 stainless steel enclosure. Chemical and impact-resistant VALOX® handle and collar. Allows custom placement of wire entry. CIRCUIT-LOCK® NEMA type-4X enclosures are suitable as disconnect when used with the 30 or 60 A controller/disconnect. High impact, chemical and corrosion-resistant. Neutral and ground bus included for wiring ease (60 A product). Up to two optional auxiliary contacts for PLC's and external indicators. Ideal for use in environments where washdown is necessary, food processing and laboratories.
