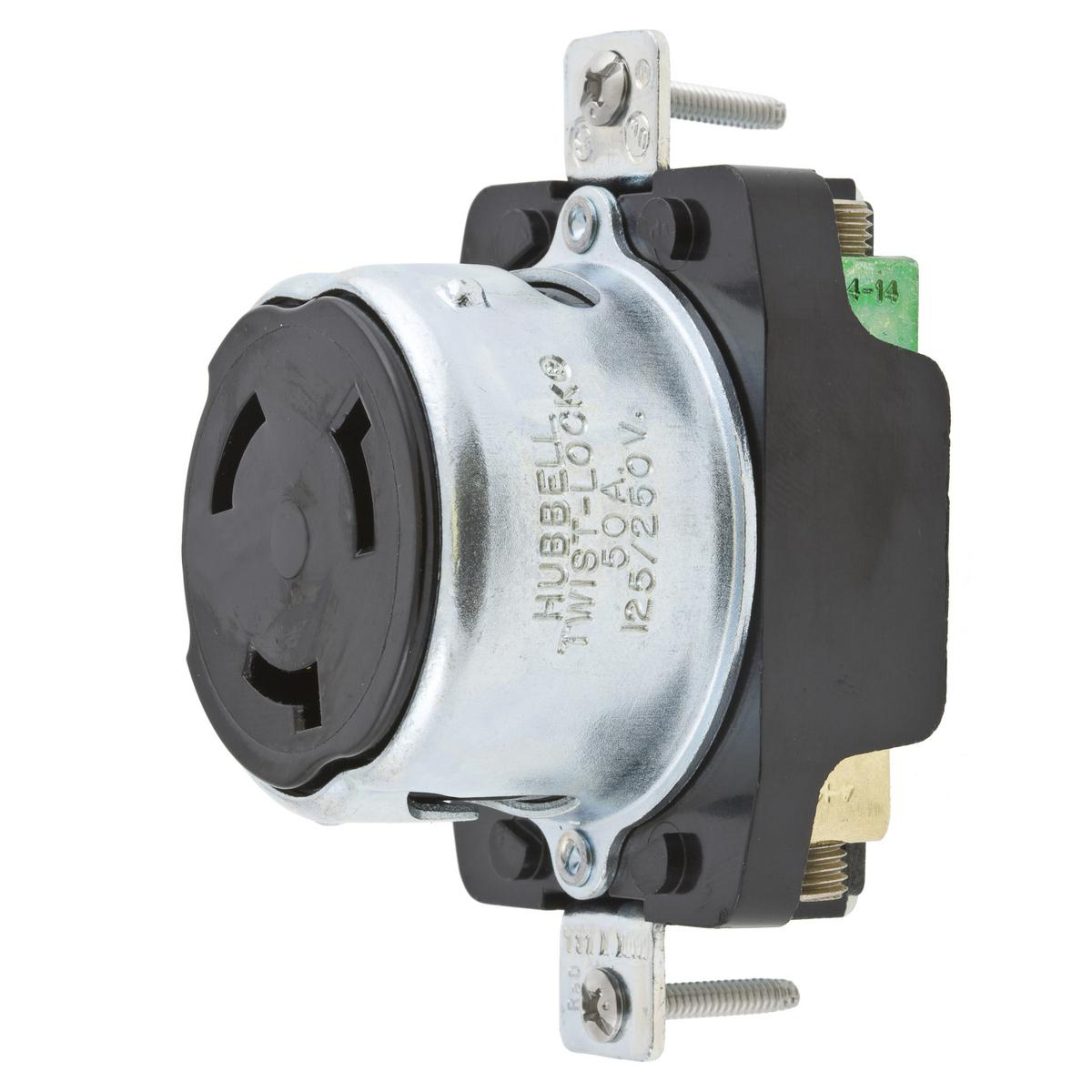

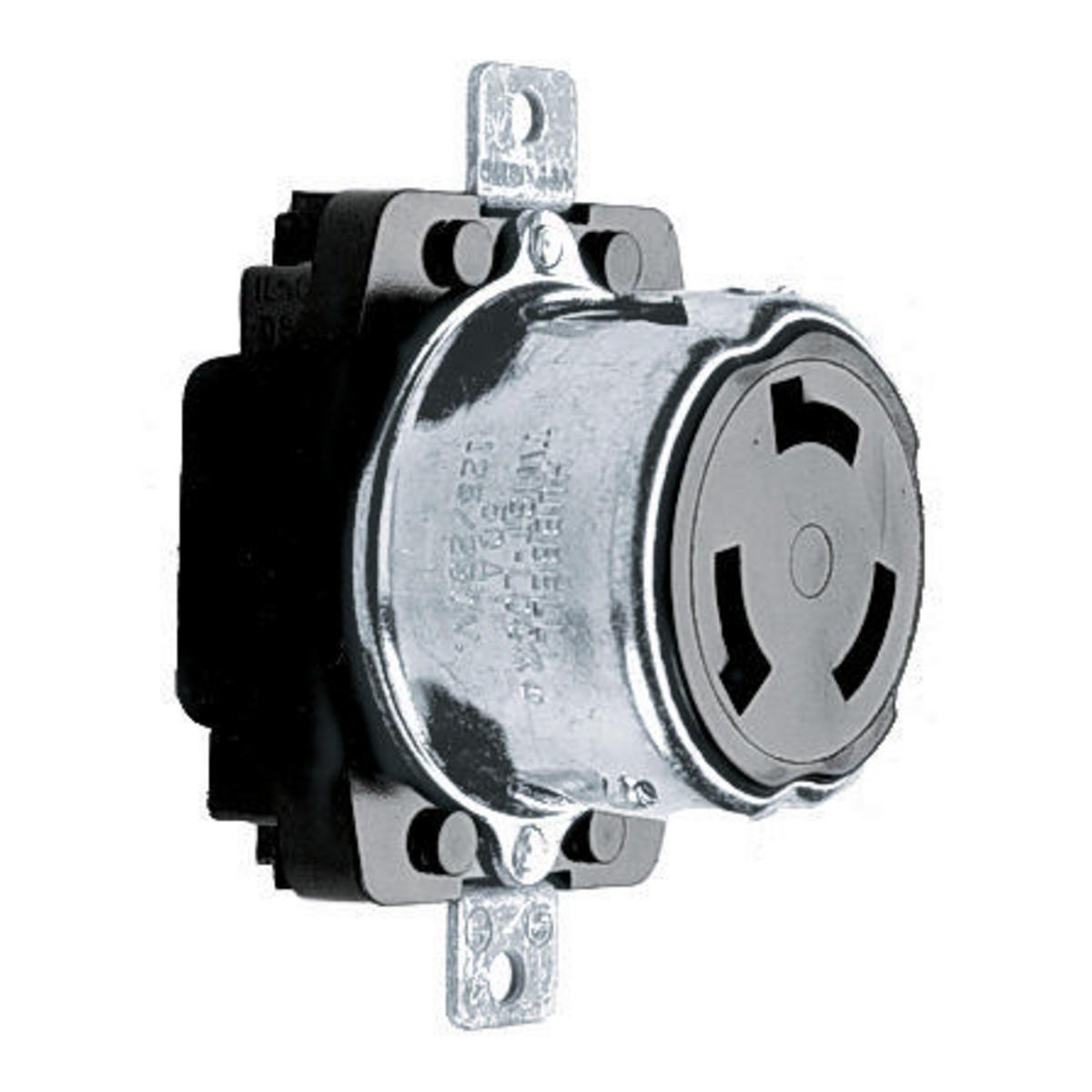

Receptacle marine outlet twlo 50A 125/250Vnickel

Manufacturer: Hubbell Wiring Devices | Catalog # HBL63CM69 | Electrozad South Part # 10394
$245.71 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL P WARRANTY URL
TwistLock receptacle outlet female with screw door, Marine Grade, 3 pole, 4 wires, 50Amp, 125/250 volts Grounding, Non-NEMA, Screw Terminal, Galvanized nickel finish

Technical Information

Amperage
50 A
Applications
Marine Wiring Devices
Conductor Size
6 AWG
Current
50 A
Grade
Marine
Grounding
Grounding
Material
Thermoplastic/Composite
Mounting Type
Screw, Surface, External
Number of Phases
1
Number of Poles
3
Number of Wires
4
Rating
125/250 V
Size
Standard Sized Product
Standard
UL
TC Connection
Screw Terminals
Type
Single Receptacle
Voltage
125/250 V
Wattage
12500 W
Wire Count
4
Wire Size
6 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585808741
Color
Yellow
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTIN
00783585808741
Product UPC
78358580874
Weight
0.85 lb

Dimensions

Height
2.5 in
Length
8.900 in
Width
4.5 in

Certifications & Compliance

Country of Origin
USA
