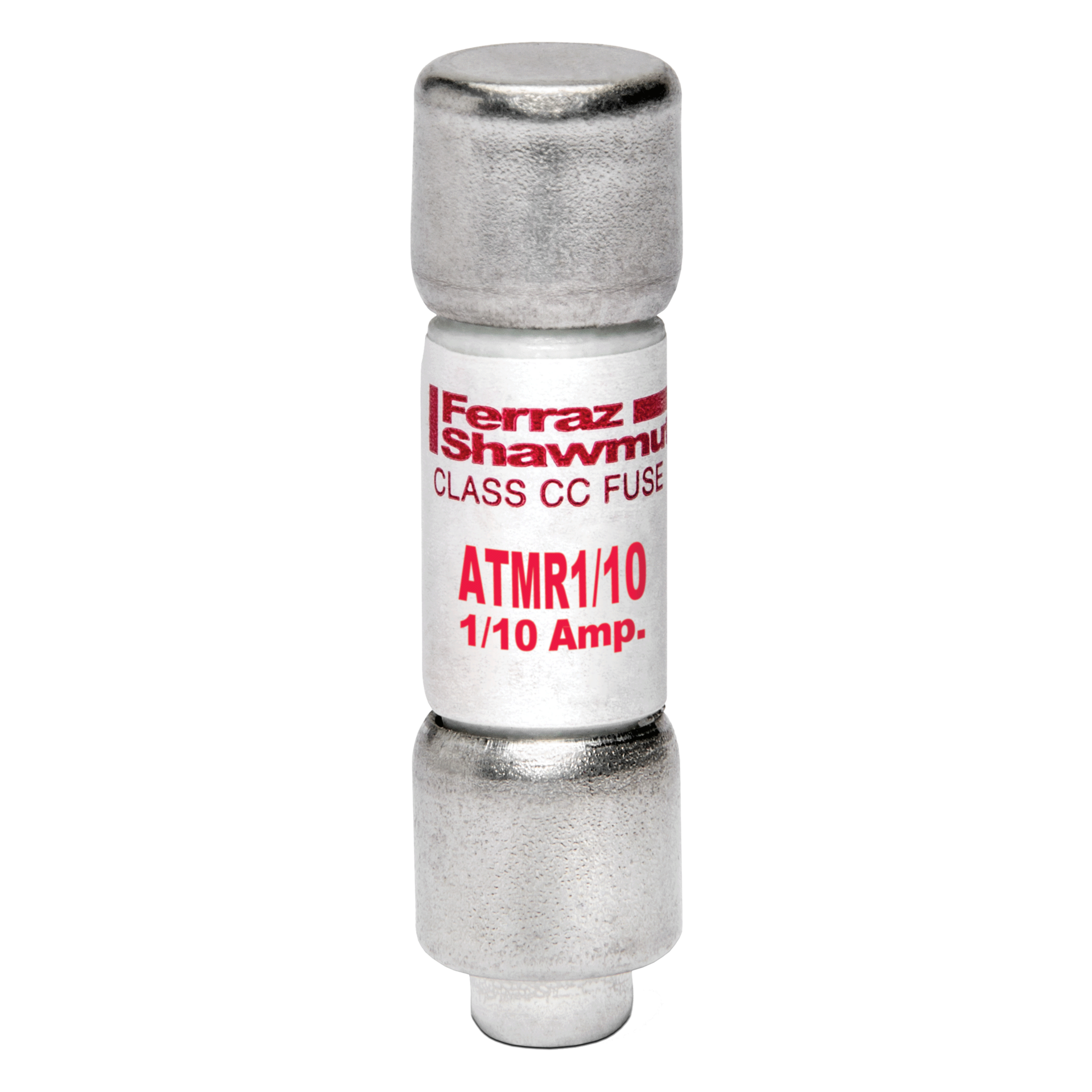

Product image for Fuse ATMR - Class CC - Fast-Acting 600VAC 600VDC 0.1A Ferrule Amp-Trap®
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Fuse ATMR - Class CC - Fast-Acting 600VAC 600VDC 0.1A Ferrule Amp-Trap®

Manufacturer: Ferraz Shawmut Mersen | Catalog # ATMR1/10 | Electrozad South Part # 10408
$11.10 /ea
ea
Log in or register to view your price, purchase history, and more!
12 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet
Amp-Trap ATMR fast-acting fuses are the smallest dimension 600V fuses suitable for branch-circuit protection. The ATMR is a popular choice for economical protection of control circuits and control circuit transformers where available short circuit currents exceed 10,000 amperes. ATMR's rejection dimensions prevent substitution by lesser rated fuses. These fast-acting fuses give current-limiting protection to general circuits.

Technical Information

Amperage
0.1 A
Applications
Control Circuits, Lighting, General Loads, Branch Circuit Protection
Connection Type
Ferrule
Frequency
50/60 Hz
Fuse Class
Class CC
Insulation Material
GMG
Interrupt Rating
200 kA at 600 VAC, 100 kA at 600 VDC
Mounting Type
Clip
Rated Voltage AC
600 V
Rated Voltage DC
600 V
TC Connection
Ferrule
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
North American, Fast-Acting

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut
Sub Brand
Amp-Trap®

General Product Info

12-Digit UPC
782001903367
Class
CC
Construction
Fiberglass
GTIN
30782001903368
Product UPC
78200190336
Weight
0.017 lb

Dimensions

Diameter
0.41 in
Length
1.5 in
