GB26

Manufacturer: Burndy | Catalog # GB26 | Electrozad South Part # 10761
$53.39 /ea
pc
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Brochure D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL

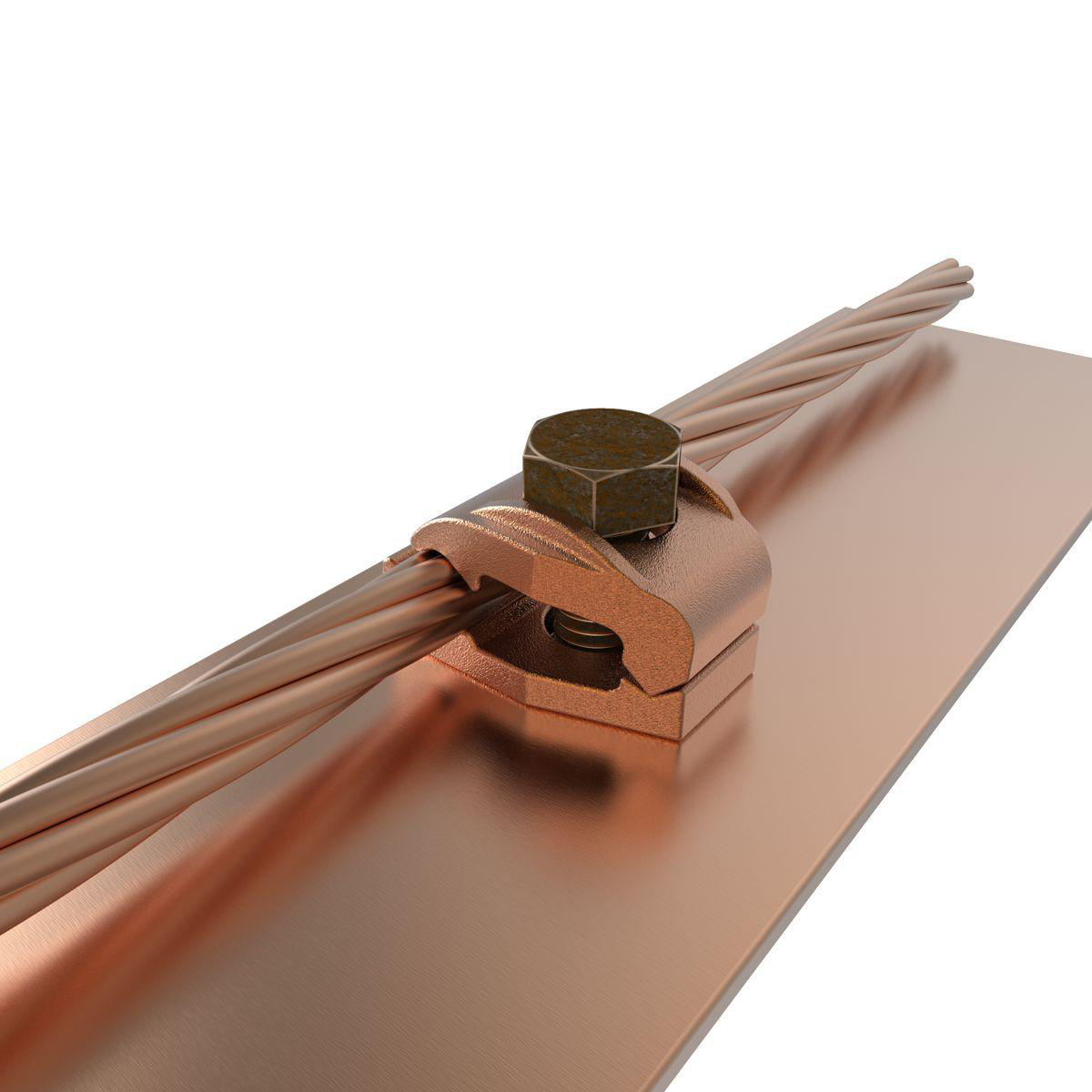

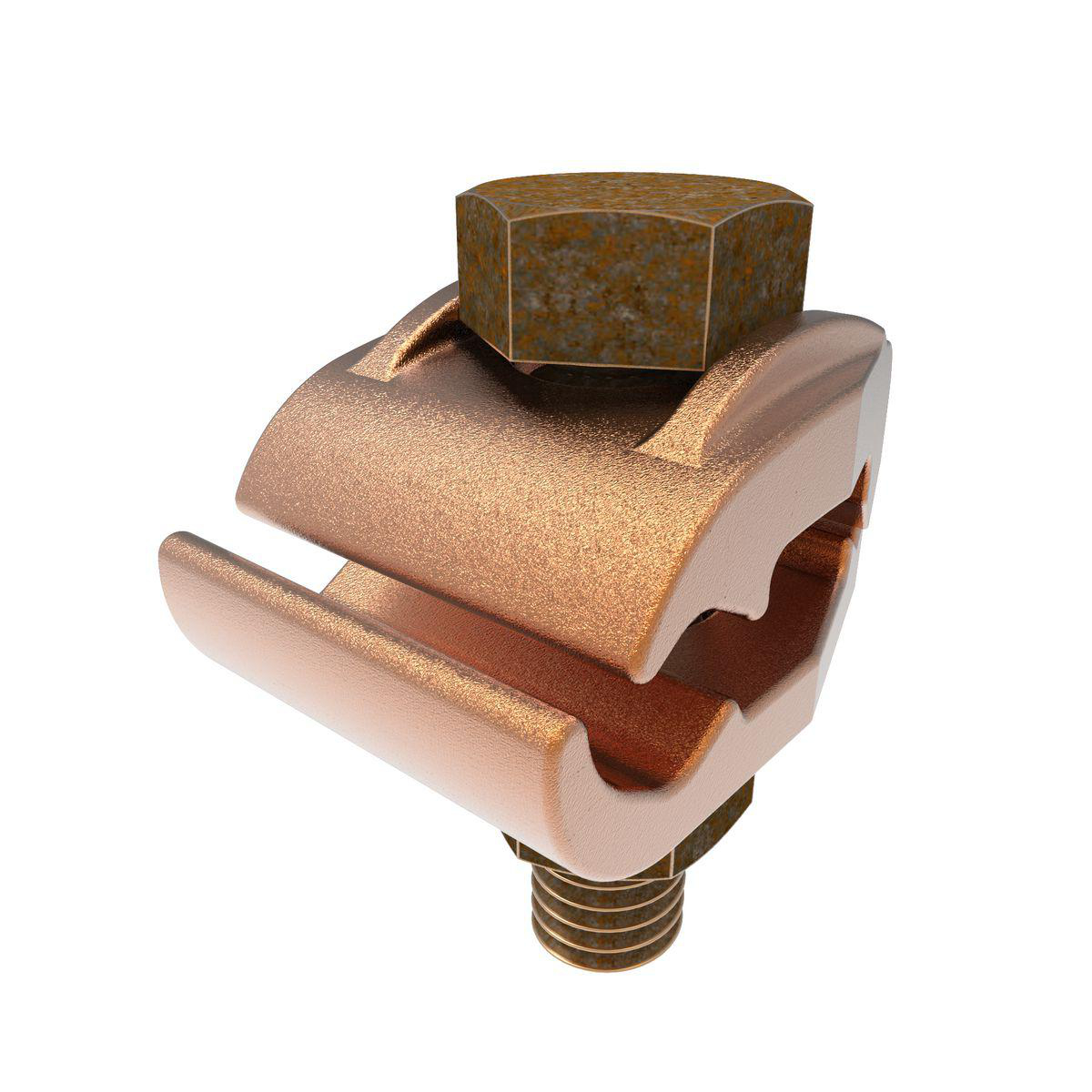

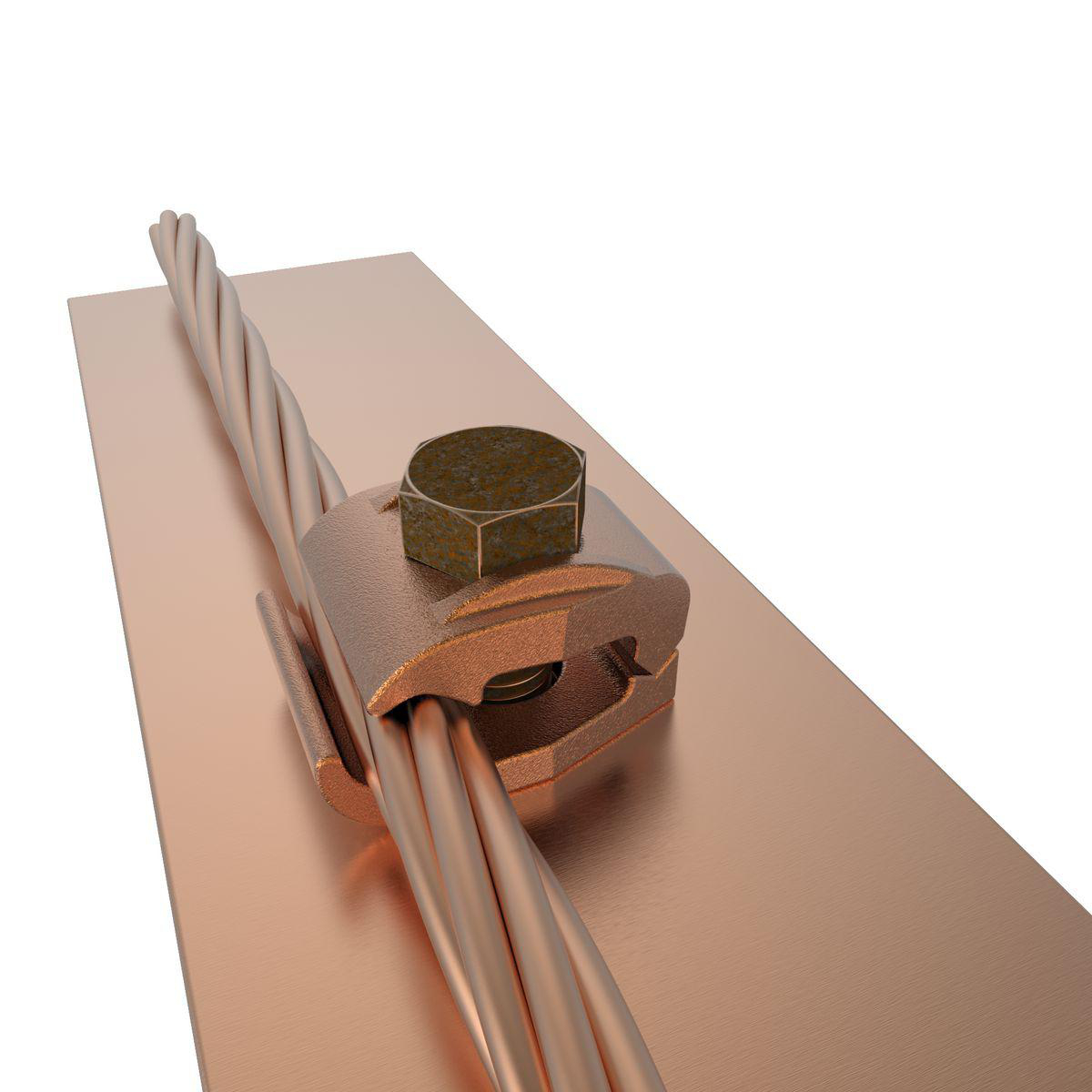

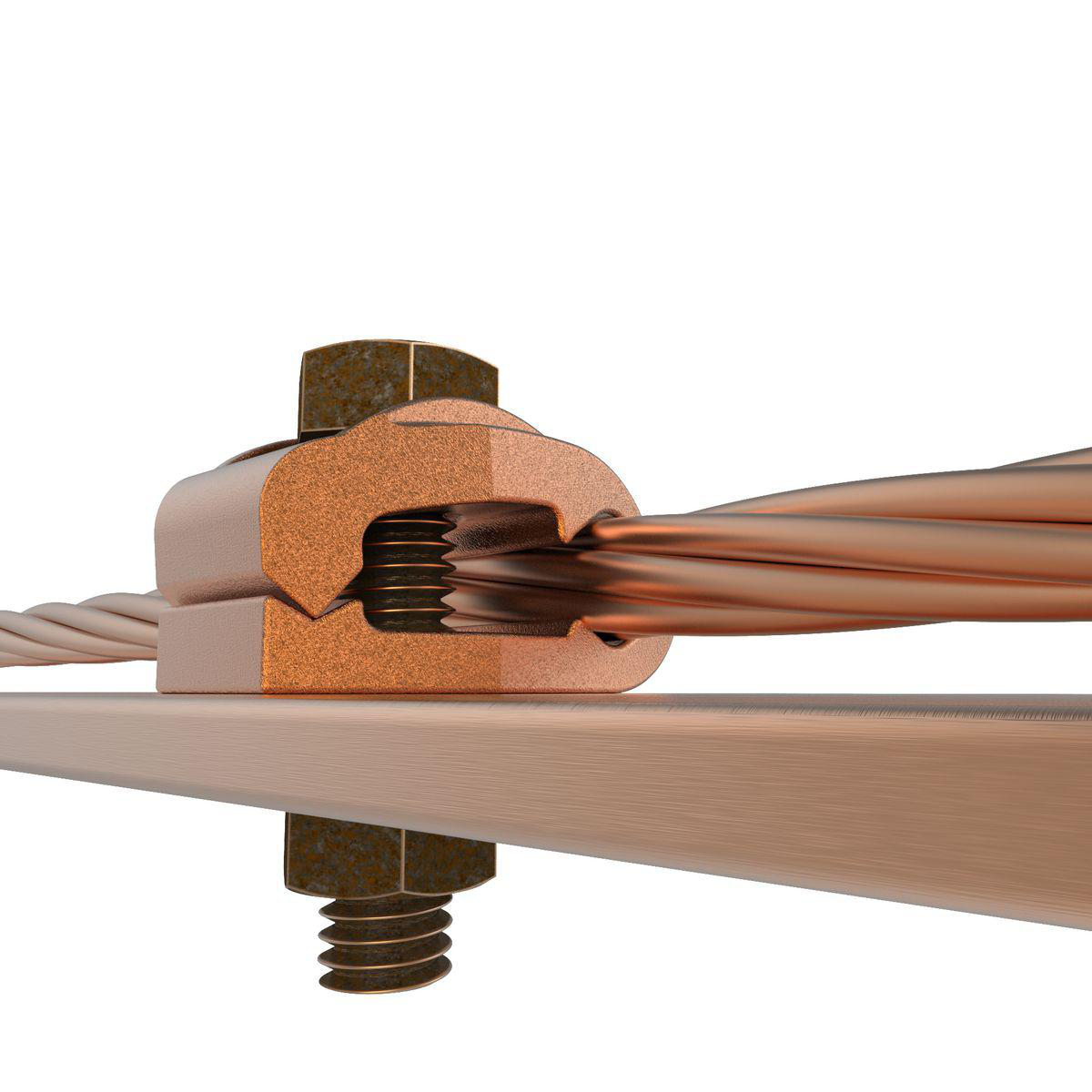

Mechanical Grounding Connector, Cable to 1/4" Thick Bar, 4 AWG (Sol)-2/0 AWG (Str), 3/8" Stud, Silicon Bronze Hardware.

Technical Information

Applications
For Copper Cable to Bar, Direct Burial Cable
Bolt Size
3/8 in
Conductor Size
4 AWG Solid, 2/0 AWG Stranded
Direct Burial?
Yes
Material
High Copper Alloy
Mounting Type
3/8 in
Plated?
No
Plating Type
Unplated
Type
Mechanical

Manufacturer Information

Brand
Burndy
Sub Brand
Burndy Canada

General Product Info

12-Digit UPC
781810231210
GTIN
00781810231210
Product UPC
78181023121

Dimensions

Height
1.74 in
Length
0.94 in
Overall Length
0.94 in
Width
1.350 in

Certifications & Compliance

Country of Origin
Mexico
CSA
