PANDUIT HSTT200-48-5 HEATSHRINK 2"ID 48"

Manufacturer: Panduit | Catalog # HSTT200-48-5 | Electrozad South Part # 11228
$47.87 /ea
ea
Log in or register to view your price, purchase history, and more!
2 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet MDM SAFETY DATA SHEET Installation / Instruction Manual MSDS | SDS Safety Sheet

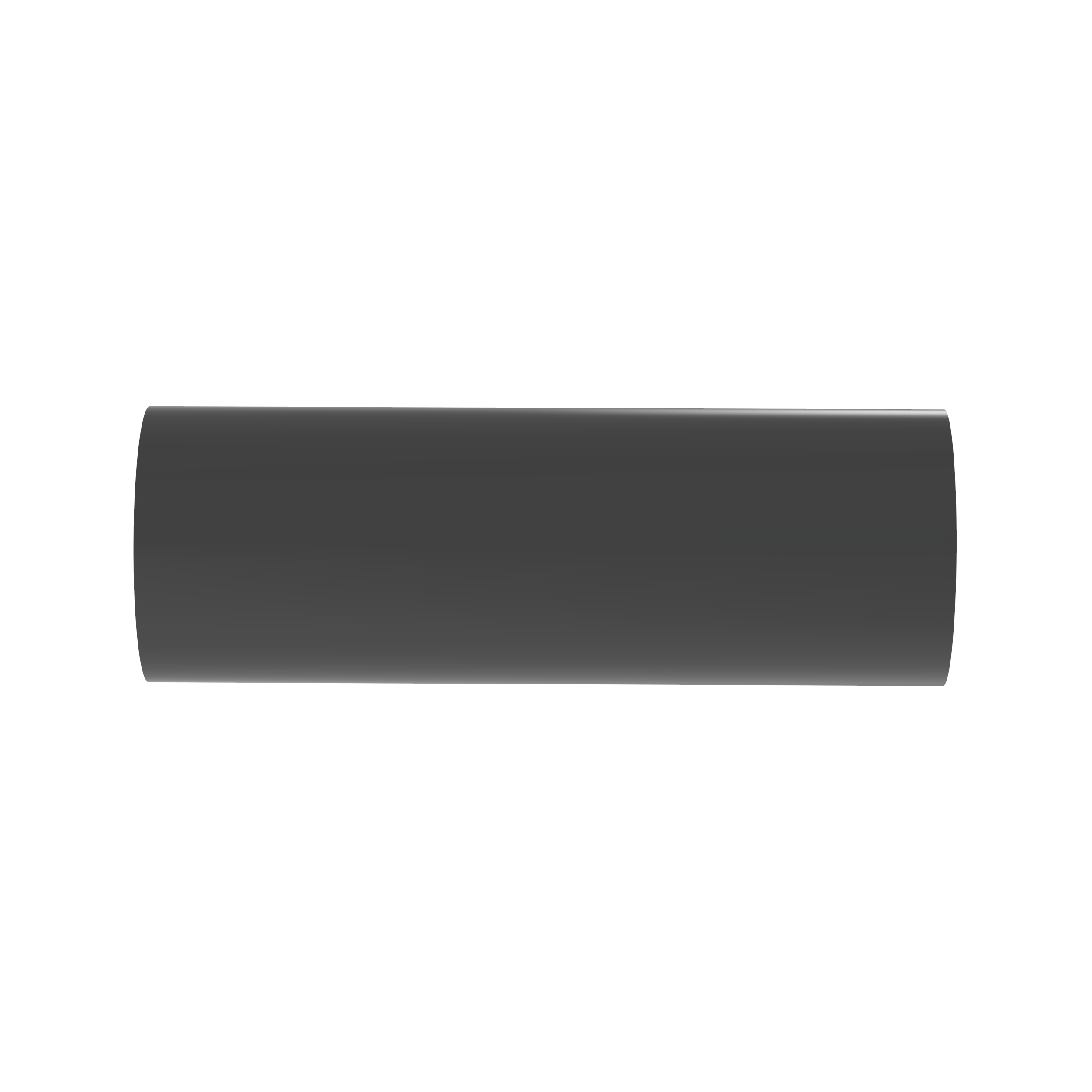

The HSTT200-48-5 Thin Wall Heat Shrink Tubing shrinks around wires, connectors, joints, and terminals when heated to protect against abrasion. Applications include insulating and protecting wires/cables in indoor, dry locations. Shrink ratio: 2:1. Temperature range: -67°F to 275°F (-55°C to 135°C). Flame retardant, cross-linked polyolefin. 2.00” Diameter x 4’ Long (50.8 mm x 1.2 m). Color Black. 5 per package.

Technical Information

Applications
For Dry Locations
Material
Polyolefin
Max Operating Temperature
135 degrees C
Minimum Operating Temperature
-55 degrees C
Shrink Ratio
2:1
Standard
Yes
Type
Flame Retardant

Packaging

Package Qty
5

Manufacturer Information

Brand
Panduit
Sub Brand
Dry-Shrink

General Product Info

12-Digit UPC
074983905973
Color
Black
GTiN
00074983905973
Product UPC
07498390597

Dimensions

Inside Diameter
25.4 mm
Outside Diameter
50.8 mm
Overall Length
4 ft
Thickness
1.1 mm

Certifications & Compliance

Country of Origin
China
