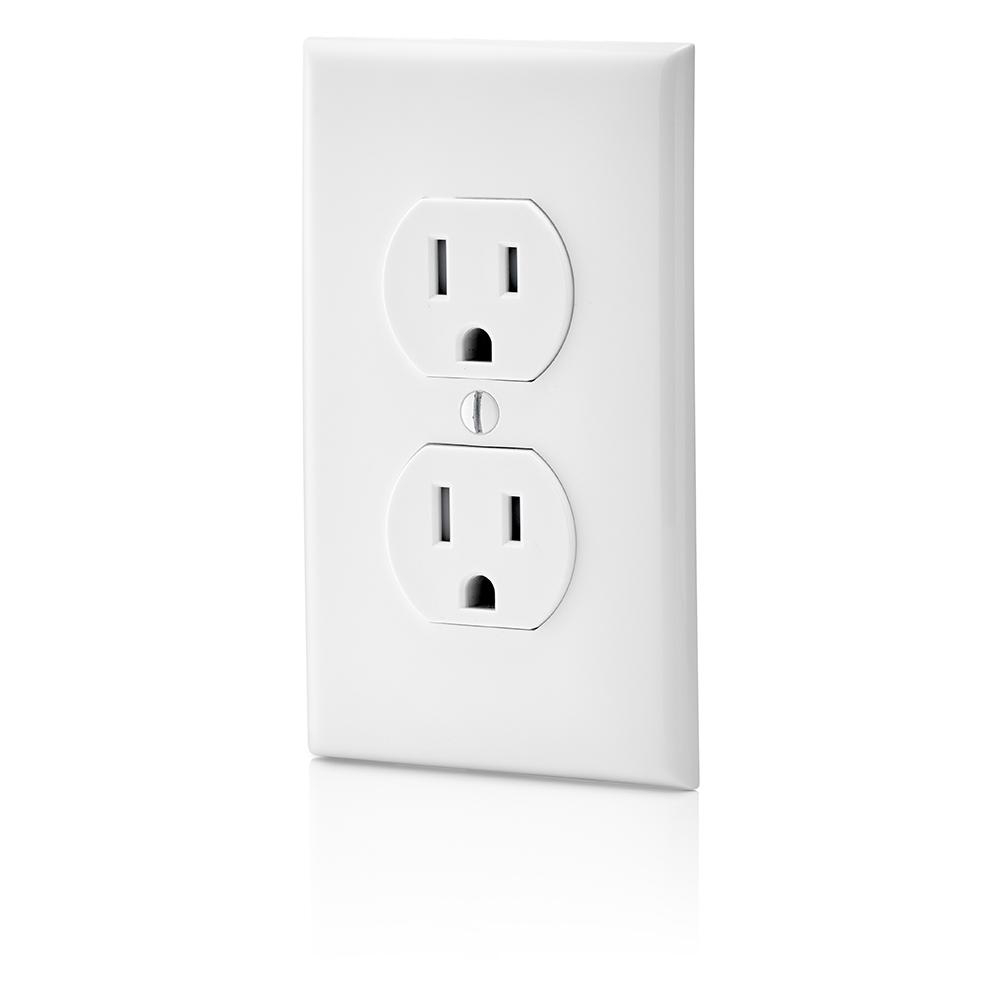

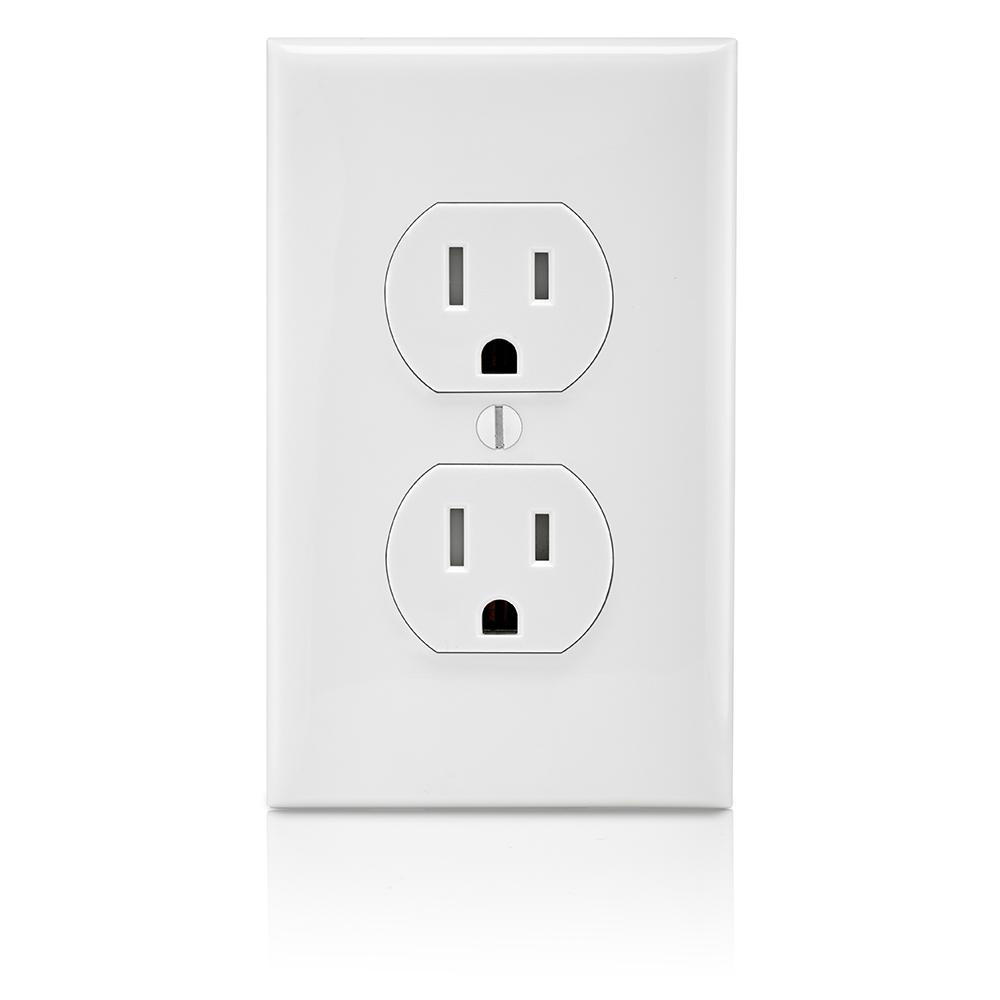

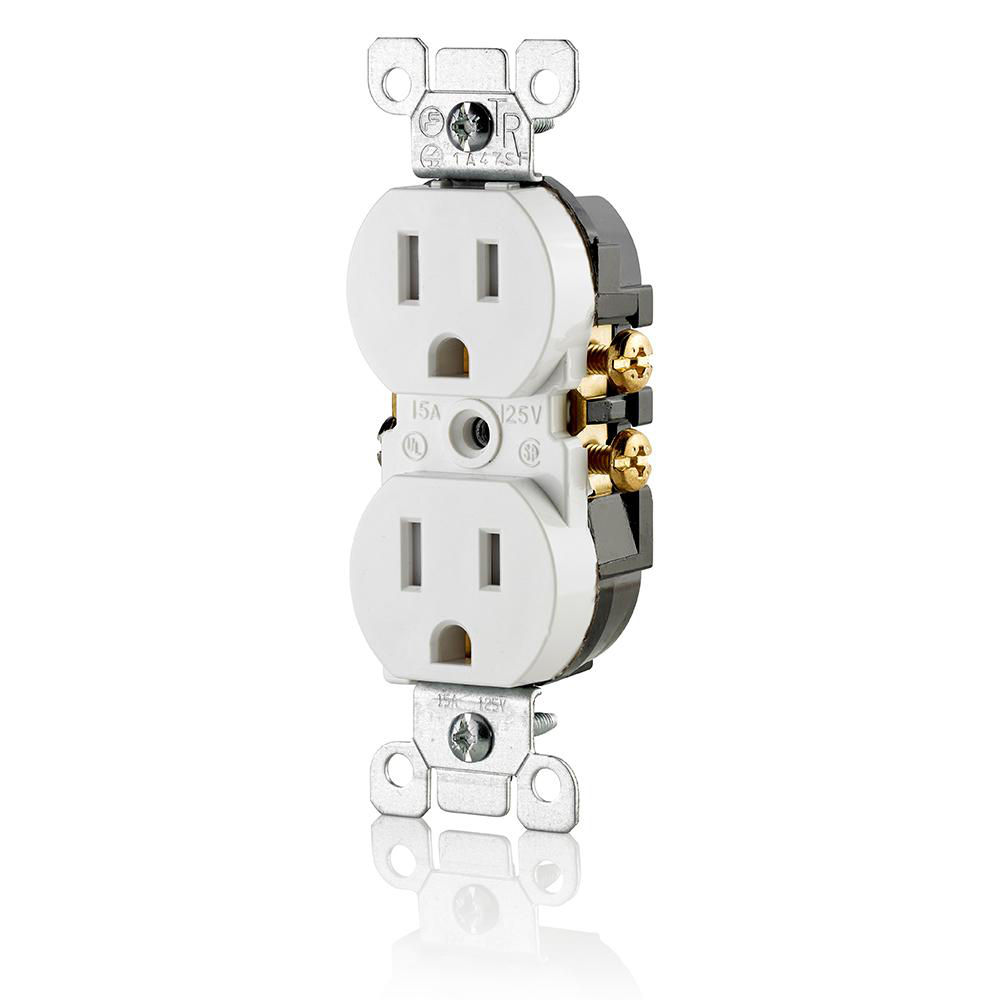

LEVITON T5320-W RECEPTACLE 15A 125V TR TAMPER RESISTANT DUPLEX WHITE

Manufacturer: Leviton Manufacturing | Catalog # T5320-W | Electrozad South Part # 121644
$1.70 /ea
ea
Log in or register to view your price, purchase history, and more!
148 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet MDM SAFETY DATA SHEET Installation / Instruction Manual MSDS | SDS Safety Sheet
15 Amp, 125 Volt, NEMA: 5-15R, Pole: 2, 3-Wire, Tamper-Resistant, Duplex Receptacle, Straight Blade, Grounding, Quickwire Push-In & Side, Color: White.

Technical Information

Amperage
15 A
Applications
For Residential use
Device Type
Duplex Receptacle
Grade
Residential
Grounding
Grounding
Material
Thermoplastic
Mounting Type
Screw, Flush
NEMA
5-15R
Number of Poles
2
Number of Wires
3
Standard
CSA,UL
Style
Straight Blade
Termination Type
Quickwire Push-In,Slide Wire
Torque
14 lb-in
Type
Tamper-Resistant, 2-Outlet, 1-Unit
Voltage
125 V
Wire Count
3

Manufacturer Information

Brand
Leviton
Sub Brand
TAMPER RESISTANT RESIDENTIAL

General Product Info

12-Digit UPC
078477381618
Color
White
GTiN
00078477381618
Product UPC
07847738161
Used With
Straight Blade Device

Dimensions

Height
4.2 in
Length
1.31 in
Warranty Length
2 yr
Width
0.98 in

Certifications & Compliance

Country of Origin
USA
