Pan-Lug™ LCA10-10-L Comp. Lug, 10, Tin Plt Copper, Strt, One #10 Stud, PK50

Manufacturer: Panduit | Catalog # LCA10-10-L | Electrozad South Part # 121734
$103.42 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL

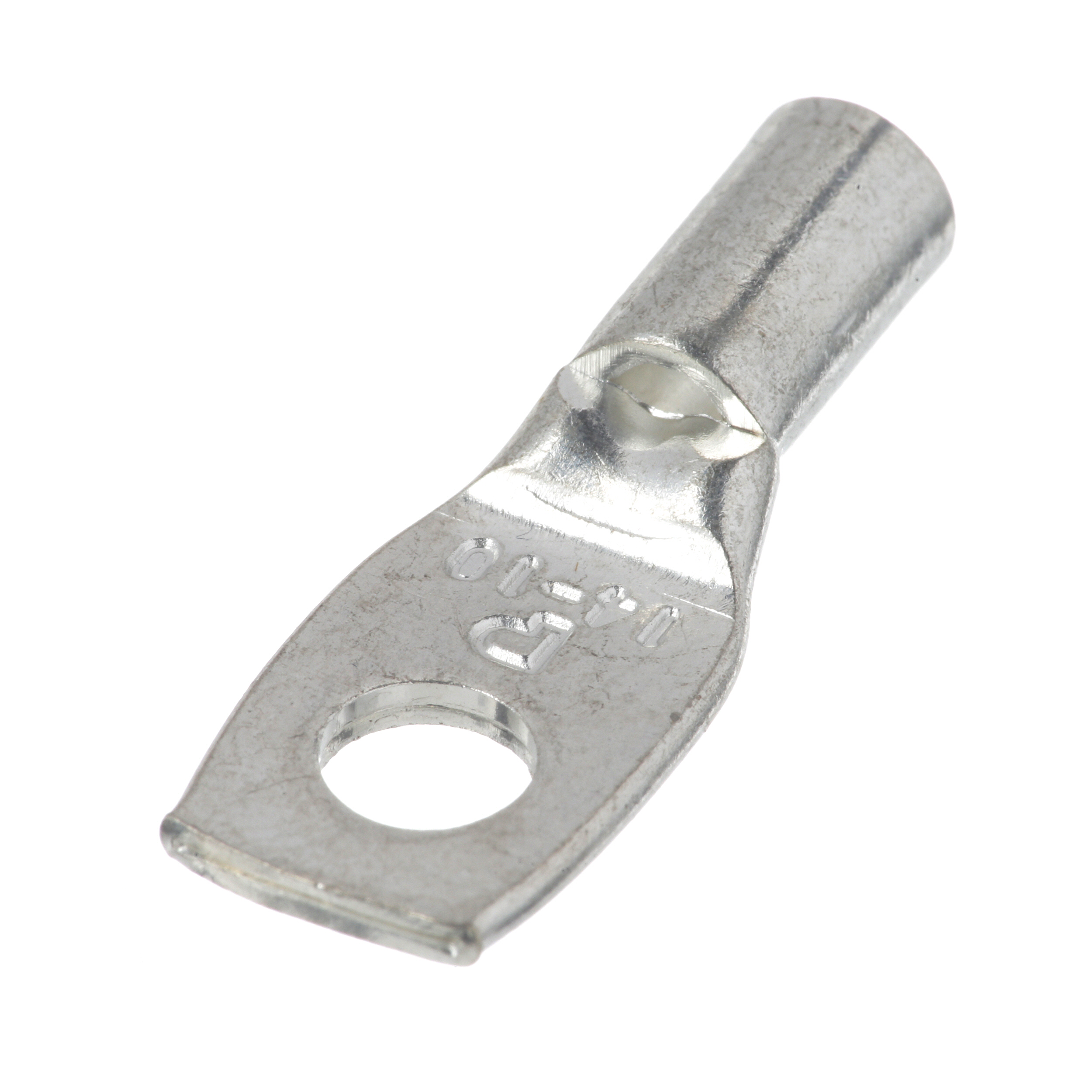

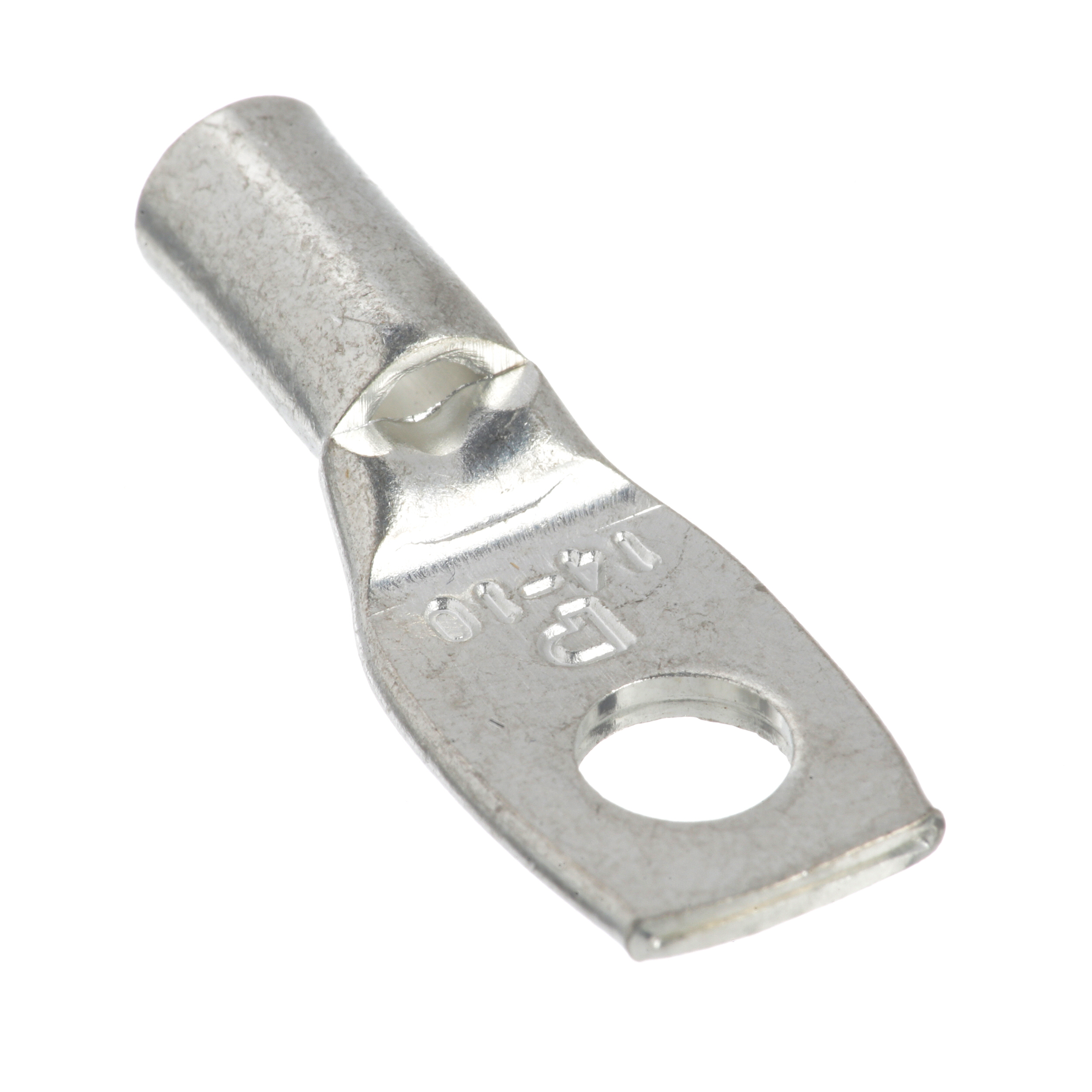

The LCA10-10-L Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90..C.

Technical Information

Angle
Straight
Barrel Length
0.38 in
Barrel Type
Standard
Cable Size
AWG
Material
High Conductivity Copper Alloy
Number of Holes
1
Size
#14 #10 AWG Code STR
Stud Size
10 in
Tongue Thickness
0.06 in
Tongue Type
Standard
Tongue Width
0.38 in
Type
Preterminated Copper Trunk, Category 6

Packaging

Package Qty
50

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983972043
GTIN
00074983972043
Product UPC
07498397204

Dimensions

Outer Diameter
0.22 in
Overall Length
1.07 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
