YGHC29C29

Manufacturer: Burndy | Catalog # YGHC29C29 | Electrozad South Part # 12337
$35.01 /ea
pc
Log in or register to view your price, purchase history, and more!
96 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Brochure D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL

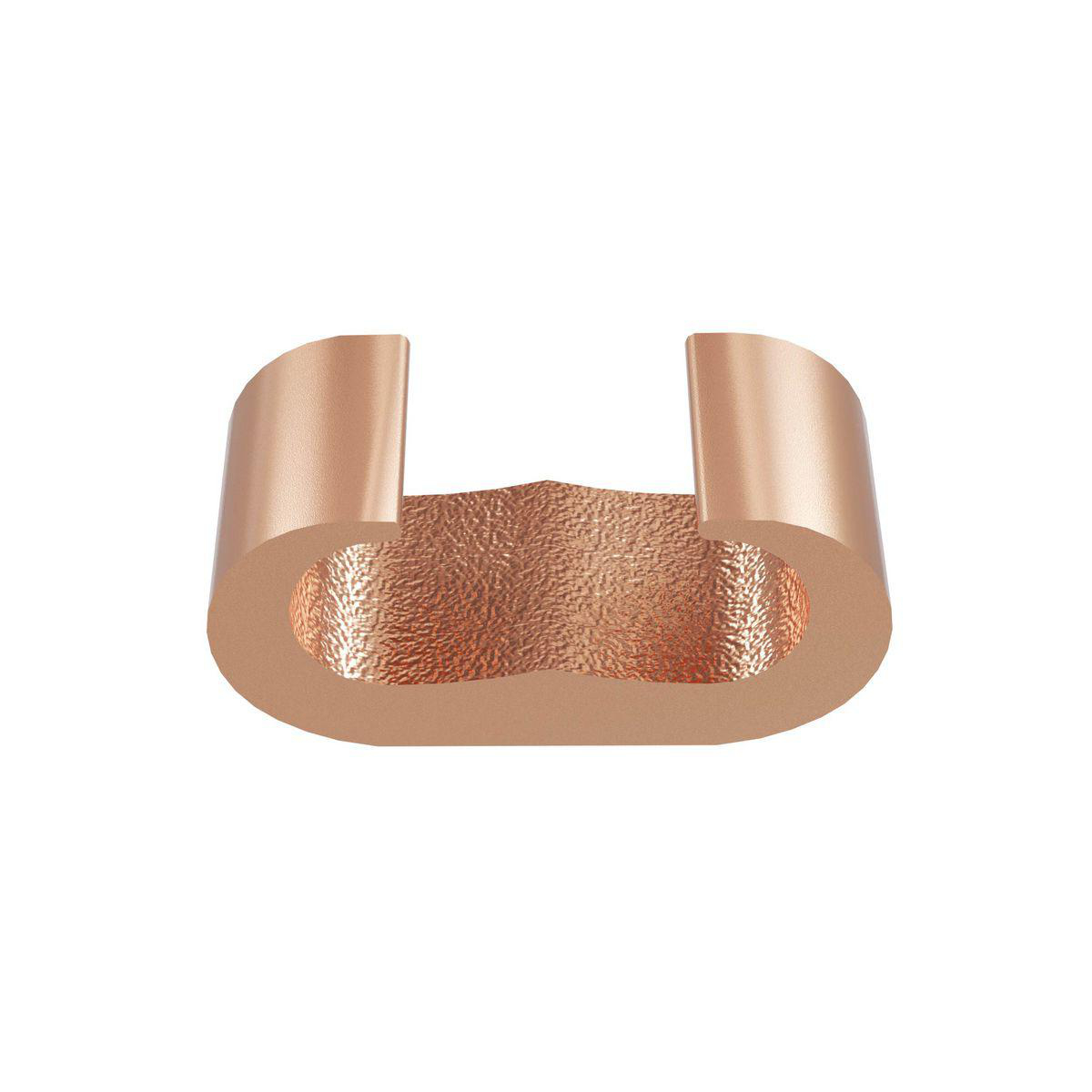

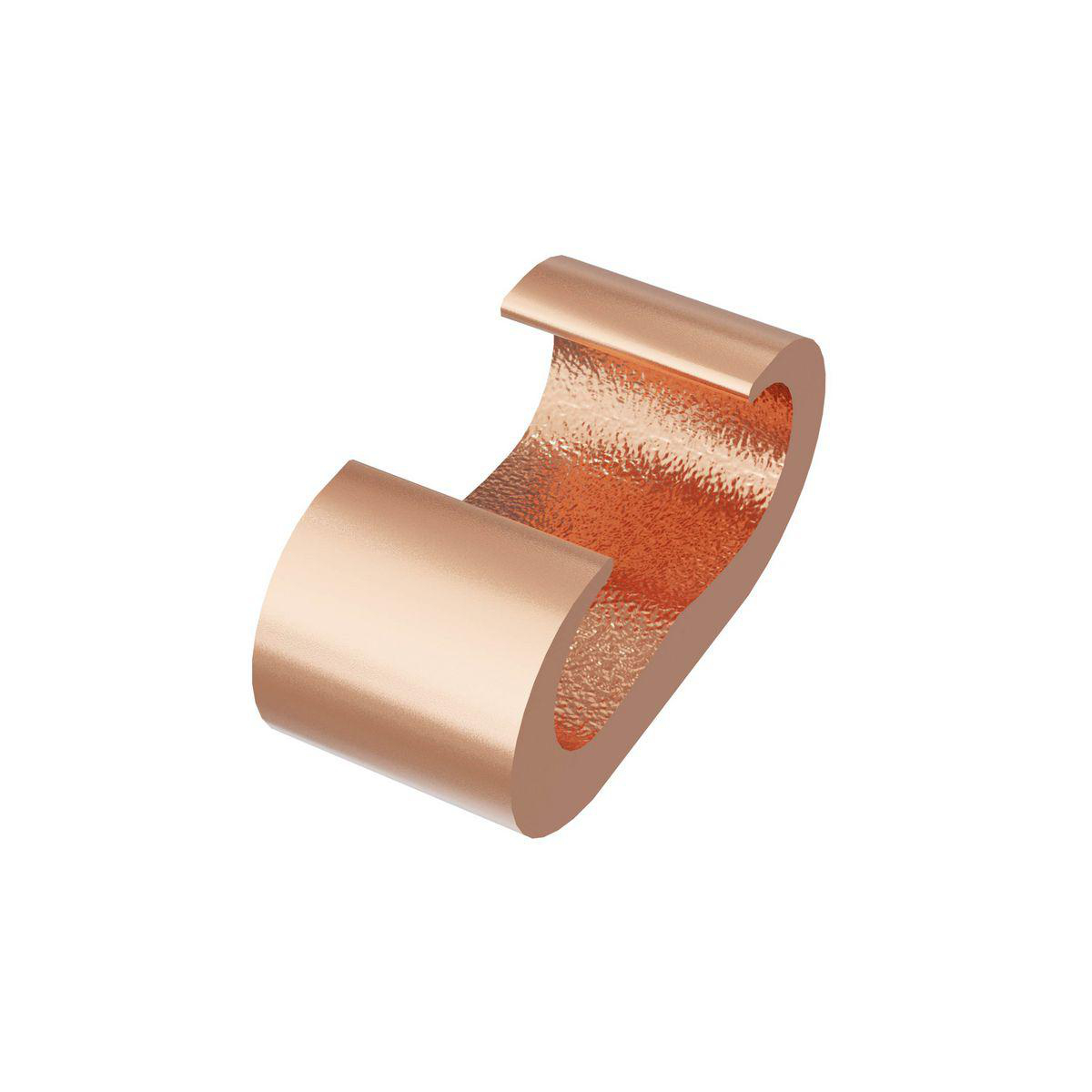

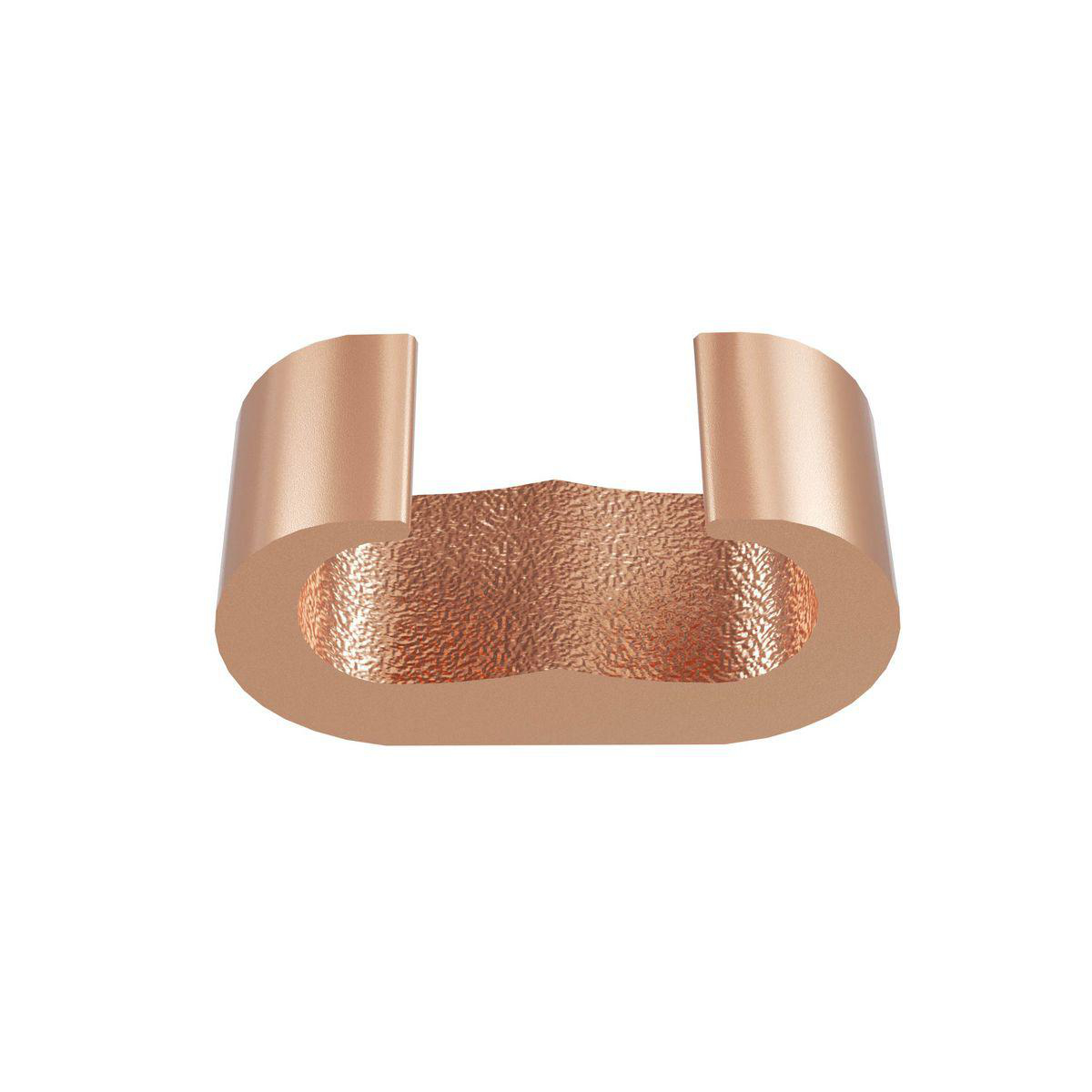

Copper Compression C Connector, 3/0 AWG(Str) - 250 kcmil, 1/2" or 5/8" Rod (Run) & 3/0 AWG(Str) - 250 kcmil (Tap).

Technical Information

Applications
Direct Burial Cables
Conductor Size
Run: 3/0 AWG, 250 KCMIL, 95, 120 MM
Connection Type
Tap
Material
Copper
Plated?
No
Plating Type
Unplated
Size
2.06 IN Height X 0.88 IN Length
Tap Size
2/0, 6 AWG, 95, 120 MM
Type
YGHC-C

Manufacturer Information

Brand
Burndy
Sub Brand
Hyground®, Hytap™

General Product Info

12-Digit UPC
781810221051
GTIN
00781810221051
Product UPC
78181022105

Dimensions

Height
2.06 in
Length
0.88 in
Overall Length
0.88 in
Width
0.88 in

Certifications & Compliance

Country of Origin
USA
CSA
Yes
