LOW PEAK DUAL ELEMENT

Manufacturer: Bussman Cooper Fuses | Catalog # LPN-RK-100SP | Electrozad South Part # 12504
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet Product Brochure H TECHNICAL DRAWING URL

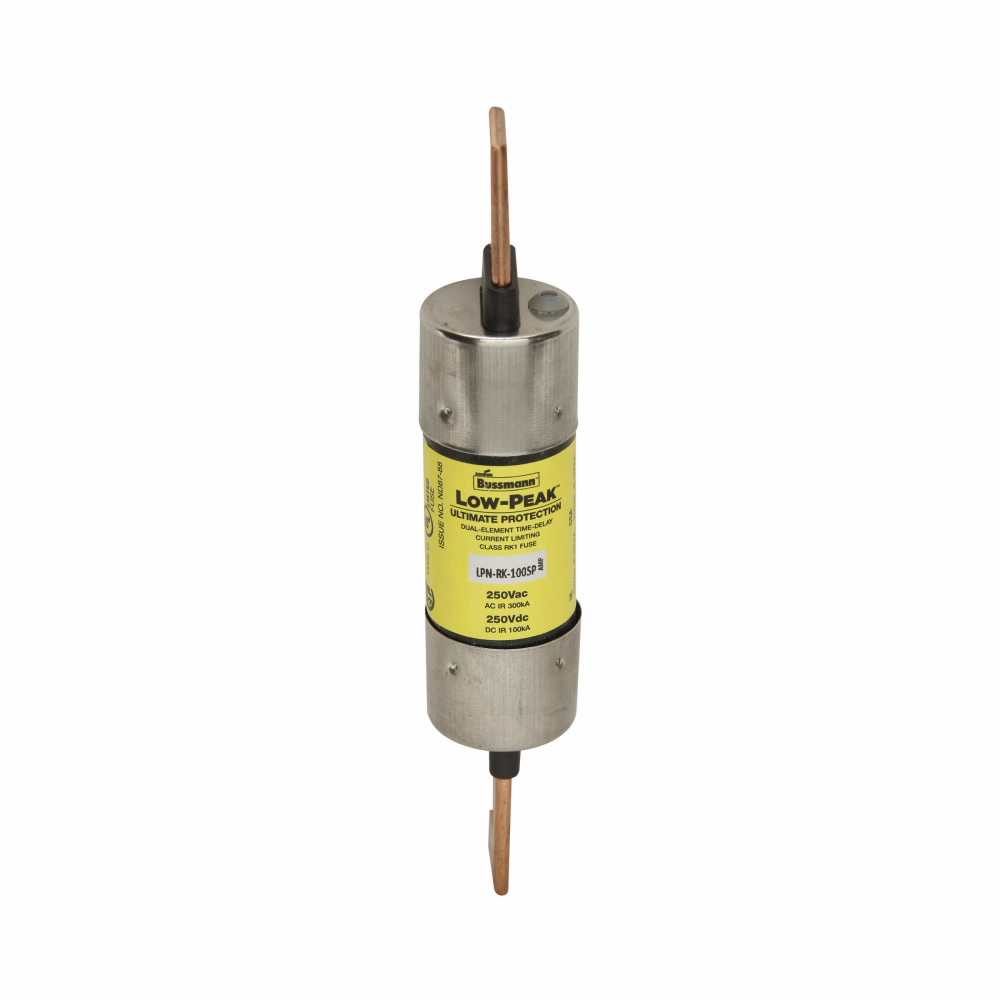

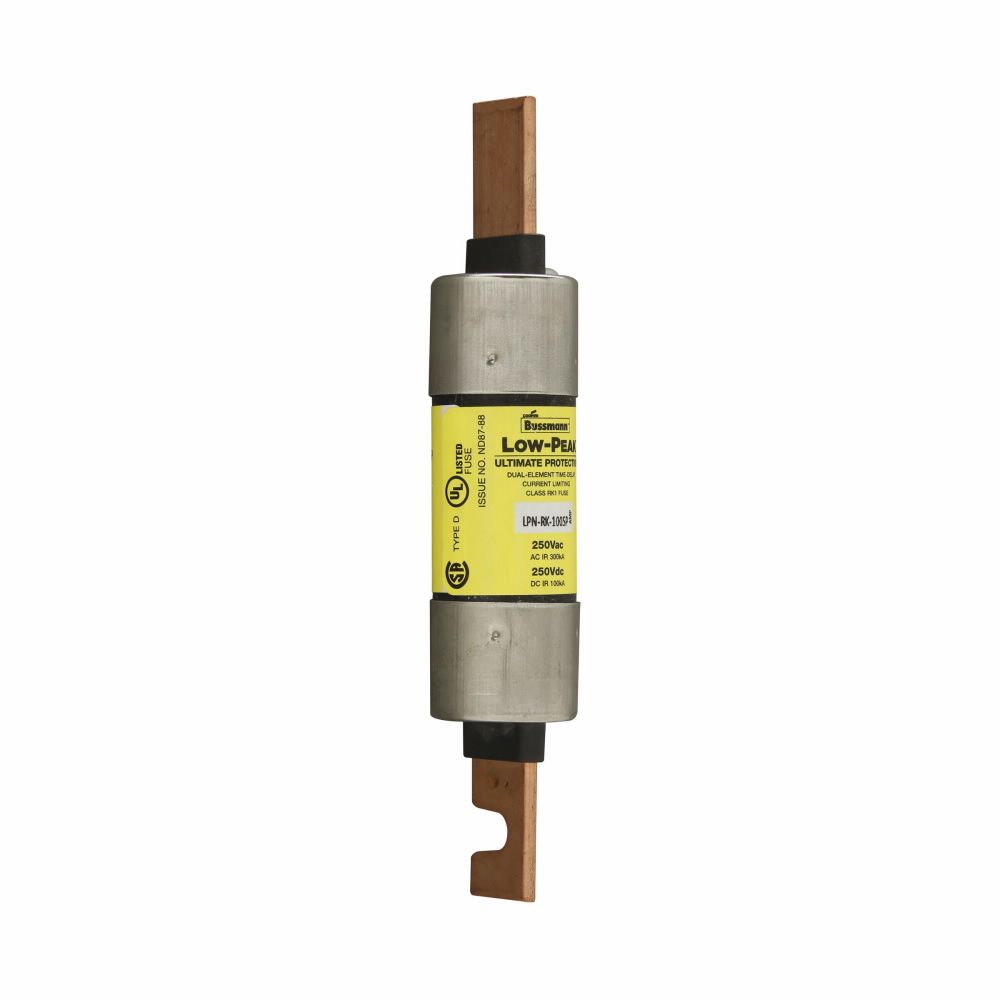

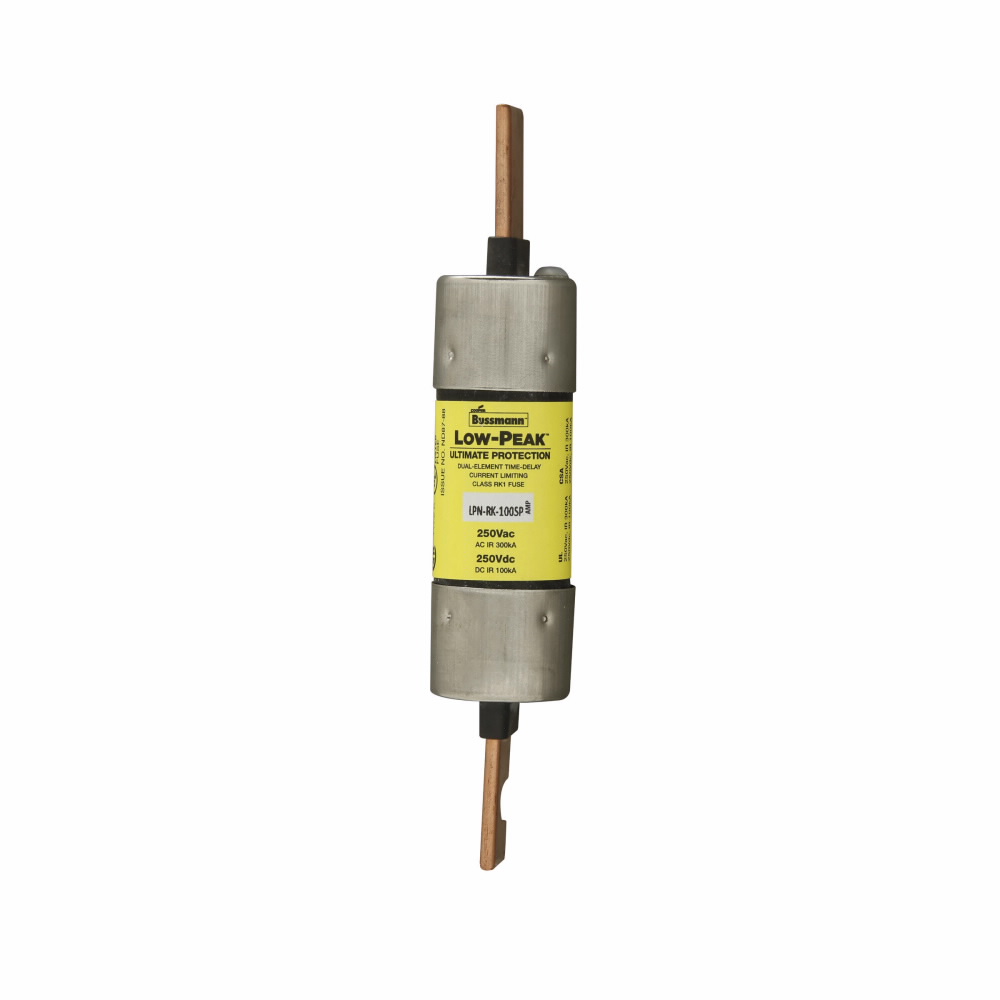

Eaton Bussmann Series Class RK1 fuse, LPN-RK, time-delay, dual-element, current limiting fuse, 100 A, non-indicating fuse, interrupting rating of 300 kA at 250 Vac and 100 kA at 125 Vdc

Technical Information

Amperage
100 A
Applications
Large Distribution Switchboards, Power Panelboards, Motor Control Centers, Machinery Disconnect Switches
Connection Type
Blade
Element
Dual
End Type
Blade
Interrupt Rating
100 kA
Response Time
10 seconds at 500%
Size
1.11 In Diameter X 5.88 In Length
Standard
CE,CSA C22.2,UL
TC Connection
Blade End X Blade End
Type
Current Limiting,Time-Delay
Voltage
250 V

Manufacturer Information

Brand
Bussmann
Sub Brand
Low-Peak

General Product Info

12-Digit UPC
051712538459
Class
Class RK1
GTIN
00051712538459
Product UPC
51712538459
Weight
1.5 lb

Dimensions

Diameter
1.11 in
Height
1.1 in
Length
5.88 in
