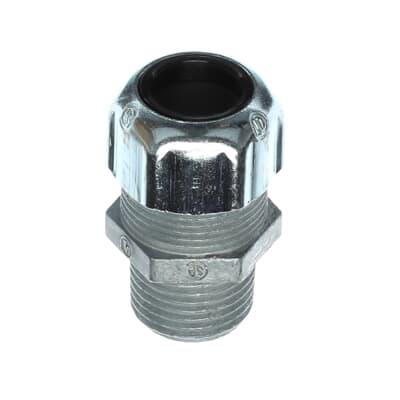

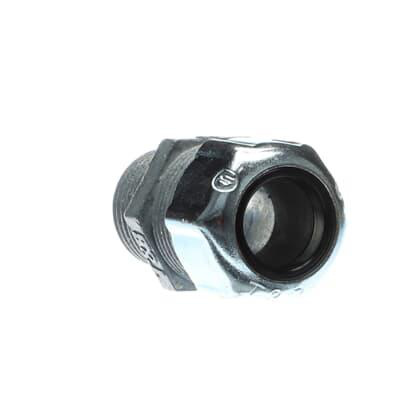

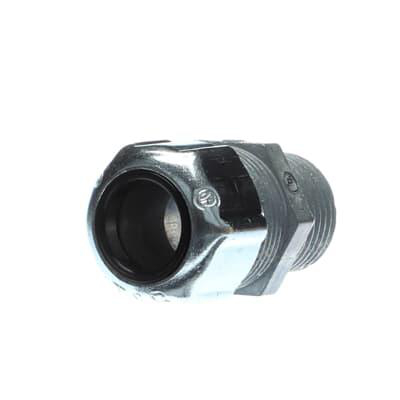

Connector strain relf lqdtght 1/2in 0.45-0.56in

Manufacturer: ABB | Thomas & Betts | Catalog # 2523 | Electrozad South Part # 12805
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL
Liquidtight strain relief fitting is used for industrial flexible cord and cables, provides adequate strain relief. Neoprene bushing makes liquidtight installation, applies pressure against cable the full length of bushing.

Technical Information

Applications
Suitable for use in Hazardous Locations where General Purpose Equipment is Specifically Permitted by NEC 501-4(B)
Material
Die-Cast Zinc
Operating Temperature
0 To 105 degrees C
Size
1/2 Inch
TC Connection
NPT
Temperature Rating
105 degrees C
Thread Length
15.8 mm
Thread Type
NPT
Trade Size
1/2 in
Type
Straight

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
786210025230
Box Quantity
100
Color
Metallic
GTIN
05414363101611
Product UPC
78621002523
