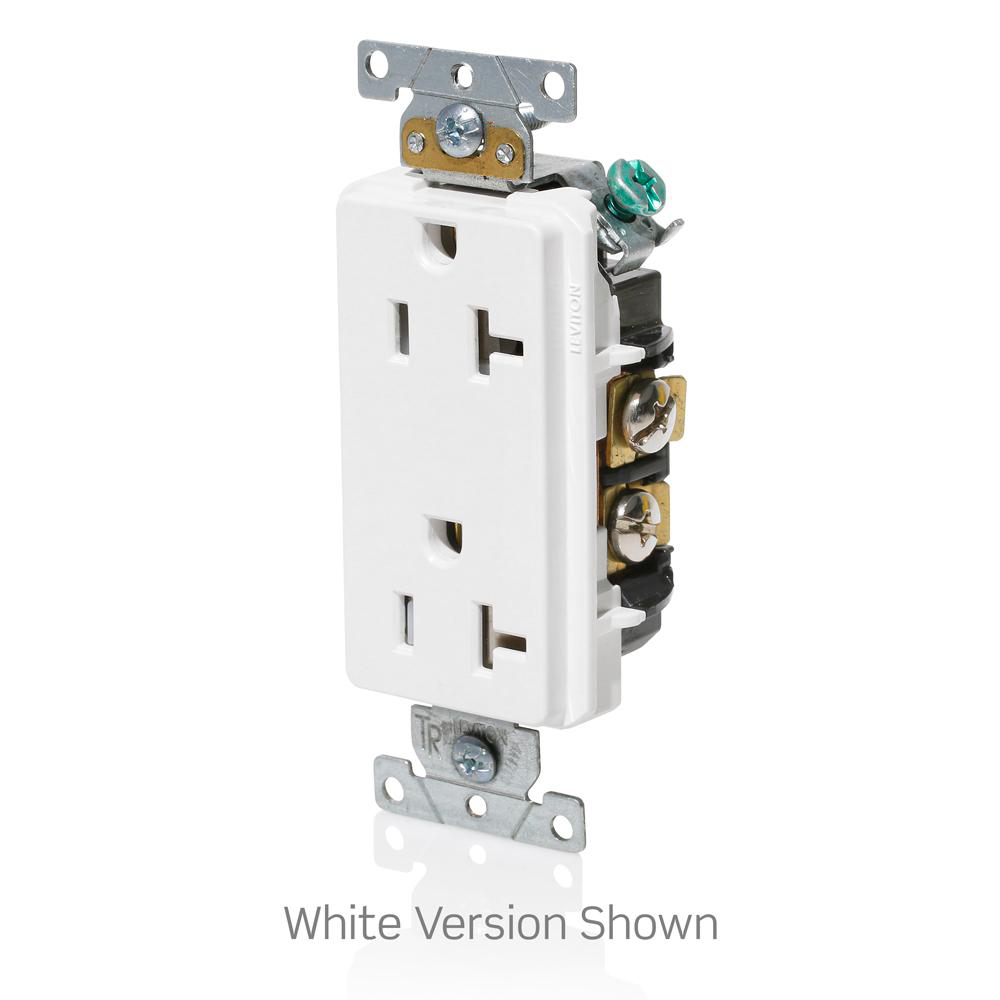

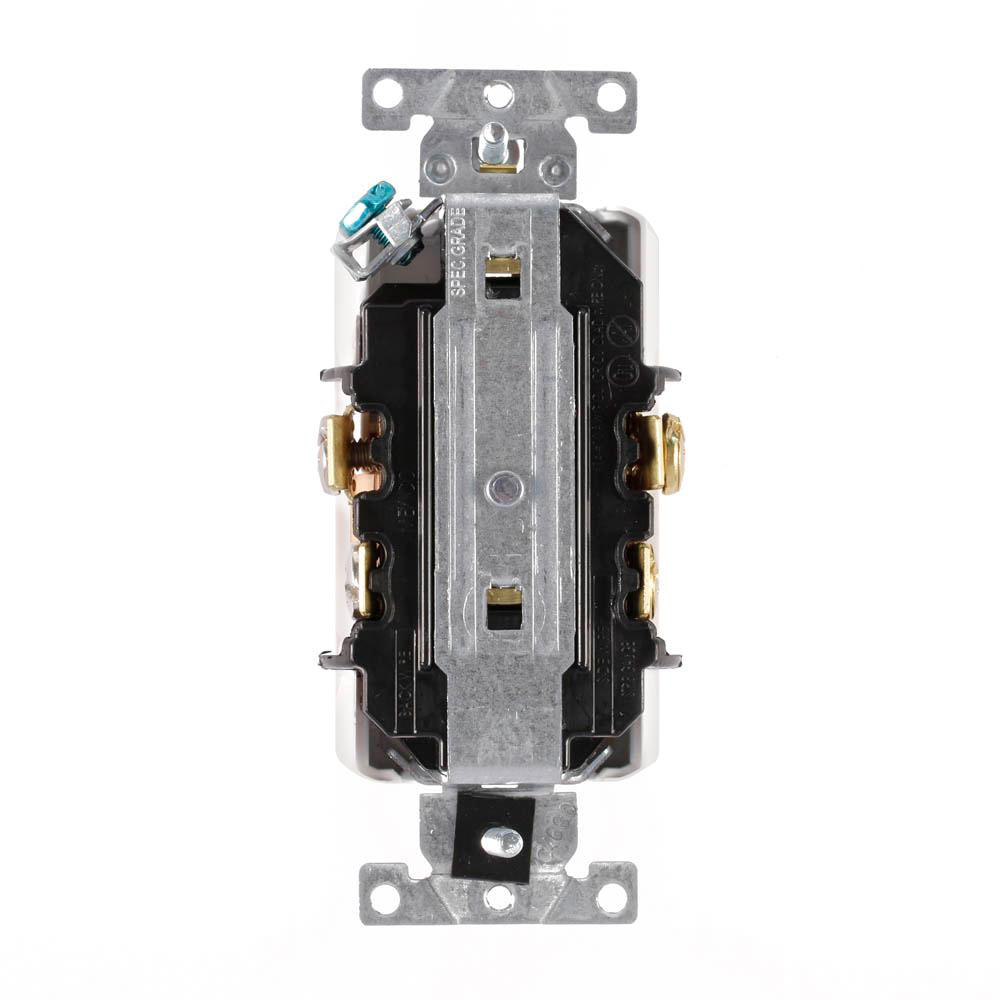

Receptacle straight Decora 2P3W 125V 20A white

Manufacturer: Leviton Manufacturing | Catalog # TDR20-W | Electrozad South Part # 134070
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page Installation / Instruction Manual MSDS | SDS Safety Sheet D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL
Tamper-resistant receptacle have been mandated in pediatric care areas for over 20 years and have likely been successful in preventing electrical injuries. Shutter mechanism inside the receptacle blocks access to the contacts unless a two-prong plug is inserted, helping ensure hairpins, keys, etc

Technical Information

Amperage
20 A
Applications
Commercial
Body Material
PBT,PBT,Polyester Blend,Polyester Blend
Conductor Size
14-10 AWG
Connection Type
Back and Side Wire
Device Type
Duplex Receptacle Outlet
Dielectric
3000 V
Dielectric Strength
2000 V
Face Material
PBT,PBT,Polyester Blend,Polyester Blend
Flamability Class
Rated HB Or Better UL94,Rated HB Or Better UL94
Grade
Commercial
Grounding
Self-Grounding,Self-Grounding
Horsepower
1 hp
Material
Plastic
Mounting Type
Claw and Screw, Wall Box, Flush
NEMA
5-20R
Number of Phases
1
Number of Poles
2
Number of Wires
3
Operating Temperature
60 degrees C
Size
46 H x 1.52 W x 1.14 D IN
Standard
ANSI C-73
TC Connection
Back and Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
30 degrees C
Termination Type
Back Wire,Back Wire,Side Wire,Side Wire
Type
Tamper-Resistant, 2-Outlet, 1-Unit
Voltage
125 V
Wire Count
3,3
Wire Size
14 - 10 AWG
Wire Type
Stranded Building Wire,Stranded Building Wire

Manufacturer Information

Brand
Leviton
Sub Brand
Decora Plus™

General Product Info

12-Digit UPC
078477381830
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Finish
Matt
GTIN
00078477381830
Product UPC
07847738183

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Certifications
CULus,CULus,NOM-ANCE,NOM-ANCE
Country of Origin
Mexico
