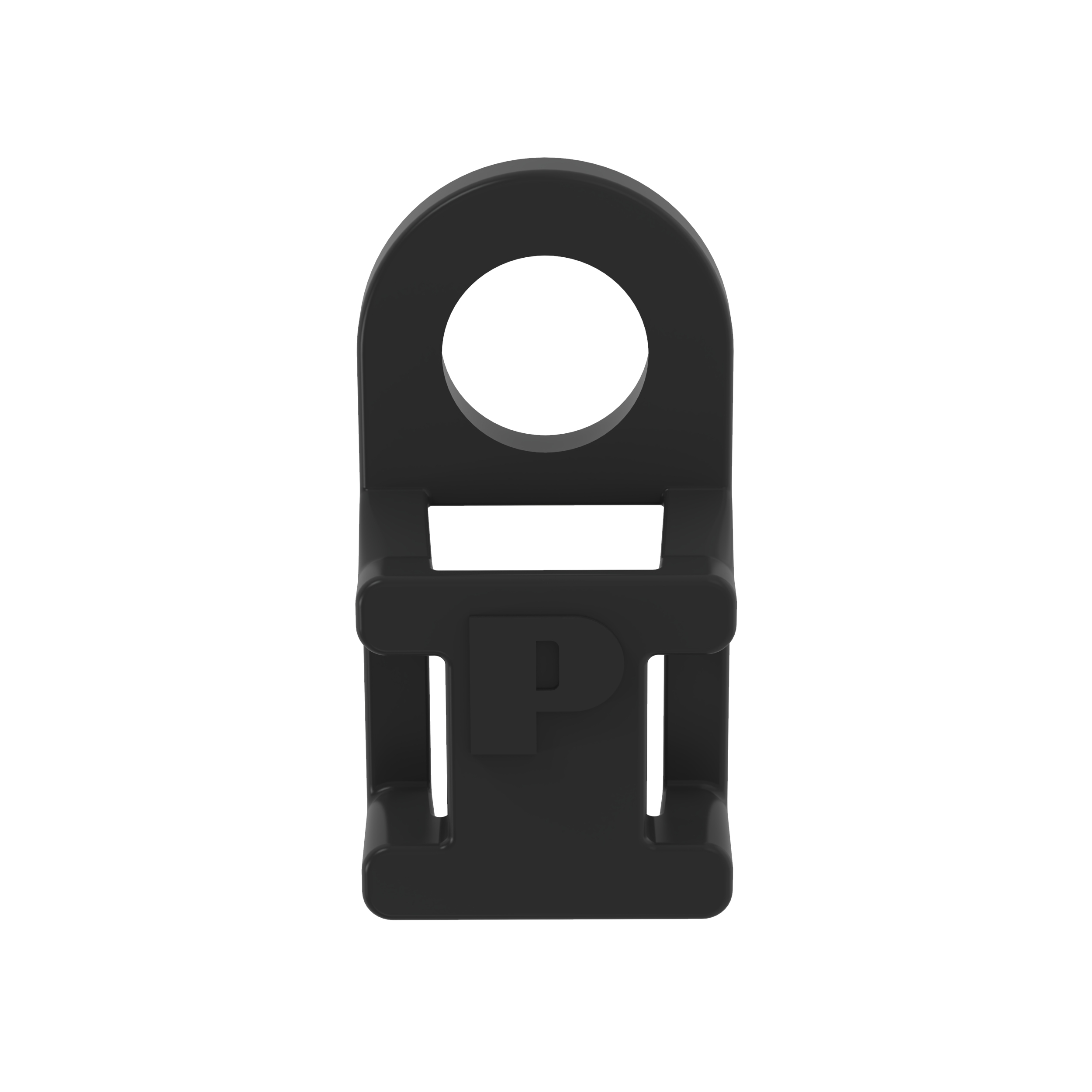

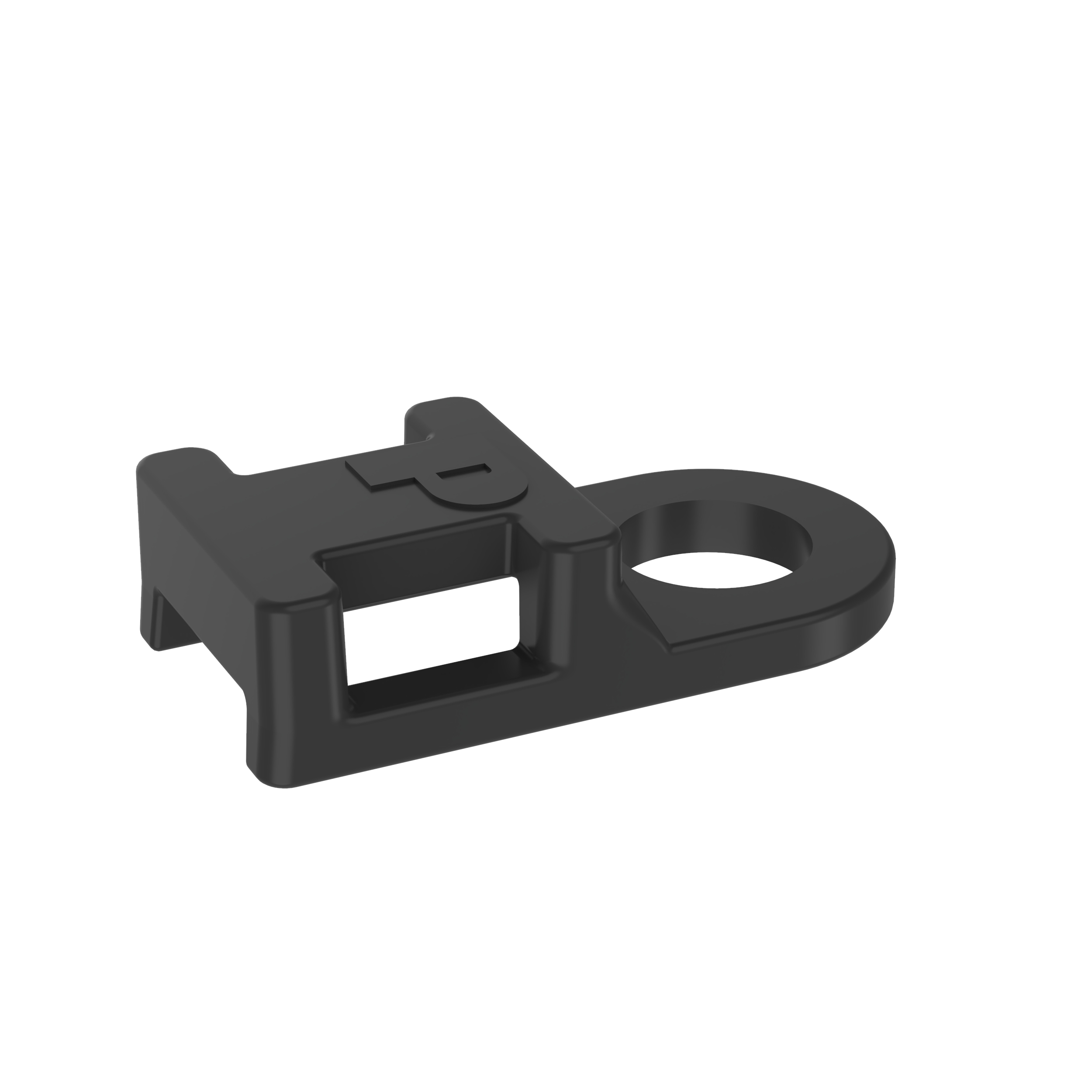

Product image for TA1S8-M30 Tie Anchor Mount, Black, High Heat PA6.6, 0.75x0.38", #8 Screw,
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

TA1S8-M30 Tie Anchor Mount, Black, High Heat PA6.6, 0.75x0.38", #8 Screw,

Manufacturer: Panduit | Catalog # TA1S8-M30 | Electrozad South Part # 134678
$391.80 /m (1000 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL
Panduit TA1S8-M30 cable tie anchor mount is a low profile and versatile screw-installed mount that is ideal for applications where space is limited. This mount has four-way cable tie entry for easy orientation of wire and cables with the option to mount in-line or perpendicular to the wire bundle. Install with a #8 (M4) screw. Use with miniature, intermediate and standard Cable Ties. For indoor use, are made of Heat Stabilized Nylon 6.6, are black in color, and comes in packages of 1000.

Technical Information

Applications
Low Profile Tie Anchor Mounts, Versatile Mount for Applications where Space is Limited
Cable Size
NA
Cable Type
Cable Tie Mount
Material
Nylon
Max Operating Temperature
115 degrees C
Minimum Operating Temperature
-60 degrees C
Mounting Type
Screw-On
Operating Temperature
239 degrees F
Screw Size
#8 (M4)
Type
Cable Tie Mount

Packaging

Package Qty
1000

Manufacturer Information

Brand
Panduit
Sub Brand
Cable Tie Mount

General Product Info

12-Digit UPC
074983589999
Color
Black
Environment
Indoor
GTIN
00074983589999
Product UPC
07498358999

Dimensions

Height
0.19 in
Overall Length
0.74 in
Width
0.37 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
USA
