PANDUIT F.5X1LG6 WIRING DUCT NARROW SLOT 1/2"X1" 6'LONG .5"X1" LIGHT GREY

Manufacturer: Panduit | Catalog # F.5X1LG6 | Electrozad South Part # 136039
$5.40 /ea
ft
Order in multiples of 6 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet

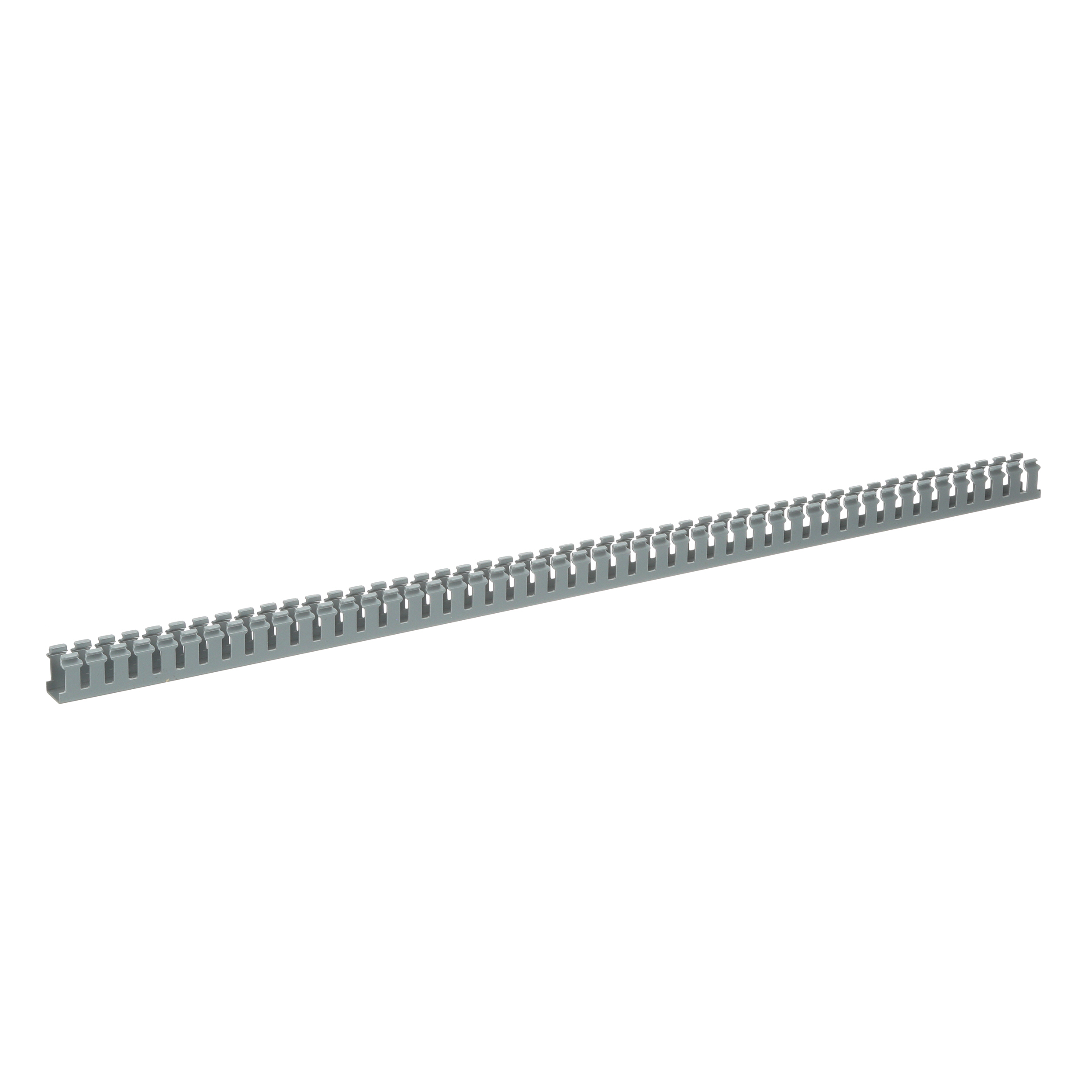

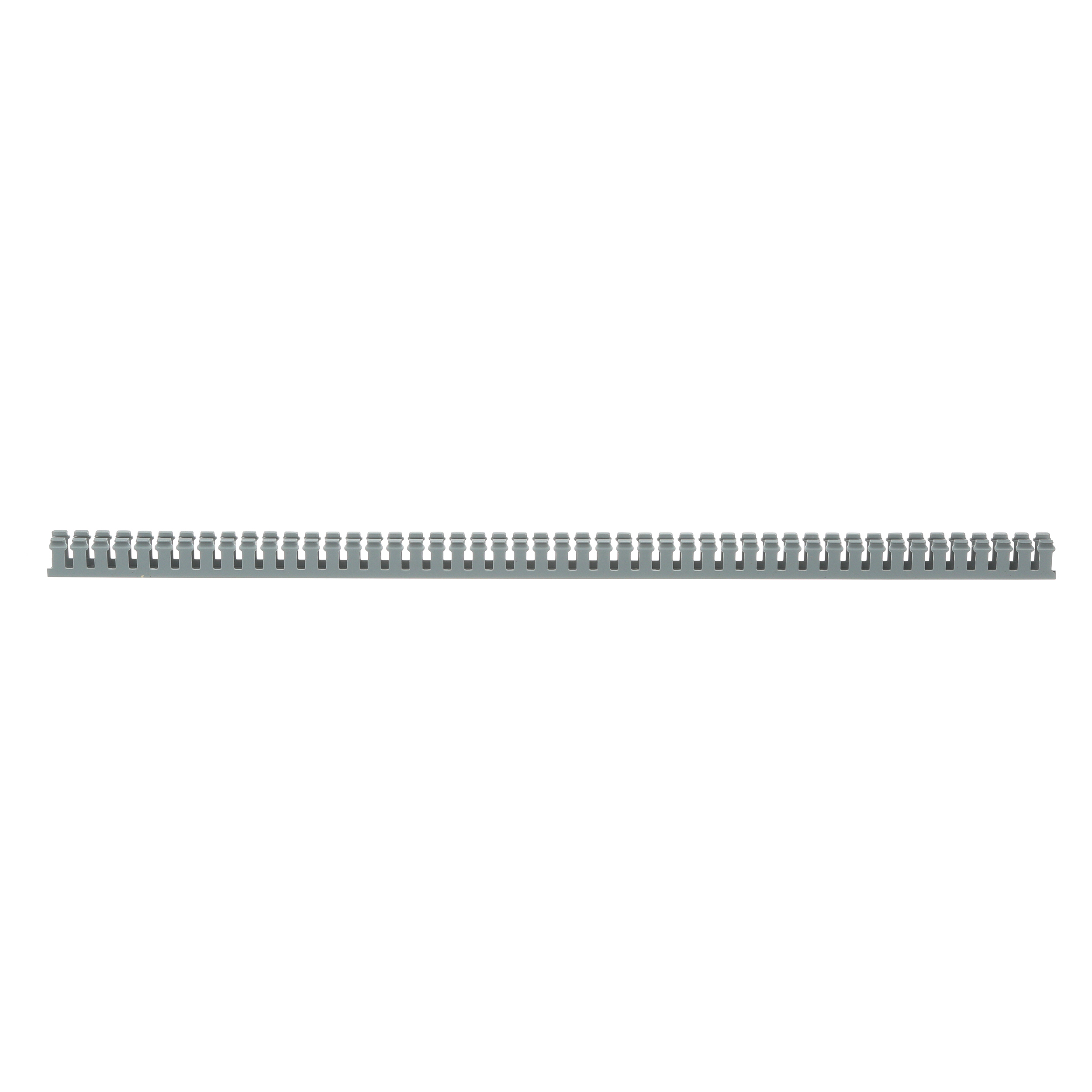

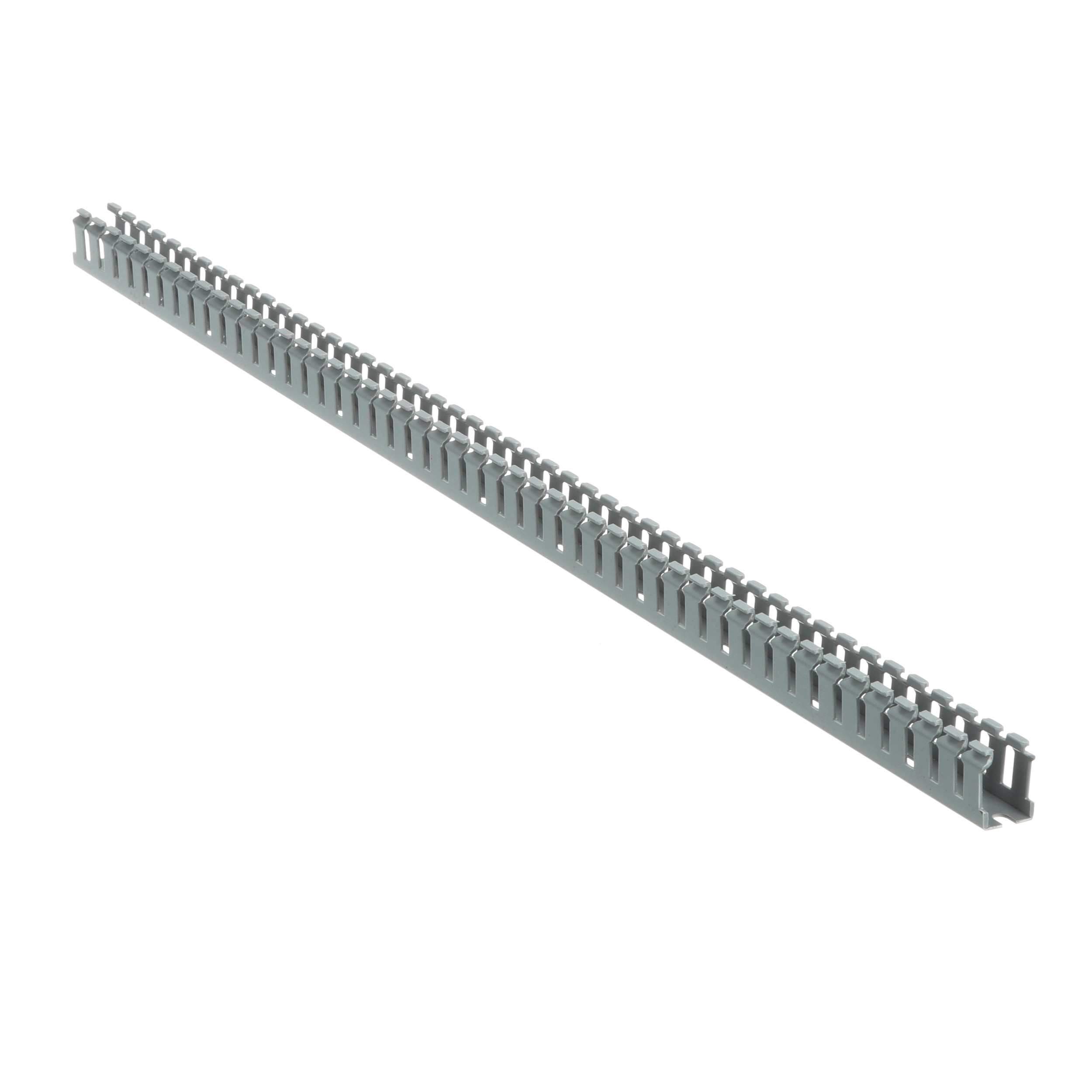

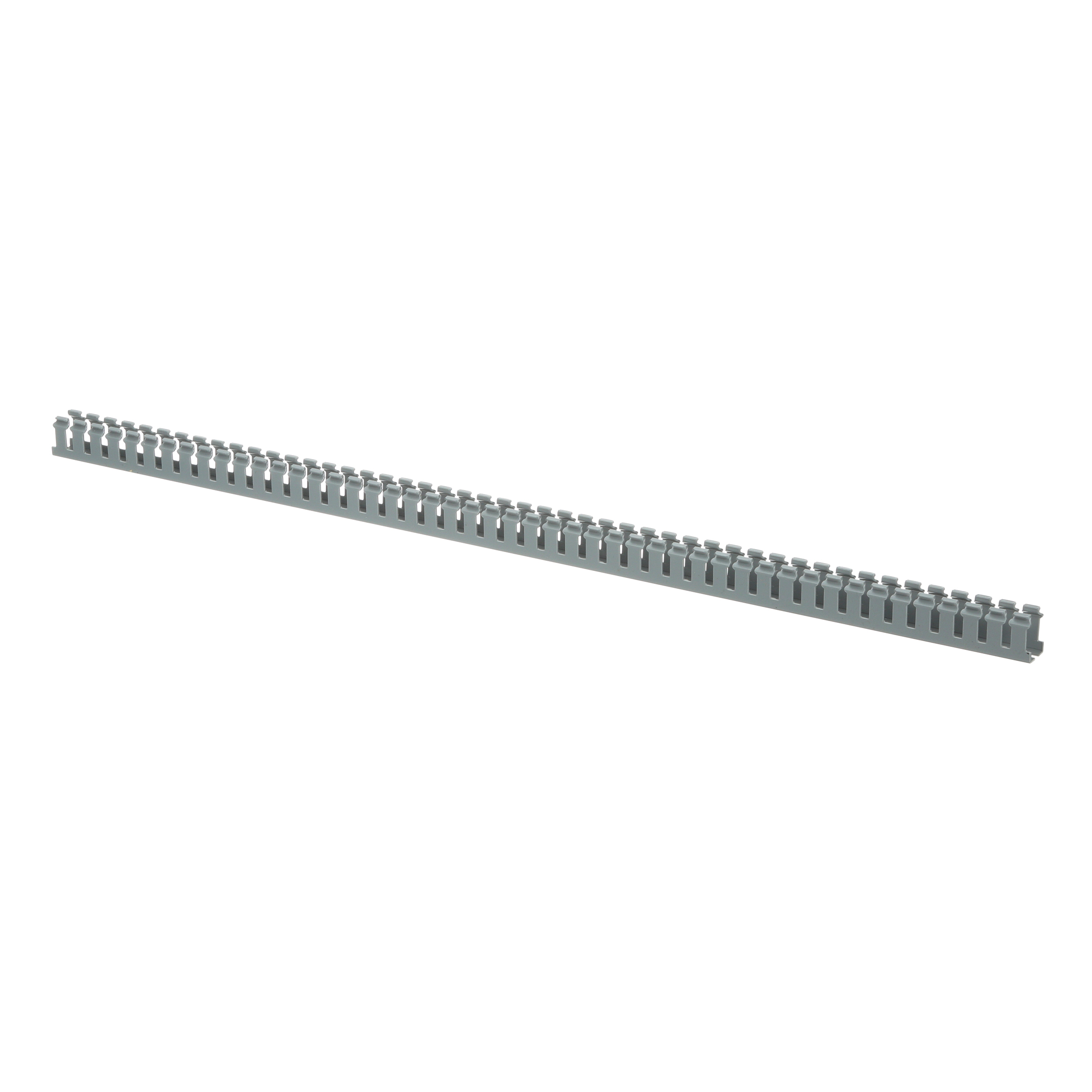

The F.5X1LG6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122..F (50..C). Mounting holes provided. Lead-free PVC. .5" x 1.0" (12.7 mm x 25.4 mm) and 6' (1.83 m) long. Cover sold separately. Color Light Gray.

Technical Information

Applications
Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
Material
PVC
Mounting Type
Standard
Size
0.50 x 1.0
Slot Size
5 mm
TC Connection
Mounting Holes
Type
Base Type F Narrow slot

Packaging

Package Qty
6

Manufacturer Information

Brand
Panduit
Sub Brand
Panduct

General Product Info

12-Digit UPC
074983374830
Color
Gray
GTIN
00074983374830
Product UPC
07498337483
UNSPSC
39131712

Dimensions

Depth
1 in
Height
1.06 in
Length
6 ft
Overall Length
6 ft
Thickness
0.69 in
Width
1/2 in

Certifications & Compliance

Country of Origin
USA
