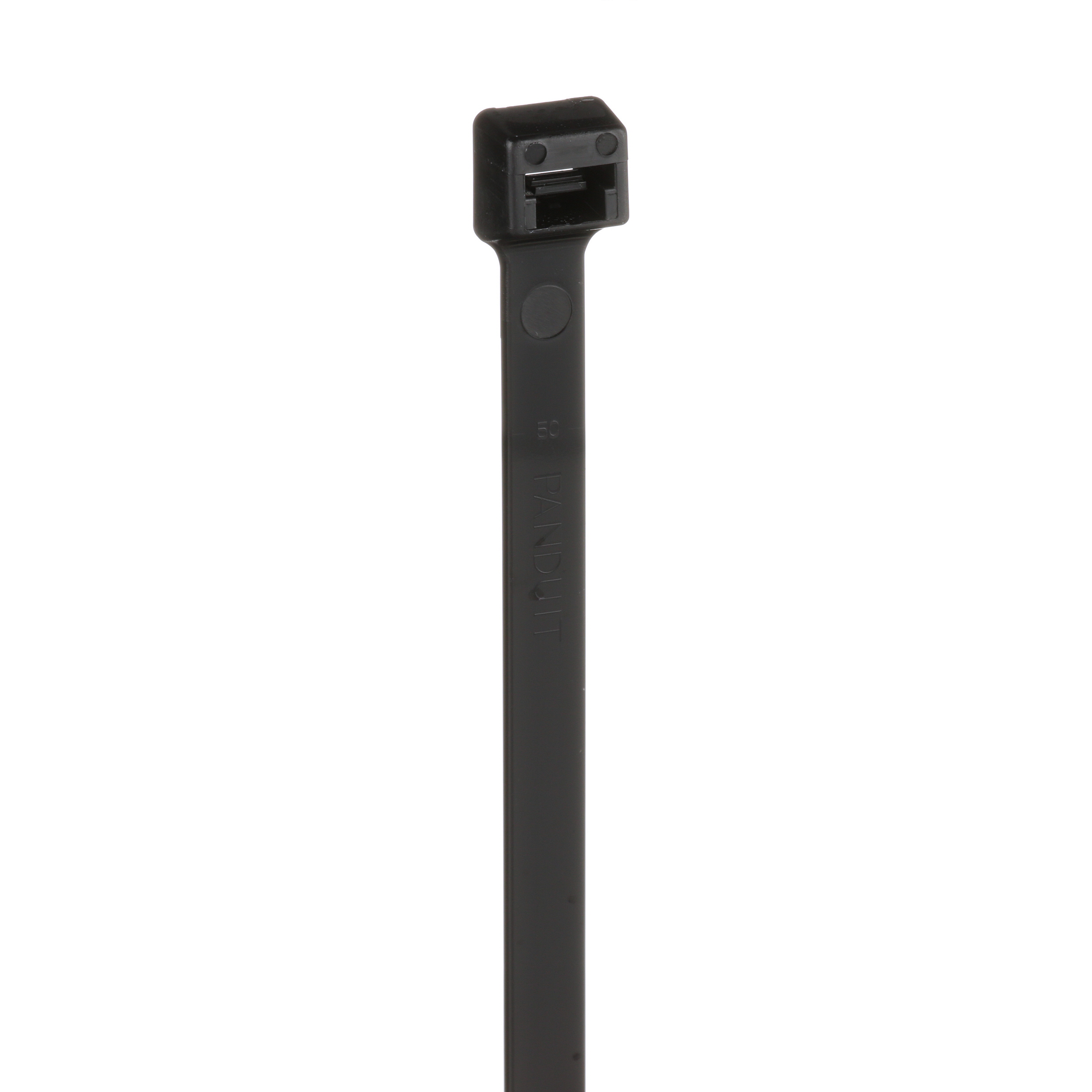

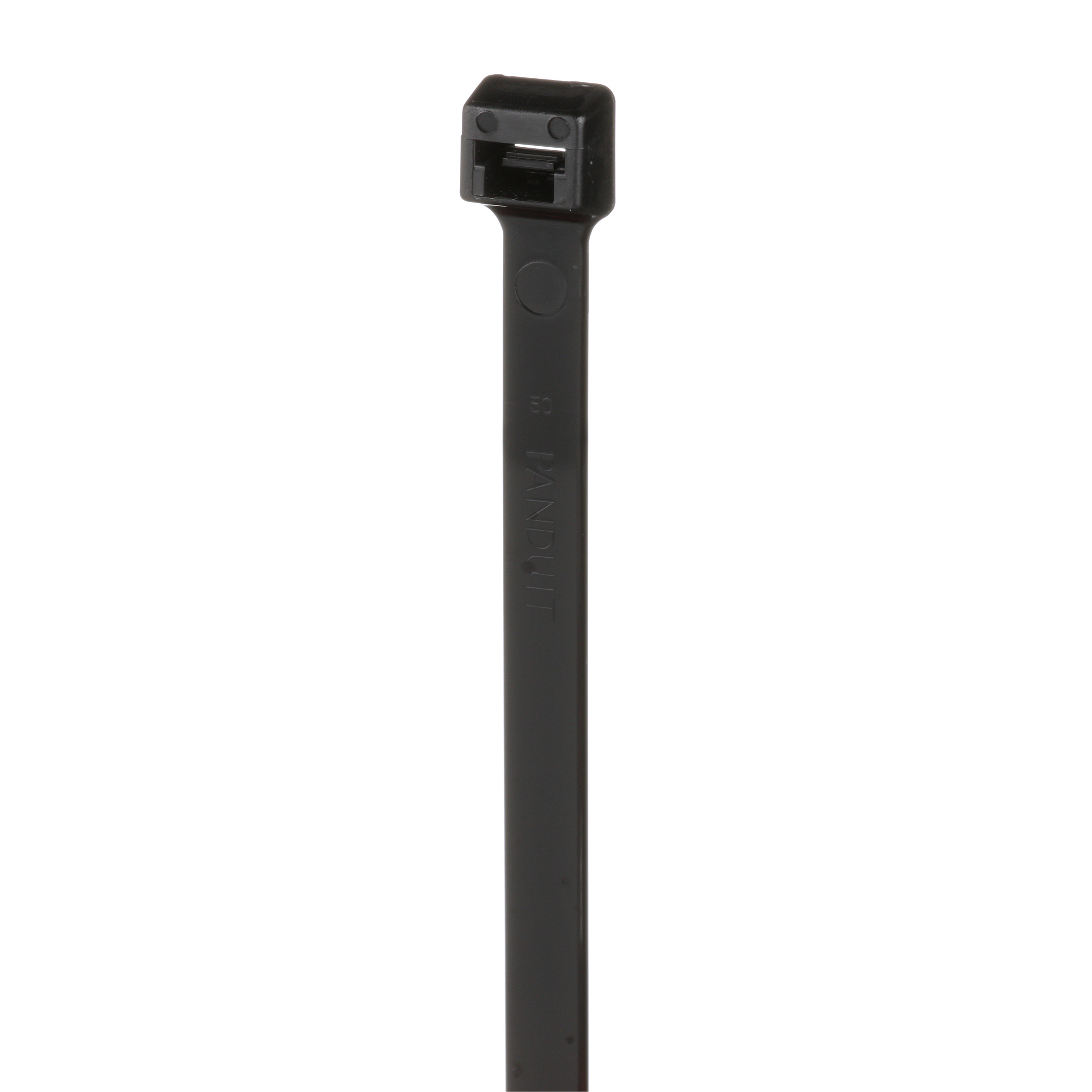

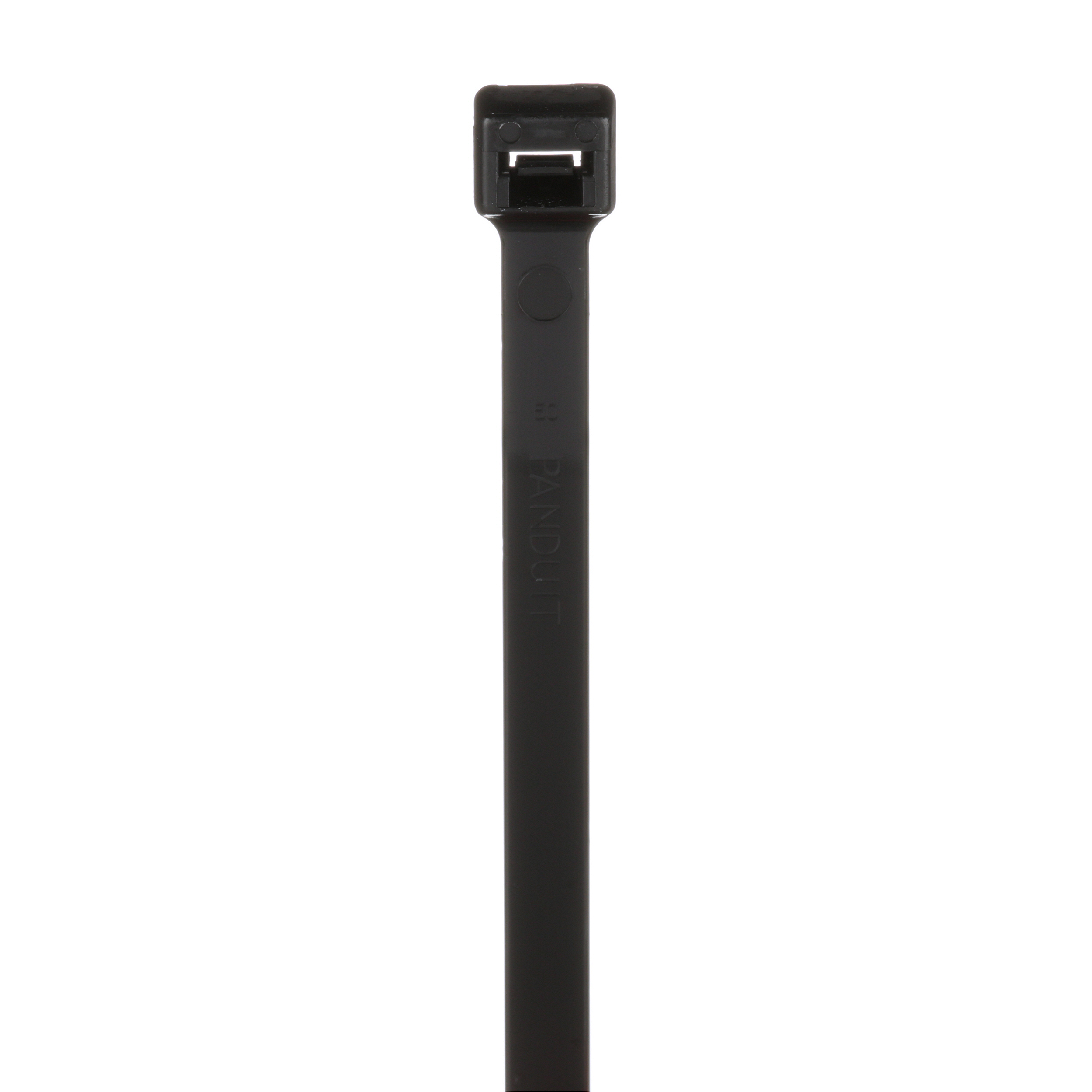

PANDUIT PLT7LH-L0 PAN-TY 24.7"L0NG TS LIGHT HEAVY LOCKING CABLE TIE .300"WIDE BLACK 120LBS-MLS

Manufacturer: Panduit | Catalog # PLT7LH-L0 | Electrozad South Part # 13672
$184.04 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Panduit PLT7LH-L0 Locking Cable Ties are designed to satisfy the needs of weather resistant applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Light-Heavy cross section, 24.7" (627mm) length. Made of Weather Resistant Nylon 6.6, are black in color and come in packages of 50.

Technical Information

Applications
For General
Body Thickness
0.075 in
Body Width
0.3 in
Bundle Diameter
177.8 mm
Material
Nylon 6.6
Max Operating Temperature
185 degrees F
Minimum Operating Temperature
-60 degrees C
Standard
CSA,E2186,UL
Temperature Rating
-60 to 85 degrees C
Tensile Strength
534 N
Type
Light-Heavy Cross Section, Plenum, UV-Resistant

Packaging

Package Qty
50
Standard Packaging Qty
50/Pack

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Ty

General Product Info

12-Digit UPC
074983541690
Color
Black
Environment
Indoor,Outdoor
Environmental Conditions
32 °F
GTIN
00074983541690
Product UPC
07498354169
Used With
GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH Cable Tie Tools

Dimensions

Length
24.7 in
Overall Length
627 mm
Thickness
1.9 mm
Width
7.6 mm

Certifications & Compliance

Country of Origin
Costa Rica
