Pan-Term® PV18-14R-CY Loose Piece Ring Terminal

Manufacturer: Panduit | Catalog # PV18-14R-CY | Electrozad South Part # 13708
$106.81 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL

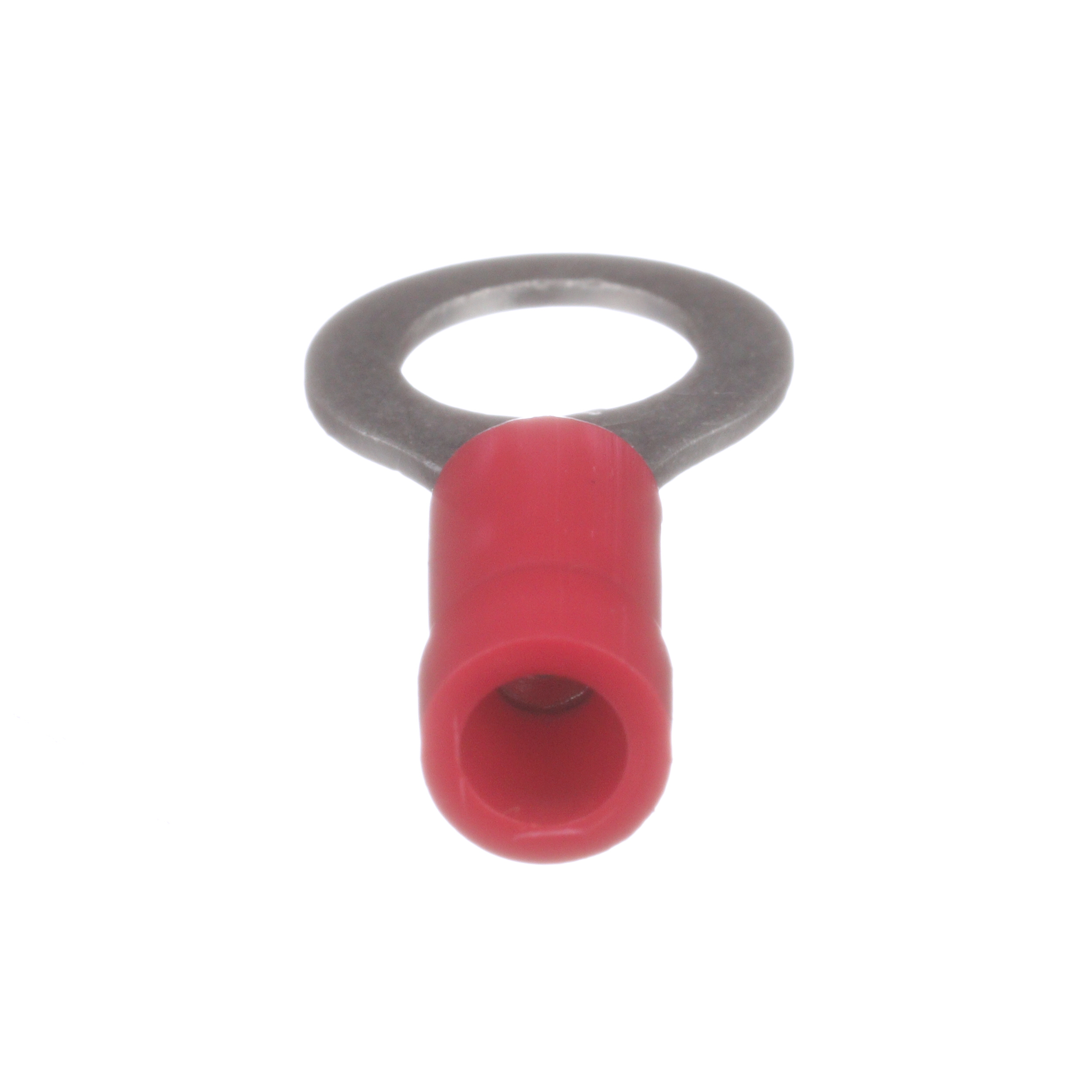

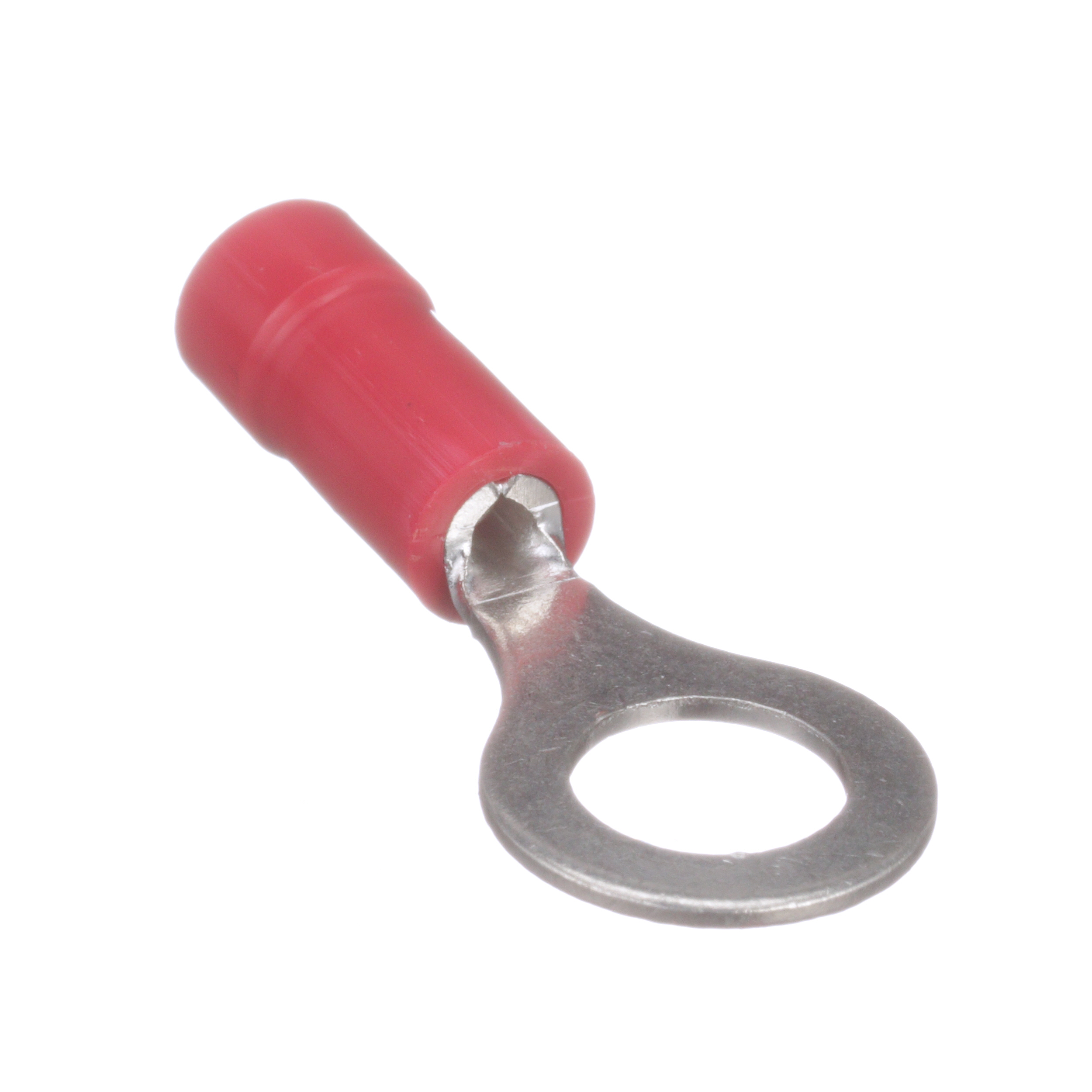

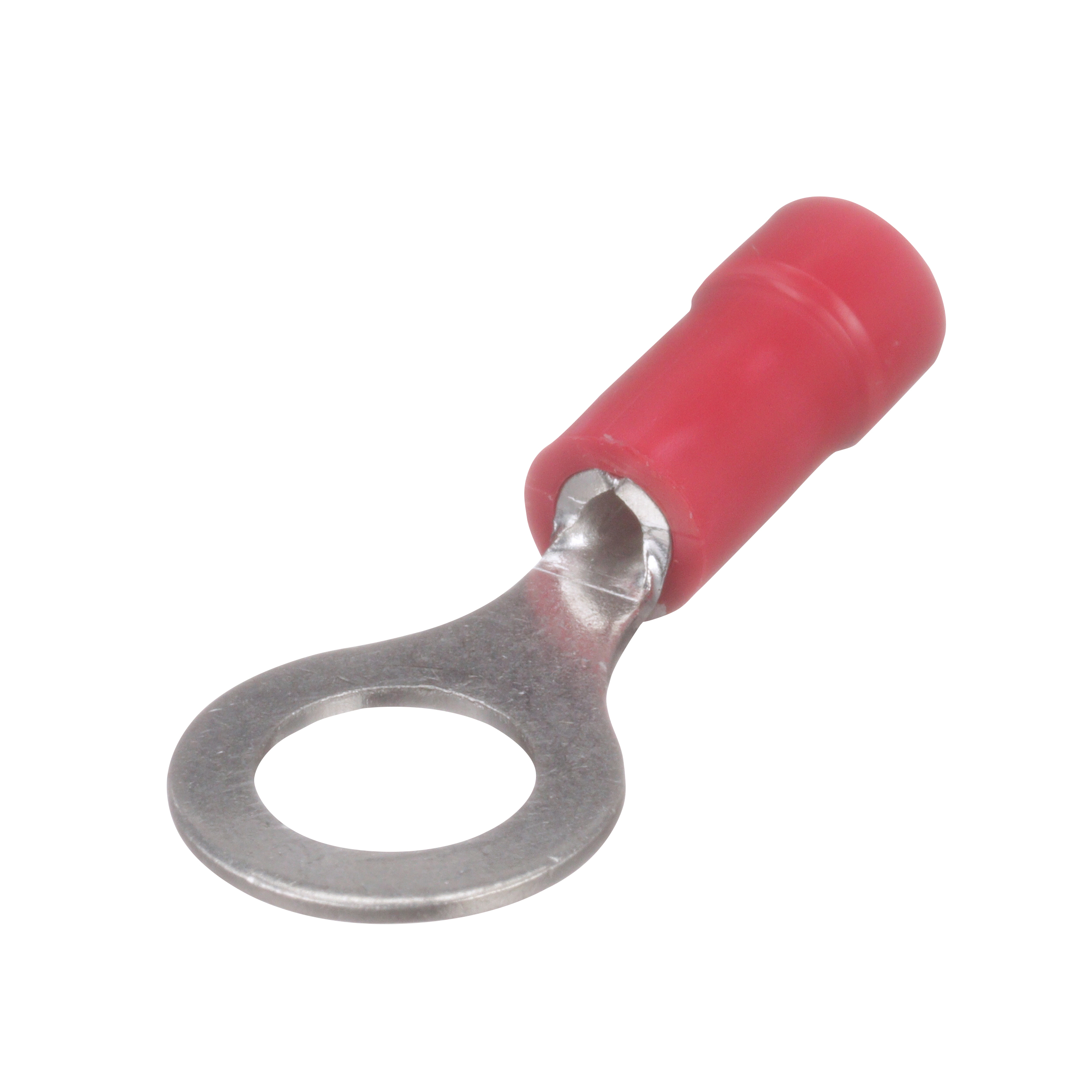

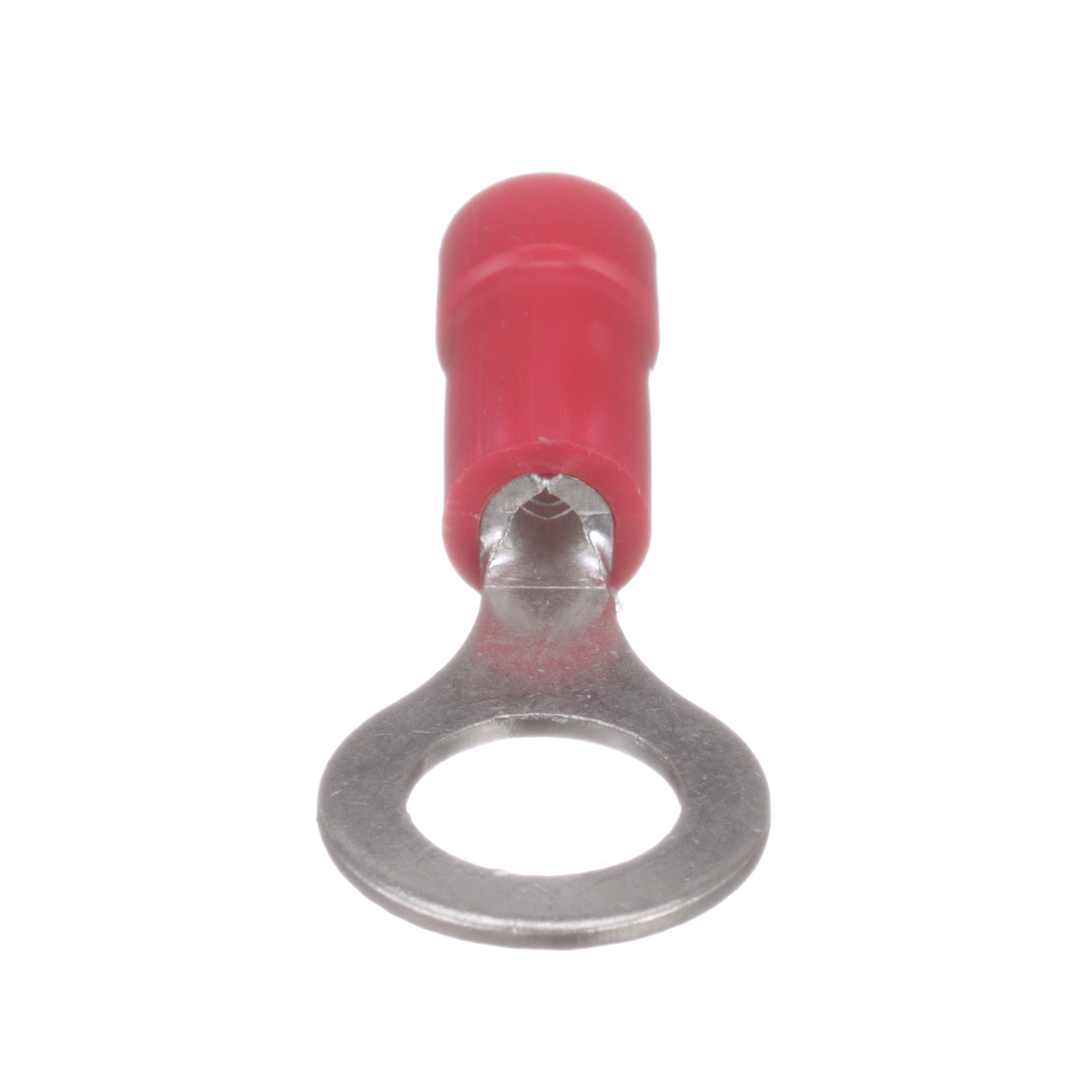

Ring Terminal, 22 ... 18 AWG, 1/4" stud size, vinyl insulated, funnel entry, standard package.

Technical Information

Barrel Length
0.44 in
Barrel Type
Funnel
Color Coding
Red
Conductor Size
22-18 AWG
Enclosure
Ring shape
Insulation Material
PVC
Material
Copper
Max Operating Temperature
105 degrees C
Size
1/4"
Standard
CSA,E2186,UL
Stud Size
1/4 in
TC Connection
Funnel Entry
Temperature Rating
221 degrees F
Tongue Thickness
0.03 in
Tongue Width
0.46 in
Type
Loose-Piece
Wire Size
0.5 - 1.0 mm²

Packaging

Package Qty
100

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983688562
Color
Red
Finish
Tin Plated
GTIN
00074983688562
Product UPC
07498368856
UNSPSC
39121409

Dimensions

Outer Diameter
0.15 in
Overall Length
1.11 in
Width
7.8 mm

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
