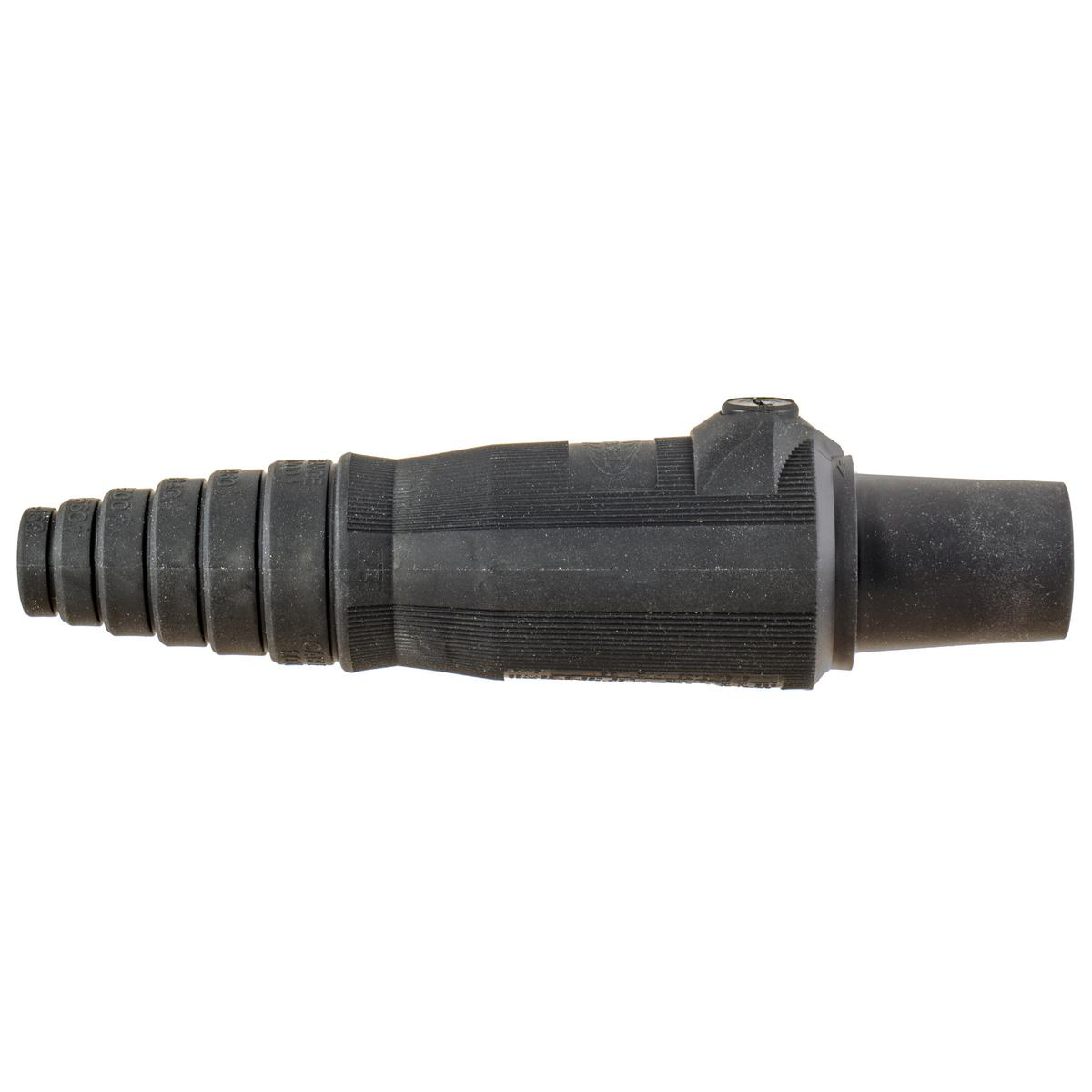

Plug single pole 400A female black

Manufacturer: Hubbell Wiring Devices | Catalog # HBL400FBK | Electrozad South Part # 137320
$69.65 /ea
pc
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
Single pole thermoplastic elastomer female plug. Cable size 2/0 - 4/0 AWG.

Technical Information

Amperage
400 A
Applications
High Ampacity Connections
Conductor Size
2/0 - 4/0 AWG
Connection Type
Pressure Screw Terminal
Cord Type
Listed SC/PPC Type
Current
400 A
Material
Composite
Number of Conductors
1
Number of Poles
1
Number of Wires
1
Size
Standard Sized
Standard
12,4X,ANSI,CUL,NFPA 70,National Electric Code (NEC),UL,UL Enclosure Types 3R
Style
Female
TC Connection
Pressure Plate
Type
Standard, 1-Pole
Wattage
240000 W
Wire Size
2/0 - 4/0 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Single Pin

General Product Info

12-Digit UPC
783585113722
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTIN
00783585113722
Product UPC
78358511372

Dimensions

Height
1.7 in
Length
6.700 in
Width
3.760 in

Certifications & Compliance

Country of Origin
China
Overview
  • Easily Identifiable Cable with cut off points for secure fit
  • Extra Long non-conductive inner sleeve
  • Turn and Lock Symbol aids in the mating of devices
