LEVITON 5634-I SWITCH COMBO DECORA 15A 125V 277V IVORY SP 2SWITCHES | Electrozad South

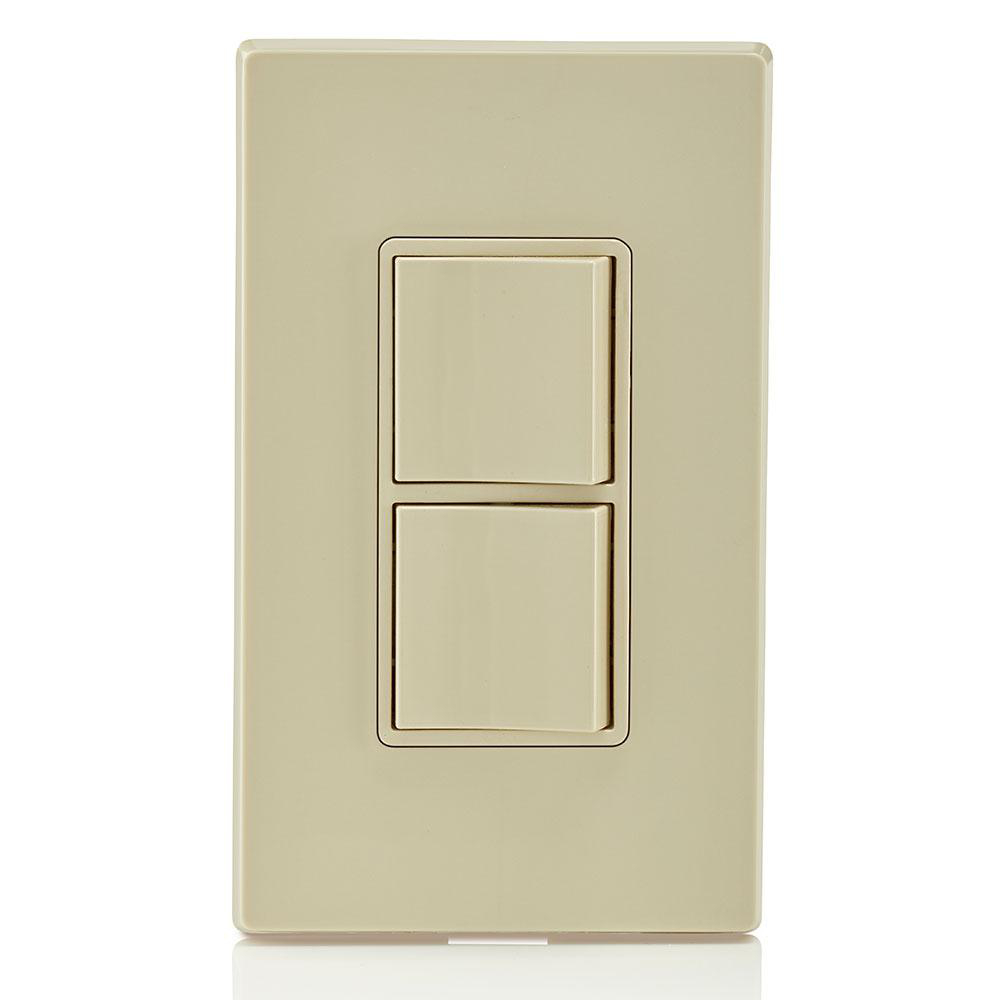

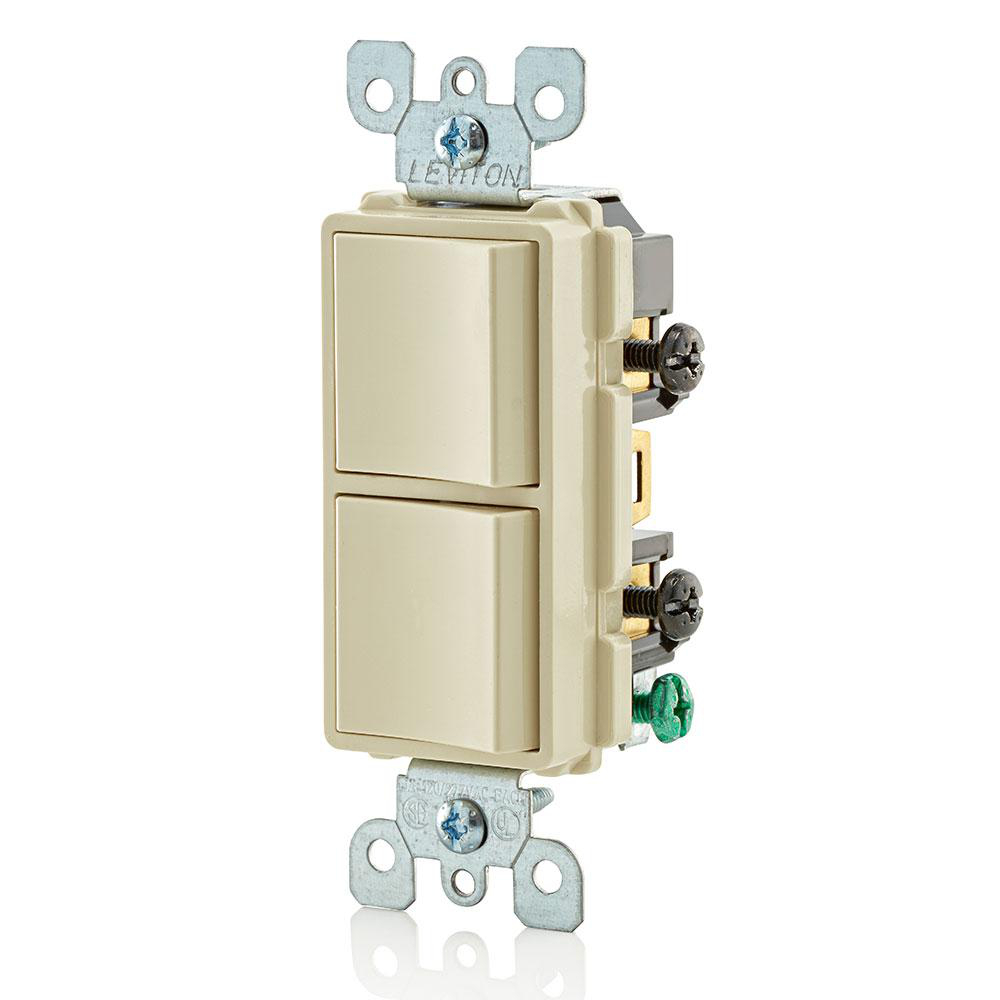

Product image for LEVITON 5634-I SWITCH COMBO DECORA 15A 125V 277V IVORY SP 2SWITCHES
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

LEVITON 5634-I SWITCH COMBO DECORA 15A 125V 277V IVORY SP 2SWITCHES

Manufacturer: Leviton Manufacturing | Catalog # 5634-I | Electrozad South Part # 1376
$22.60 /ea
ea
Log in or register to view your price, purchase history, and more!
2 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet MDM SAFETY DATA SHEET Installation / Instruction Manual MSDS | SDS Safety Sheet
15 Amp, 120/277 Volt, Decora Single-Pole / Single-Pole AC Combination Switch, Commercial Grade, Grounding, Side Wired, -Ivory.

Technical Information

Actuator
Rocker
Amperage
12 A
Applications
Commercial
Body Material
Thermoplastic
Connection Type
Side Wired
Contact Rating
120/277 V
Grade
Commercial,Residential
Grounding
Grounding
Horsepower
1/2 hp
Material
Thermoplastic,Thermoplastic
Max Current
12 A
Mounting Type
Wallplate
NEMA
5-15R,5-15R
Number of Poles
1
Operating Temperature
-40 To 120 degrees C
Size
4.20 H x 1.31 W x 16 D IN
Standard
CSA,UL
TC Connection
Side Wired
Temperature Rating
-40 to 120 degrees C
Termination Type
Side Wire
Torque
14 lb-in
Type
Decora Combination Switch
Voltage
120/277 V

Manufacturer Information

Brand
Leviton
Sub Brand
DECORA COMBINATION DEVICES

General Product Info

12-Digit UPC
078477516348
Color
Ivory
Environmental Conditions
Flammability (Rated V-2 per UL94)
GTIN
00078477516348
Product Type
2-Switch Combo
Product UPC
06867915390

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Country of Origin
Mexico
