NetKey Cat 5e Leadframe Jack, Orange

Manufacturer: Panduit | Catalog # NK5E88MORY | Electrozad South Part # 137729
$11.81 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL

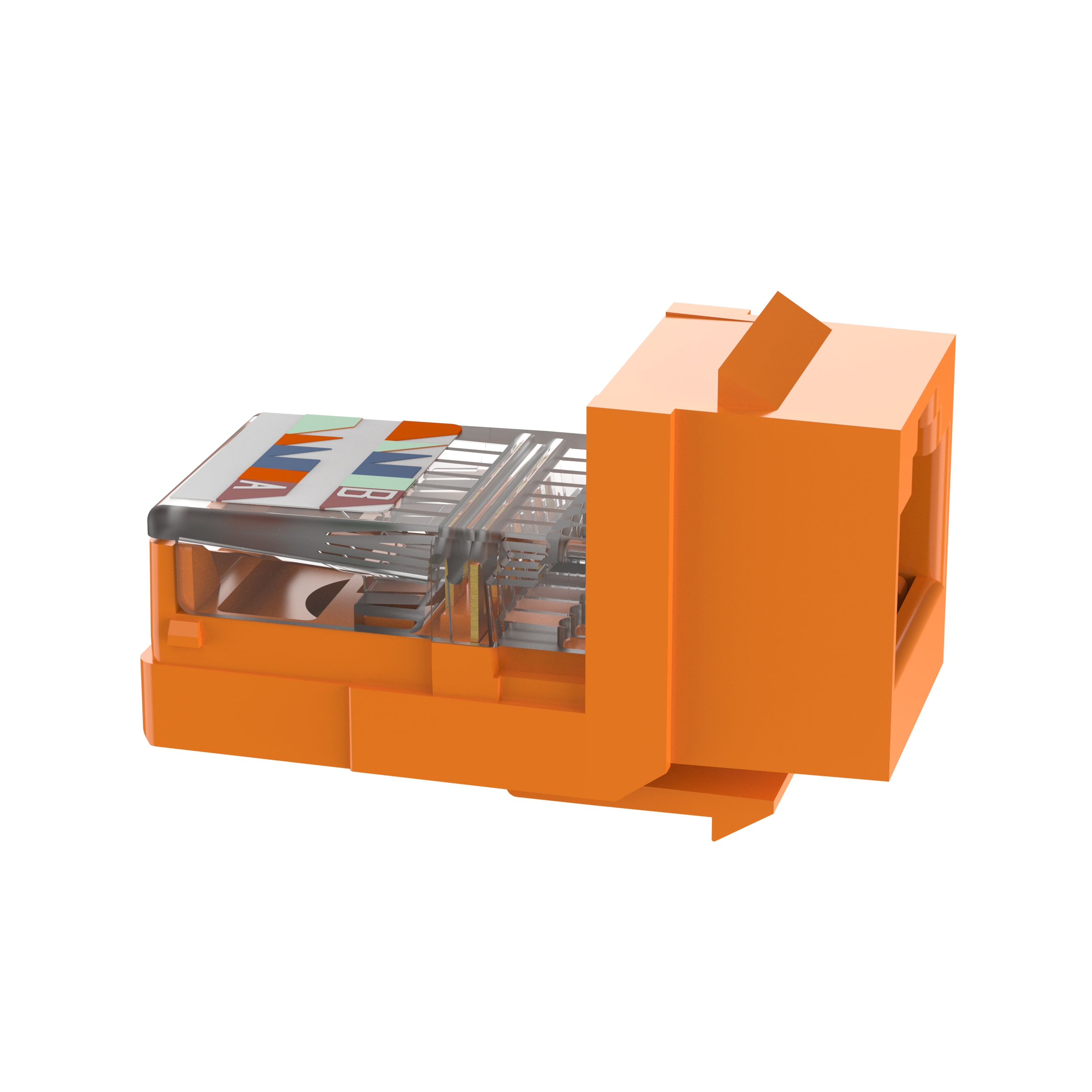

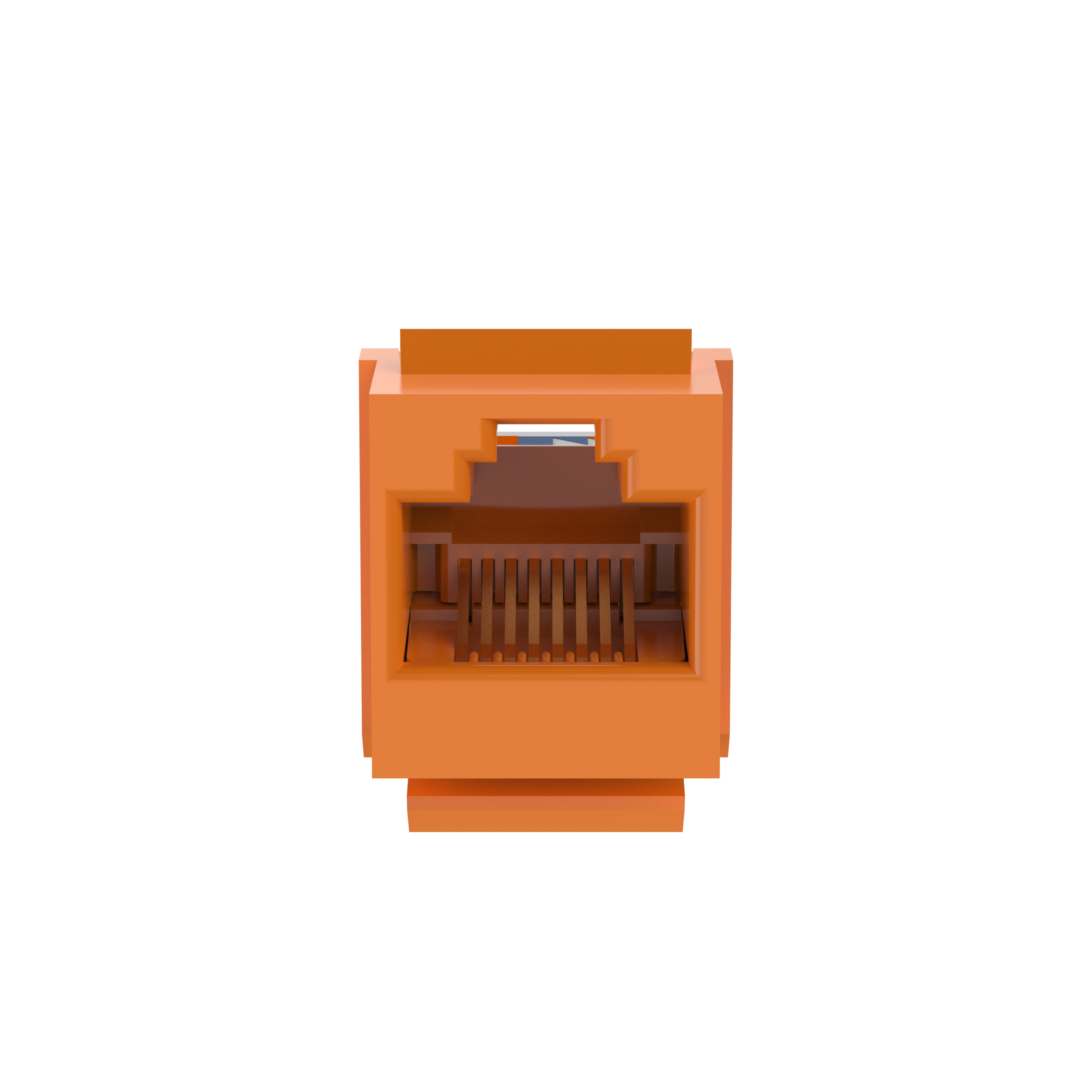

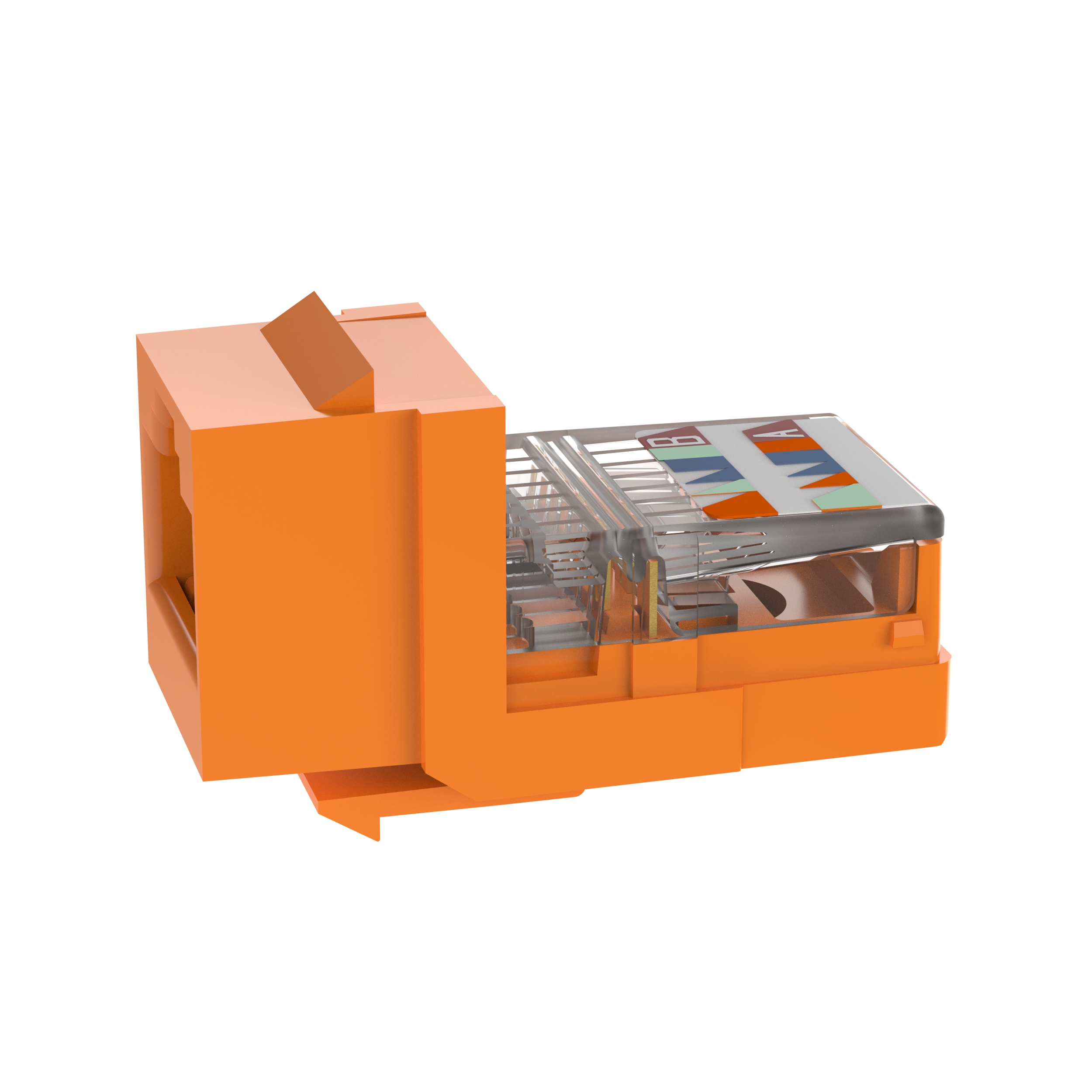

The NetKey® Cat 5e UTP RJ45 Leadframe Keystone Jack Module is designed to terminate 4-pair, 22-24 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with keystone interfaces including NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. This jack module is orange.

Technical Information

Applications
For 10BASE-T, 100BASE-T and 1000BASE-T Ethernet, 4/16 Token Ring, Voice Over Internet Protocol (VoIP)
Cable Size
24-22 AWG
Cable Type
Category 5e
Material
ABS
Max Operating Temperature
149 degrees F
Minimum Operating Temperature
-10 degrees C
Mounting Type
Surface/Patch Panel/Faceplate
Number of Positions
8
Performance Level
Category 5e
Temperature Rating
-10 to 65 degrees C
Type
8-Wire, Keystone, Unshielded

Packaging

Package Qty
1

Manufacturer Information

Brand
Panduit
Sub Brand
NetKey

General Product Info

12-Digit UPC
074983055036
Color
Orange
GTIN
00074983055036
Product UPC
07498305503
UNSPSC
43223301
Used With
T568A/T568B Cable

Dimensions

Depth
1.37 in
Height
22.1 mm
Overall Length
34.8 mm
Width
16.5 mm

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
China
