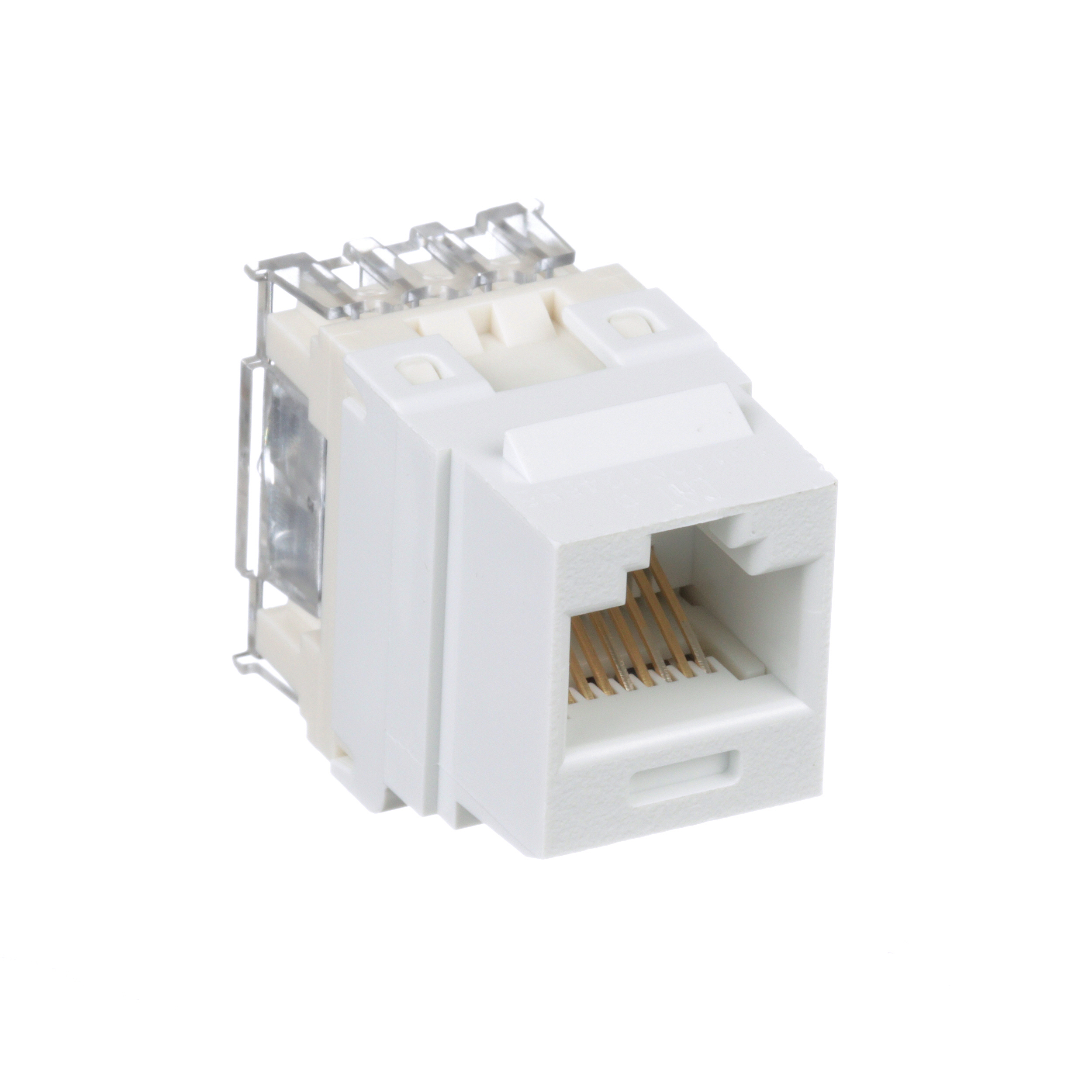

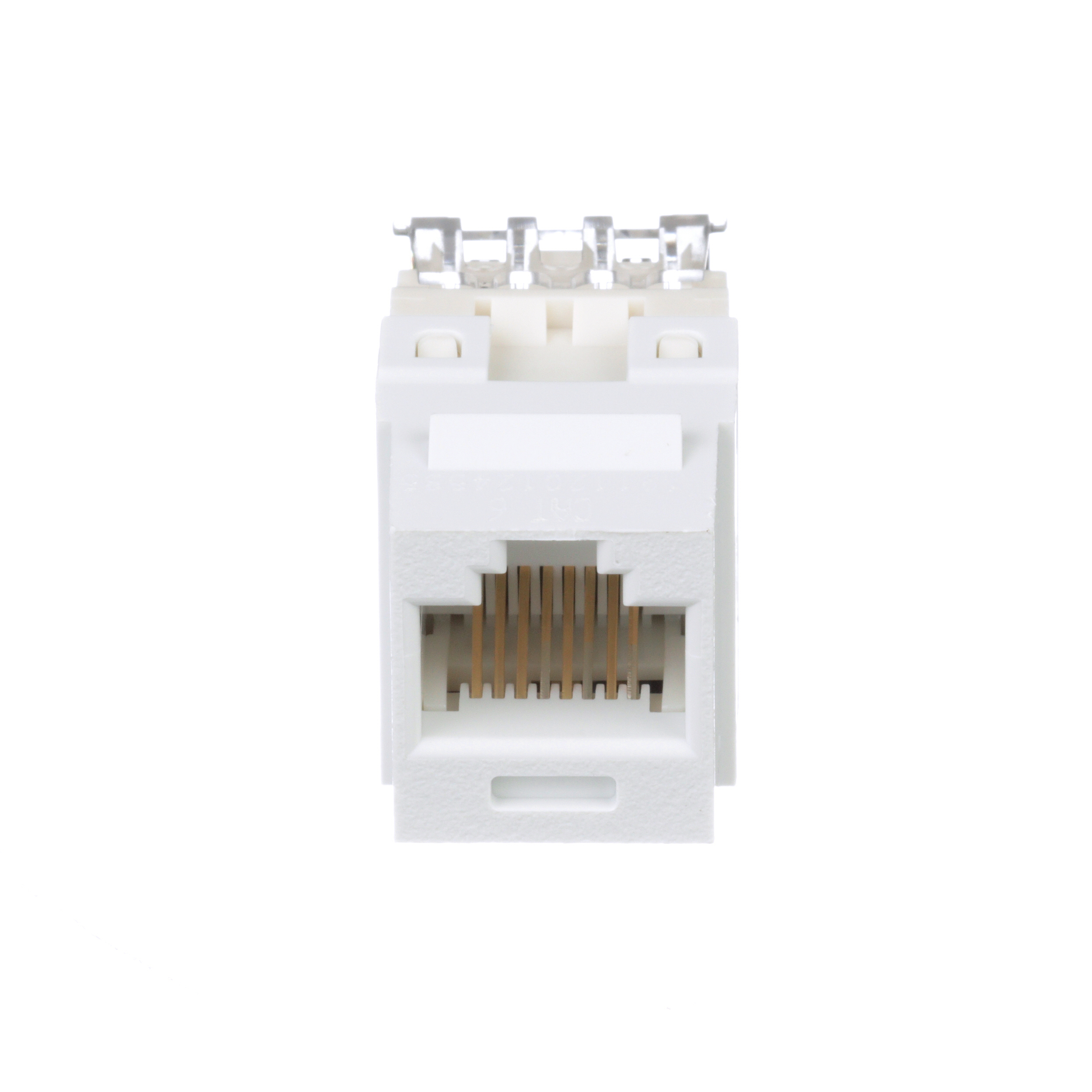

Module jack punchdown cat6 ABS/polycarbonate white

Manufacturer: Panduit | Catalog # NK688MWH-Q | Electrozad South Part # 137734
$13.05 /ea
ea
Order in multiples of 25 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL
Category 6/Class E, 8-position keystone jack module terminates unshielded twisted 4-pair, 22-26 AWG, 100 Ohm cable. Punchdown tool properly terminates each conductor for optimum performance. Universal label is colour-coded T568A and T568B wiring schemes. 100% performance tested, Utilizes industry standard termination style and includes a wire retention cap and marked with quality control number for traceability.

Technical Information

Applications
Unshielded
Cable Entry
T568A/T568B
Cable Size
26 - 22 AWG
Cable Type
Category 6
Material
ABS/Polycarbonate
Max Operating Temperature
167 degrees F
Minimum Operating Temperature
-10 degrees C
Number of Positions
8
Performance Level
Category 6
Type
RJ45, Punchdown, Unshielded

Packaging

Package Qty
25

Manufacturer Information

Brand
Panduit
Sub Brand
NetKey

General Product Info

12-Digit UPC
074983997114
Color
White
GTIN
00074983997114
Product UPC
07498399711
Used With
Round, Flat and Solid Core Copper Cables

Dimensions

Depth
29.5 mm
Height
0.9 in
Overall Length
1.16 in
Width
16.5 mm

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
USA
