Chicago Grip 0.16-0.55in cable 8000lbs

Manufacturer: Klein Tools | Catalog # 1684-5F | Electrozad South Part # 138933
$1,409.47 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL I INSTALL ASSEMBLY INSTRUCTIONS URL

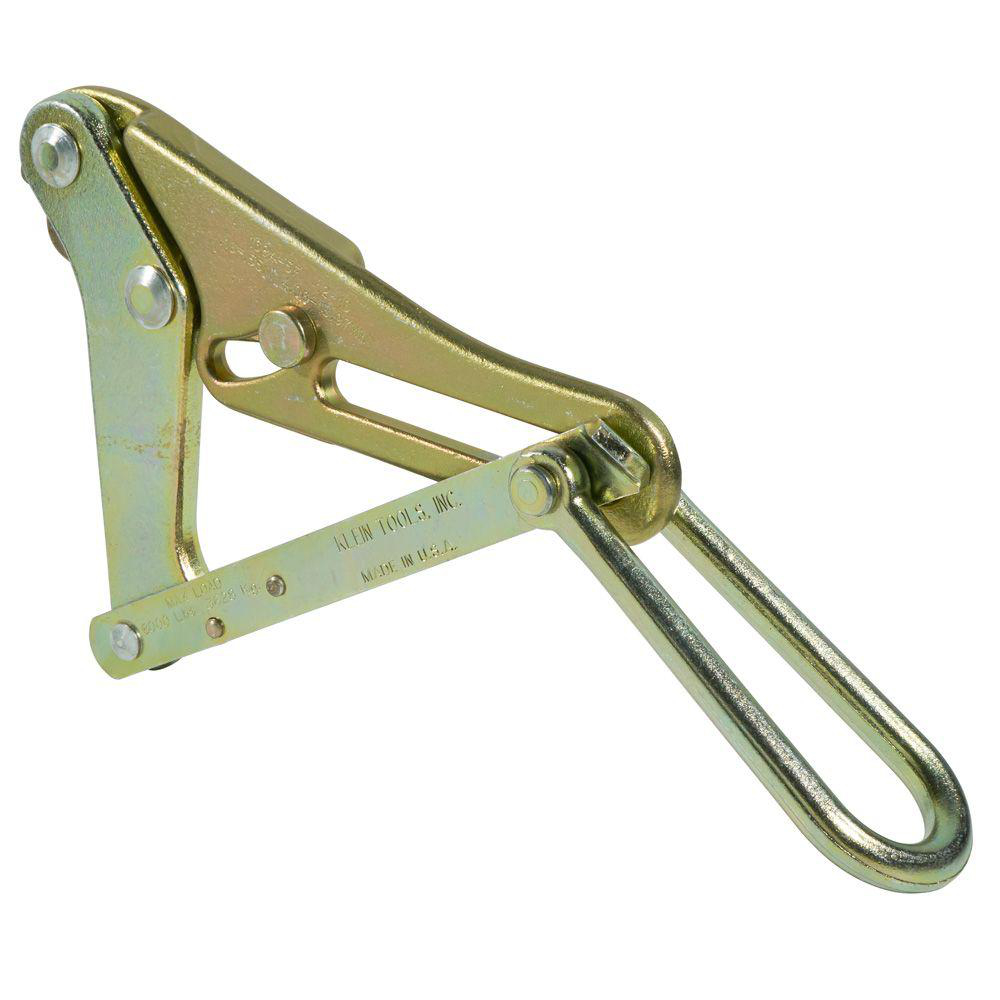

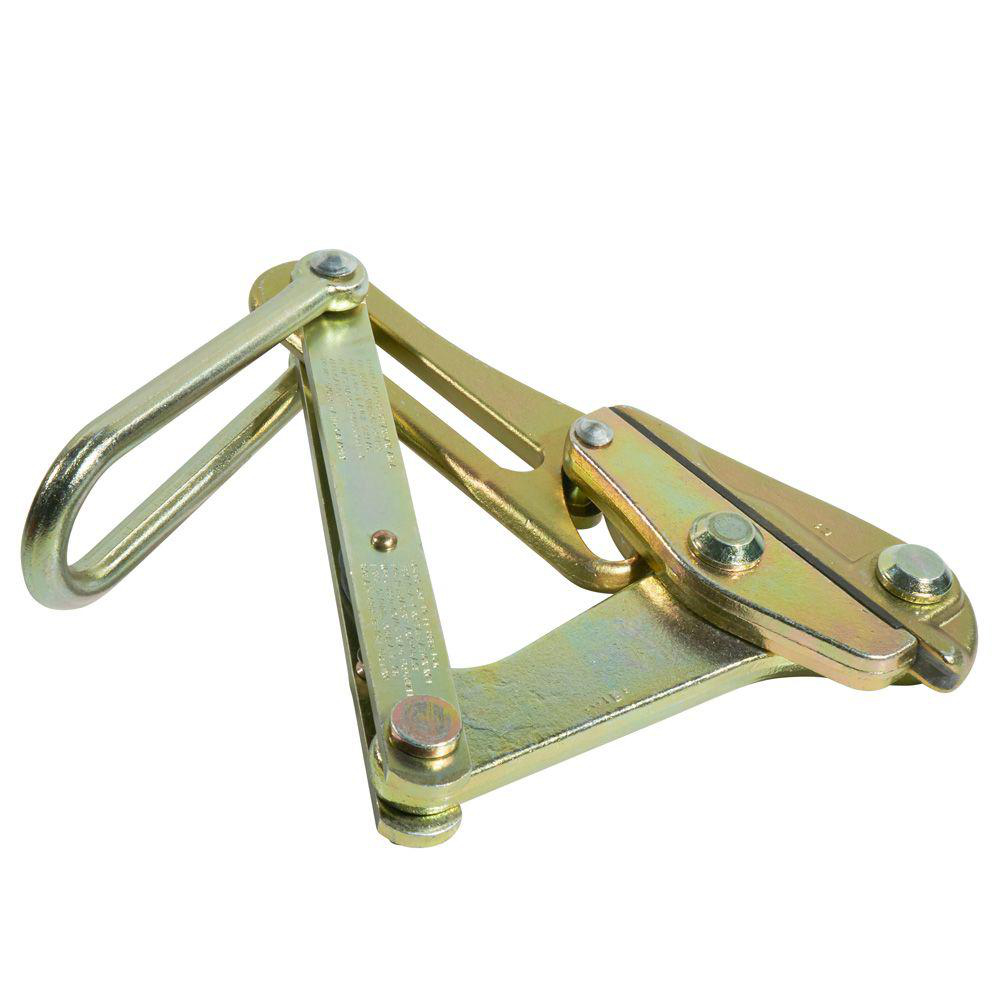

Chicago® grip for extra high strength cables, messenger, guy strand. Designed for cable sizes from .12 inch (3.10 mm) to 1.0 inch (25.4 mm). Double inchV inch grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable.

Technical Information

Applications
For Extra-High-Strength Cables, Messenger, Guy Strand
Cable Type
Aircraft,EHS,Guy Strand,Messenger
Jaw Type
Single V With File Insert
Load Capacity
8000 lbs. (3629 kg.)
Material
Forged Steel
Type
Diamond Jaw

Manufacturer Information

Brand
Klein Tools
Sub Brand
Chicago Grip

General Product Info

12-Digit UPC
092644479465
GTIN
00092644479465
Product UPC
09264447946
Weight
6.375 lb

Dimensions

Chain Cable Diameter
0.16 To 0.55 in
Depth
9.250 in
Height
1.760 in
Jaw Length
5 in
Length
5 in Jaw
Overall Length
13.3 in
Width
6.500 in

Certifications & Compliance

Country of Origin
USA
Overview
  • Designed for cable sizes from 0.16-Inch (4.06 mm) to 0.55-Inch (13.97 mm)
  • Similar to Cat. No. 1684-5 except with a file inserted in jaw for extra gripping power. Replacement file No. 578 and screws No. 573 are also available
