KLEIN 1604-20L HAVEN'S GRIP

Manufacturer: Klein Tools | Catalog # 1604-20L | Electrozad South Part # 138936
$266.78 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page Installation / Instruction Manual

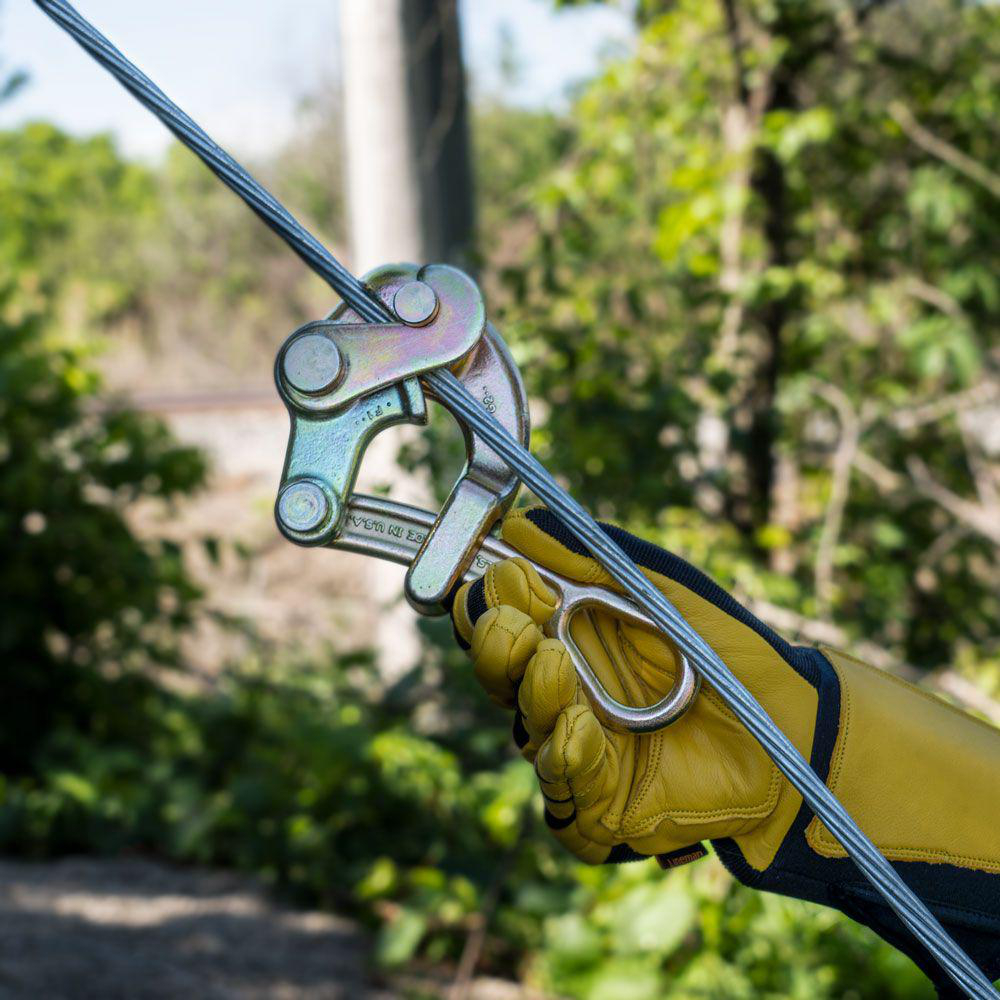

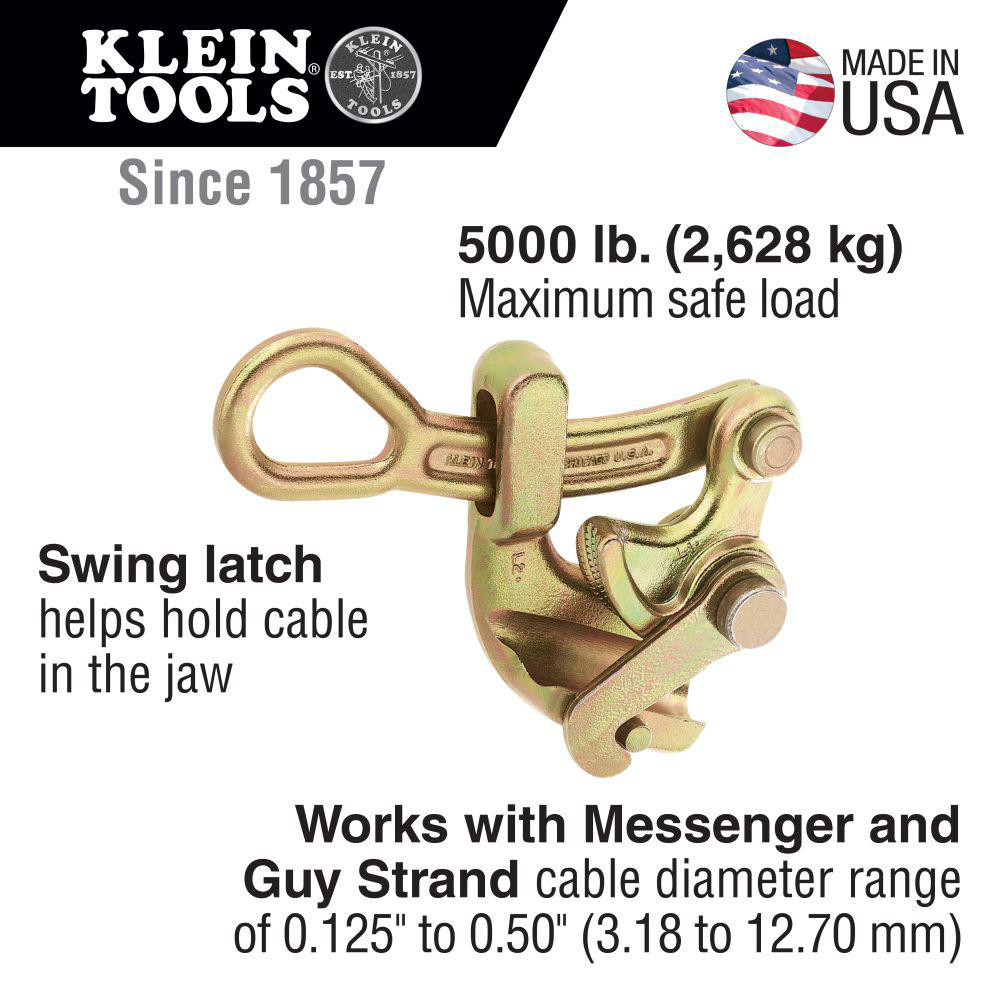

Havens® grip designed for use when light, compact grip is desired and where conductor damage is not a factor. Gripping pressure of the knurled jaw is applied to 1/4 inch (6.35 mm) cable area. Has a swing latch to help hold cable in the jaw.

Technical Information

Applications
Used for Gripping Cables
Cable Type
Guy Strand,Messenger
Capacity
5000 lb
Jaw Type
Aggressive
Material
Drop Forged Steel
Number of Rows
3
Size
0.125 - 1/2 in
Type
Eccentric Jaw

Manufacturer Information

Brand
Klein Tools
Sub Brand
Havens®

General Product Info

12-Digit UPC
092644472046
GTIN
00092644472046
Product UPC
09264447204
Used With
3.18 mm Cables
Weight
0.100 lb

Dimensions

Chain Cable Diameter
0.125 To 0.5 in
Depth
6.300 in
Height
1.760 in
Jaw Length
0.25 in
Length
8.75 in
Overall Length
8.75 in
Width
1.75 in

Certifications & Compliance

Country of Origin
USA
