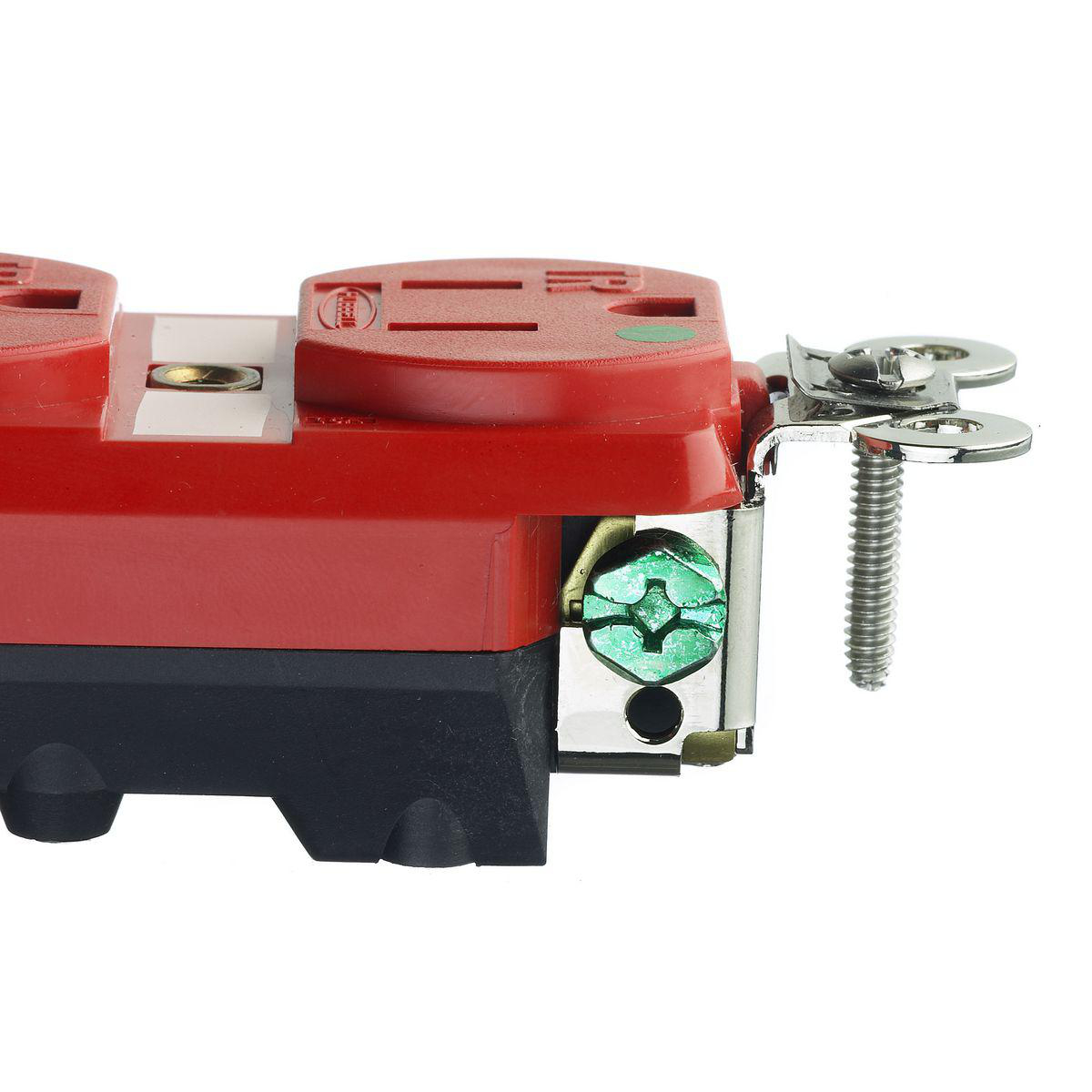

Image thumbnail 1
Email

Receptacle dupx flush nylon 2P3W 15A 5-20R red

Manufacturer: Hubbell Wiring Devices | Catalog # HBL8200SGRA | Electrozad South Part # 140814
$89.37 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
Heavy duty specification grade tamper resistant hospital grade duplex receptacle made of nylon face with 2 pole, 3 wire grounding, 125 V, back and side wired, safety grade receptacle type.

Technical Information

Amperage
15 A
Applications
Extra Heavy Duty, Hospitals
Base Material
PBT
Conductor Size
14 - 12 AWG
Connection Type
Back and Side Wired
Current
15 A
Dielectric Strength
Withstands 2,000V minimum
Face Material
PBT
Grade
Hospital
Grounding
Self
Horsepower
0.5 hp
Material
Nylon
Mounting Type
Screw, Recessed/Flush
NEMA
5-15R
Number of Phases
1
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
3.29 in x 1.65 in x 1.27 in
Standard
CSA,E2186,UL
Style
Tamper Resistant
Tamper Resistant?
Yes
TC Connection
Back & Side Wired
Type
Tamper-Resistant, Extra Heavy Duty
Voltage
125 V
Wattage
1875 W
Wire Count
3
Wire Size
12 - 10 horse power

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585152257
Color
Red
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTIN
00783585152257
Product Series
Hospital Grade
Product UPC
78358515225
Weight
0.35 lb

Dimensions

Height
1.27 in
Length
3.29 in
Width
1.65 in

Certifications & Compliance

Country of Origin
China
Overview
  • One-piece nickel-plated brass ground strap
  • Unique tamper-resistant contact mechanism prevents injury
  • Integral wire leads for fast installation and no exposed live parts
  • I.D. marking surface helps in quick circuit identification
