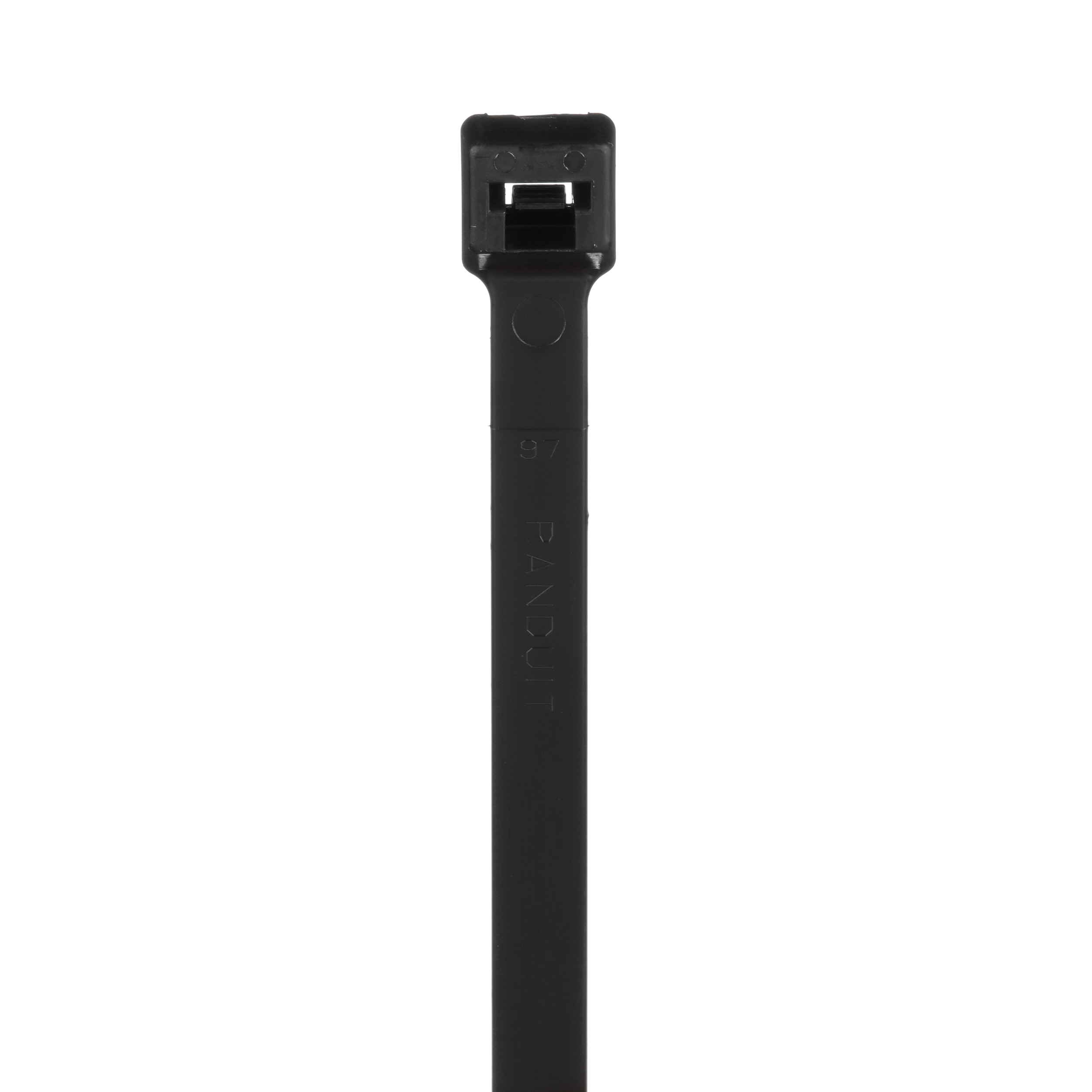

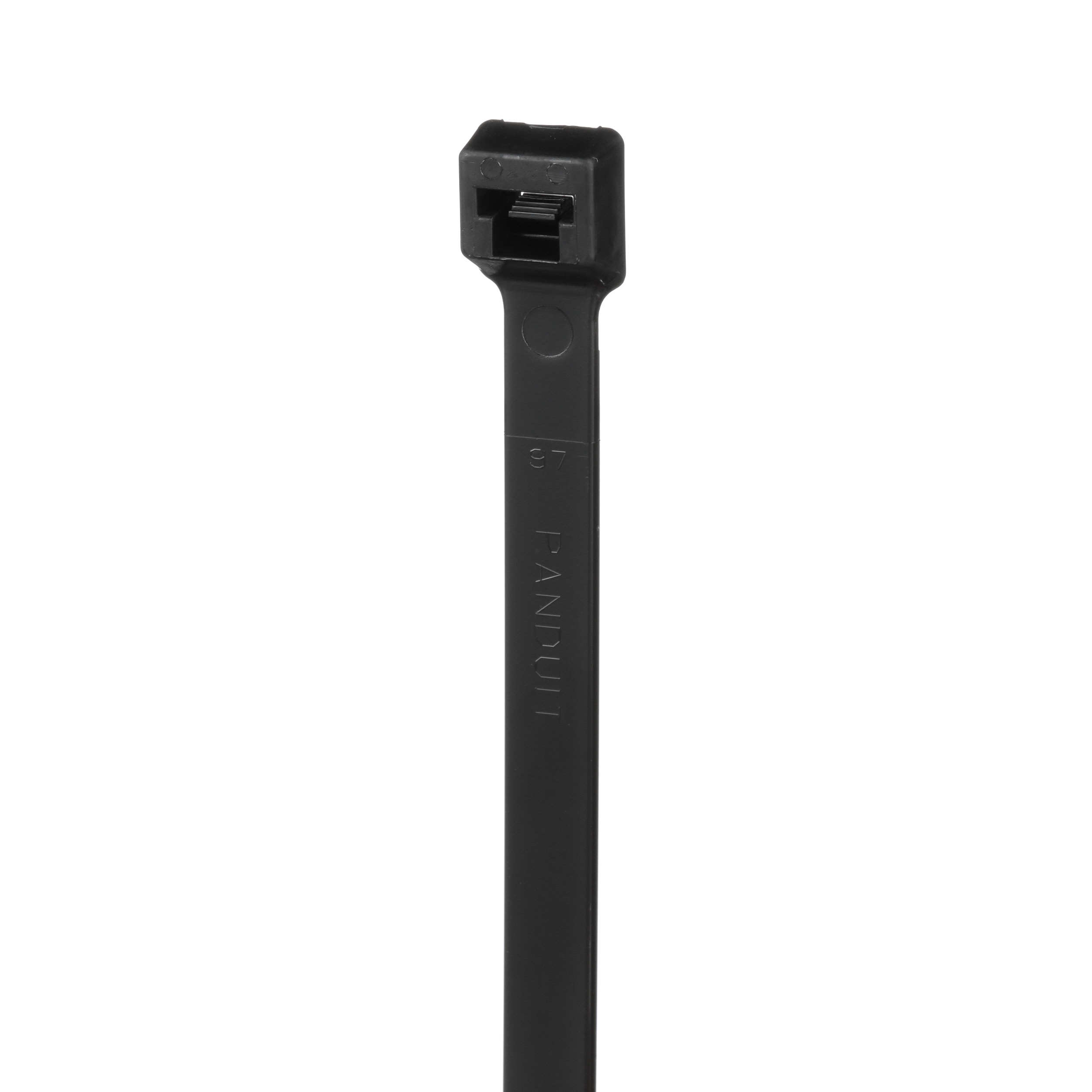

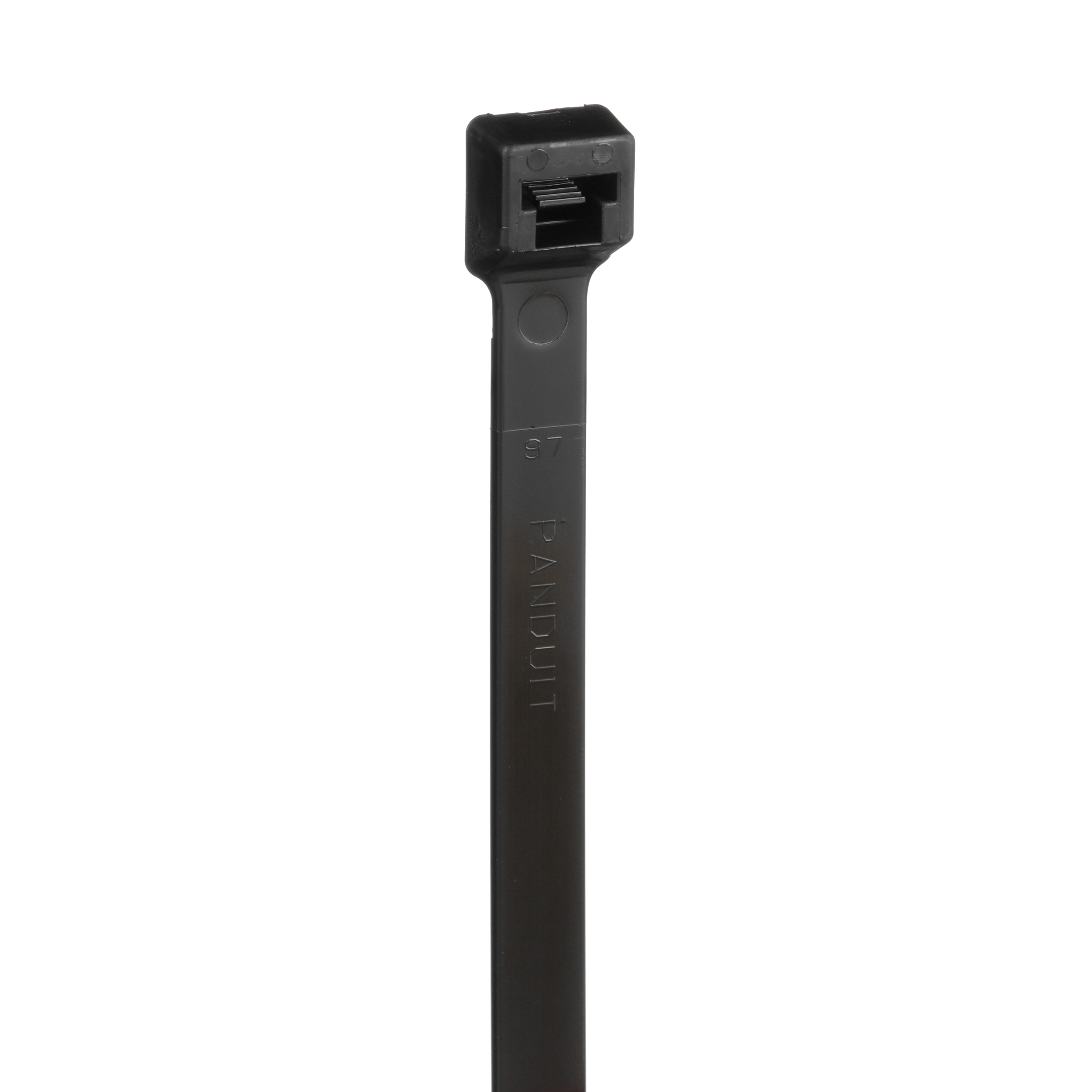

Product image for PANDUIT PLT8H-L0 PAN-TY 30.6"L0NG TS HEAVY DUTY LOCKING CABLE TIE .350"WIDE BLACK 175LBS-MLS
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

PANDUIT PLT8H-L0 PAN-TY 30.6"L0NG TS HEAVY DUTY LOCKING CABLE TIE .350"WIDE BLACK 175LBS-MLS

Manufacturer: Panduit | Catalog # PLT8H-L0 | Electrozad South Part # 14172
$249.73 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Panduit PLT8H-L0 Locking Cable Ties are designed to satisfy the needs of weather resistant applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Heavy cross section, 30.6" (779mm) length. Made of Weather Resistant Nylon 6.6, are black in color and come in packages of 50.

Technical Information

Applications
For General, Indoor/Outdoor use
Body Thickness
0.078 in
Body Width
0.35 in
Bundle Diameter
203.2 mm
Material
Nylon 6.6
Max Operating Temperature
185 degrees F
Minimum Operating Temperature
-60 degrees C
Standard
CSA,E2186,UL
Temperature Rating
-60 to 85 degrees C
Tensile Strength
778 N
Type
Heavy Cross Section, UV-Resistant, Weather Resistant

Packaging

Package Qty
50
Standard Packaging Qty
50/Pack

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Ty

General Product Info

12-Digit UPC
074983540976
Color
Black
Environment
Indoor,Outdoor
Environmental Conditions
32 °F
GTIN
00074983540976
Product UPC
07498354097
Used With
GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH Cable Tie Tools

Dimensions

Length
30.6 in
Overall Length
779 mm
Thickness
2 mm
Width
8.9 mm

Certifications & Compliance

Country of Origin
CR,MY
