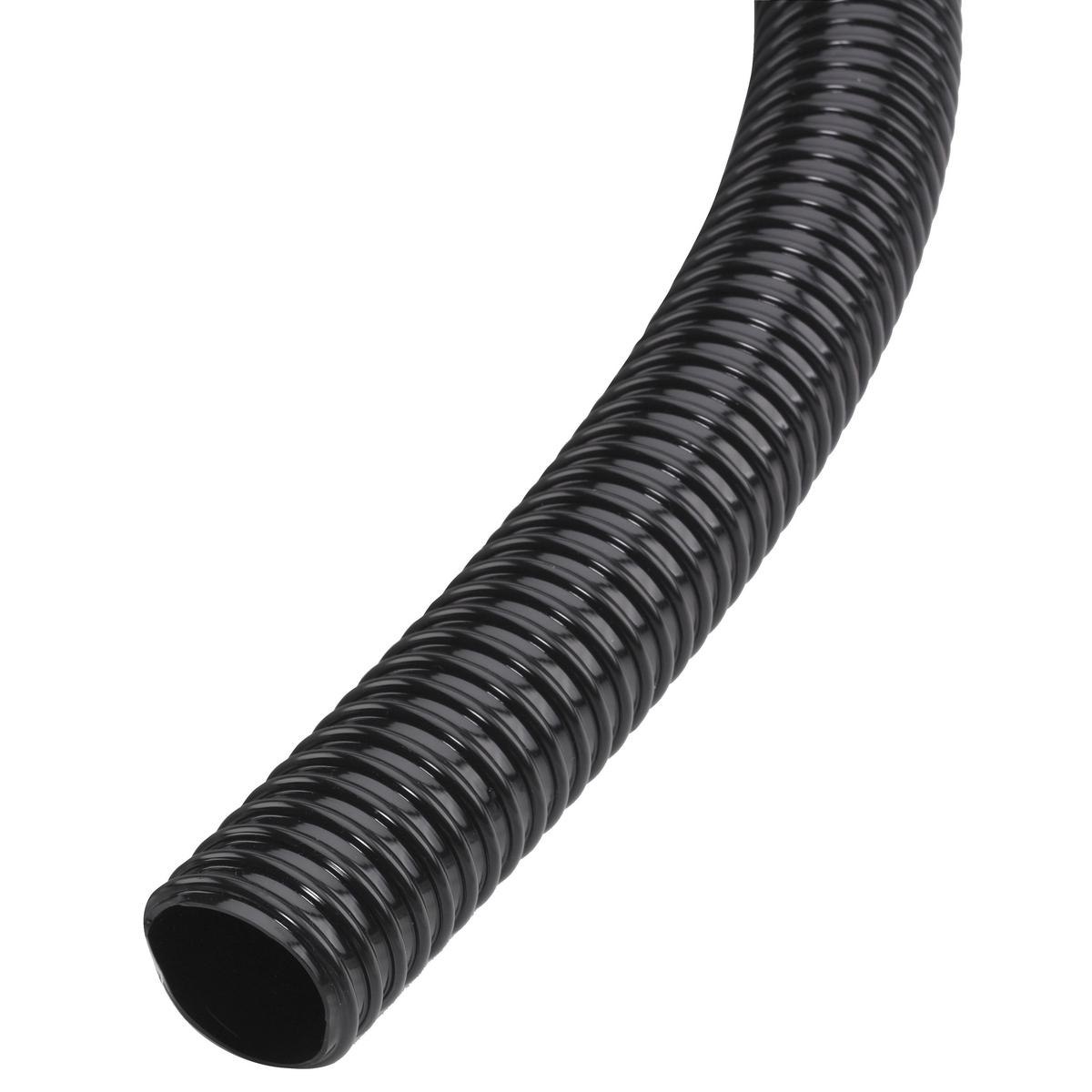

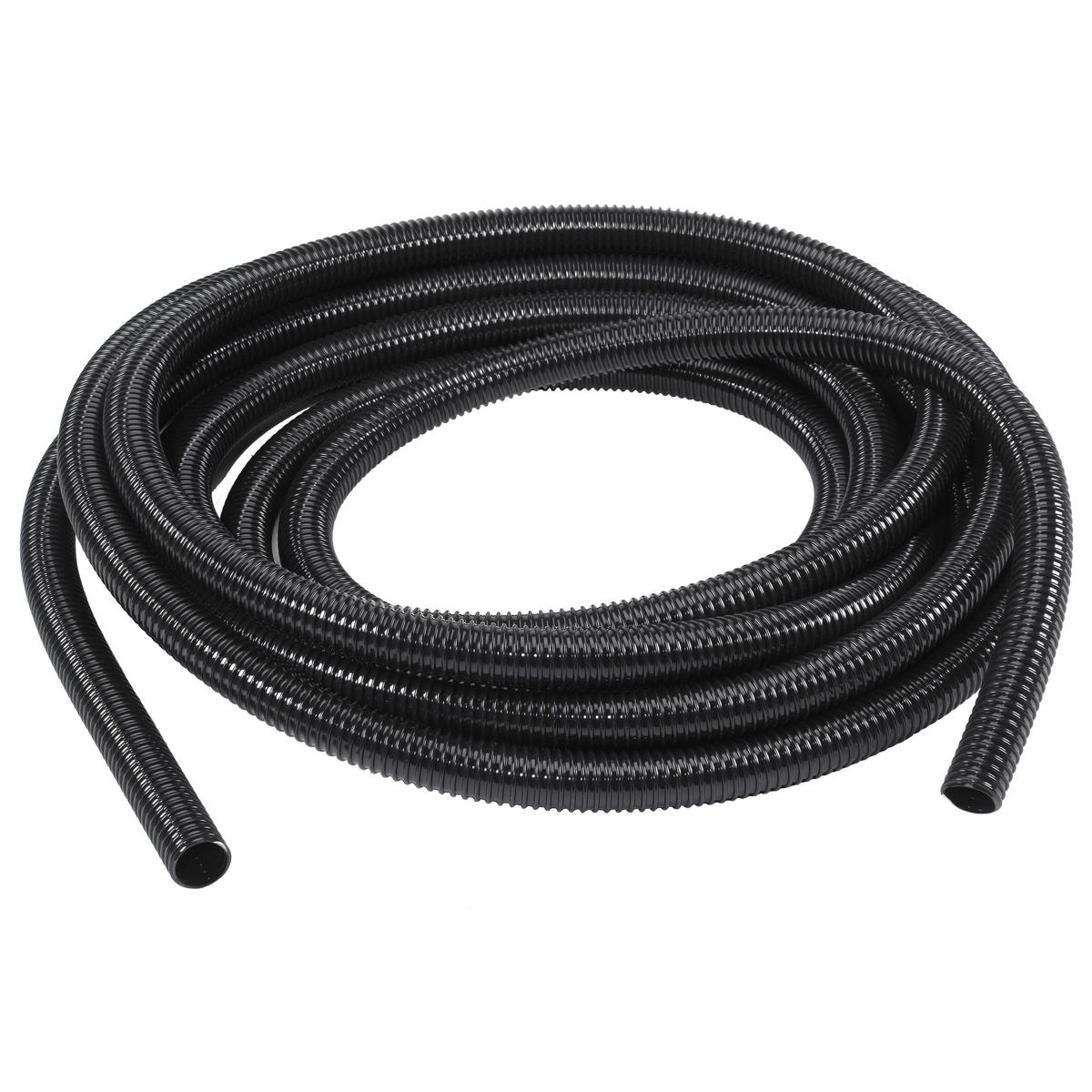

Product image for HUB B2075 CUTS POLYTUFF II 3/4" BLACK NONMETALLIC LIQUIDTIGHT TUBING
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

HUB B2075 CUTS POLYTUFF II 3/4" BLACK NONMETALLIC LIQUIDTIGHT TUBING

Manufacturer: Hubbell Wiring Devices | Catalog # B2075 | Electrozad South Part # 14587
$6.68 /ft
ft
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page
Poly Tuff® II Liquidtight system non-metallic tubing. Superior flexibility and outstanding corrosion resistance. Co-extruded rigid and flexible PVC material. 3/4 inch trade size. 3 inch bend radius. PVC core with corrugated walls bonded to PVC jacket. Handles twists, turns, bends, switchbacks and straightaways with ease. All non-metallic construction ends fatigue and separation problems. Rigid PVC core bonded to flexible PVC jacket. Cuts cleanly with a knife or PVC cutter so there are no jagged edges. Operating temperature -18 to 60..C.

Technical Information

Applications
For Wet and Damp Locations
Bend Radius
3 in
Connection Type
Cap Nut
Material
PVC
Radius
3.00 in (76.2)
Standard
CSA,E2186,UL
TC Connection
Cap Nut
Trade Size
0.75 in
Type
Extra Flexible
Voltage
300 V

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Kellems Wire Management

General Product Info

12-Digit UPC
783585333229
Color
Black
Finish
Ribbed
GTIN
00783585333229
Product UPC
78358533322

Dimensions

Diameter
1.04 in ID x 0.83 in OD
Height
0.750 in
Inside Diameter
1.04 in (26.4)
Length
100 ft
Outside Diameter
0.83 in 21.1 in
Width
1.04 in

Certifications & Compliance

Country of Origin
USA
