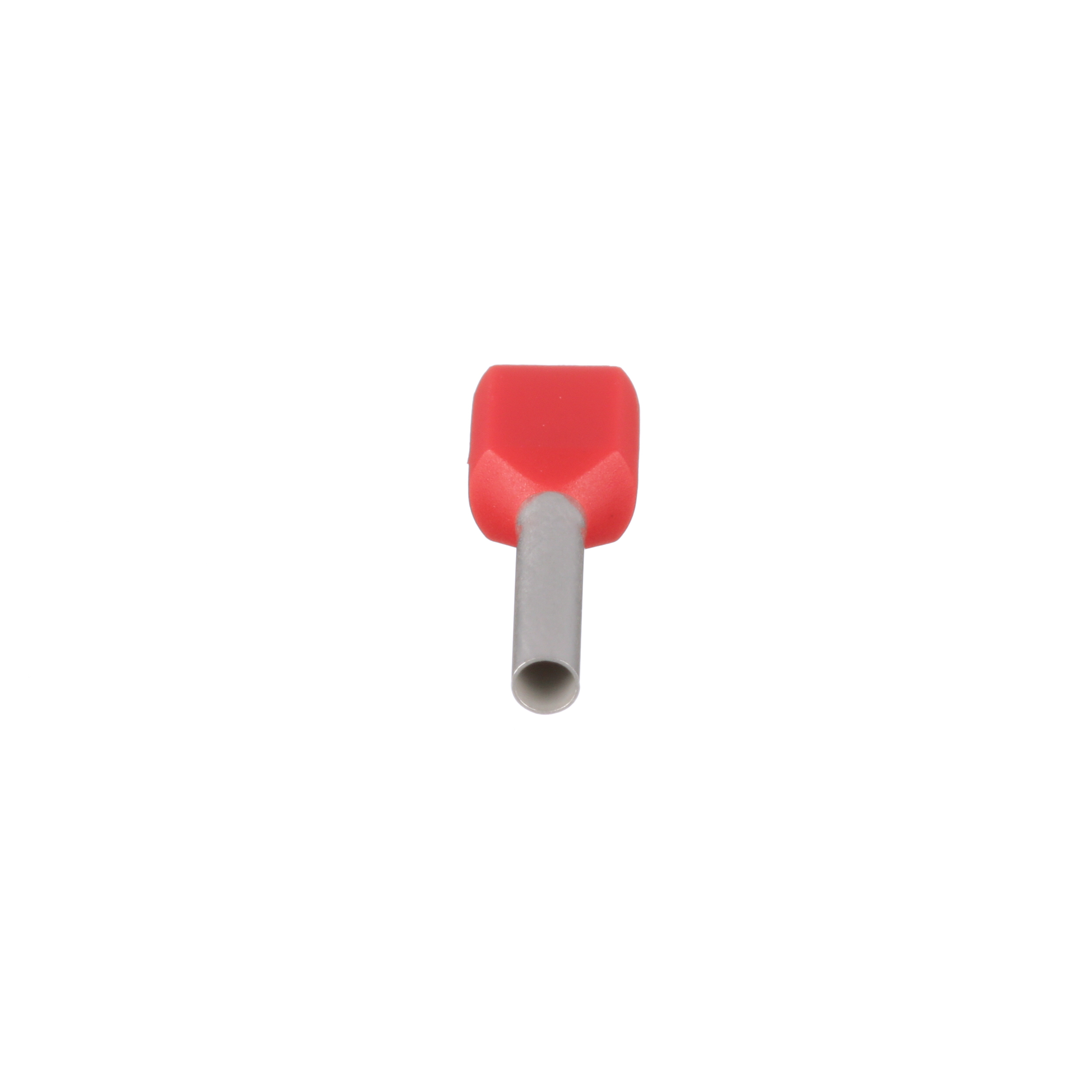

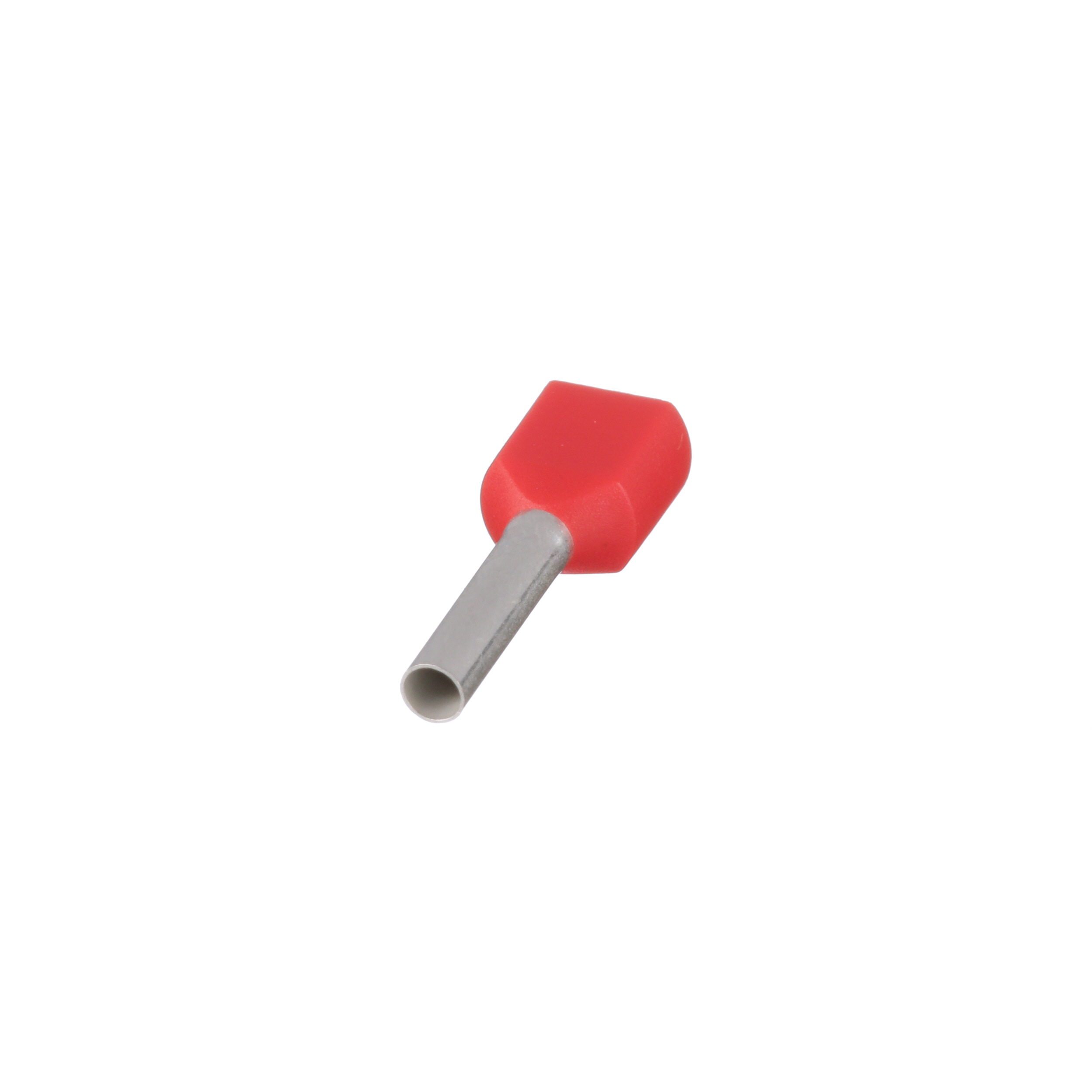

Pan-Term® FTD77-10-D Twin wire ferrule, Red, 10mm Pin L, PK500

Manufacturer: Panduit | Catalog # FTD77-10-D | Electrozad South Part # 14866
$416.33 /m (1000 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL
Panduit FTD77-10-D Covered Twin Wire Ferrule

Technical Information

Color Coding
NA
Material
High Conductivity Copper Alloy
Max Operating Temperature
105 degrees C
Minimum Operating Temperature
-54 degrees C
Standard
IEC 60947; EN 60947; UL Listed; CSA Certified; DIN VDE 0600
Temperature Rating
221 degrees F
Type
Covered Twin Wire Ferrule
Wire Size
1 mm²

Packaging

Package Qty
500

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983763092
Color
Red
Finish
Rust-Proof Plating, Vinyl Coated
GTIN
00074983763092
Product UPC
07498376309

Dimensions

Outer Diameter
0.9 in
Overall Length
0.67 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Germany
