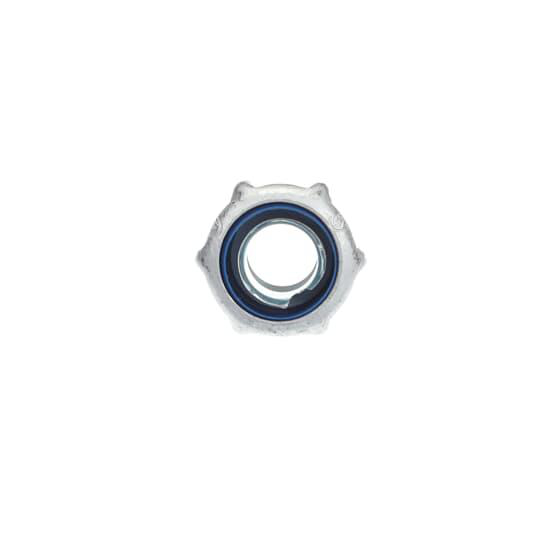

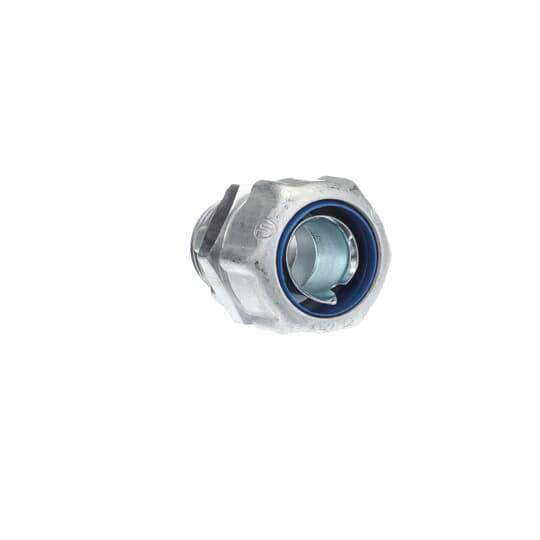

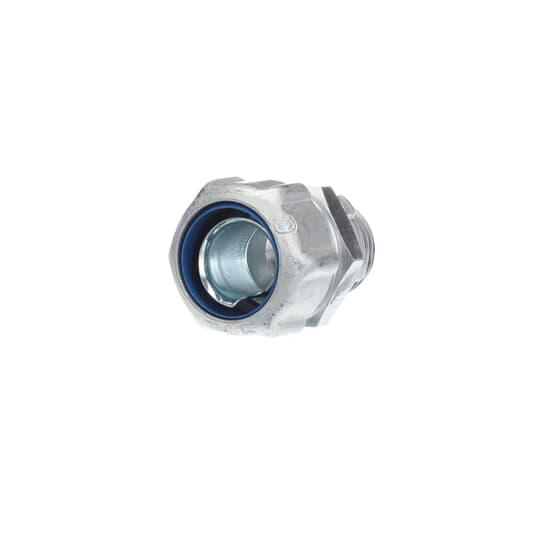

Product image for TNB 5232AL CONNECTOR 1/2" STR LT LIQUIDTITE NON INSULATED ALUMINUM
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

TNB 5232AL CONNECTOR 1/2" STR LT LIQUIDTITE NON INSULATED ALUMINUM

Manufacturer: ABB | Thomas & Betts | Catalog # 5232AL | Electrozad South Part # 15022
$1,281.48 /c (100 pc)
pc
Log in or register to view your price, purchase history, and more!
15 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Brochure Product Catalog Page Installation / Instruction Manual
Straight connector, Liquidtight flexible metal conduit fitting, Non-insulated. Steel tapered hub threads with safe-edge ground thru 4 inch cone and double level sealing ring through 2 inch. For control and power cable applications.

Technical Information

Applications
For LTA Flexible Aluminum Conduit
Material
Aluminum
Size
1/2 in
Standard
CSA,UL E23018
TC Connection
External Threaded
Thread Length
14.224 mm
Thread Type
NPT
Trade Size
1/2 in
Type
Straight, One-Piece

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
786210802473
Box Quantity
100
Construction Type
External Thread
Finish
Chromate Coating,Electro Zinc-Plated
GTIN
05414363075462
Housing Material
Other
Product UPC
78621080247

Dimensions

Length
39.624 mm
