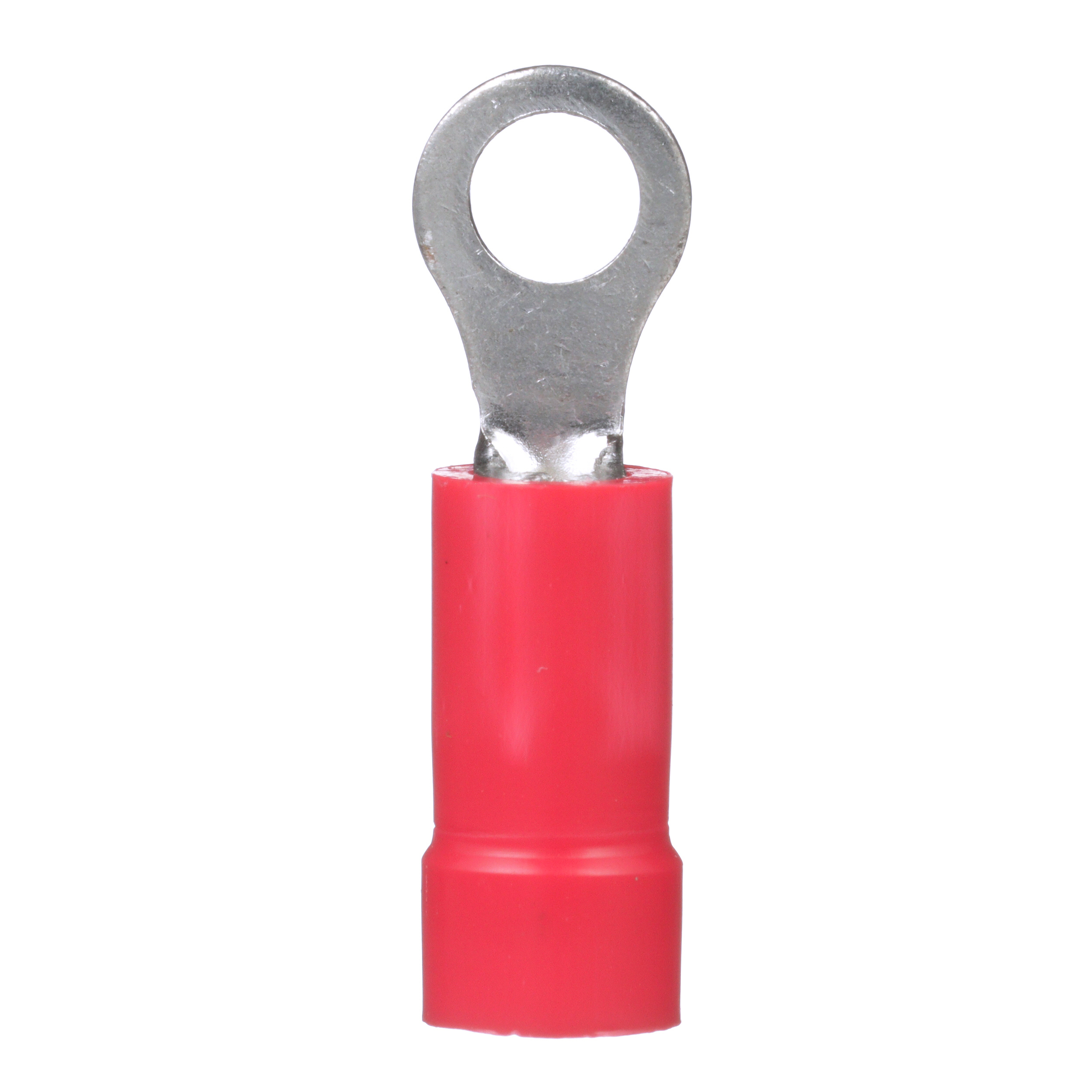

Product image for Pan-Term® PV18-6R-MY Ring Terminal, Red, Vinyl, 16-22 AWG, #6 Stud, PK1000
Image thumbnail 0
Image thumbnail 1
Email

Pan-Term® PV18-6R-MY Ring Terminal, Red, Vinyl, 16-22 AWG, #6 Stud, PK1000

Manufacturer: Panduit | Catalog # PV18-6R-MY | Electrozad South Part # 15841
$281.74 /m (1000 ea)
ea
Log in or register to view your price, purchase history, and more!
500 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL
The PV18-6R-MY Pan-Term® Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.

Technical Information

Barrel Length
0.35 in
Barrel Type
Funnel
Color Coding
Red
Enclosure
Ring shape
Material
Copper
Max Operating Temperature
105 degrees C
Size
#6
TC Connection
Funnel Entry
Temperature Rating
221 F
Tongue Thickness
0.03 in
Tongue Width
0.25 in
Type
Ring Terminal
Wire Size
#18 AWG

Packaging

Package Qty
1000

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983416974
Color
Red
Finish
Tin-Plated
GTIN
00074983416974
Product UPC
07498341697

Dimensions

Overall Length
0.86 in
Width
0.25 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
