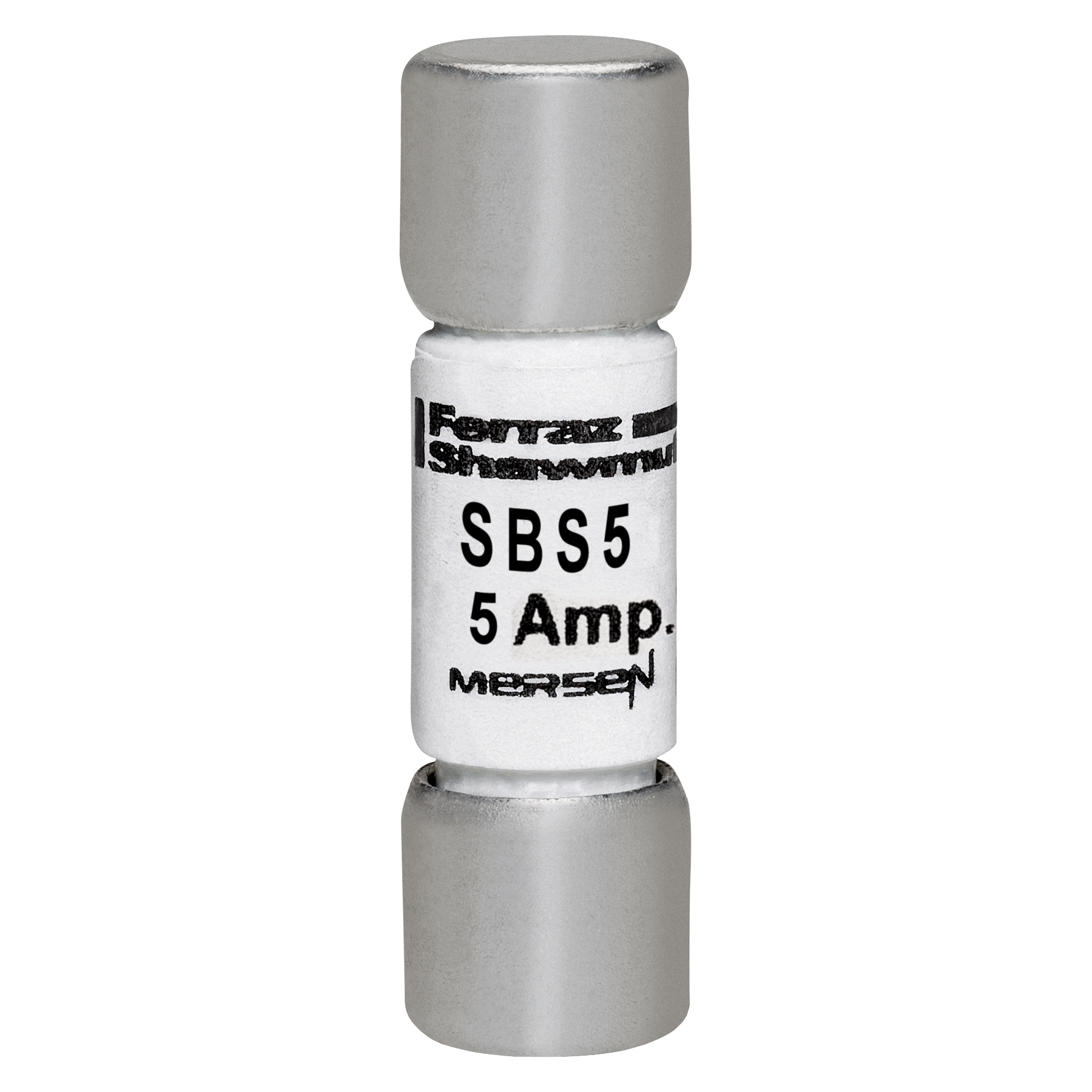

MERSEN SBS5 FUSE MINIATURE 5A 600V FAST ACTING FIBERGL 1-3/8" X 13/32" FERRULE GENERAL PURPOSE

Manufacturer: Ferraz Shawmut Mersen | Catalog # SBS5 | Electrozad South Part # 16178
$12.04 /ea
ea
Log in or register to view your price, purchase history, and more!
2 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet
SBS midget fast-acting fuses were developed in response to the industry's demand for smaller equipment and components. They are the only fuses in their size with a full 600VAC rating for all ampere ratings by UL Standard 248-14 and CSA No. 59.2, and are the only fuses of this size with an interrupting rating of 100kA RMS, compared to 10kA on other brands.

Technical Information

Amperage
5 A
Applications
For Supplemental Protection, Control Circuits, Lighting Ballasts, Meter Circuits, Electronic Circuits
Connection Type
Ferrule
Frequency
50/60 Hz
Fuse Class
Midget
Insulation Material
GMG
Interrupt Rating
100 kA
Mounting Type
Clip
Rated Voltage AC
600 V
TC Connection
Ferrule
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
Supplemental Protection

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001907808
Class
M
Construction
Fiberglass
GTIN
30782001907809
Product UPC
78200190780
Weight
0.016 lb

Dimensions

Diameter
0.41 in
Length
1.38 in
