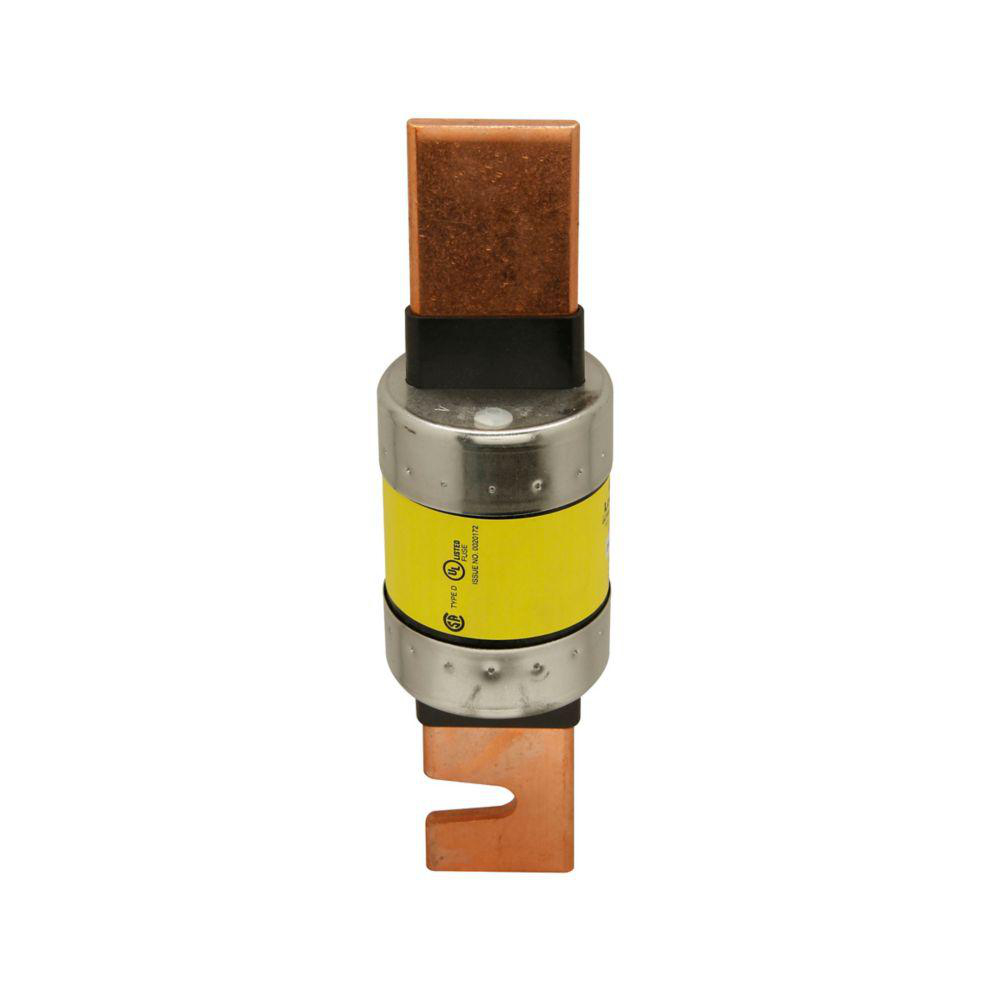

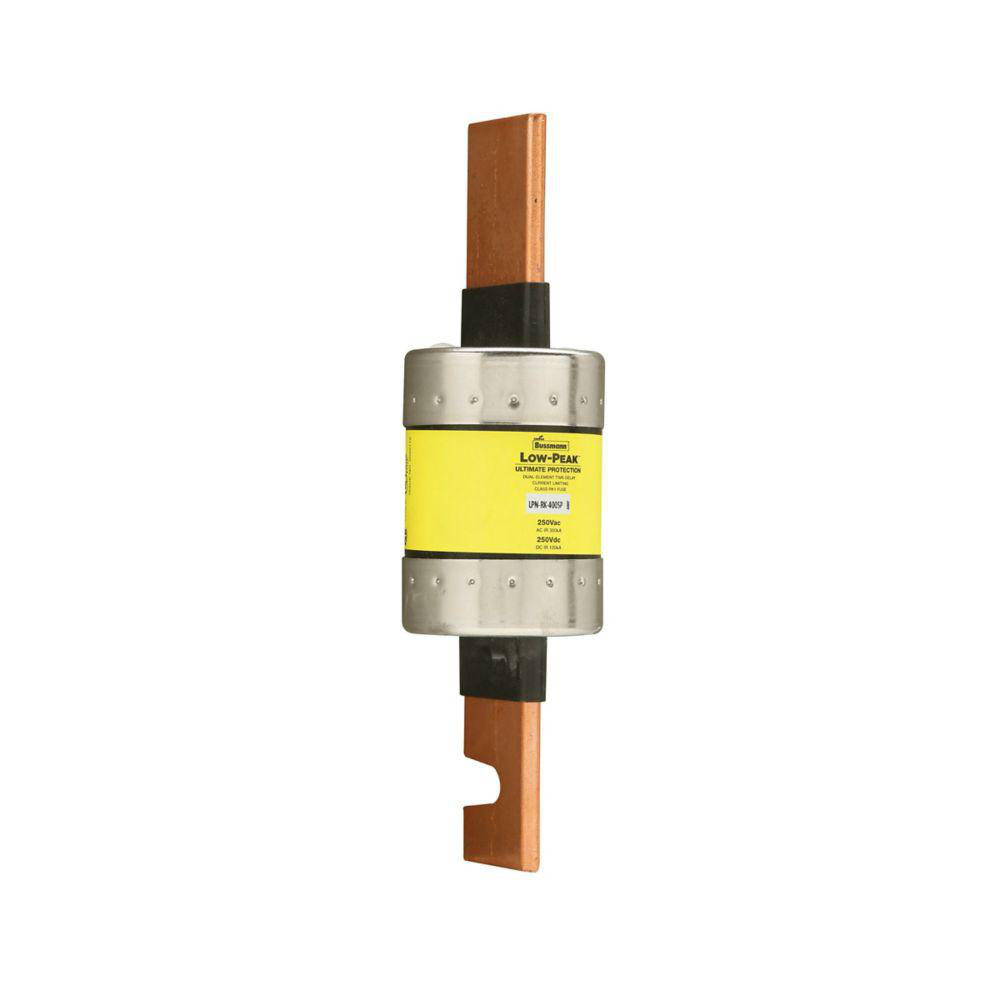

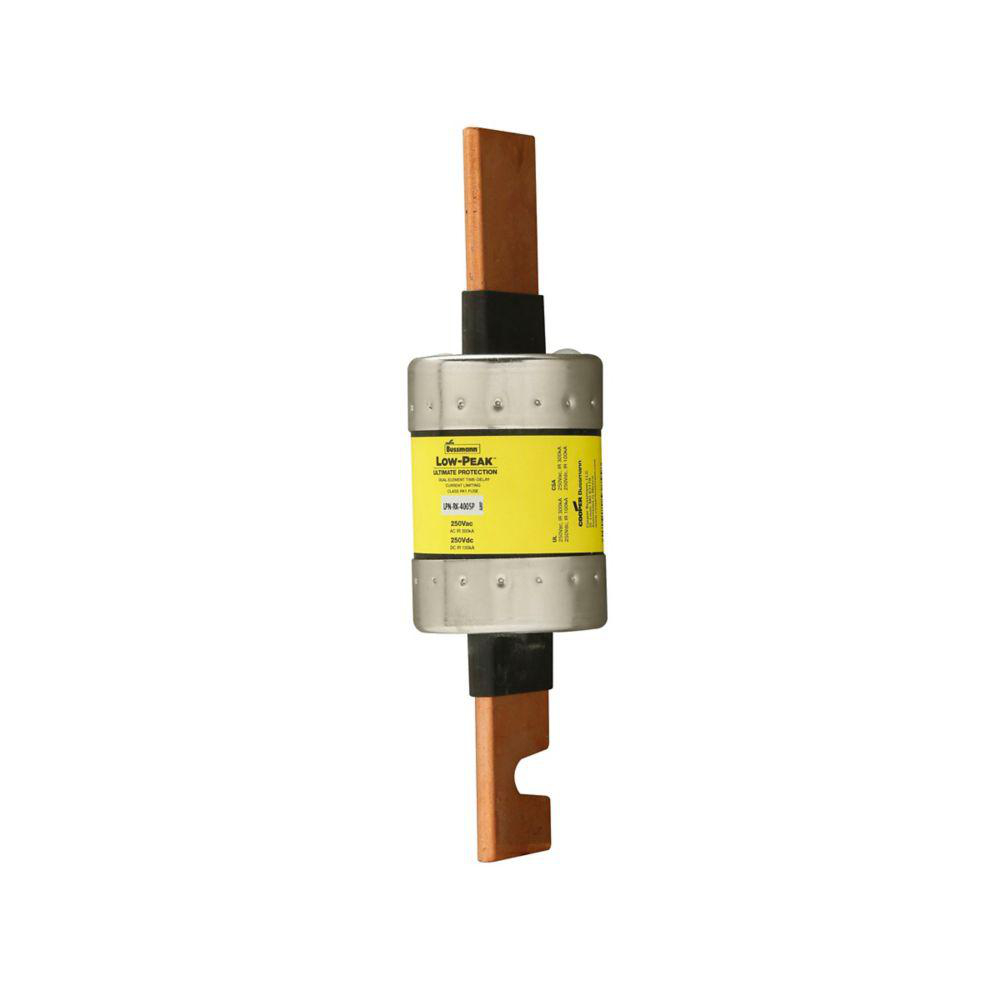

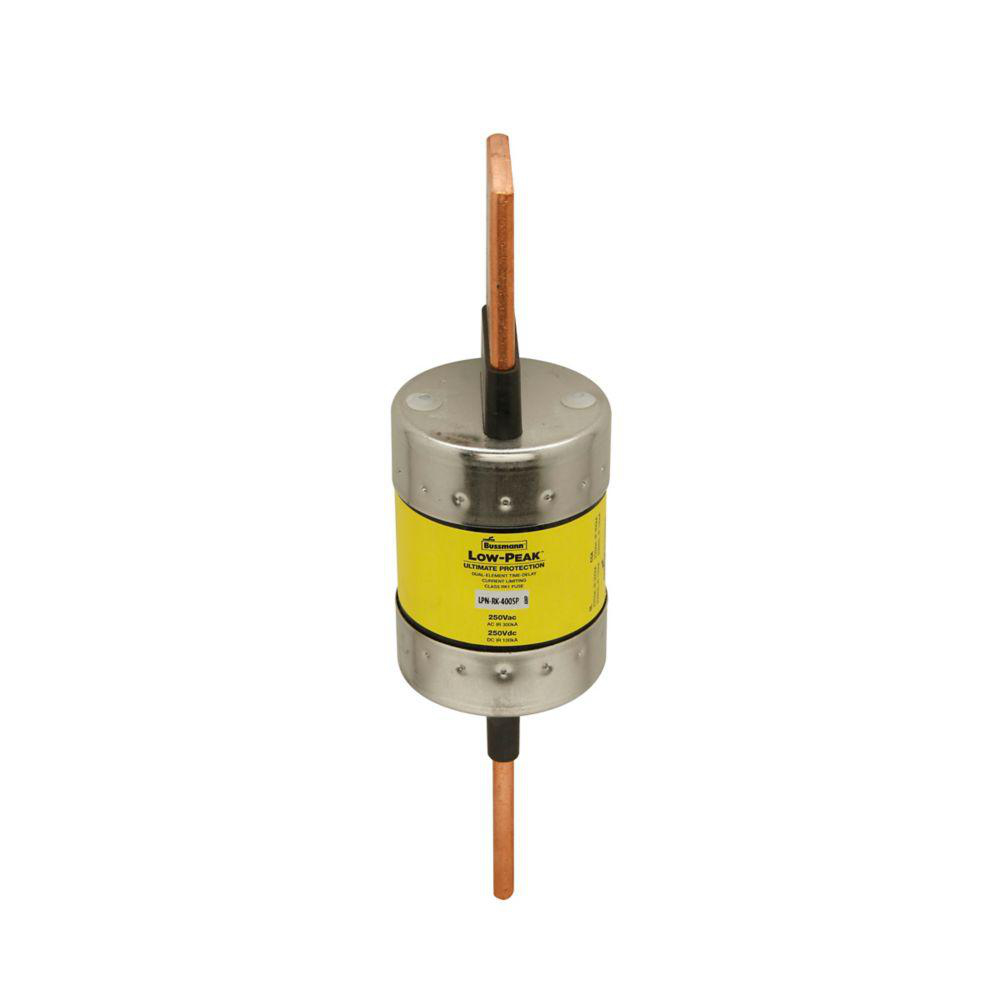

LOW PEAK DUAL ELEMENT

Manufacturer: Bussman Cooper Fuses | Catalog # LPN-RK-400SP | Electrozad South Part # 16222
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet Product Brochure H TECHNICAL DRAWING URL
Eaton Bussmann Series Class RK1 fuse, LPN-RK, time-delay, dual-element, current limiting fuse, 400 A, non-indicating fuse, interrupting rating of 300 kA at 250 Vac and 100 kA at 125 Vdc

Technical Information

Amperage
400 A
Applications
Ind Facilities & Factories - Facility: Safety and Security Systems
Connection Type
Blade
Element
Dual
End Type
Blade
Interrupt Rating
100 kA
Response Time
10 seconds at 500%
Size
2.36 In Diameter X 8.63 In Length
Standard
CE,CSA C22.2,UL
TC Connection
Blade end x blade end
Type
Current Limiting,Time-Delay
Voltage
250 V

Manufacturer Information

Brand
Bussmann
Sub Brand
Bussmann Series

General Product Info

12-Digit UPC
051712538558
Class
Class RK1
GTIN
00051712538558
Product UPC
51712538558
Weight
1.75 lb

Dimensions

Diameter
2.36 in
Height
2.36 in
Length
8.63 in
Width
2.36 in
