GP6429

Manufacturer: Burndy | Catalog # GP6429 | Electrozad South Part # 16453
$81.27 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL

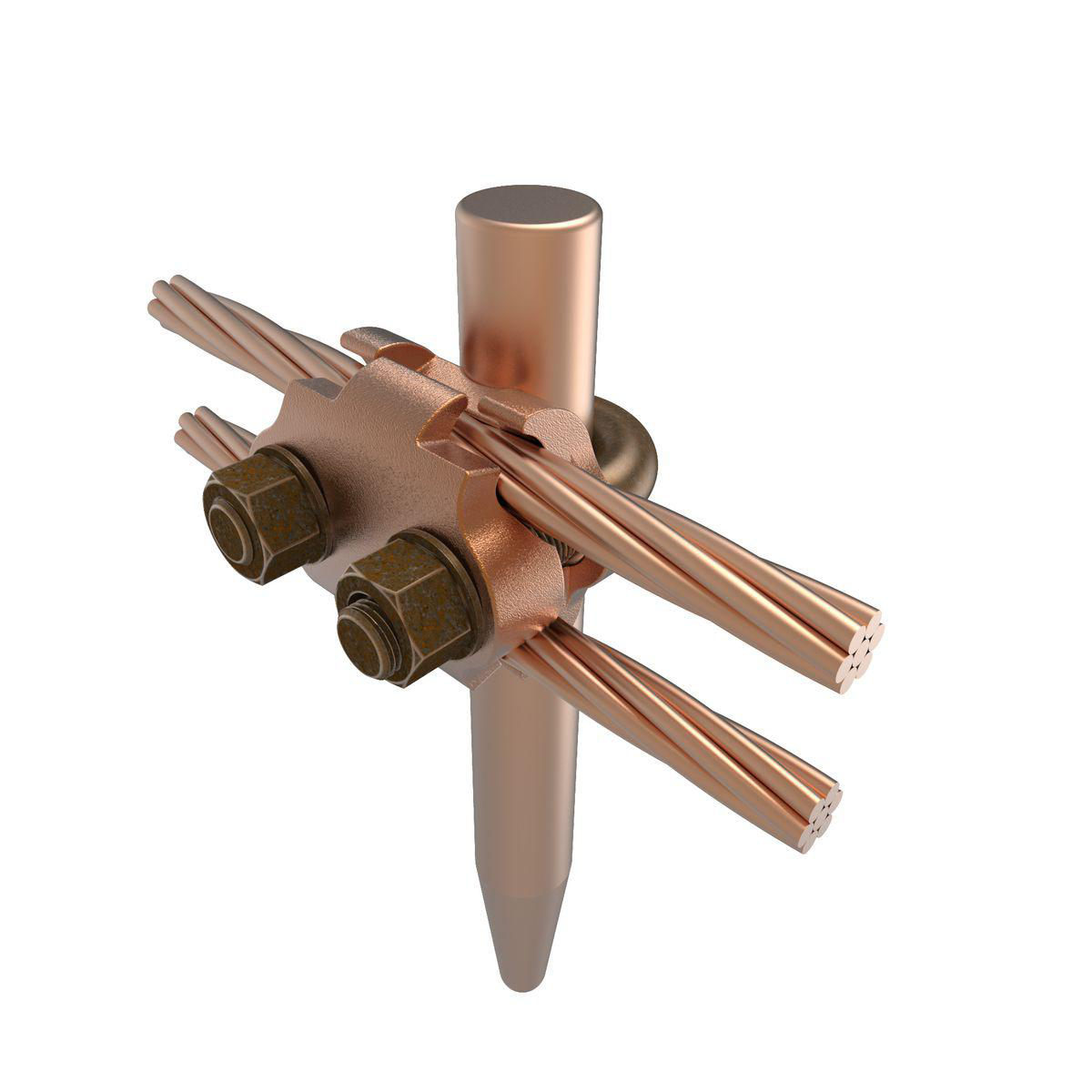

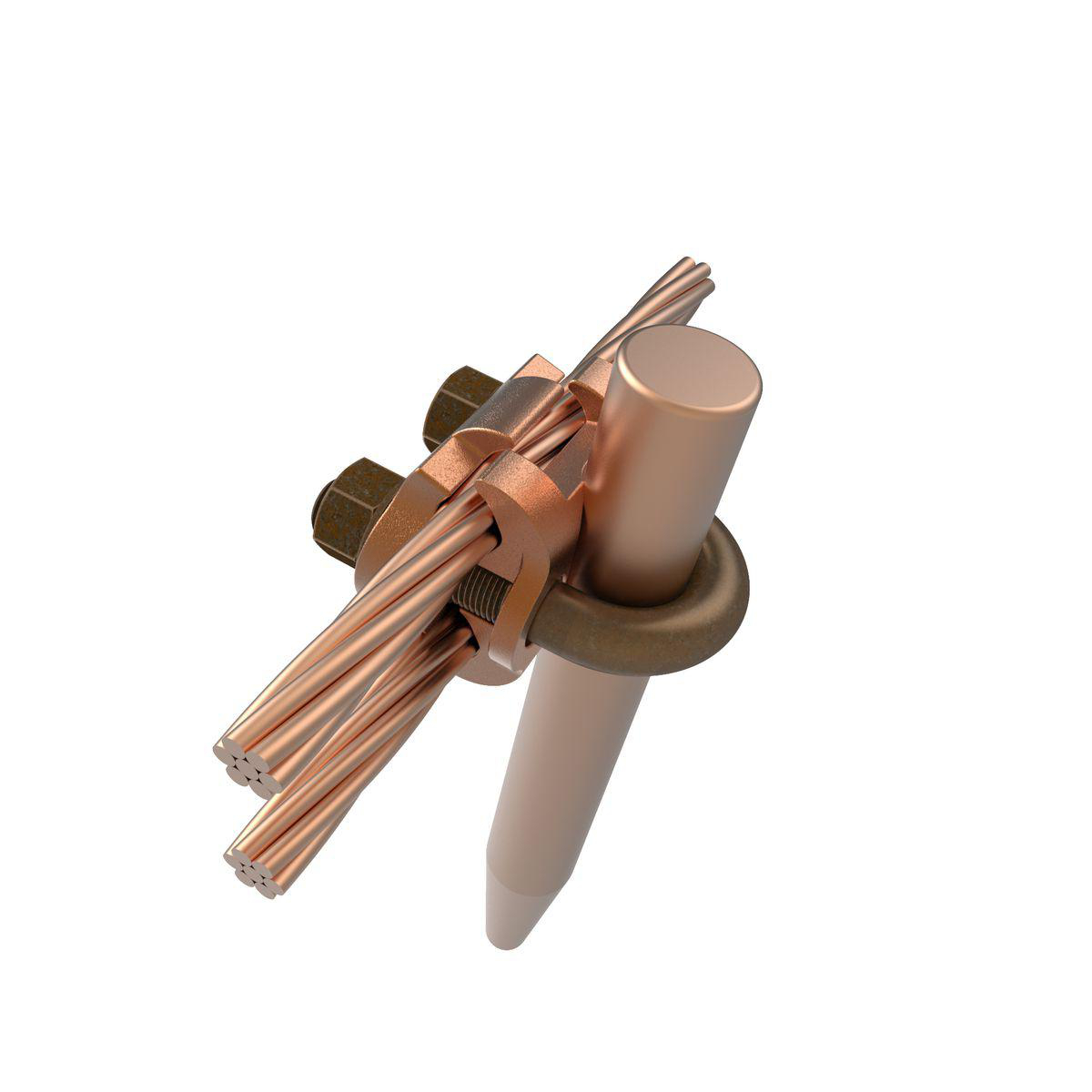

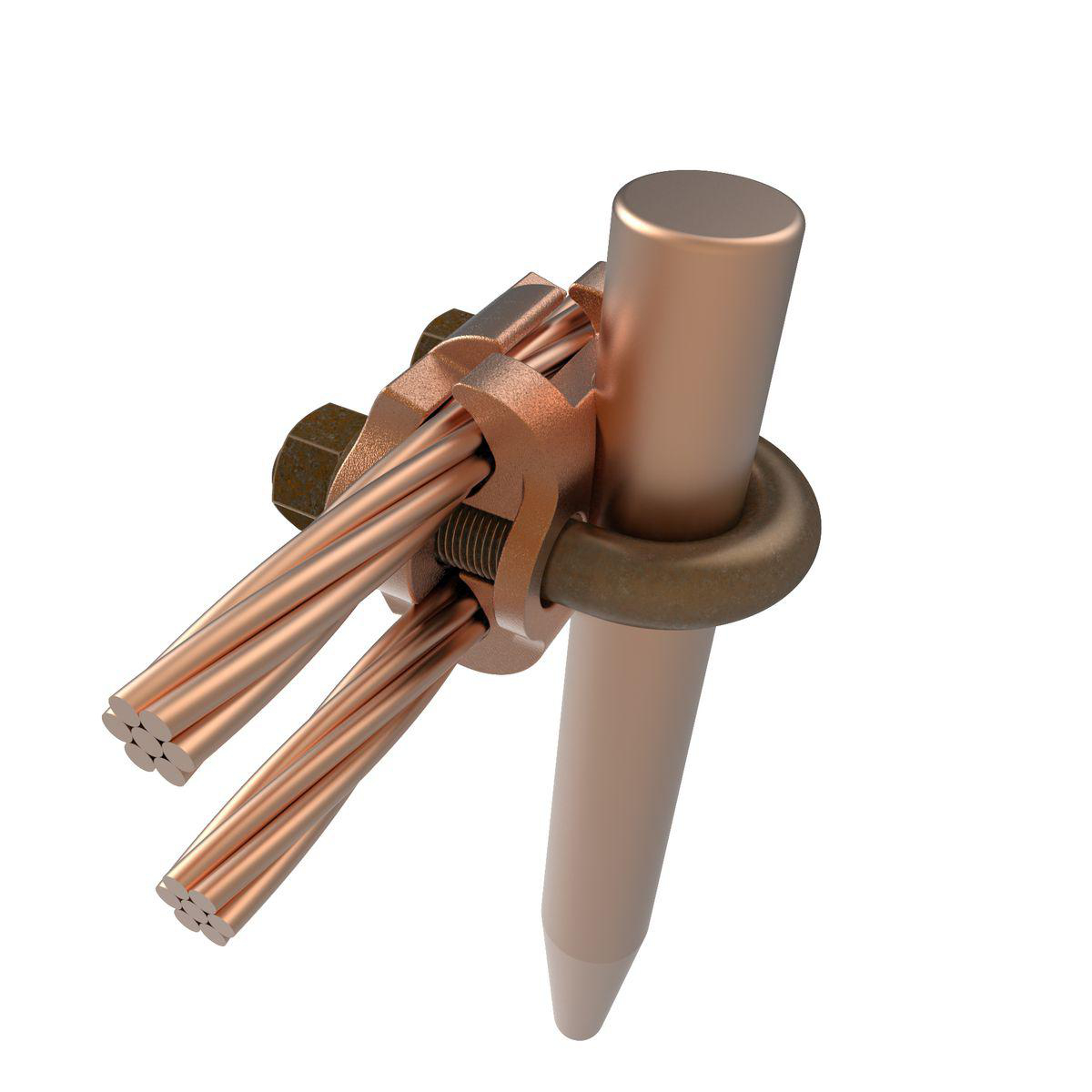

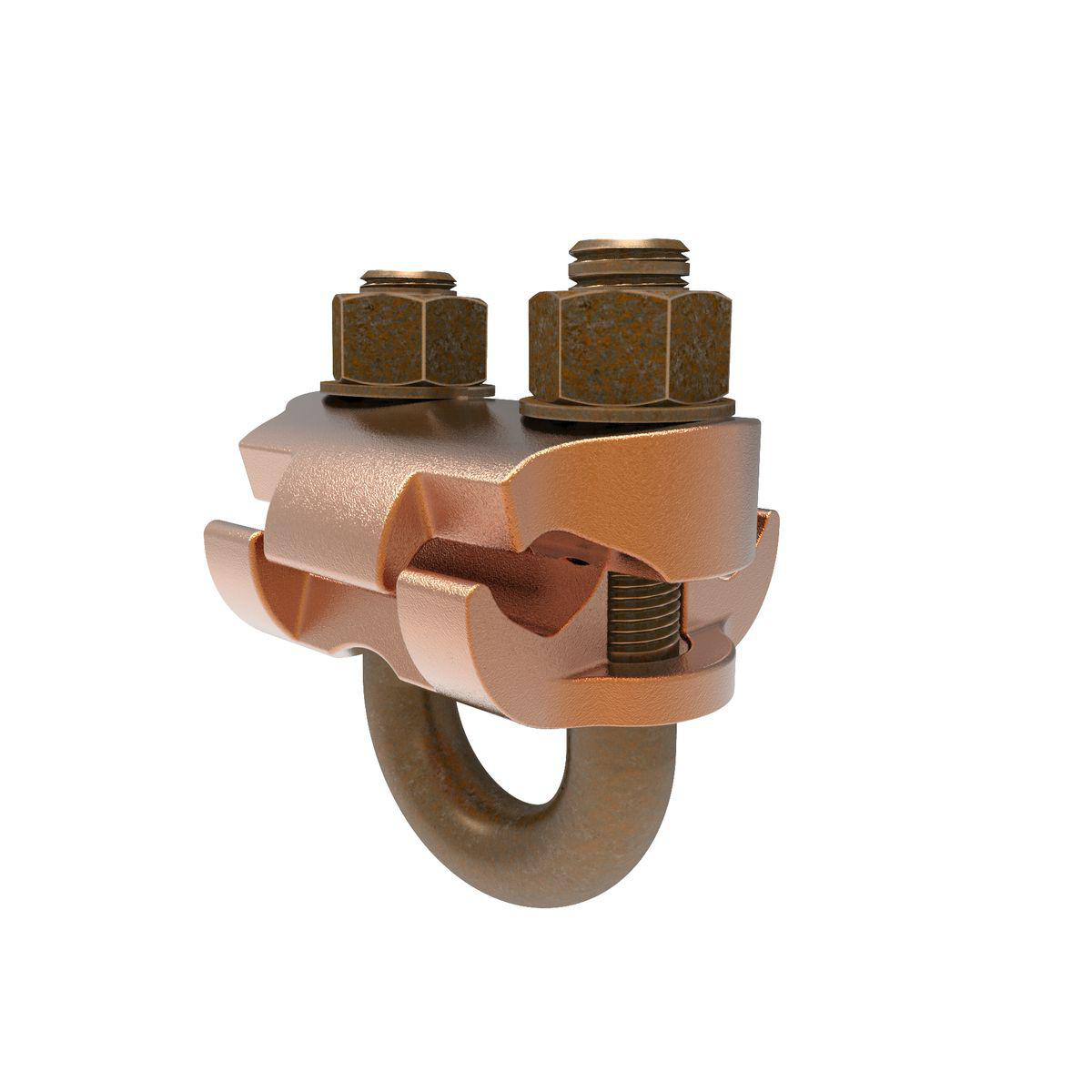

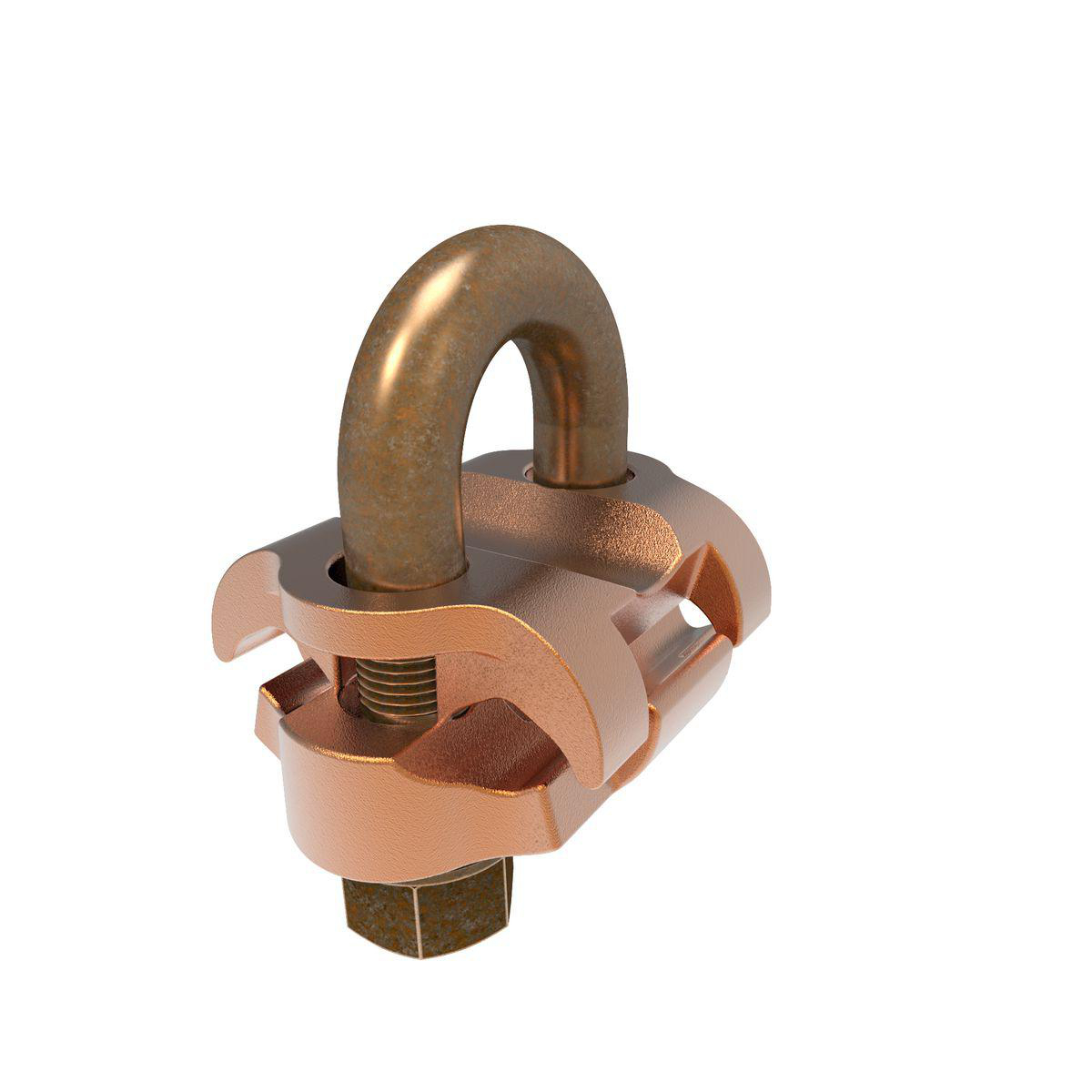

Mechanical Grounding Connector, 2 Cables to Rod or Pipe, 2/0 AWG (Sol) -250 kcmil, 3/8" Pipe, 5/8"-3/4" Rod, 3/8" Stud.

Technical Information

Applications
For Joining a Range of Parallel Copper Cables Perpendicular to Rod, Pipe or Column, Direct Burial in Earth or Concrete
Bolt Size
3/8 IN
Conductor Size
2/0 AWG Solid - 250 kcmil
Material
High Copper Alloy
Mounting Type
3/8 in
Plated?
No
Plating Type
Unplated
Type
Mechanical

Manufacturer Information

Brand
Burndy
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810260555
GTIN
00781810260555
Product UPC
78181026055
Used With
3/8 in IPS

Dimensions

Height
2.88 in
Length
2.06 in
Overall Length
2.06 in
Width
2.12 in

Certifications & Compliance

Country of Origin
Mexico
CSA
No
