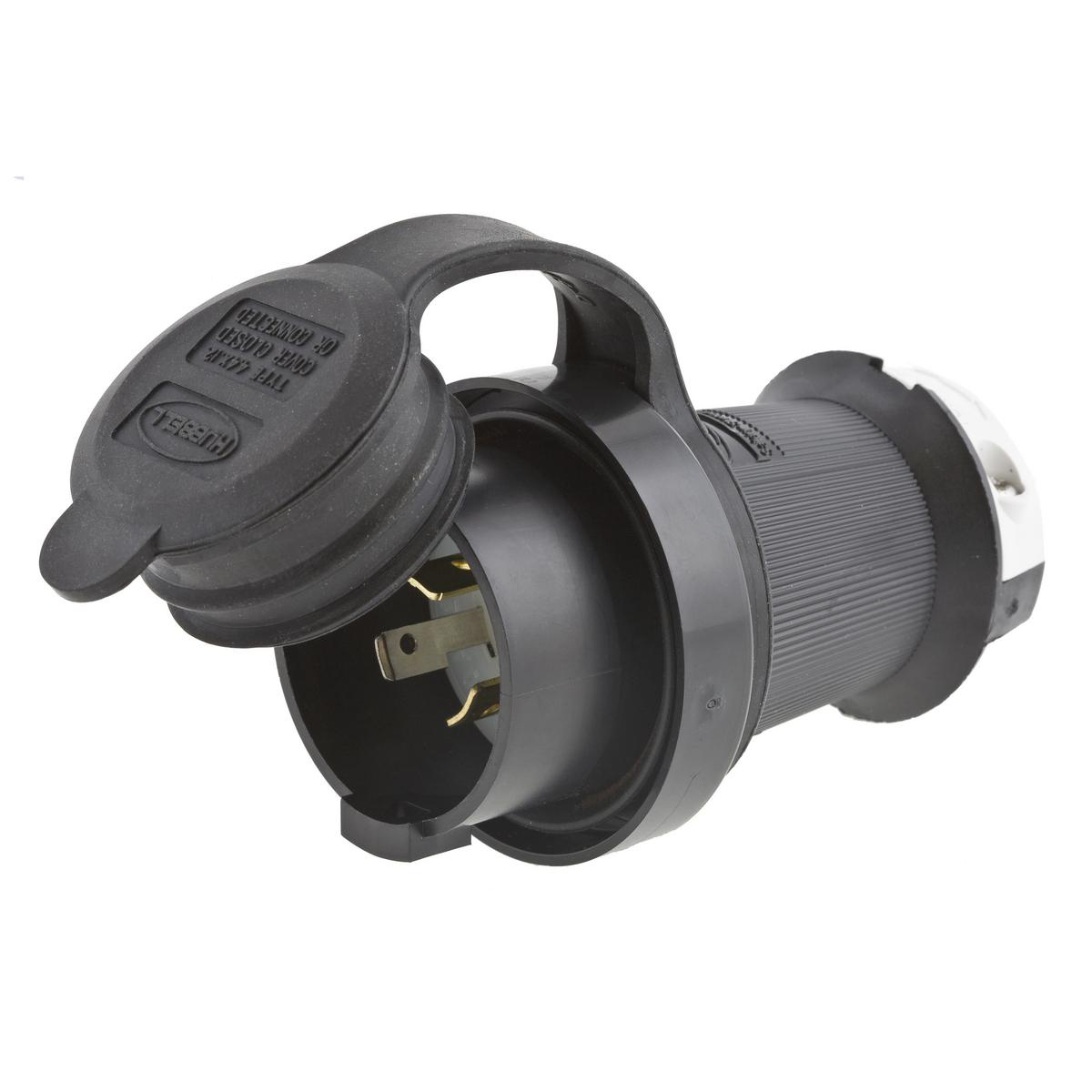

Plug L5-20P twlo+shroud 2P 20A 125V WP black

Manufacturer: Hubbell Wiring Devices | Catalog # HBL2311SW | Electrozad South Part # 17254
$113.64 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
Hubbell SAFETY SHROUD come in black cable plugs and connectors with closure cap or grey surface inlet/outlet with door. Made of high impact thermoplastic UV resistant providing a type 4X watertight connection. The cord entrance is sealed through compression of the rubber gland. They come in version twist-lock 2 pole 125-250-277 volts, 3 pole 125/250 volts, 3 phase 250-480-120/208 volts in 20 and 30 amp models.

Technical Information

Amperage
20 A
Applications
For Extra Heavy Duty Industrial Applications
Conductor Size
16-8 AWG
Cord Size
0.36 - 0.93 in
Cord Type
Portable
Current
20 A
Dielectric Strength
2000 V
Grounding
Yes
Horsepower
1 hp
Material
PBT
Mounting Type
Surface, Cord
NEMA
L5-20P
Number of Phases
1
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
2.77 in x 2.77 in x 4.40 in
Standard
4X,CSA,Type 12,Type 4,UL
TC Connection
Terminal Screws
Temperature Rating
-40 to 75 degrees C Continuous
Type
Standard, Shrouded
Voltage
125 V
Wattage
2000 W
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Twist-Lock®, Watertight Safety-Shroud®

General Product Info

12-Digit UPC
783585231020
Color
Black,White
Environmental Conditions
Watertight, UL 94 Requirements, V0 Rated Flammability
GTIN
00783585231020
Product UPC
78358523102
Weight
0.60 lb

Dimensions

Height
4.40 in
Length
2.77 in
Width
2.77 in

Certifications & Compliance

Country of Origin
USA
Overview
  • Reduces exposure to arcing when connecting or disconnecting under load.

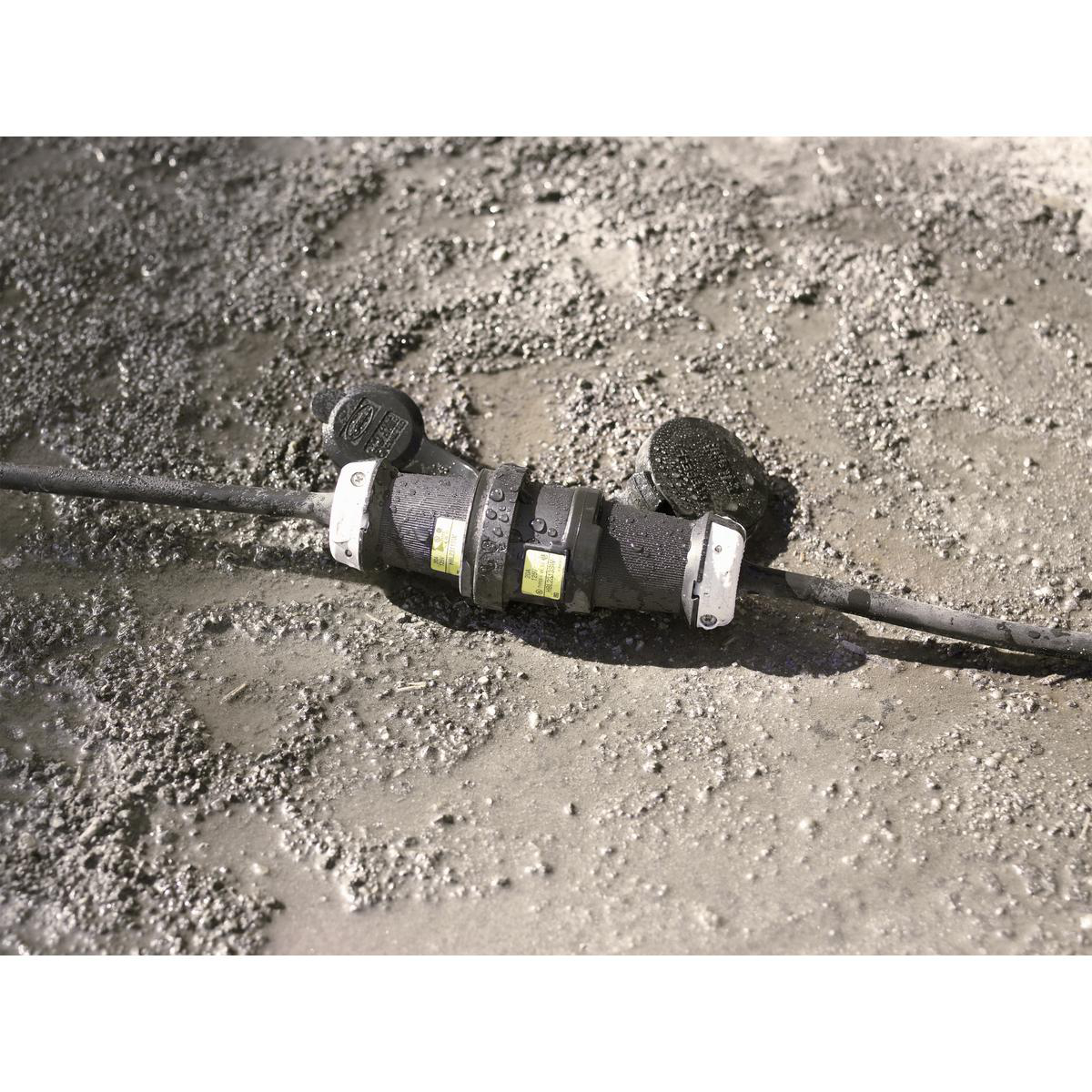

  • UL Type 4X Environmental seal protects connection while in use.
  • Impact resistant shroud protects blades against bending and breaking.
  • Superior cord grip design protects terminations from excess strain.
