GAR6429

Manufacturer: Burndy | Catalog # GAR6429 | Electrozad South Part # 17757
$63.88 /ea
pc
Log in or register to view your price, purchase history, and more!
6 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Brochure D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL

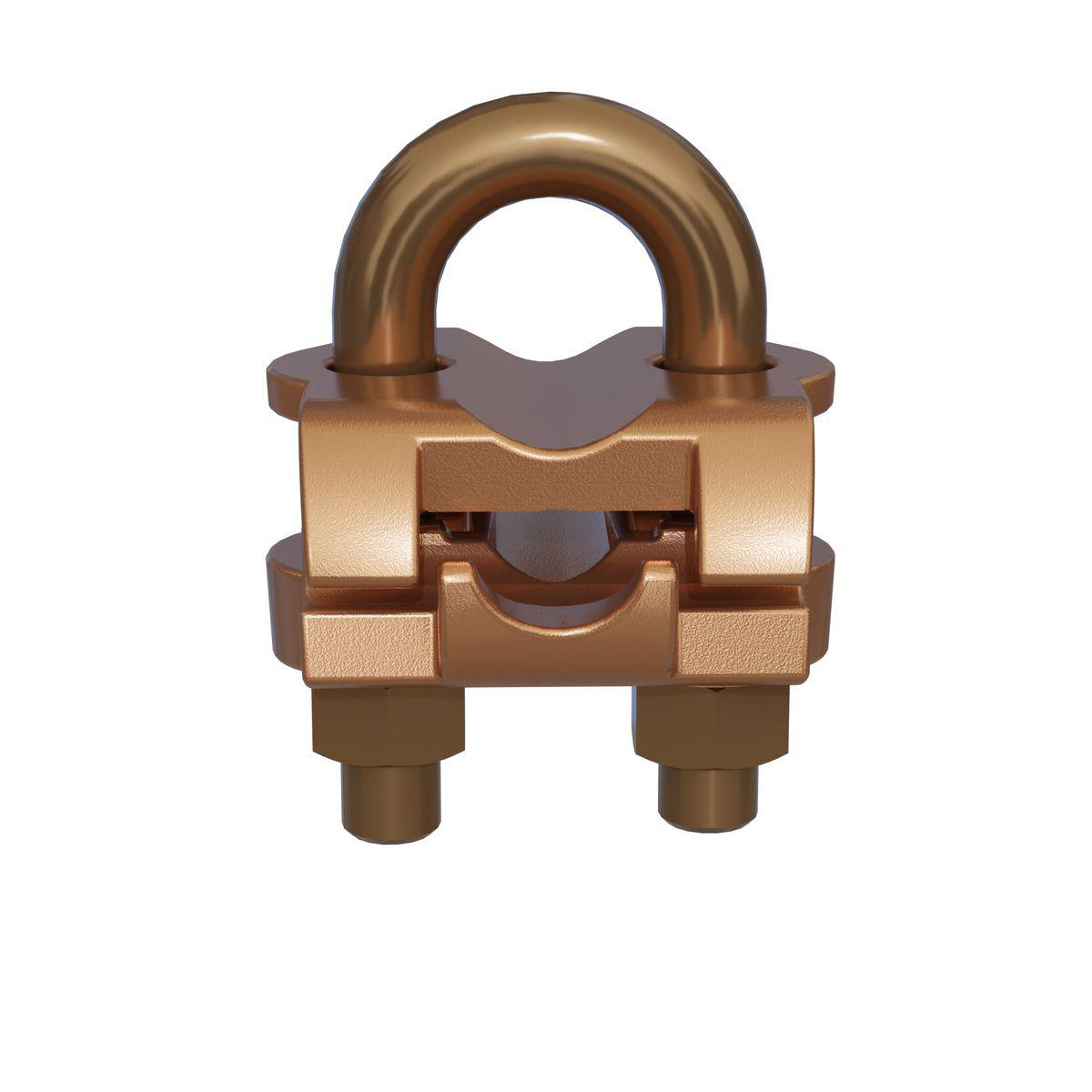

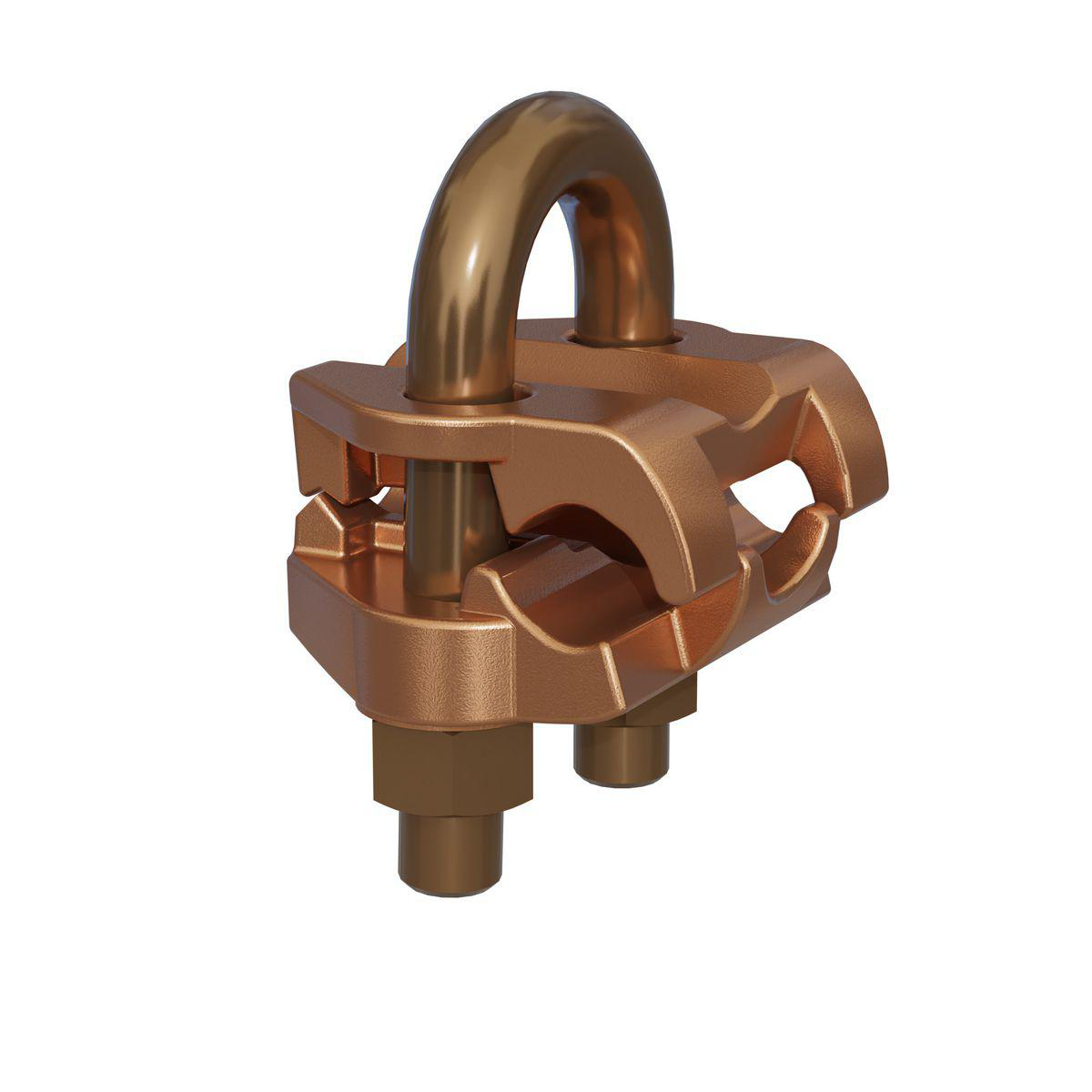

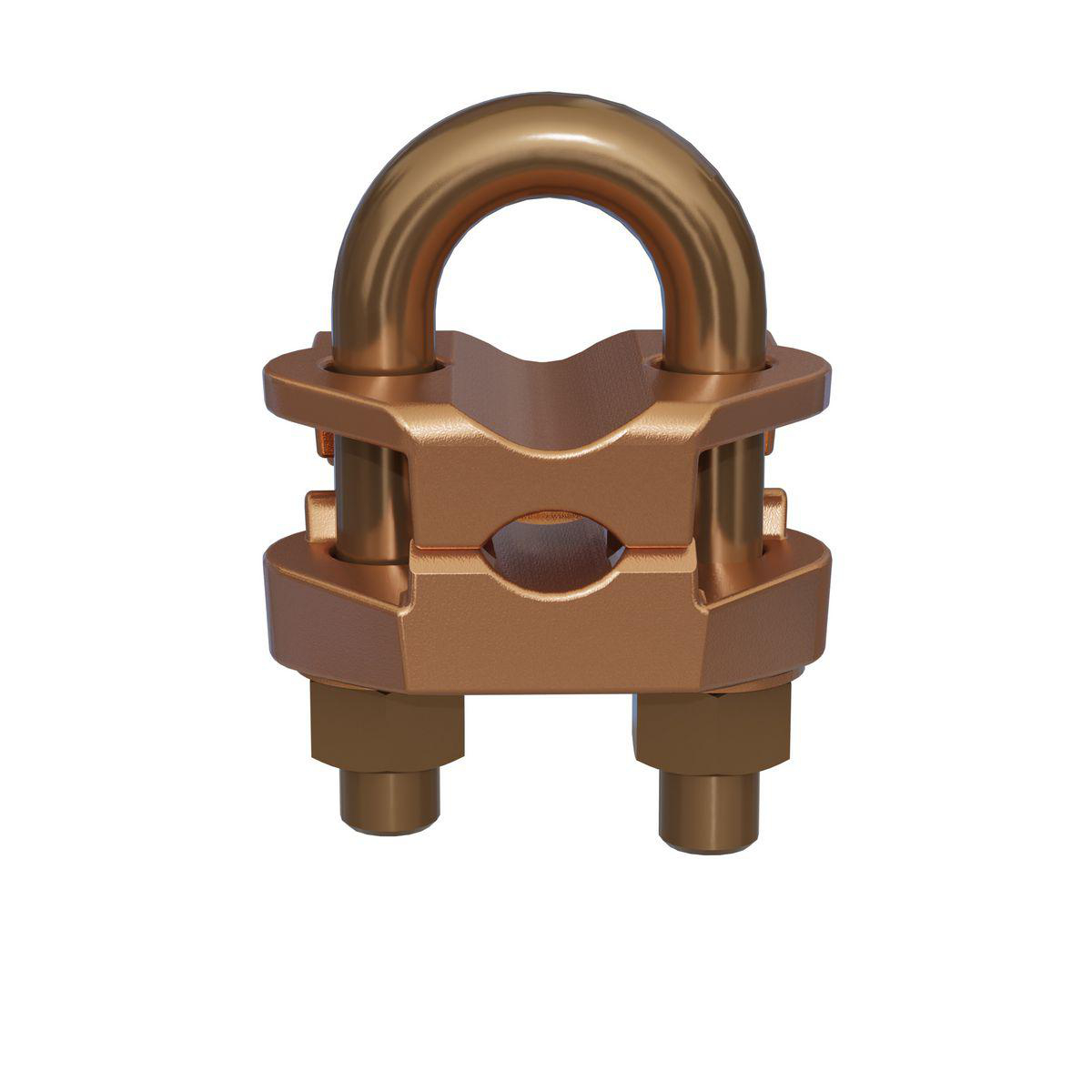

Mechanical Grounding Connector, Cable to Rod or Pipe, 2/0 AWG (Sol) -250 kcmil, 3/8" Pipe, 5/8"-3/4" Rod, #5-#6 Rebar, Bright Dipped. Silicon bronze hardware.

Technical Information

Applications
For Joining a Range of Cable, Parallel or at Right Angles to Rod or Tube, Direct Burial Cable, Fence Post
Bolt Size
3/8 IN
Conductor Size
2/0 AWG Solid - 250 kcmil
Material
High Copper Alloy Body, Silicon Bronze Hardware
Mounting Type
3/8 in
Plated?
No
Plating Type
Bright Dipped
Standard
3R,C22.2 No. 0.4,C22.2 No. 18,C22.2 No. 94 Enclosures Types 1,UL 514C,UL467,UL50 Enclosures Types 1
Type
Mechanical

Manufacturer Information

Brand
Burndy
Sub Brand
MECHANICAL CONNECTOR

General Product Info

12-Digit UPC
781810238400
GTIN
00781810238400
Product UPC
78181023840
Used With
#5 - #6 Rebars

Dimensions

Height
2.88 in
Length
1.81 in
Overall Length
1.81 in
Width
2.0 in

Certifications & Compliance

Country of Origin
Mexico
CSA
No
