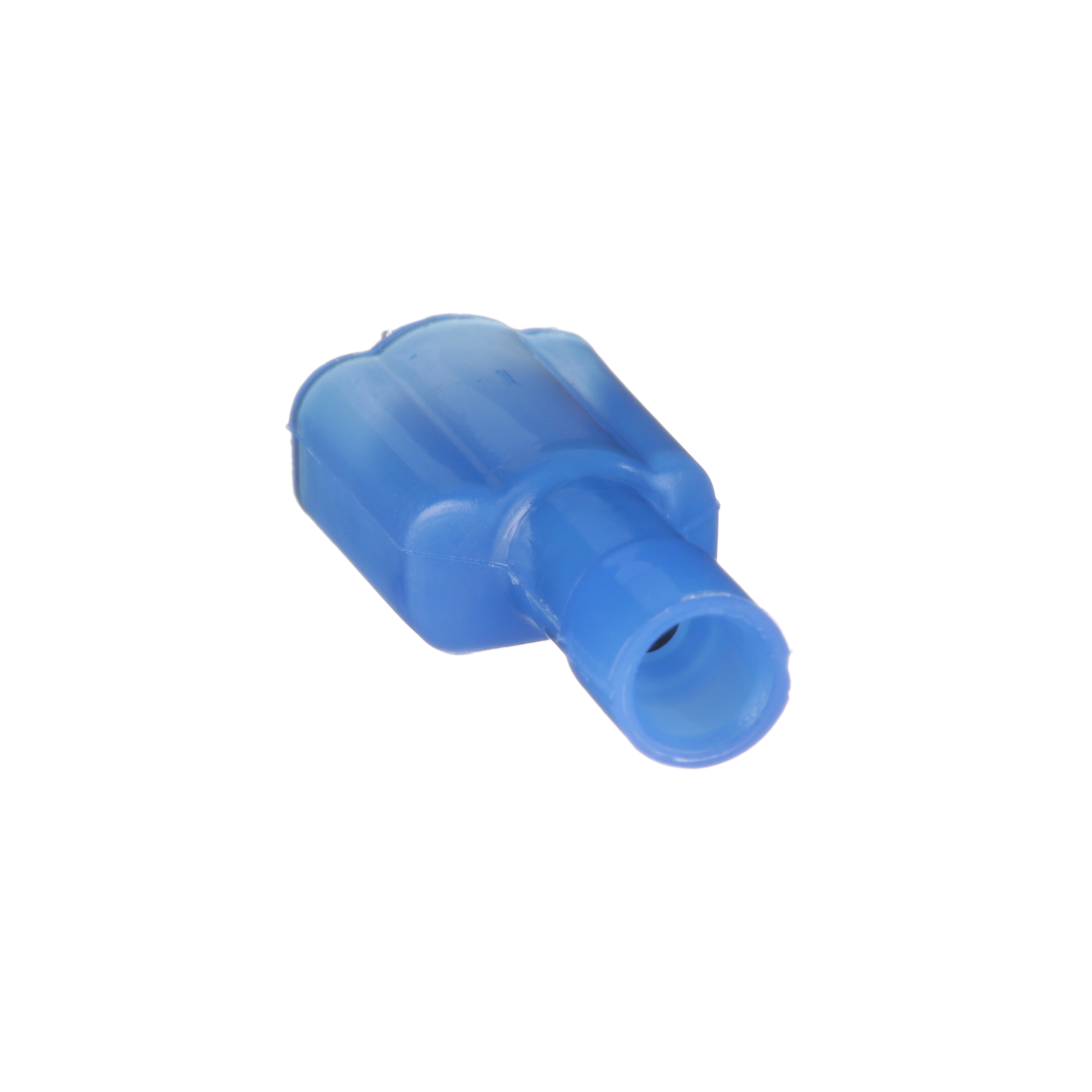

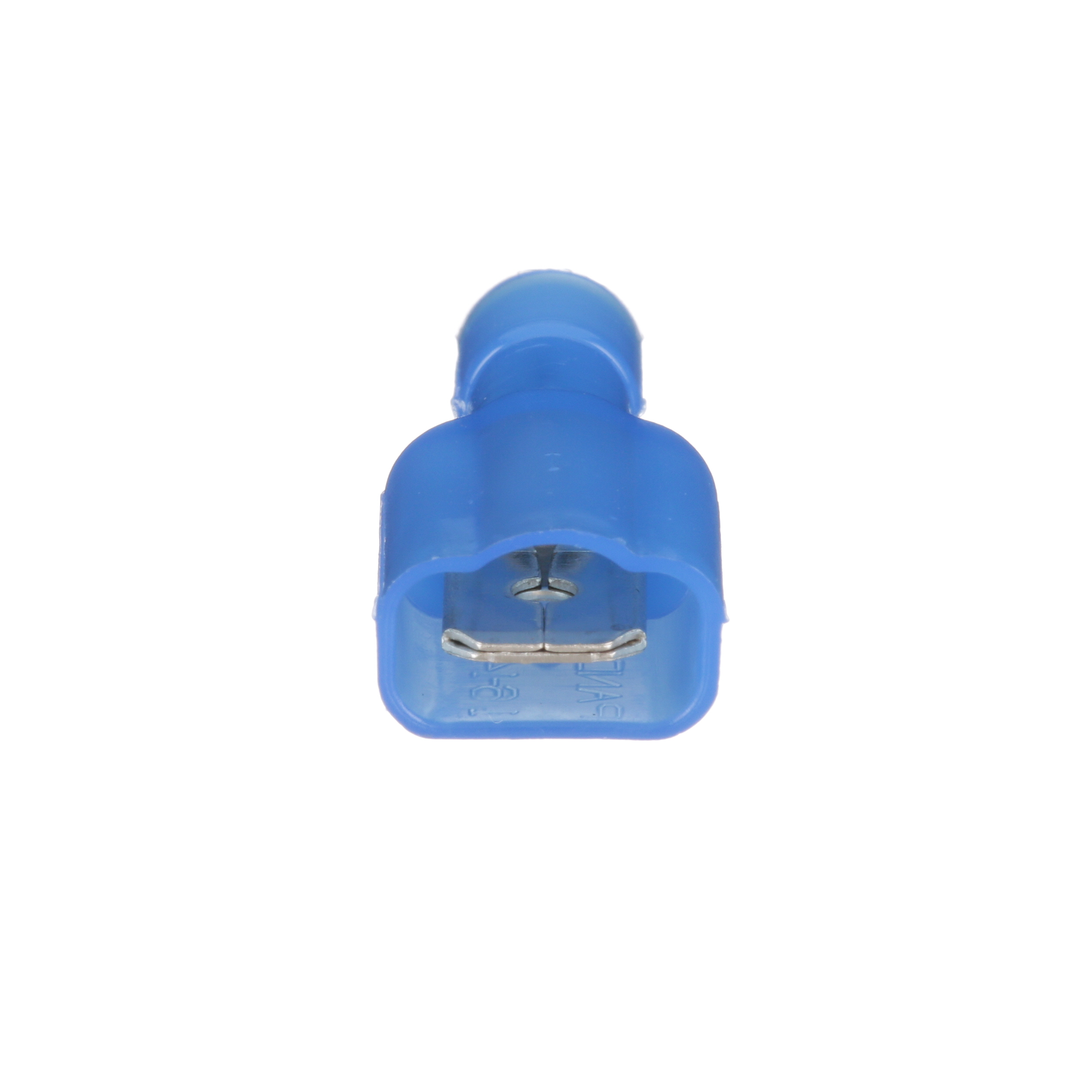

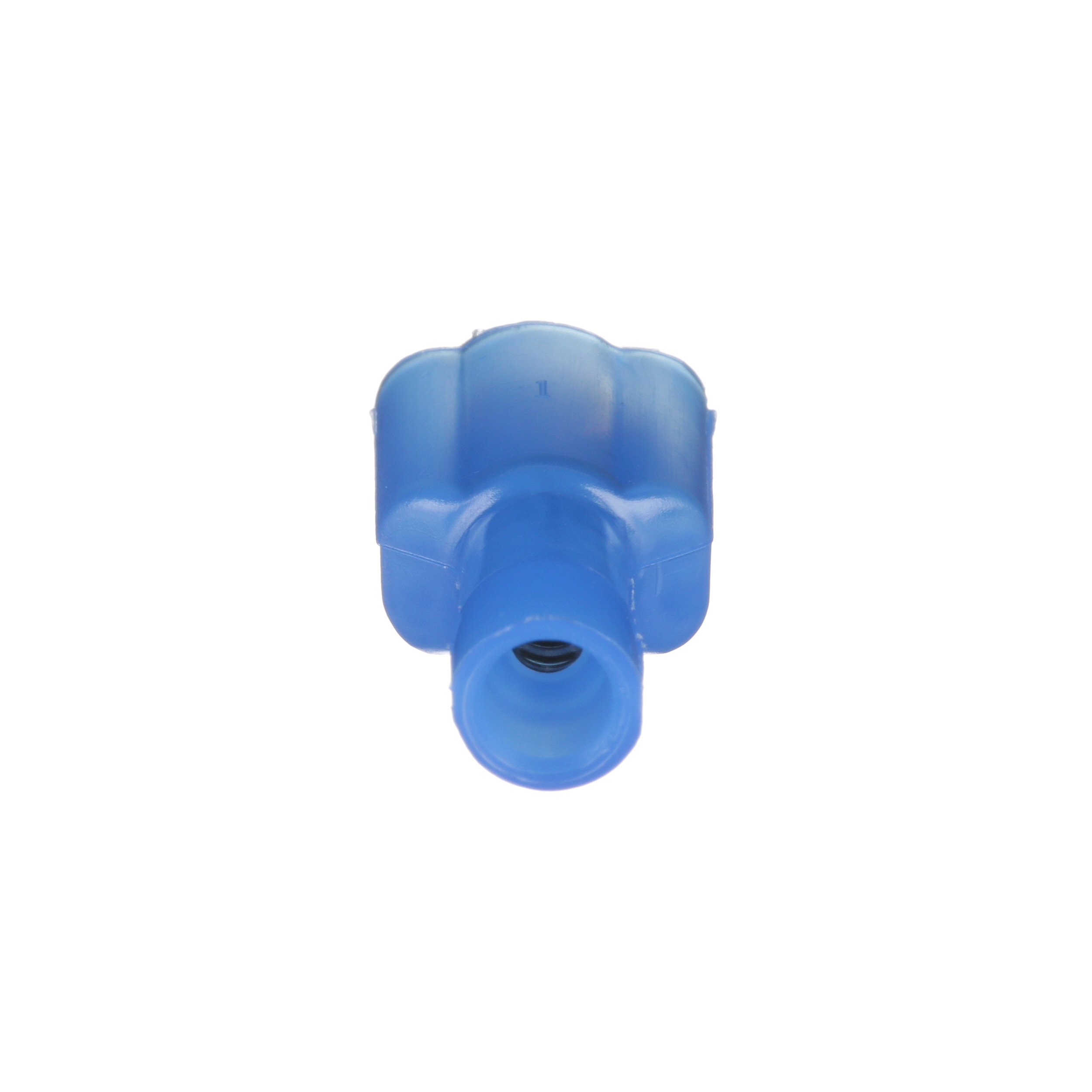

Product image for Coupler male nylon 16-14AWG blue 0.25x0.032"
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3

Email

Coupler male nylon 16-14AWG blue 0.25x0.032"

Manufacturer: Panduit | Catalog # DNF14-250FIM-L | Electrozad South Part # 179737

$119.61 /c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Male coupler, nylon fully insulated. Funnel entry. Disconnect can be inserted and removed from the male tab. Without the use of tools for lower installed cost. Fully insulated design provides protection from electrical shorts. Internal barrel serrations assure good wire contact and maximum tensile strength. Internal wire stop assures proper length of insertion into terminal. Barrel, providing a higher quality connection. Coupler, male and female parts sold separately.

Technical Information

Barrel Type
Butted Seam
Insulation Material
Nylon
Material
Brass
Max Operating Temperature
105 degrees C
Tab Size
6.3 x 0.8 mm
TC Connection
Funnel Entry
Temperature Rating
105 degrees C
Type
Loose-Piece
Wire Size
#14 AWG

Packaging

Package Qty
50

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983521678
Color
Blue
Finish
Nickel
GTIN
00074983521678
Product UPC
07498352167

Dimensions

Height
0.27 in
Overall Length
0.9 in
Width
0.42 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
