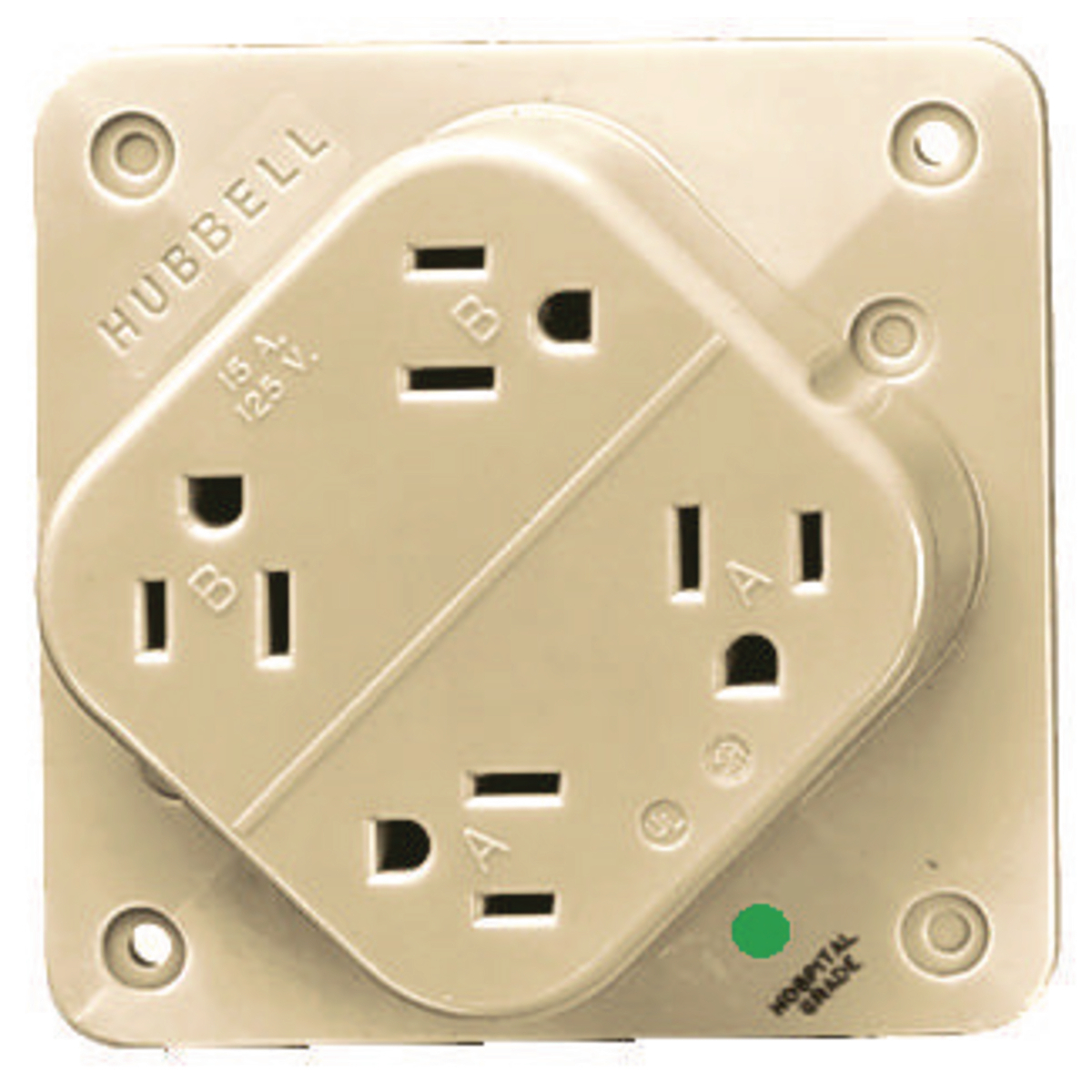

Product image for Receptacle quad 2-pole 3-wire 15A 125V ivory
Image thumbnail 0
Image thumbnail 1
Email

Receptacle quad 2-pole 3-wire 15A 125V ivory

Manufacturer: Hubbell Wiring Devices | Catalog # HBL415HI | Electrozad South Part # 18005
$92.81 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
4-PLEX® Hospital grade standard receptacle/straight blade device. 3-wire grounding. Back wired. Anchor hole and loop feature secures solid wire for fast, easy terminations. Triple wipe contacts. Easily accessible break-off tabs for split wiring. Three conductors energize all four outlets. Polycarbonate face. PBT base.

Technical Information

Amperage
15 A
Applications
Hospitals
Base Material
PBT
Conductor Size
14 - 12 AWG
Connection Type
Back Wired
Current
15 A
Dielectric Strength
Withstands 2,000V minimum
Face Material
Polycarbonate
Grade
Hospital
Grounding
Grounding
Horsepower
0.5 hp
Material
Polycarbonate
Mounting Type
Screw
NEMA
5-15R
Number of Phases
1
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
4.3 in x 4.3 in x 0.92 in
Standard
CSA,E2186,UL
Style
Smooth Face
TC Connection
Back & Side Wired
Type
Quad Receptacle
Voltage
125 V
Wattage
1875 W
Wire Count
3
Wire Size
14 - 12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585015767
Color
Ivory
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTIN
00783585015767
Product Series
4-PLEX Receptacle
Product UPC
78358501576
Weight
0.4 lb

Dimensions

Height
0.92 in
Length
4.3 in
Width
4.3 in

Certifications & Compliance

Country of Origin
USA
Overview
  • Easily accessible break-off tabs for split wiring
  • Anchor hole and loop feature secures solid wire for fast, easy terminations
  • Triple wipe contacts
  • Three conductors energize all four outlets
