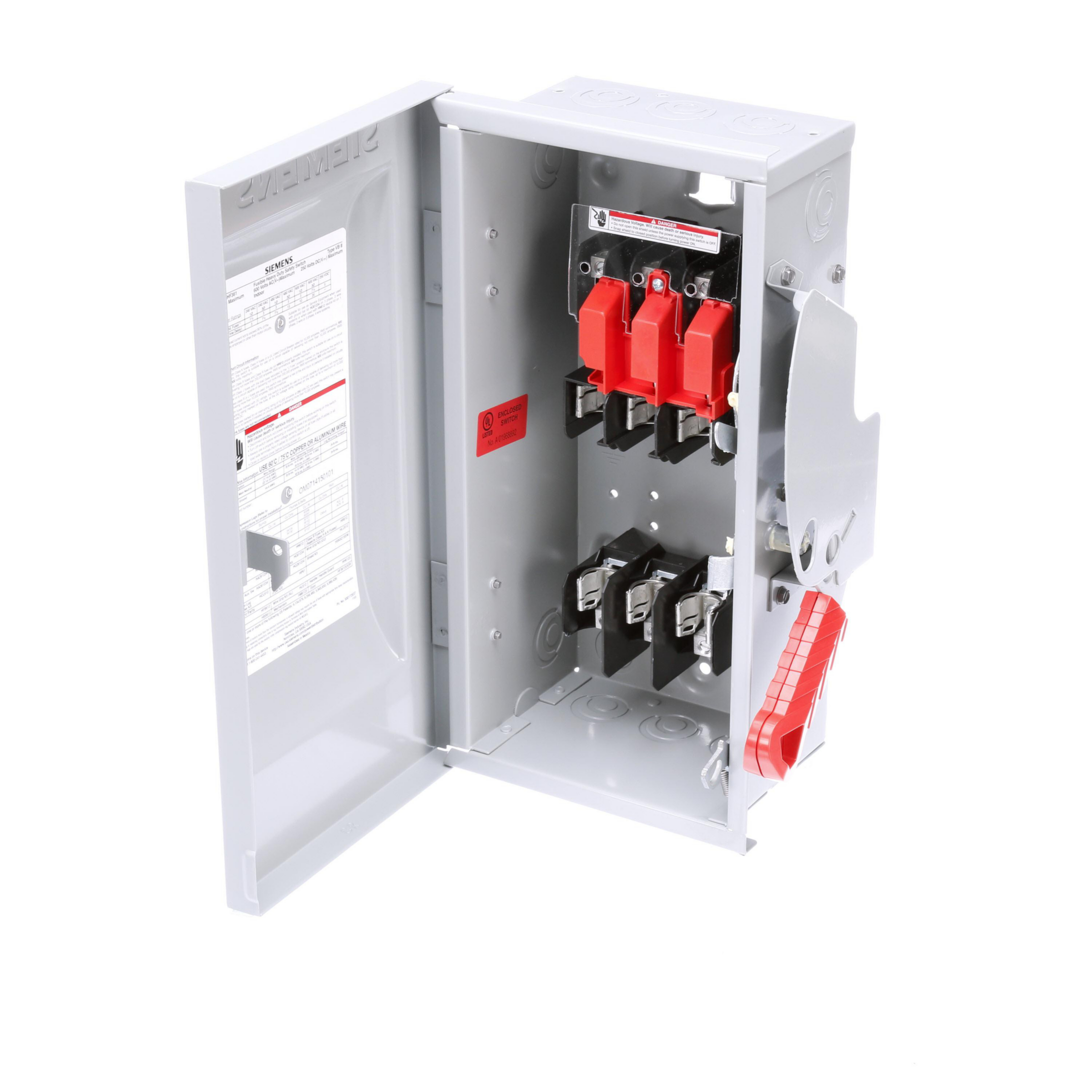

Image thumbnail 1

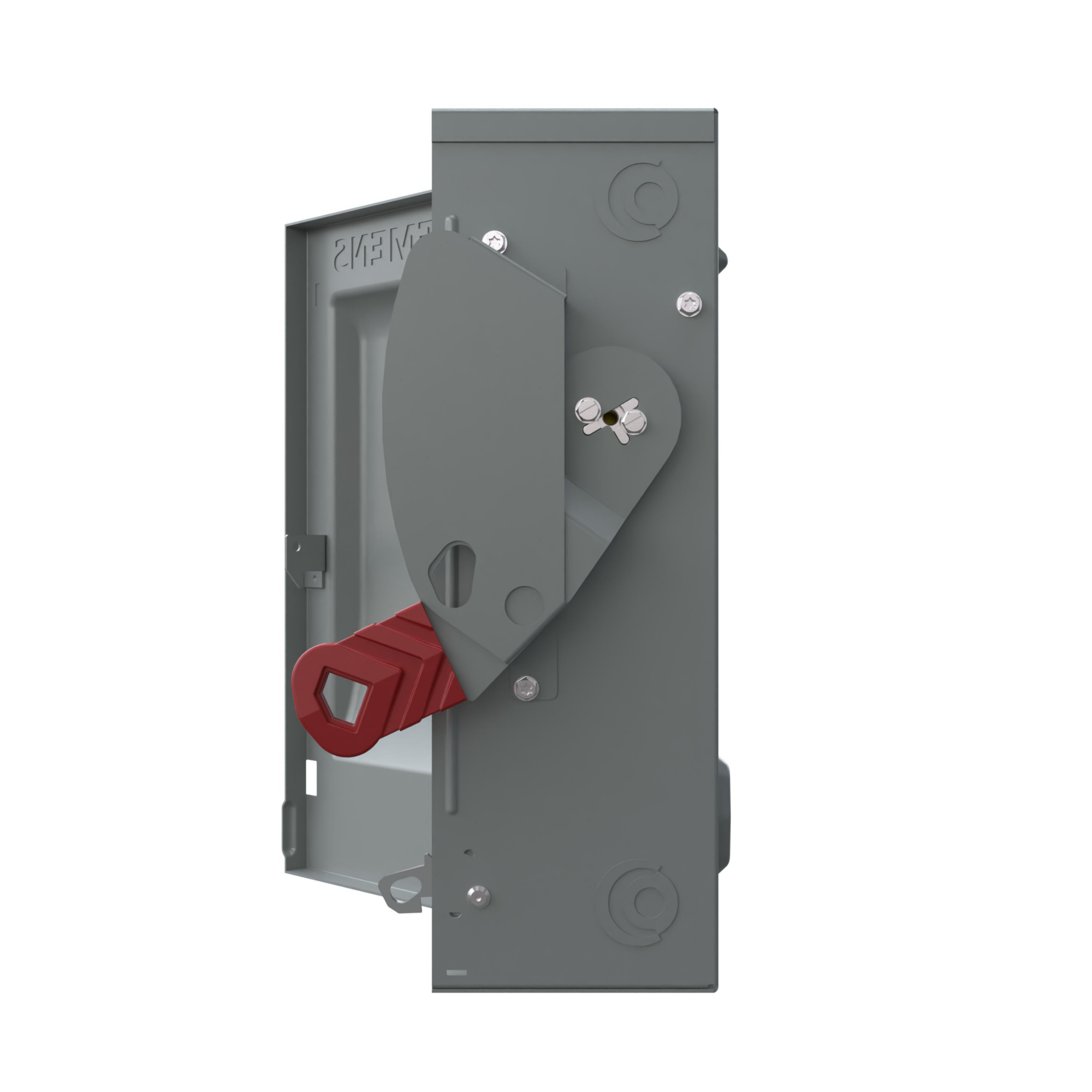

Image thumbnail 2

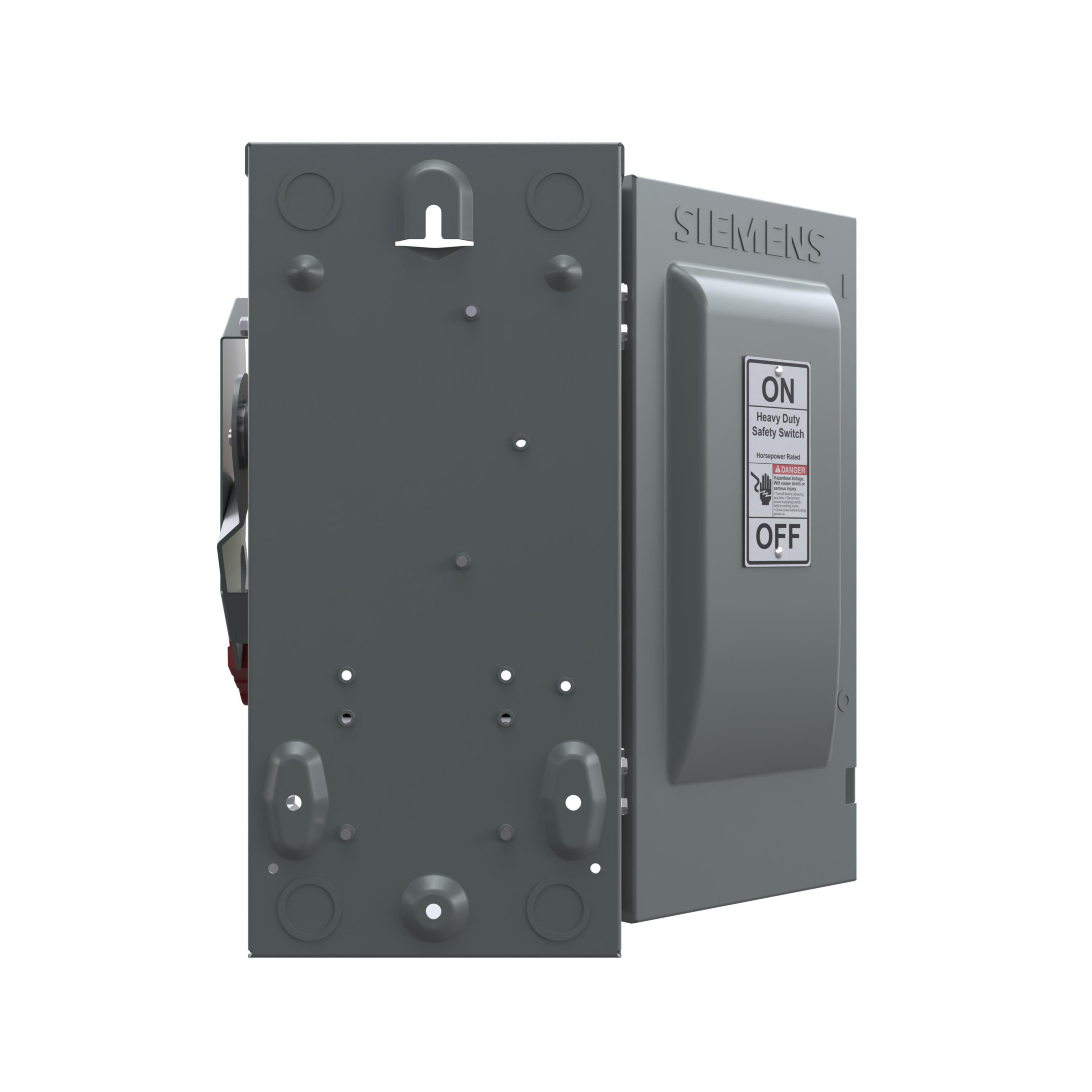

Image thumbnail 3
Email

Safety switch fuse 3P 30A 600V 3fuse NEMA1

Manufacturer: Siemens Distribution | Catalog # HFC361 | Electrozad South Part # 18032
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page D BRAND LOGO IMAGE URL
Safety switch are heavy duty models intented for use in industrial rugged area where reliable service and maintenance free are required with fault current higher than 10 KA. Available in versions 2 poles 2 fuses solid neutral 240vac, 3 poles 3 fuses 240600vac and 3 poles no fuses 600vac. Enclosures come in type 1 indoor use, type 12 industrial use, type 4X stainless steel corrosive area available with or without outlet receptacle. Available with window door to view fuses and contacts.

Technical Information

Action
SINGLE THROW
Actuator
SINGLETHROW
Amperage
30 A
Applications
For Indoor use
Connection Type
MECHANICAL LUGS
Enclosure
NEMA1
Fuse Type
A2/A3
Load Rating
3 W
Material
Steel
Mounting Type
2 or 3 Point Hole
Number of Poles
3
Number of Wires
3
Operating Cycles
10000
Operating Temperature
-29 degrees C
TC Connection
MECHANICALLUGS
Temperature Rating
-20 to 120 degrees F Ambient
Type
Heavy Duty, Fusible, Enclosed, Single Throw, Toggle
Wattage
3 Watt

Manufacturer Information

Brand
Siemens
Sub Brand
Safety Switches

General Product Info

12-Digit UPC
783643221130
GTIN
00783643221130
Housing Material
Steel
Product UPC
78364322113
Weight
12.900 lb

Dimensions

Height
7.550 in
Length
17.300 in
Width
17.350 in

Certifications & Compliance

Country of Origin
Mexico
