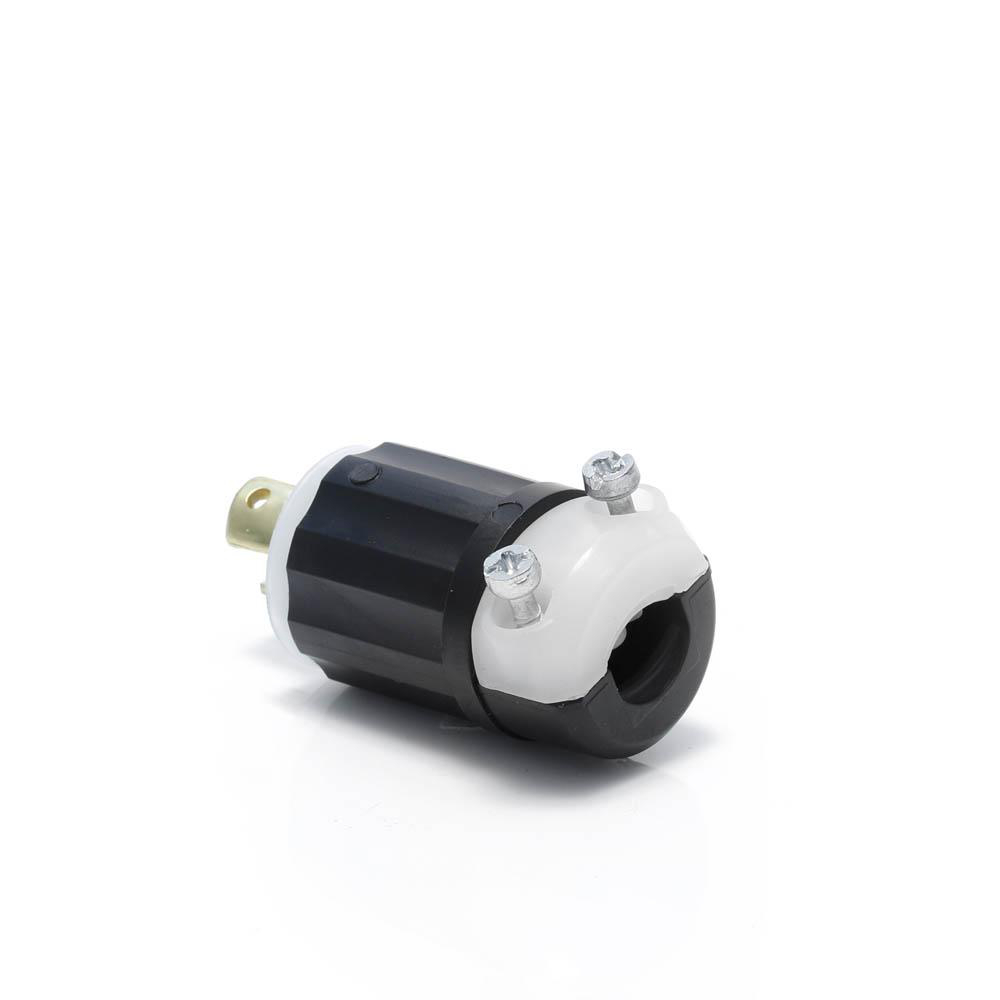

Plug locking ind grade nyl 2P2W 125V 15A blk/wht

Manufacturer: Leviton Manufacturing | Catalog # ML1-P | Electrozad South Part # 182053
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure MSDS | SDS Safety Sheet D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL
Locking plug offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty. It is constructed of nylon with solid brass blades or contacts and steel, zinc plated assembly screws.

Technical Information

Amperage
15 A
Applications
Industrial
Blade Type
Solid Brass
Body Material
Impact Modified Nylon
Conductor Size
18 - 14 AWG
Contact Material
Solid Brass
Device Type
Locking Plug
Dielectric
2000 V
Flamability Class
Rated HB Or Better UL94
Grounding
Non-Grounding
Material
Super Tough Nylon (Body)
Mounting Type
Cable
NEMA

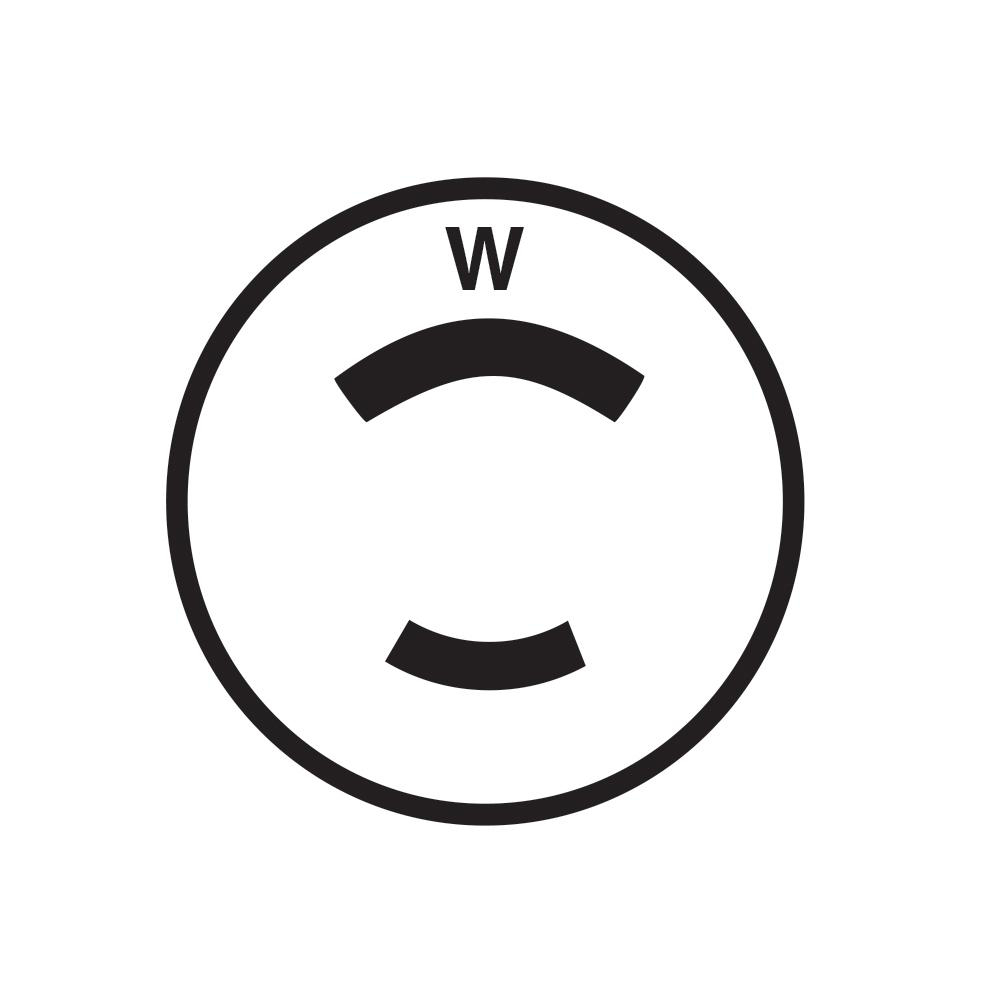

ML-1P
Number of Poles
2
Number of Wires
2
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Brass
Screw Type
Steel,Zinc-Plated
Size
17 Dia x 1.69 H IN
Standard
ANSI C-73
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Terminal Size
18-14 AWG
Type
Midget, Industrial Grade
Voltage
125 V
Wire Count
2
Wire Size
18 - 14 AWG

Manufacturer Information

Brand
Leviton
Sub Brand

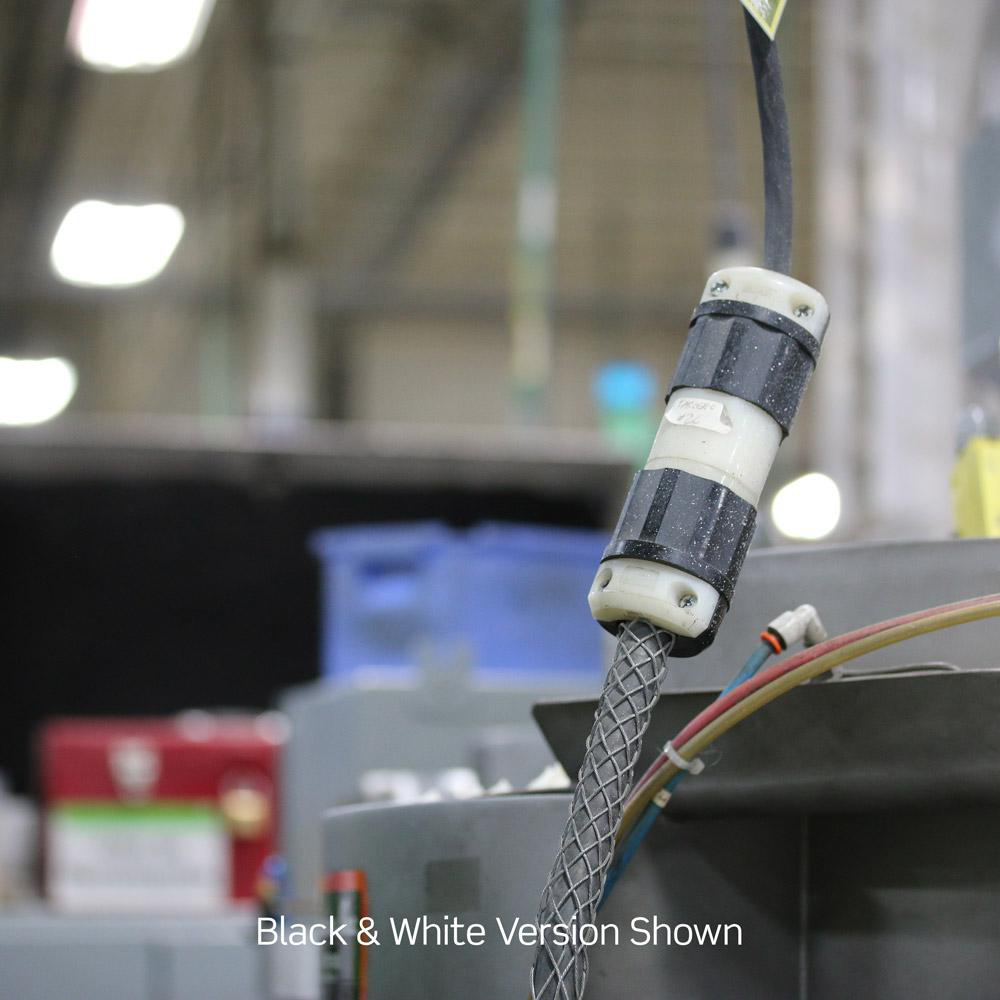

Black & White

General Product Info

12-Digit UPC
078477987117
Color
Black,White
Environment
Dry
Environmental Conditions
Operating Temperature Range (-40 to 60) °C
GTIN
00078477987117
Product UPC
07847798711

Dimensions

Warranty Length
Lifetime Limited

Certifications & Compliance

Country of Origin
Mexico
