K2C28

Manufacturer: Burndy | Catalog # K2C28 | Electrozad South Part # 182714
$116.07 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL

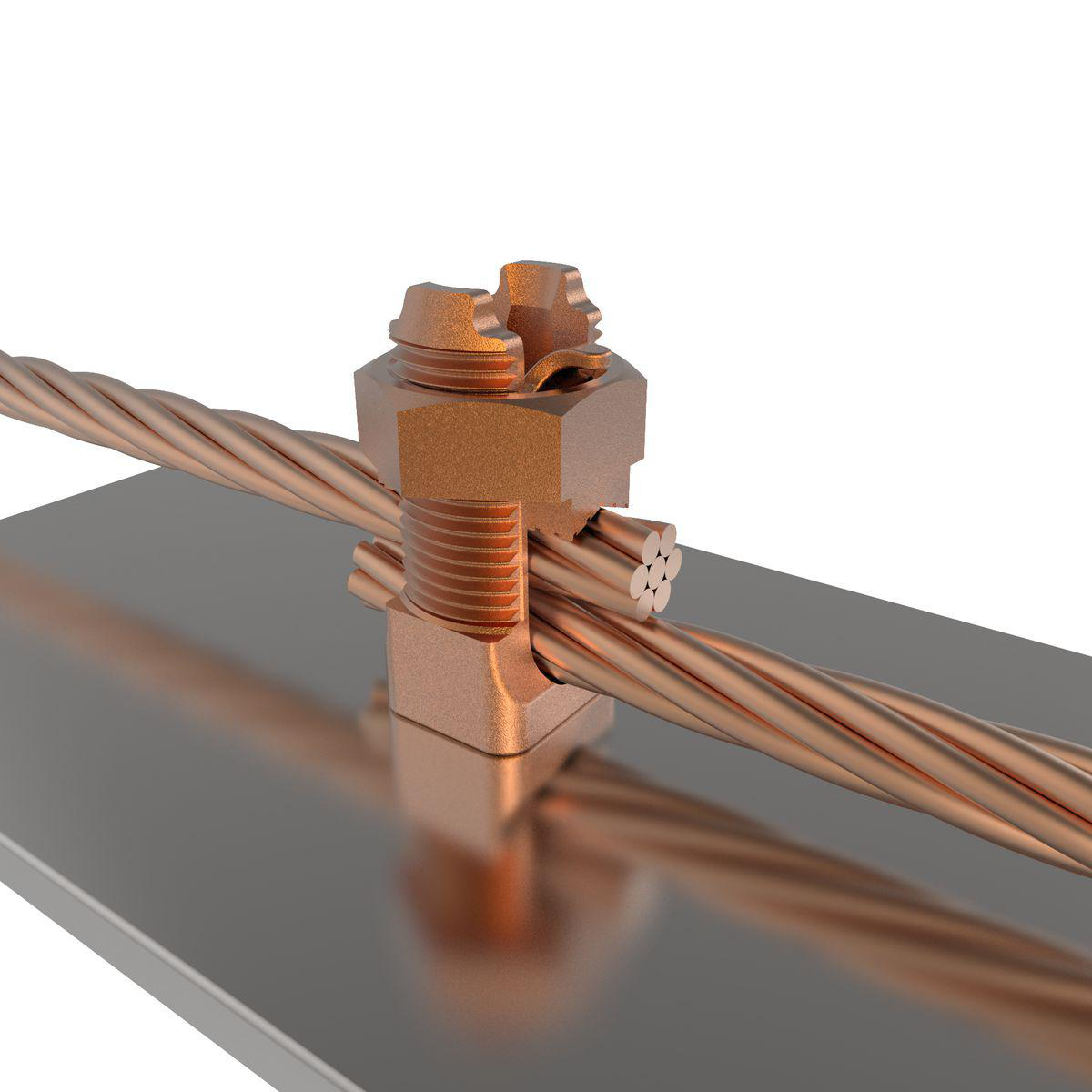

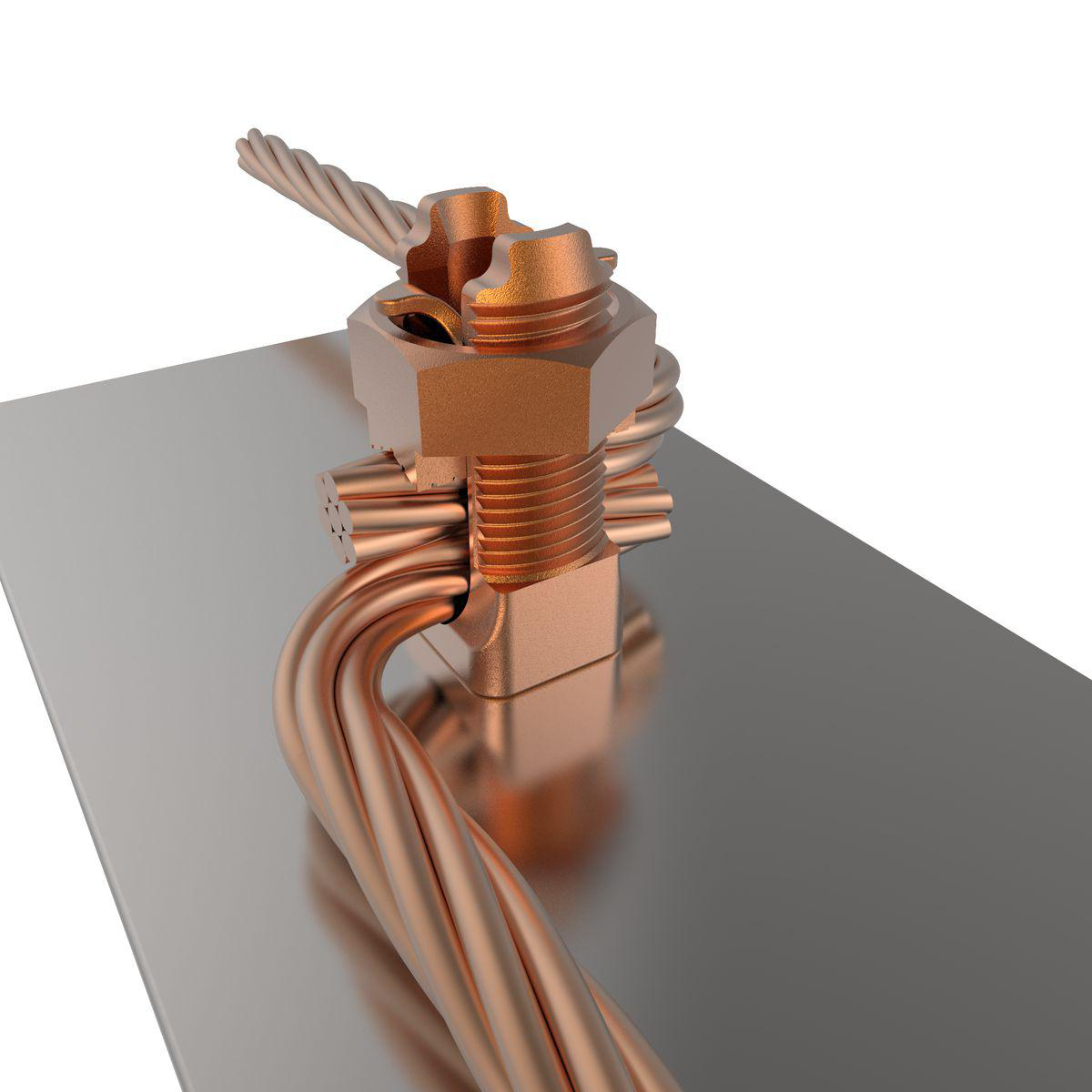

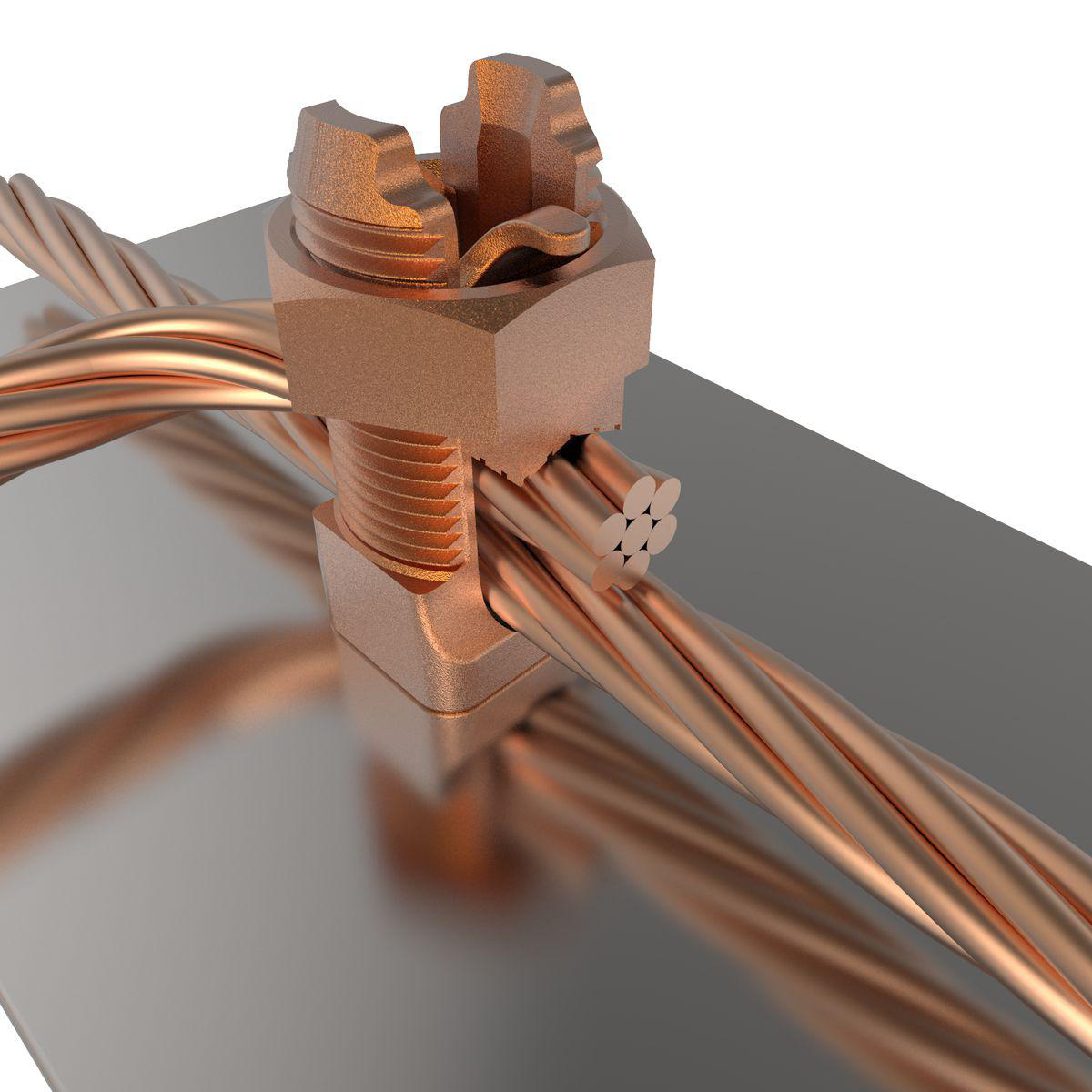

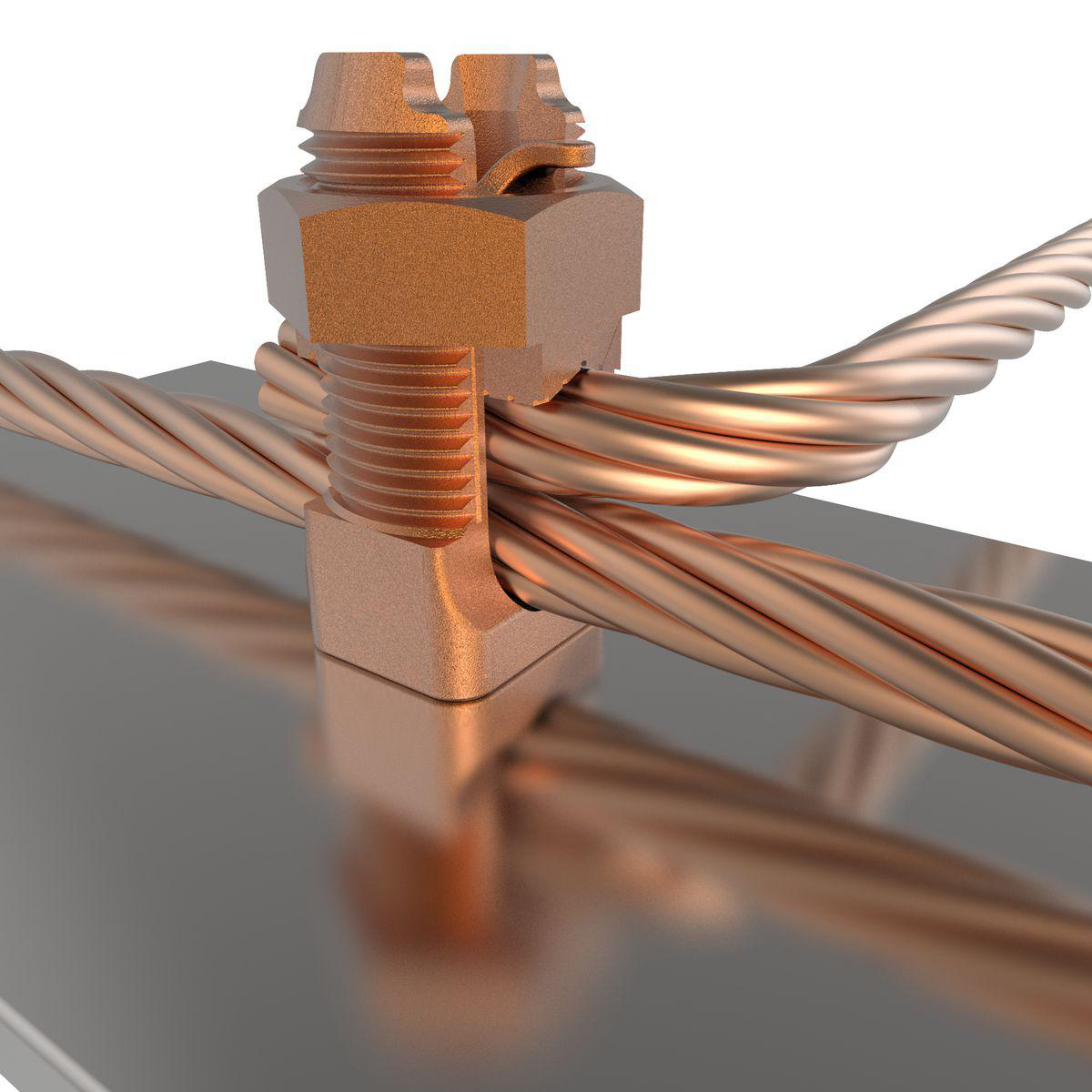

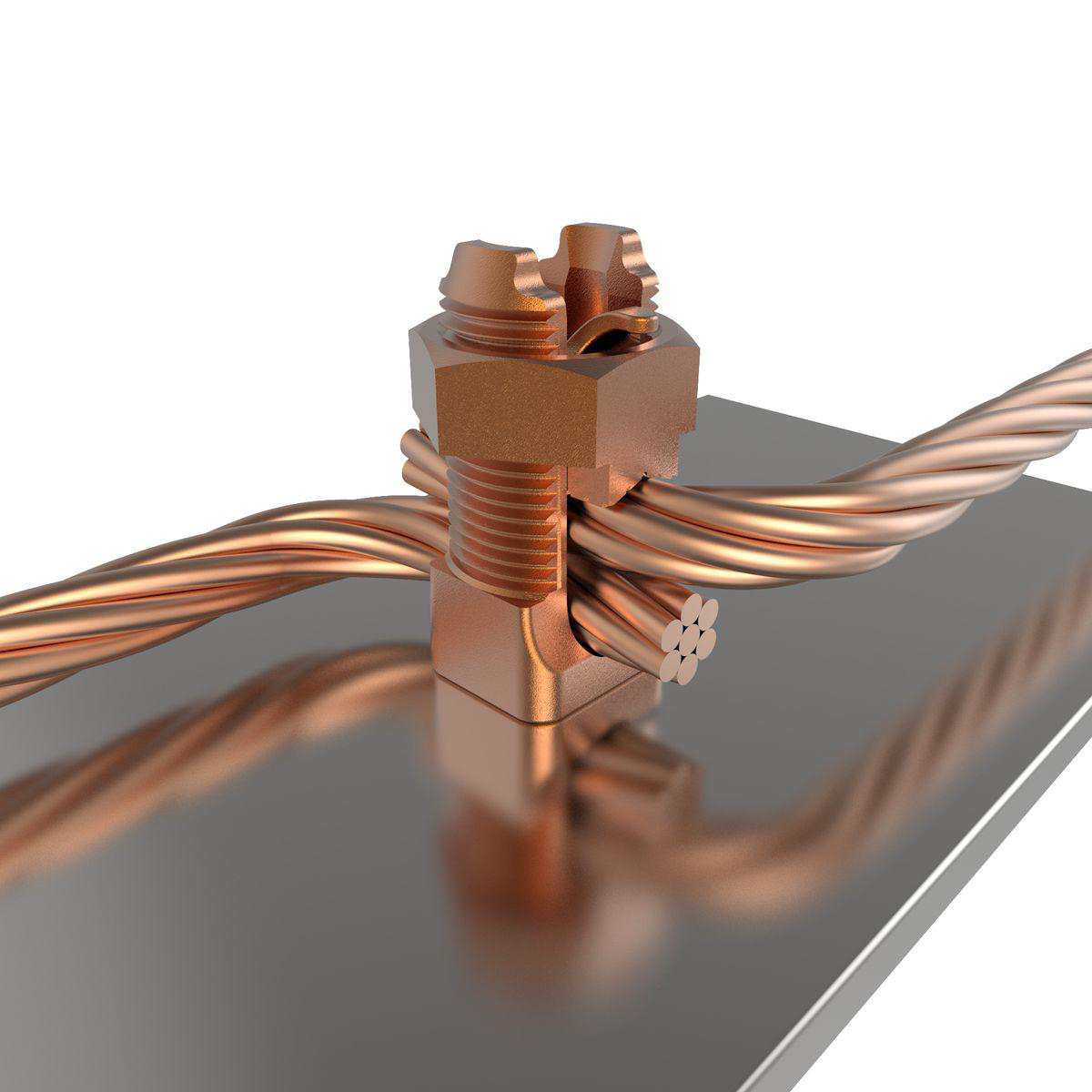

Mechanical Grounding Connector, Cable to Flat, 1-4/0 AWG, Stud Dia:5/8-11.

Technical Information

Applications
For Used to Ground One or Two Copper Cables to Steel Structures, Fence Posts, Transformers, Tap One or Two Cables from Bus Bar and Direct Burial
Body Width
1.18 in
Conductor Size
1 AWG Stranded, 4/0 AWG Solid
Direct Burial?
Yes
Material
Copper
Plated?
No
Plating Type
Unplated
Size
3.45 in L x 3-1/4 in H x 3/4 in T
Stud Size
5/8-11
Type
8-Position, Cable to Flat

Manufacturer Information

Brand
Burndy
Sub Brand
Servit Post™

General Product Info

12-Digit UPC
781810257500
GTIN
00781810257500
Product UPC
78181025750

Dimensions

Diameter
1 in
Height
2.46 in
Length
3.45 in
Overall Length
3.45 in
Width
1.35 in

Certifications & Compliance

Country of Origin
USA
CSA
No
