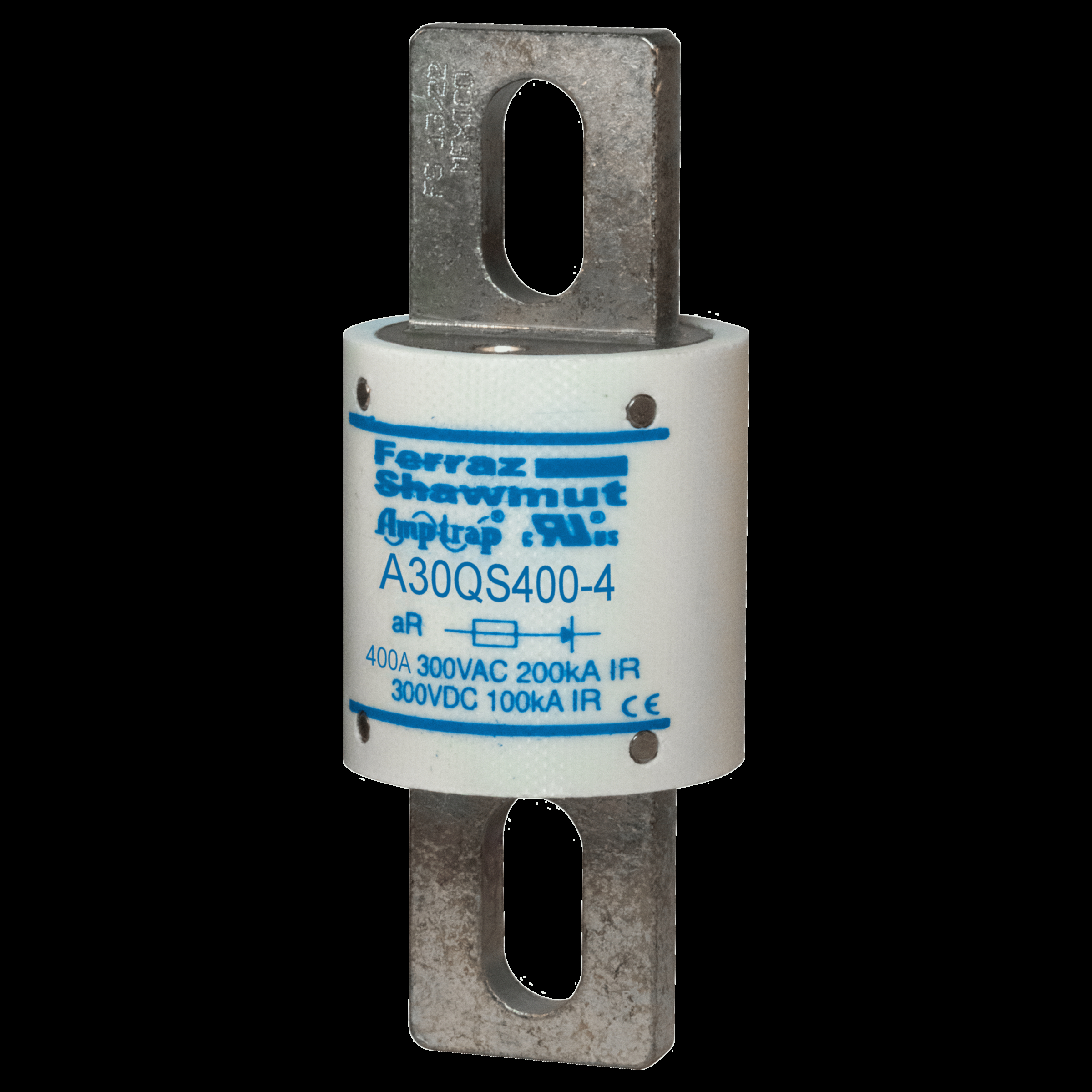

Product image for MERSEN A30QS400-4 FUSE F101 400A 300V 300VDC SEMICONDUCTOR BLADE MOUNT
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

MERSEN A30QS400-4 FUSE F101 400A 300V 300VDC SEMICONDUCTOR BLADE MOUNT

Manufacturer: Ferraz Shawmut Mersen | Catalog # A30QS400-4 | Electrozad South Part # 183869
$230.78 /ea
ea
Log in or register to view your price, purchase history, and more!
5 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet
A30QS Amp-Trap® high speed fuses are intended for the protection of Power Semiconductors such as diodes, phase control SCRs and other power semiconductor devices. The A30QS is recommended for new applications providing solutions for your critical protection needs at 300V and less semiconductors.

Technical Information

Amperage
400 A
Applications
For Protection of AC/DC Drives, UPS and Other Equipment of 300 V or Less
Connection Type
Blade
Contact Material
Tin Plated Brass
Frequency
50/60 Hz
Insulation Material
GMG
Interrupt Rating
200 kA
Max Operating Temperature
80 degrees C
Mounting Type
Bolt-In
Rated Voltage AC
300 V
Rated Voltage DC
300 V
Response Time
10 Millisecond
TC Connection
Blade
Terminal Material
Tin-Plated Brass
Terminal Type
Blade
Type
High Speed, Fast Acting, Current Limiting, Form 101
Voltage
300 V

Packaging

Package Qty
5

Manufacturer Information

Brand
Ferraz Shawmut
Sub Brand
Amp-Trap®

General Product Info

12-Digit UPC
782001280857
Construction
GMG
GTIN
30782001280858
Product UPC
78200128085
Weight
0.55 lb

Dimensions

Diameter
1.5 in
Length
3.84 in

Certifications & Compliance

Country of Origin
Mexico
