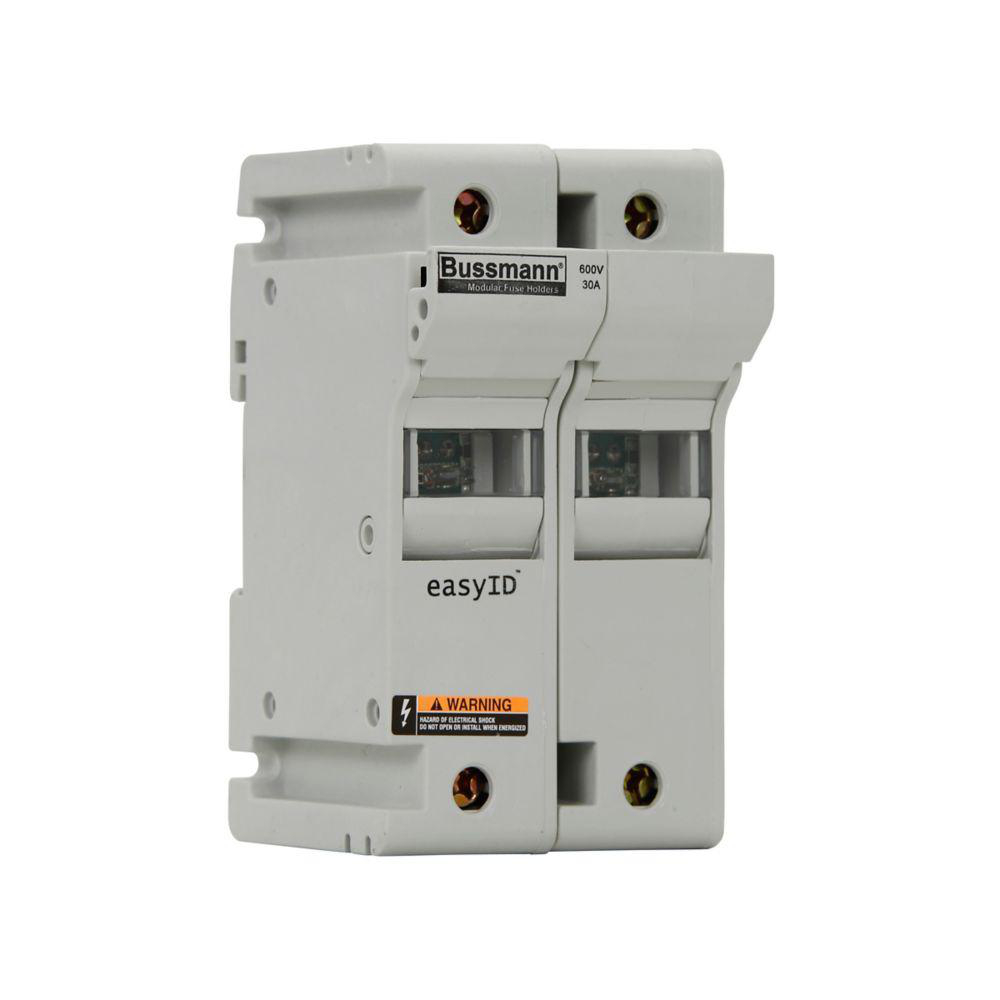

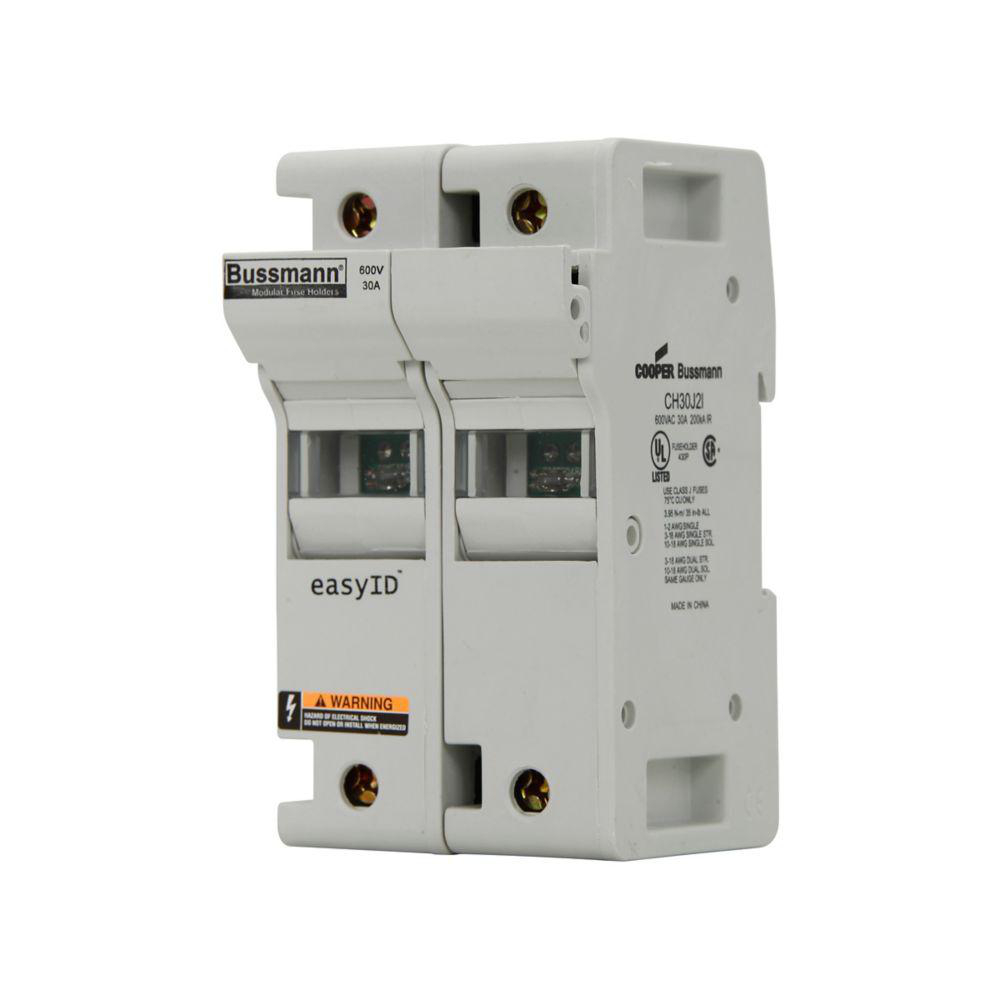

30A INDICATOR FUSEHOLDER 2 POLE

Manufacturer: Bussman Cooper Fuses | Catalog # CH30J2I | Electrozad South Part # 184140
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet Product Brochure
Eaton Bussmann series CH modular fuse holder, 30 A, Two-pole, Class J, Thermoplastic housing, Tin-plated copper clip, Panel, 35 mm DIN rail, 600 Vac/dc

Technical Information

Amperage
30 A
Applications
Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Material
Thermoplastic Housing,Tin Plated Copper Clip
Mounting Type
35 mm
Number of Poles
2
Operating Temperature
85 degrees C
Size
2.56 In Length X 2.83 In Width X 4.59 In Height
Standard
CE,CSA C22.2,UL 512
Type
Modular Fuse Holder
Voltage
600 V
Wattage
85 CEL

Manufacturer Information

Brand
Bussmann
Sub Brand
Bussmann Series

General Product Info

12-Digit UPC
051712630856
Class
J
GTIN
00051712630856
Product UPC
51712630856
Weight
.933 lb

Dimensions

Height
4.59 in
Length
2.56 in
Width
2.83 in
