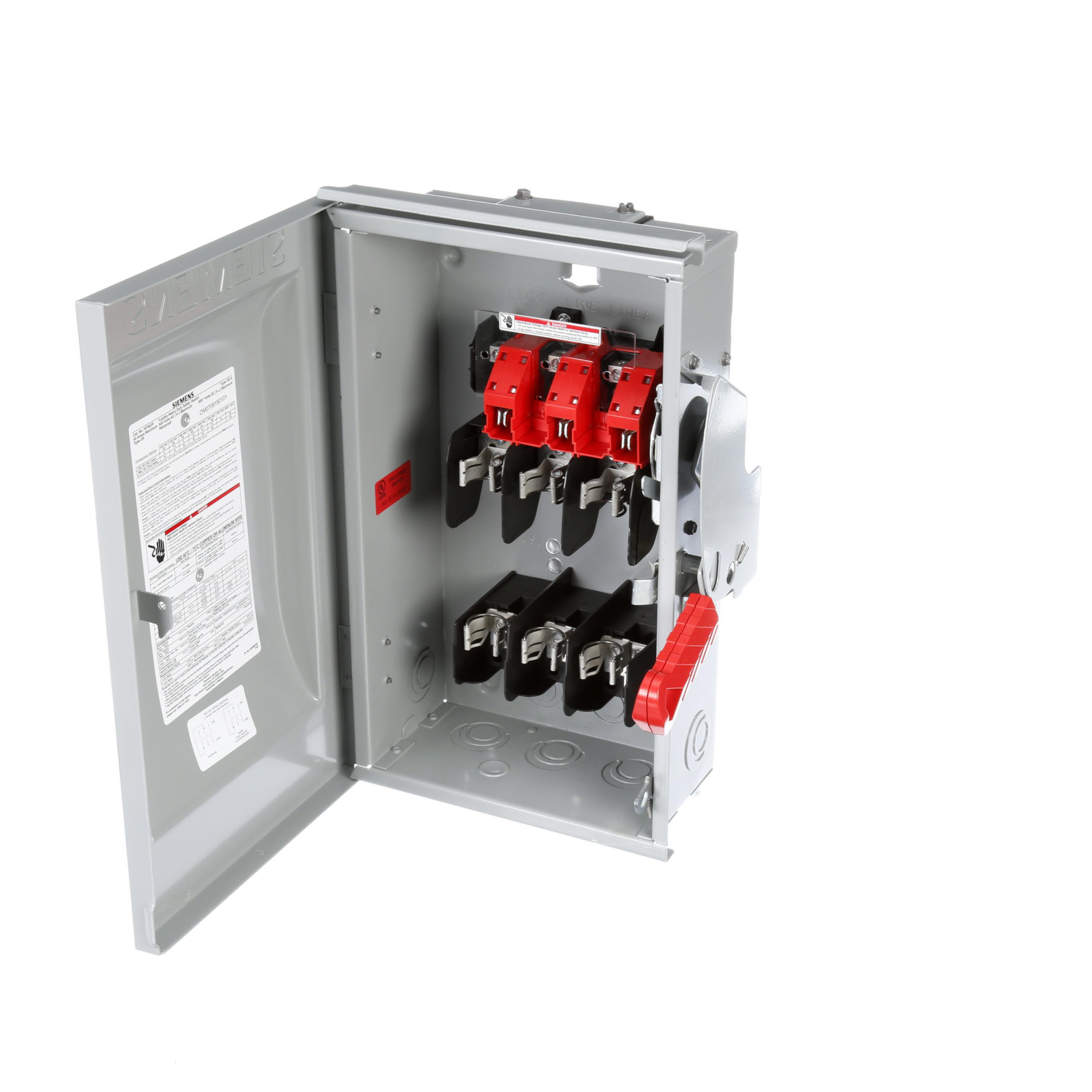

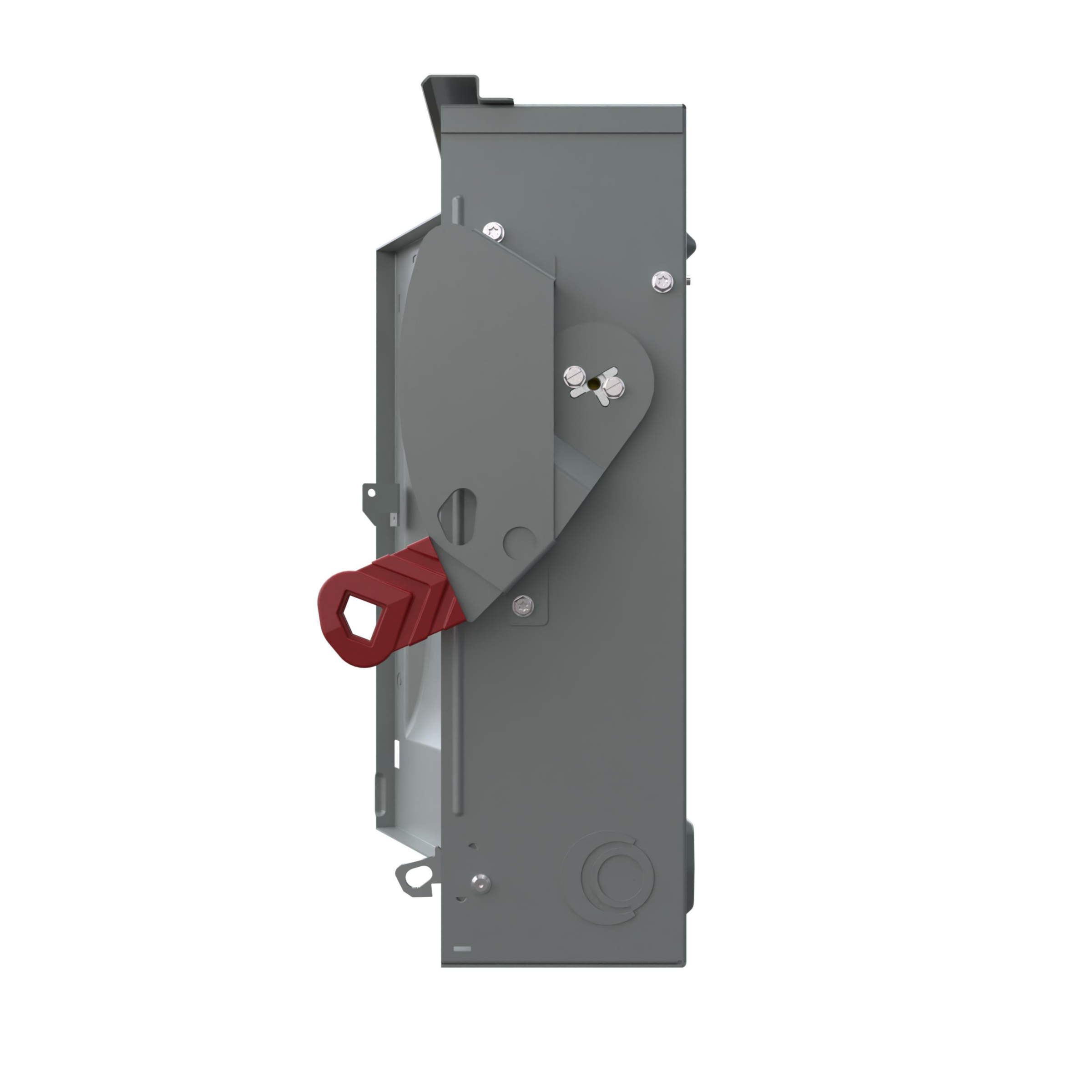

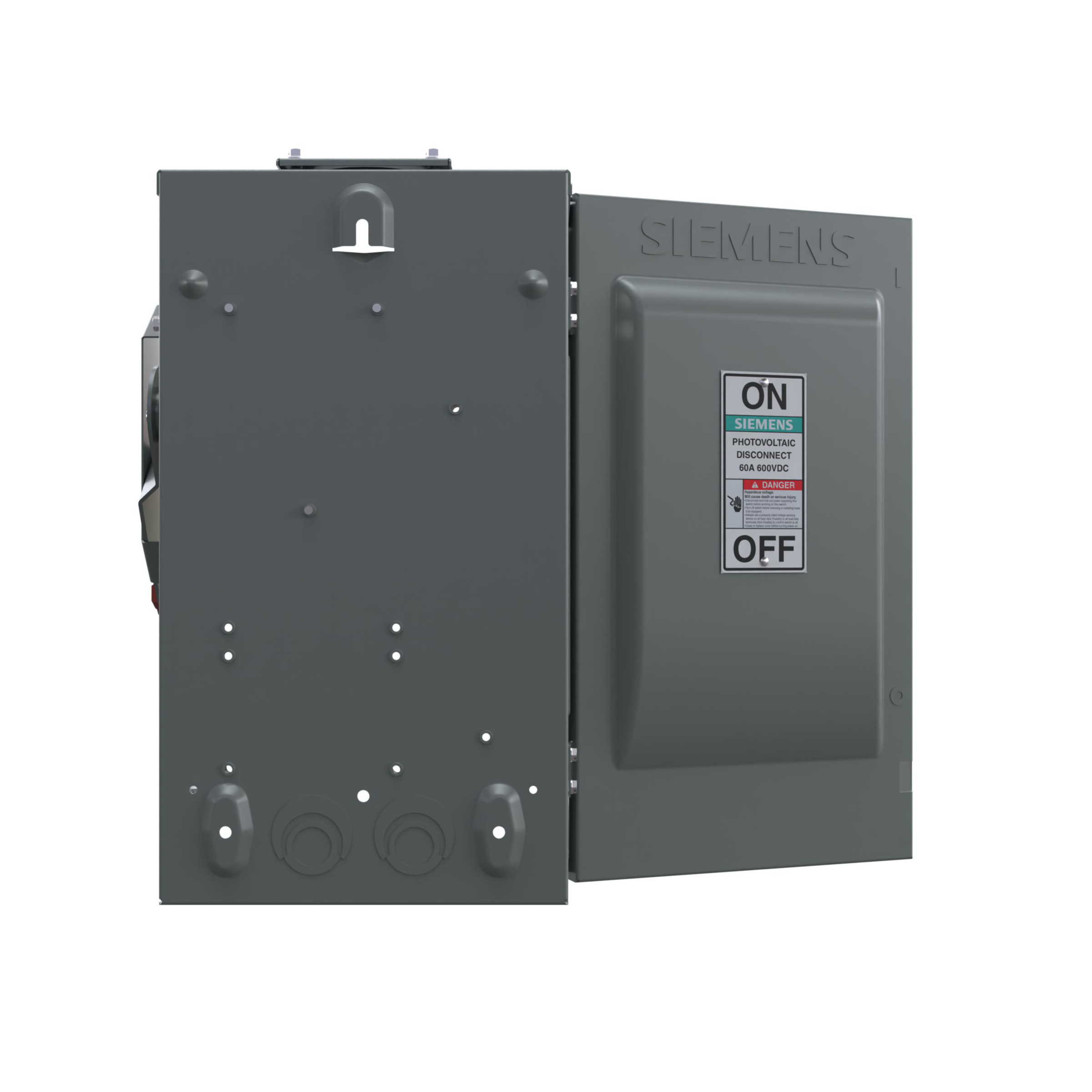

SIED HFC362R DISCONNECT 60A 3POLE FUSIBLE 600V E3

Manufacturer: Siemens Distribution | Catalog # HFC362R | Electrozad South Part # 185
$514.00 /ea
ea
Log in or register to view your price, purchase history, and more!
4 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Catalog Page
Safety switch are heavy duty models intented for use in industrial rugged area where reliable service and maintenance free are required with fault current higher than 10 KA. Available in versions 2 poles 2 fuses solid neutral 240vac, 3 poles 3 fuses 240600vac and 3 poles no fuses 600vac. Enclosures come in type 1 indoor use, type 12 industrial use, type 4X stainless steel corrosive area available with or without outlet receptacle. Available with window door to view fuses and contacts.

Technical Information

Action
SINGLE THROW
Actuator
SINGLETHROW
Amperage
60 A
Applications
For Outdoor use
Connection Type
MECHANICAL LUGS
Enclosure
NEMA3R
Fuse Type
A2/A3
Interrupt Rating
10 kA
Load Rating
3 W
Material
Steel
Mounting Type
2 or 3 Point Hole
Number of Poles
3
Number of Wires
3
Operating Cycles
10000
Operating Temperature
-29 degrees C
TC Connection
MECHANICALLUGS
Temperature Rating
-20 to 120 degrees F Ambient
Type
Heavy Duty, Fusible, Enclosed, Single Throw, Toggle
Wattage
3 Watt

Manufacturer Information

Brand
Siemens
Sub Brand
Safety Switches

General Product Info

12-Digit UPC
783643221390
GTIN
00783643221390
Housing Material
304 Stainless Steel
Product UPC
78364322139
Weight
19.000 lb

Dimensions

Height
9.210 in
Length
16.930 in
Width
10.410 in

Certifications & Compliance

Country of Origin
Mexico
