Receptacle 5-15R ugr duplex flat 2P 15A 125V whi

Manufacturer: Hubbell Wiring Devices | Catalog # 5252AW | Electrozad South Part # 186379
$7.90 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
Hubbell PRO receptacles strait blade are made of nylon plastic round flat or finder groove face outlet and nickel ground strap (standard). Available in almond, black, blue, brown, gray, ivory, white, off white and red (specification grade), black, brown, gray, ivory, white (WR weather resistant), black, blue, gray, ivory, white, off white, orange (isolated ground). They come in single and duplex version 2 poles, 3 wires 15 or 20 amp, 125 volts

Technical Information

Amperage
15 A
Applications
Hubbell-Pro Heavy Duty
Base Material
PBT
Conductor Size
14-12 AWG
Connection Type
Back and Side Wire
Current
15 A
Dielectric Strength
Withstands 2,000V minimum
Enclosure Material
Stainless Steel
Face Material
Nylon
Grade
Industrial
Horsepower
0.5 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-15R
Number of Phases
1
Number of Poles
2
Number of Wires
3-Wire Grounding
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA 22.2,Fed. Spec. W-C-596,NEMA® WD-6,No. 42 File 285,UL File No. E2186
Style
Smooth Face
TC Connection
Back and Side Wired
Temperature Rating
Maximum continuous 75degrees C; minimum -40degrees C (w/o impact)
Type
Heavy Duty
Voltage
125 V
Wattage
1875 W
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Hubbell Pro™

General Product Info

12-Digit UPC
783585109725
Color
White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Finish
Smooth
GTIN
00783585109725
Product UPC
78358510972
Weight
0.15 lb

Dimensions

Height
1.1 in
Length
3.28 in
Width
1.41 in

Certifications & Compliance

Country of Origin
China
Overview

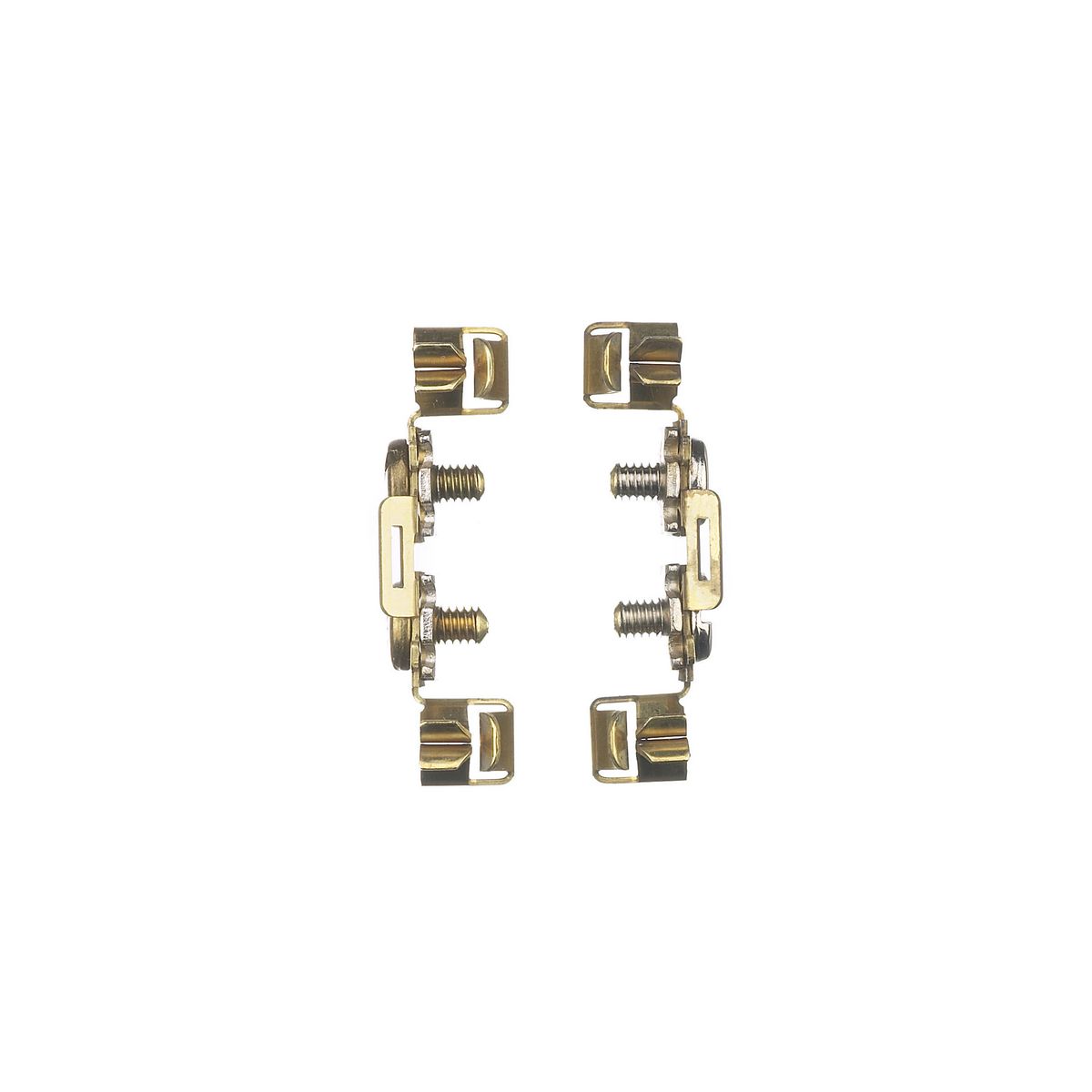

  • Triple wipe contacts
  • Easy access split circuit tab
  • Smooth face
  • Wrap-around galvanized steel strap
