Receptacle straight Decora 2P3W 125V 15A brown | Electrozad South

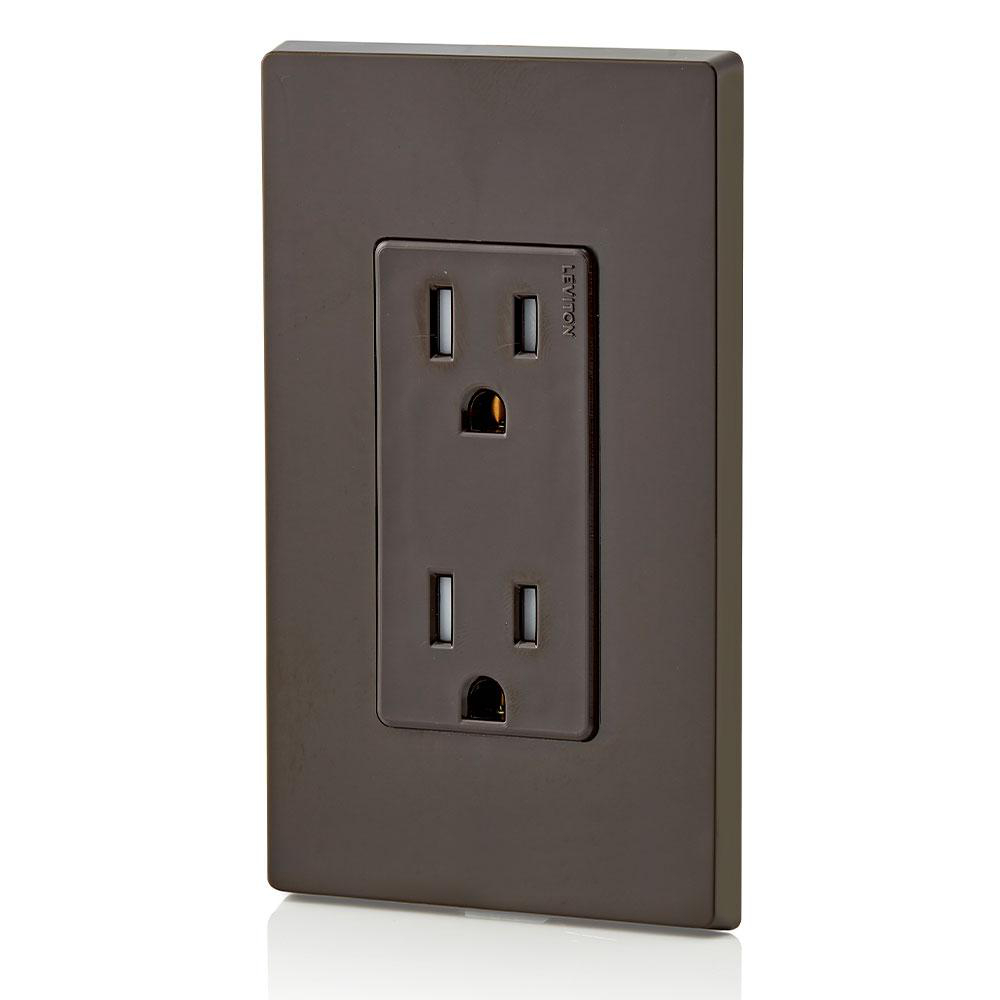

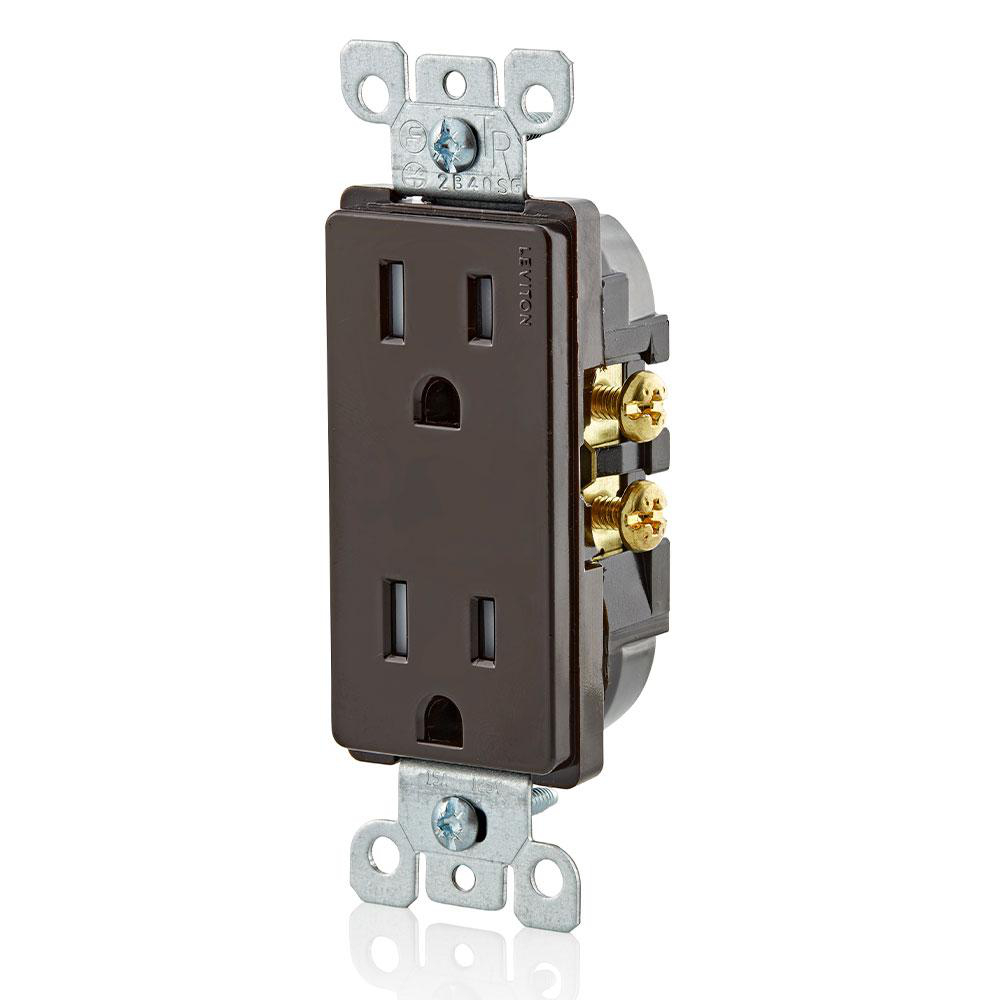

Product image for Receptacle straight Decora 2P3W 125V 15A brown
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 4
Email

Receptacle straight Decora 2P3W 125V 15A brown

Manufacturer: Leviton Manufacturing | Catalog # T5325 | Electrozad South Part # 186942
$1.82 /ea
ea
Log in or register to view your price, purchase history, and more!
138 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet MDM SAFETY DATA SHEET Installation / Instruction Manual MSDS | SDS Safety Sheet D BRAND LOGO IMAGE URL I INSTALL ASSEMBLY INSTRUCTIONS URL
Levitons tamper-resistant Decora duplex receptacle are designed for a chic appearance, quick installation and durability. The impact-resistant thermoplastic design allows for a long service life and high performance in homes, offices, schools and other settings. It also coordinates beautifully with Leviton's complete line of Decora devices.

Technical Information

Amperage
15 A
Applications
Commercial
Conductor Size
14 AWG
Connection Type
Quickwire Push-in and Side Wire
Grade
Commercial
Grounding
Grounding
Material
Thermoplastic
Mounting Type
Claw and Screw, Wallplate, Flush
NEMA
5-15R
Number of Poles
2
Number of Wires
3
Size
4.2 H x 1.33 W x 0.76 D IN
Standard
CSA,UL
TC Connection
Quickwire Push-In and Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Termination Type
Quickwire Push-In,Slide Wire
Torque
14 lb-in
Type
Tamper-Resistant, 2-Outlet, 1-Unit
Voltage
125 V
Wire Count
3
Wire Size
14 AWG
Wire Type
Grounding

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477381595
Color
Brown
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
GTIN
00078477381595
Product UPC
07847738159

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Country of Origin
USA
