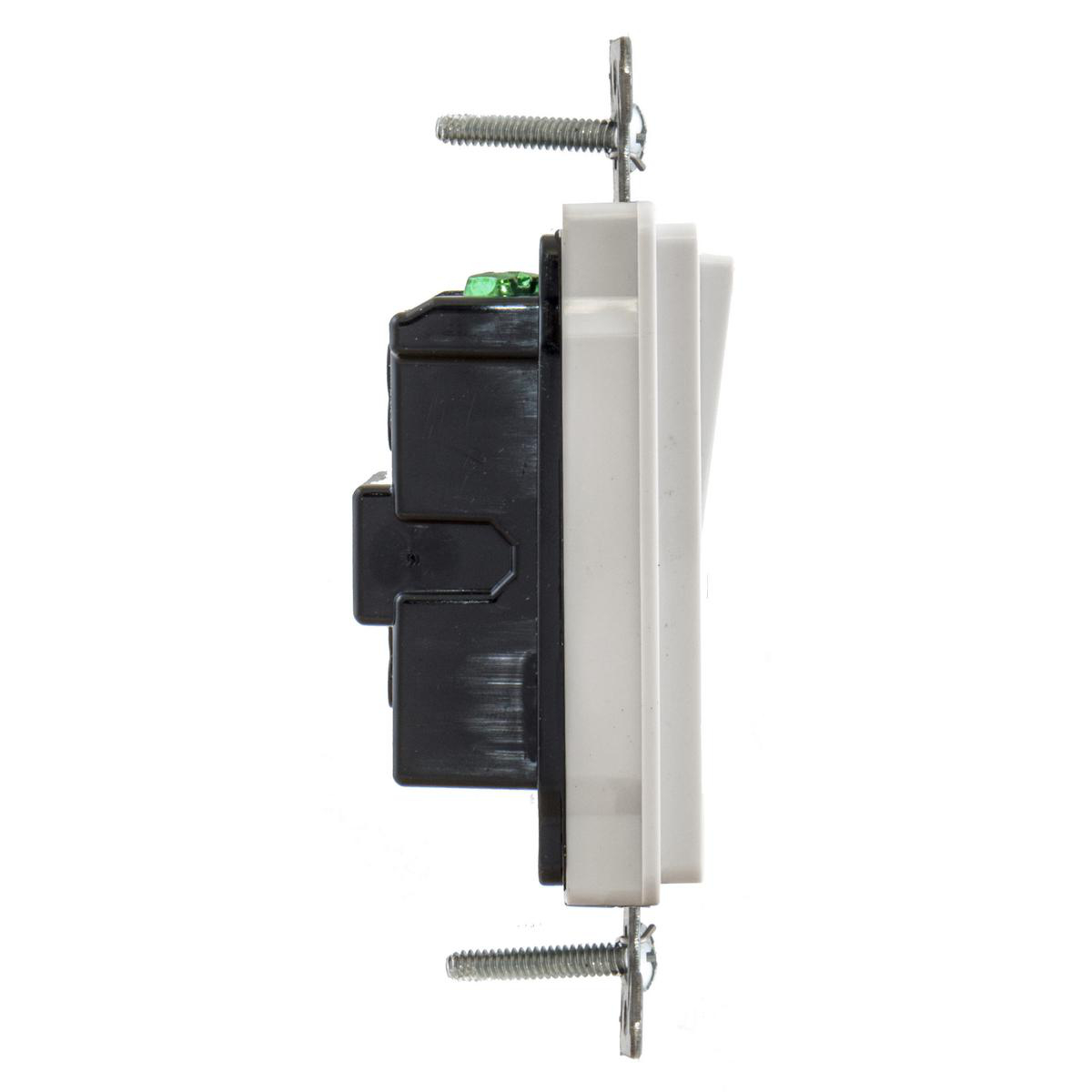

Image thumbnail 1

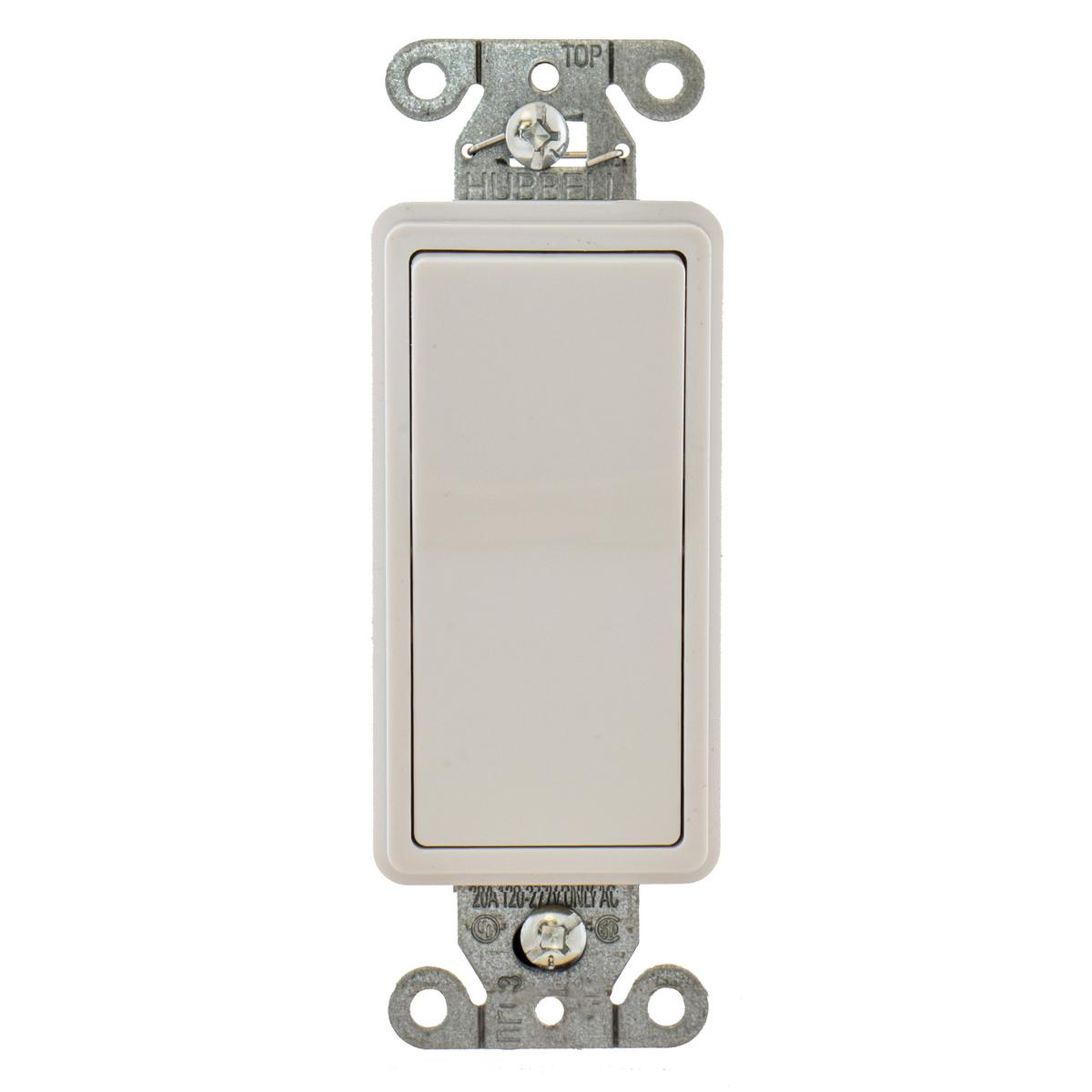

Image thumbnail 2

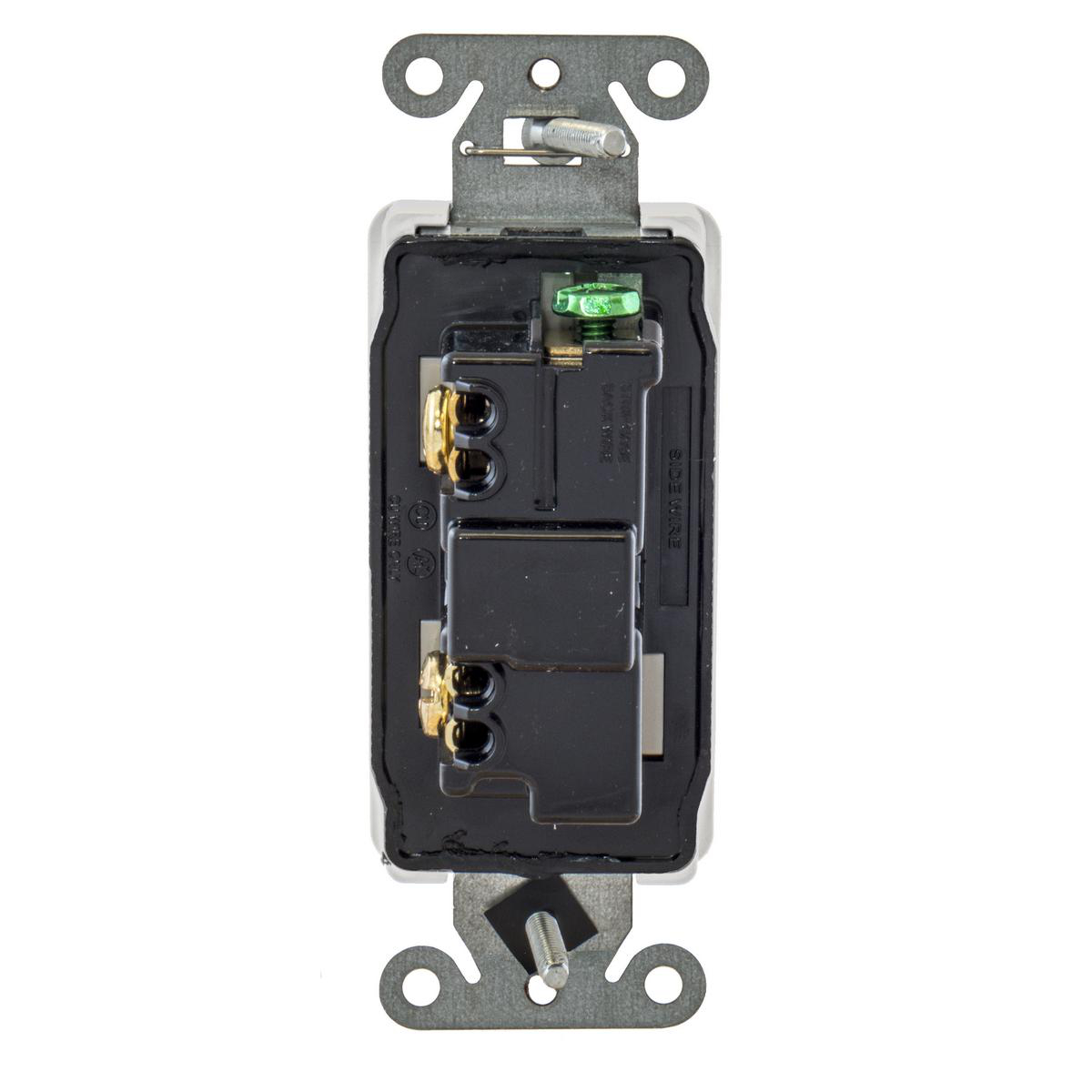

Image thumbnail 3

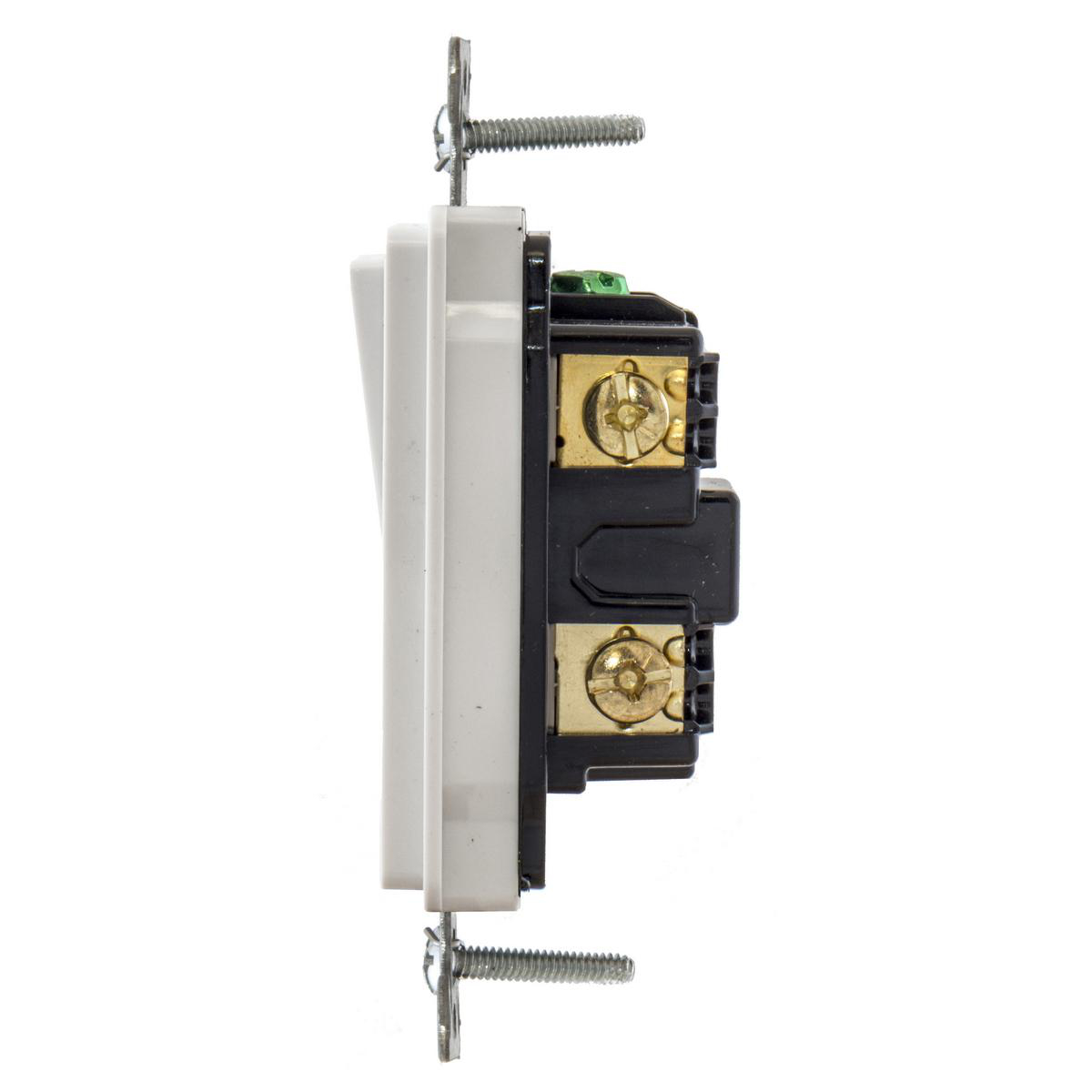

Image thumbnail 4
Email

Switch toggle back-side wire 1P 120/277V 20A wht

Manufacturer: Hubbell Wiring Devices | Catalog # DS120W | Electrozad South Part # 187603
$15.76 /ea
pc
Log in or register to view your price, purchase history, and more!
14 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
Specification grade decorator back and side wired toggle switch with single pole, 2 switch handle positions.

Technical Information

Action
Positive Snap, Off
Actuator
Rocker
Amperage
20 A
Applications
For Commercial use
Contact Configuration
2 Position
Contact Rating
Per UL 20
Current
20 A
Enclosure
None
Indicator
None
Material
Composite
Mounting Type
Flush, Screw
Number of Poles
1
Operating Cycles
50000
Operating Temperature
-40 degrees C
Size
4.28 in x 1.43 in x 1.54 in
Standard
UL
Style
Single Pole
Switch Type
Single Pole
TC Connection
Terminal Screw
Temperature Rating
75 degrees C Maximum Continuous, -40 degrees C Minimum Without Impact
Type
General Purpose, Heavy Duty, Standard, 2 Position
Voltage
120-277 V
Wattage
5540 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
AC Decorator Switches

General Product Info

12-Digit UPC
783585108377
Color
White
Environmental Conditions
Indoor Dry unless protected by additional means
GTIN
00783585108377
Product UPC
78358510837
Weight
0.2 lb

Dimensions

Height
1.54 in
Length
4.28 in
Width
1.43 in

Certifications & Compliance

Country of Origin
China
Overview
  • Automatic self-grounding staple
  • Thread cleaning captive mounting screw
  • Steel, zinc plated bridge is corrosion resistant
