PANDUIT HSTT50-C HEATSHRINK 1/2" DIA BLACK 100FT ROLL | Electrozad South

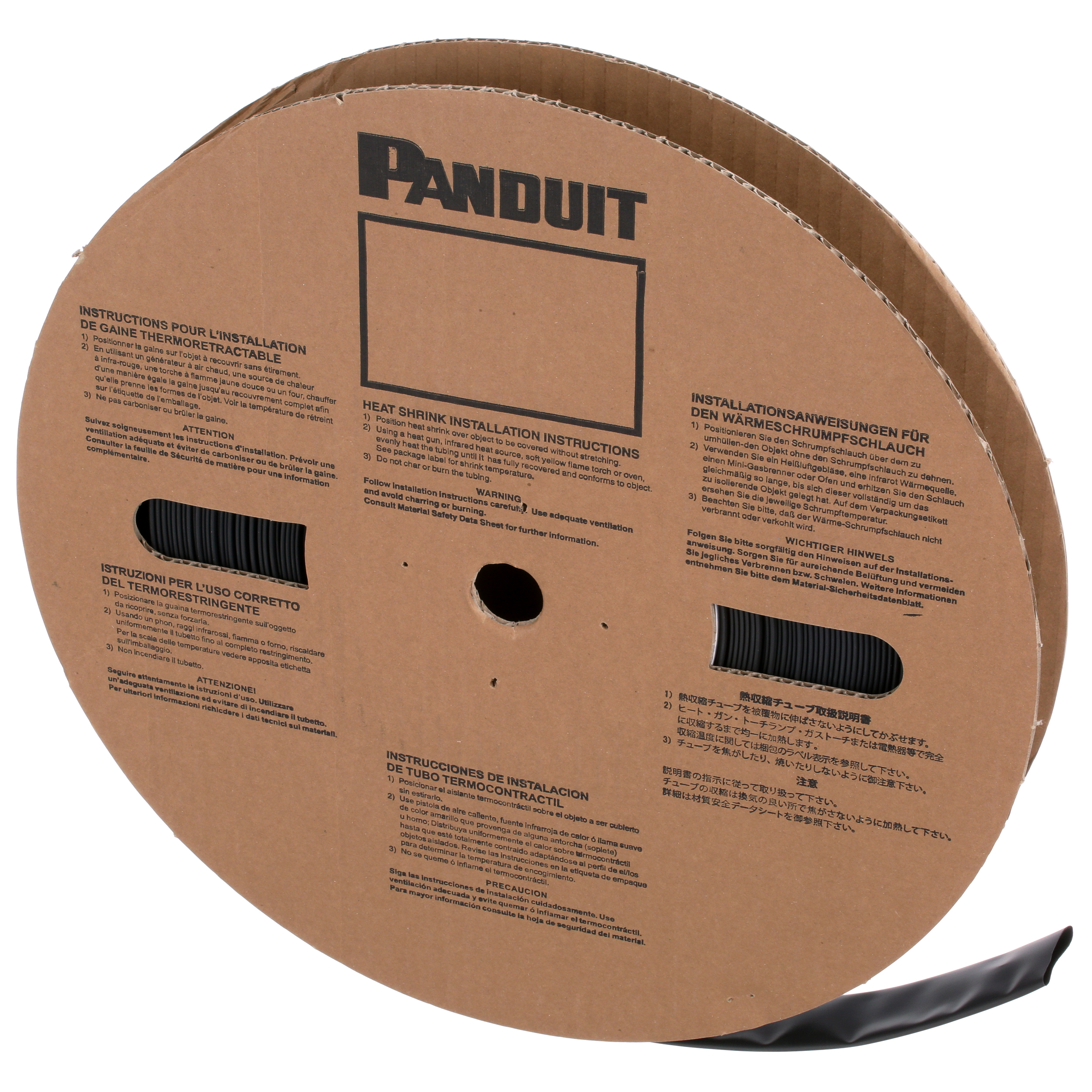

Product image for PANDUIT HSTT50-C HEATSHRINK 1/2" DIA BLACK 100FT ROLL
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

PANDUIT HSTT50-C HEATSHRINK 1/2" DIA BLACK 100FT ROLL

Manufacturer: Panduit | Catalog # HSTT50-C | Electrozad South Part # 188596
$207.05 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Installation / Instruction Manual MSDS | SDS Safety Sheet
The HSTT50-C Thin Wall Heat Shrink Tubing shrinks around wires, connectors, joints, and terminals when heated to protect against abrasion. Applications include insulating and protecting wires/cables in indoor, dry locations. Shrink ratio: 2:1. Temperature range: -67°F to 275°F (-55°C to 135°C). Flame retardant, cross-linked polyolefin. 0.50” Diameter x 100’ Long (12.7 mm x 30.5 m). Color Black. 1 roll.

Technical Information

Applications
Dry Location Applications
Material
Polyolefin
Max Operating Temperature
135 degrees C
Minimum Operating Temperature
-55 degrees C
Shrink Ratio
2:1
Standard
Yes
Temperature Rating
-55 to 135 degrees C
Type
Heat Shrink

Packaging

Package Qty
1

Manufacturer Information

Brand
Panduit
Sub Brand
Dry-Shrink

General Product Info

12-Digit UPC
074983747054
Color
Black
GTiN
00074983747054
Product UPC
07498374705

Dimensions

Inside Diameter
6.4 mm
Outside Diameter
12.7 mm
Overall Length
100 ft
Thickness
0.6 mm

Certifications & Compliance

Country of Origin
China
