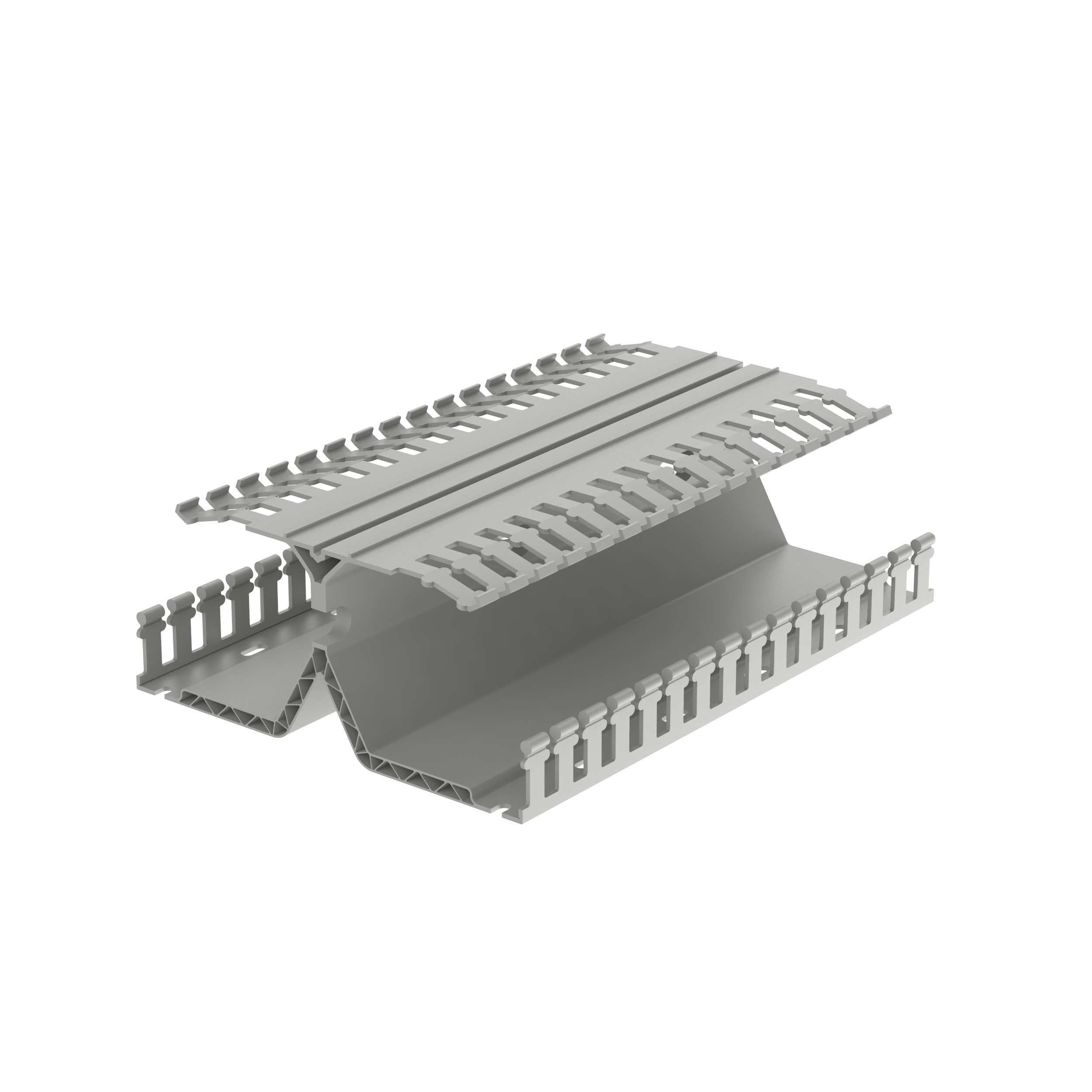

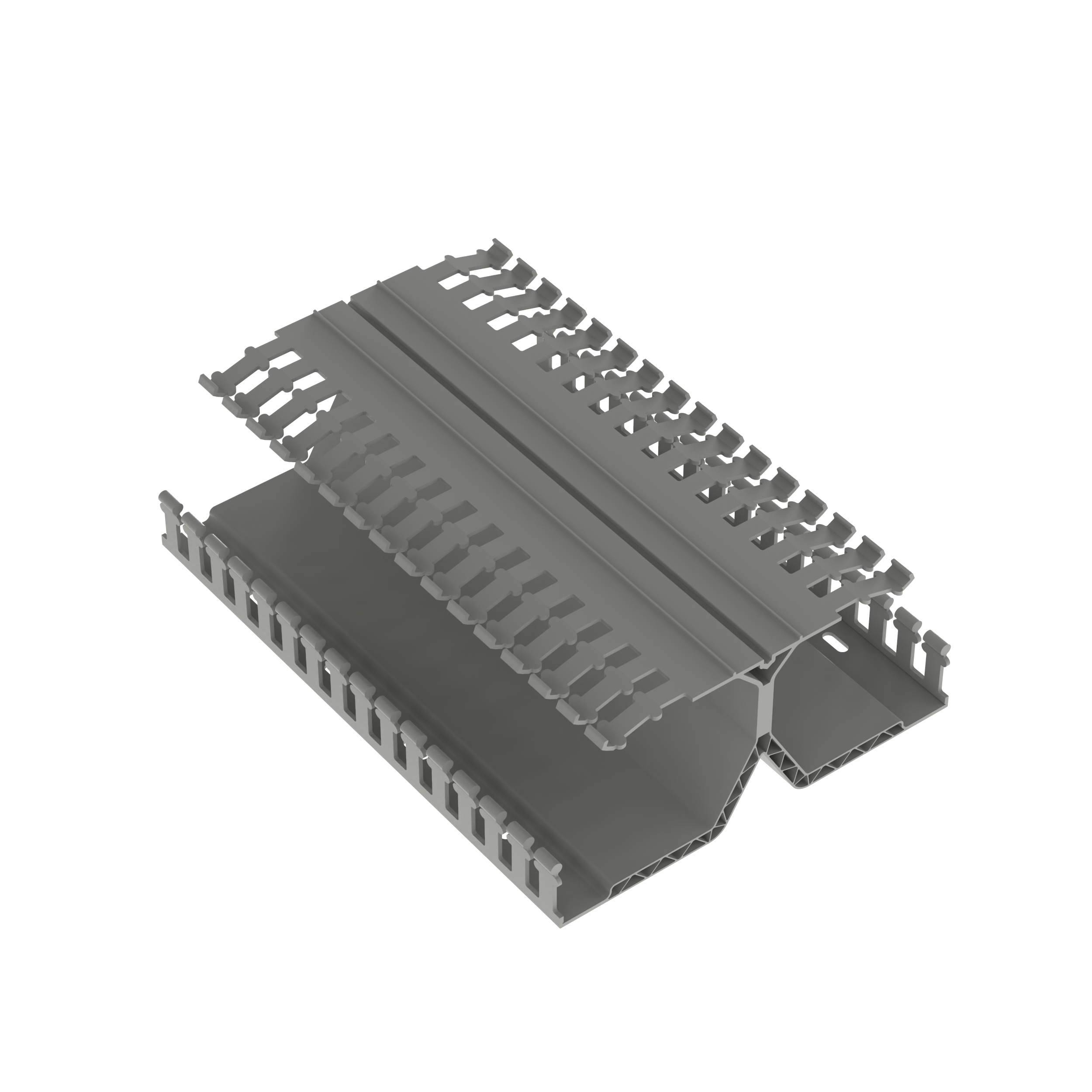

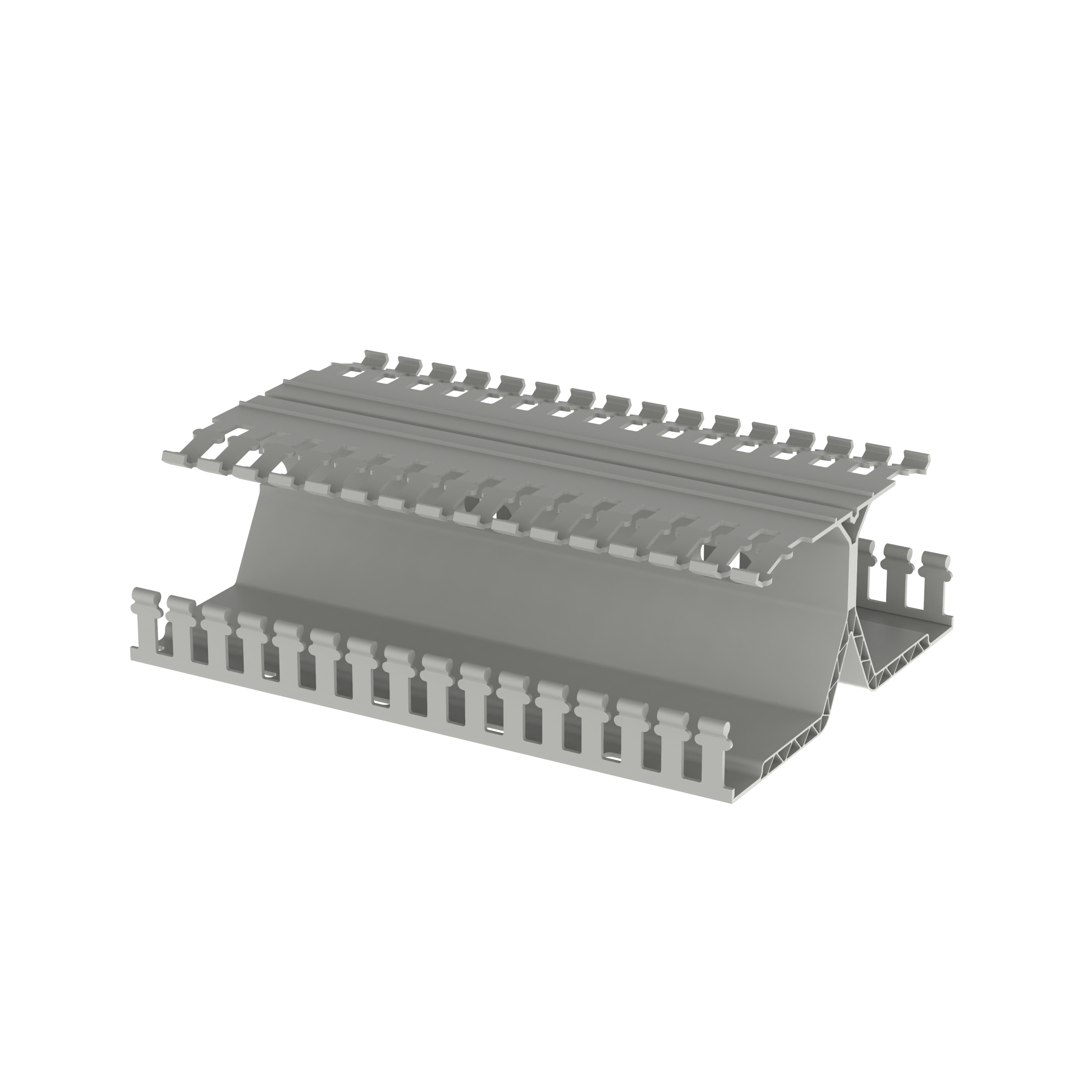

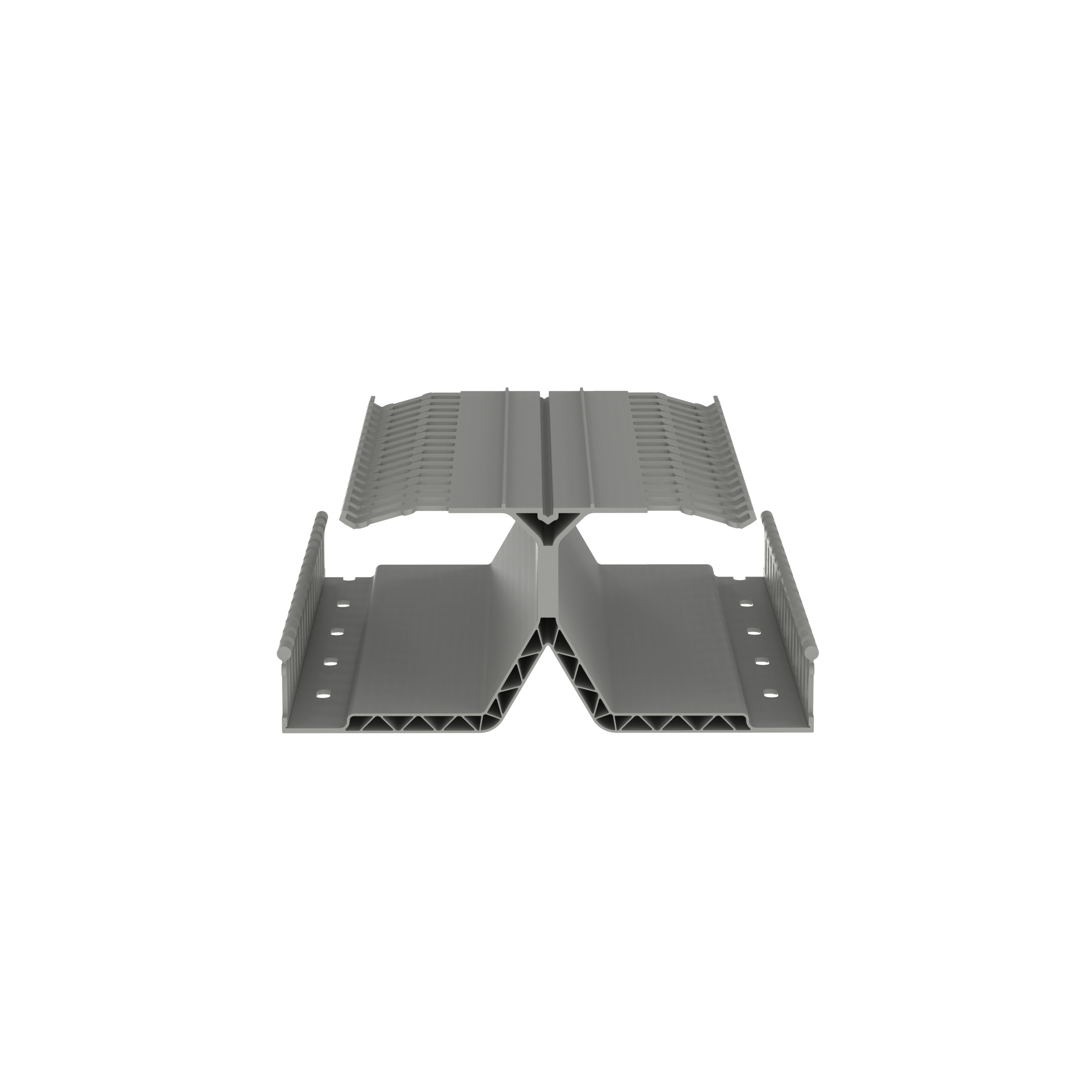

PANDUIT DRD22LG6 DUCT DIN 2"H 6'L WIRING 6.25"X2.15" FINGER DUCT LIGHT GREY W/ BASE COVER RAILMOUNT PANELMAX 6 FOOT LENGTH

Manufacturer: Panduit | Catalog # DRD22LG6 | Electrozad South Part # 188618
$28.02 /ft
ft
Order in multiples of 6 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual
2 height PanelMax™ DIN Rail Wiring Duct with dual wiring channels. Base, covers, and DIN rail fasteners included. Light Gray. 2-Channel Wiring duct with a hinged and flexible cover that allows you to mount DIN Rail and components on top of the duct to maximize space. Up to 30% panel Space savings, up to 25% material cost savings, and up to 50% faster installation. Pass thru holes to shorten the wire path

Technical Information

Applications
DIN Rail Duct Creates Valuable Panel Space Savings, Providing Easier Installation and Maintenance, and Improving Reliability
Material
Lead-Free PVC
Mounting Type
DIN Rail, Standard Mounting Hole
Size
Compatable with standard 2 Height Wiring Duct
Slot Size
8 mm Pitch, 15.9 mm Slot Distance
TC Connection
Standard Mounting Holes
Type
Type DRD, Flexible

Packaging

Package Qty
6

Manufacturer Information

Brand
Panduit
Sub Brand
PanelMax™

General Product Info

12-Digit UPC
074983117055
Color
Light Gray
GTIN
00074983117055
Product UPC
07498311705

Dimensions

Depth
54 mm
Height
2.12 in
Length
1.8 m
Overall Length
6 ft
Width
158.8 mm

Certifications & Compliance

Country of Origin
USA
