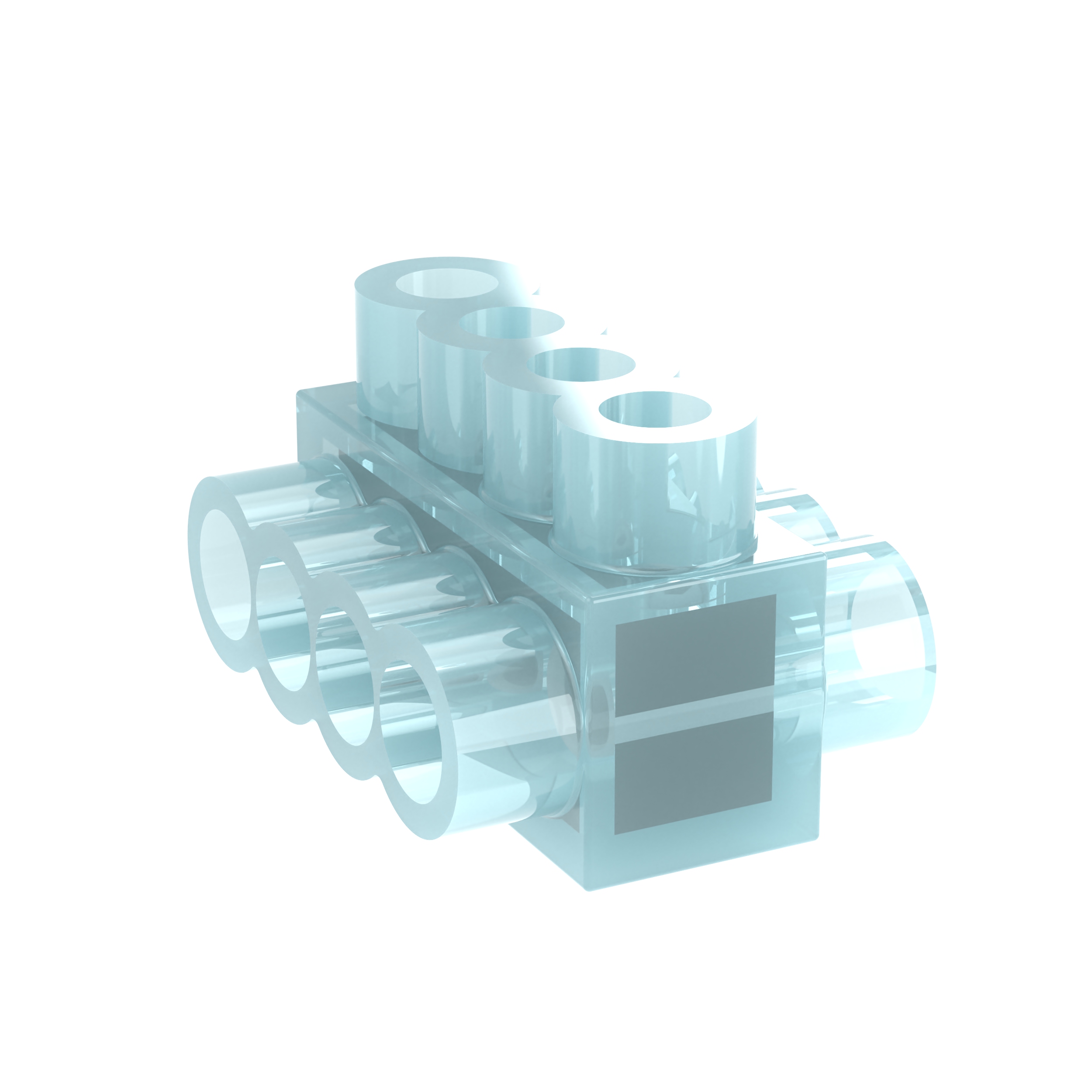

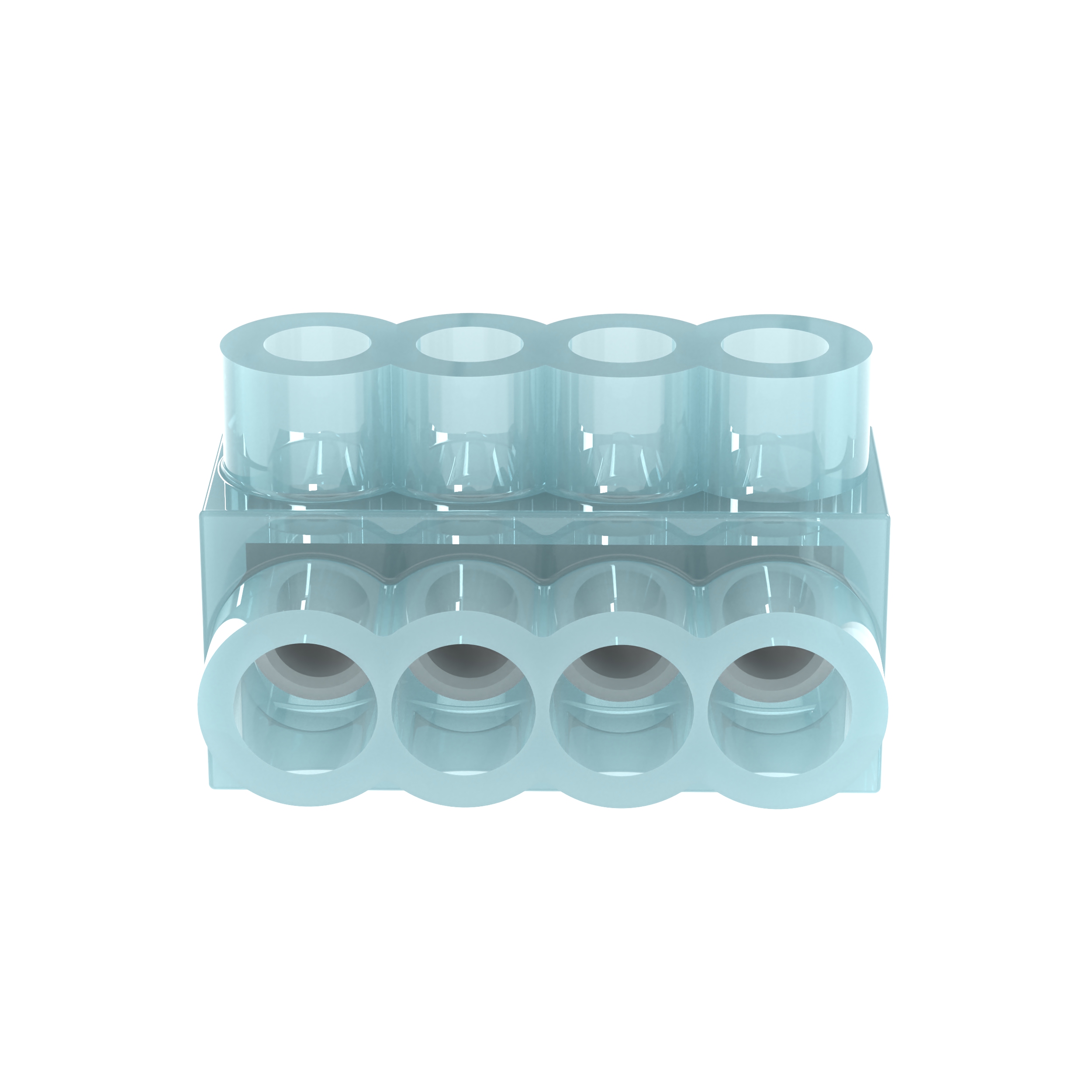

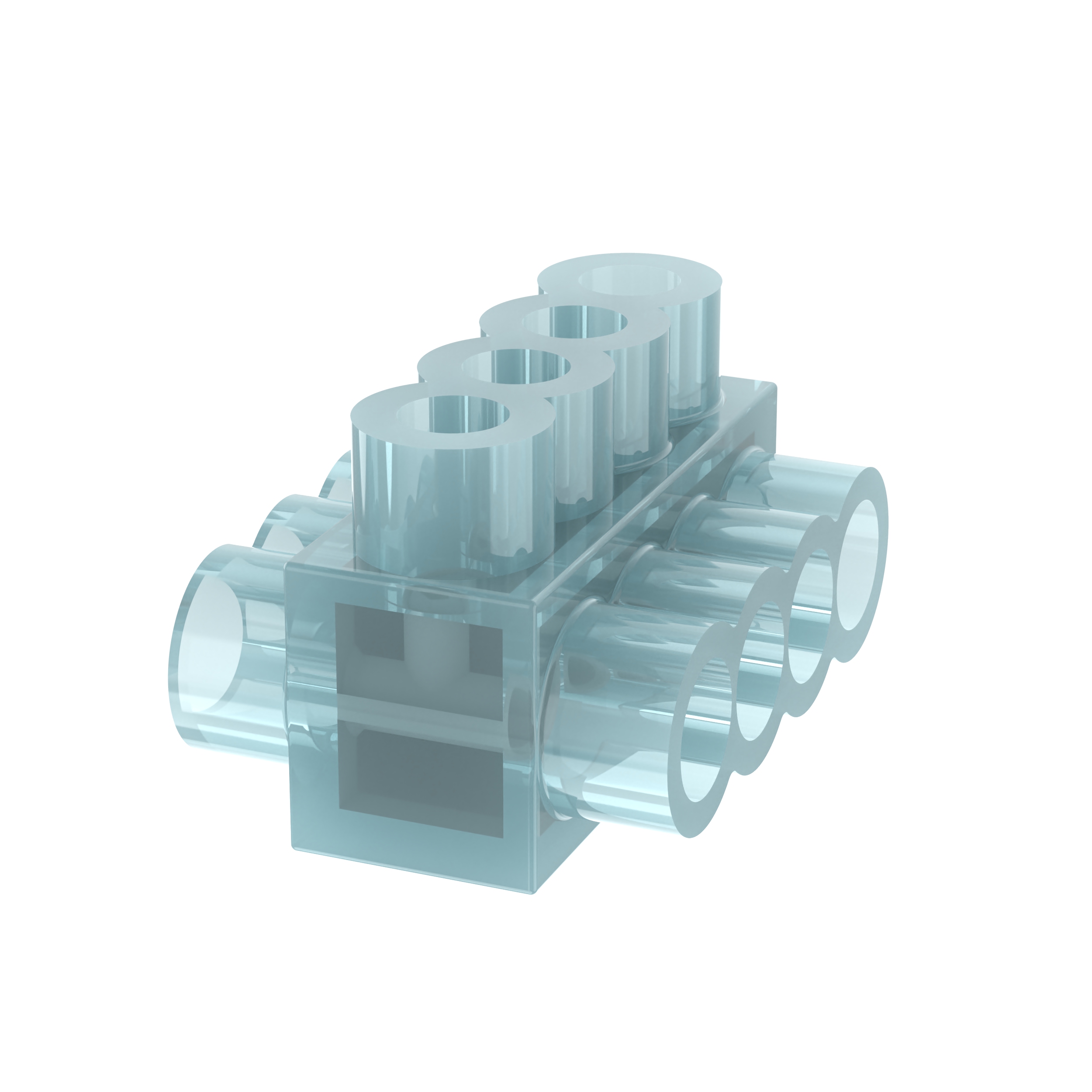

PANDUIT PCSB4-4-6Y CONNECTOR 4-14AWG MULTI-TAP DOUBLE-SIDED 4-PORTS COPPER OR ALUMINUM

Multi-tap mechanical connector. Double-sided. 4 to 14 stranded and 10 to 14 solid AWG conductor size. Aluminium material. Insulated with clear PVC. Each port pre-filled with oxide inhibiting joint compound seals out air and moisture to deter surface oxidation. Flexible design can be used as a tap, splice or dead end connector. Body made from high strength, extruded aluminium alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. Each port pre-filled with oxide inhibiting joint compound seals out air and moisture to deter surface oxidation. Wide wire range taking capability minimizes inventory requirements. Dual-sided entry allows offset and opposite entry for primary and secondary conductors. Plated steel or aluminium set screw provides high strength, durable electrical contact between conductor and connector. UL listed and CSA certified for use up to 600 V and temperature rated 90..C.
