PANDUIT PCSB2/0-2S-6 CONNECTOR 2/0-14AWG MULTI-TAP SINGLE-SIDED 2PORTS COPPER OR ALUMINUM

Manufacturer: Panduit | Catalog # PCSB2/0-2S-6 | Electrozad South Part # 188740
$4,093.33 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
38 available

For Delivery

Not in local stock *
Check another branch
MDM SAFETY DATA SHEET Installation / Instruction Manual MSDS | SDS Safety Sheet

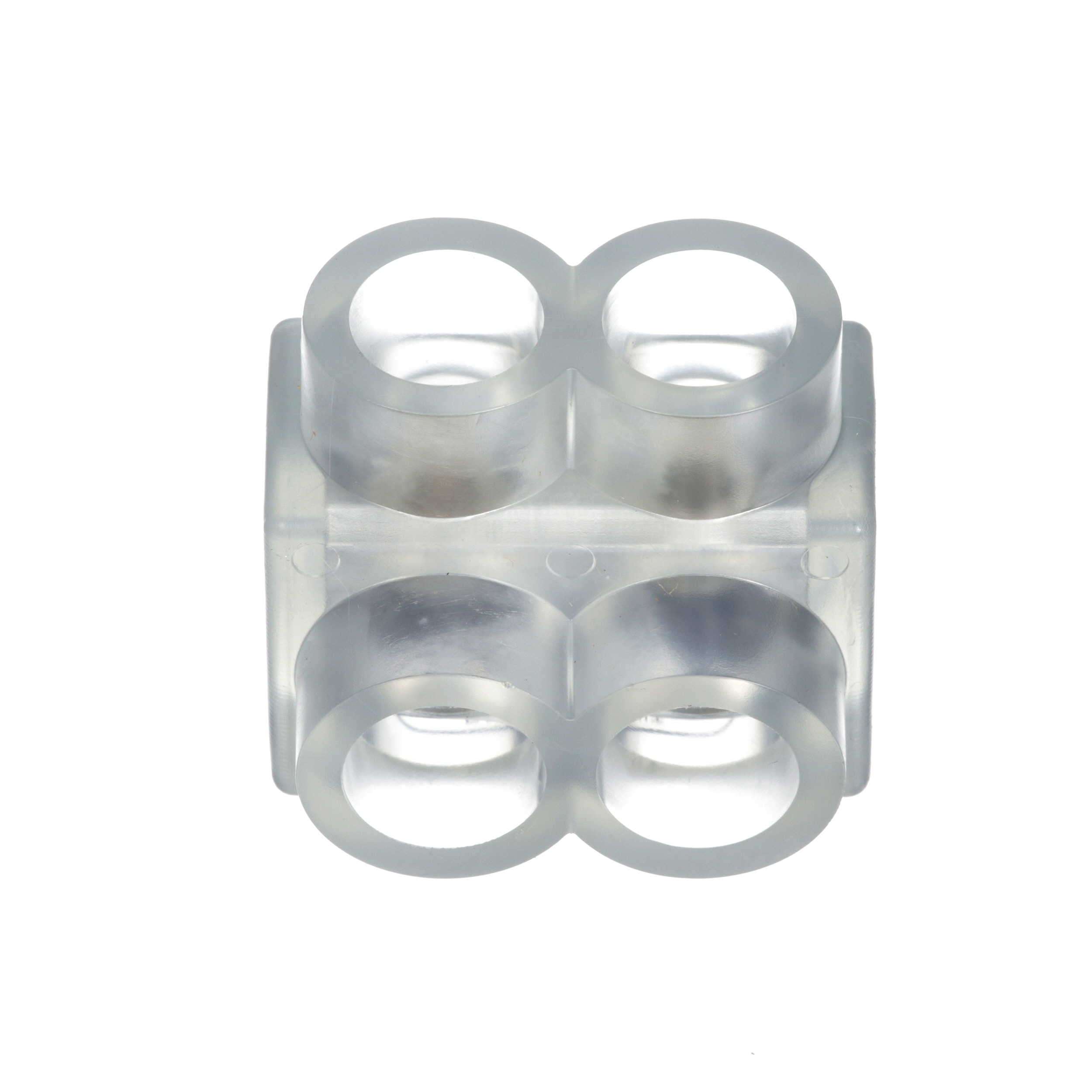

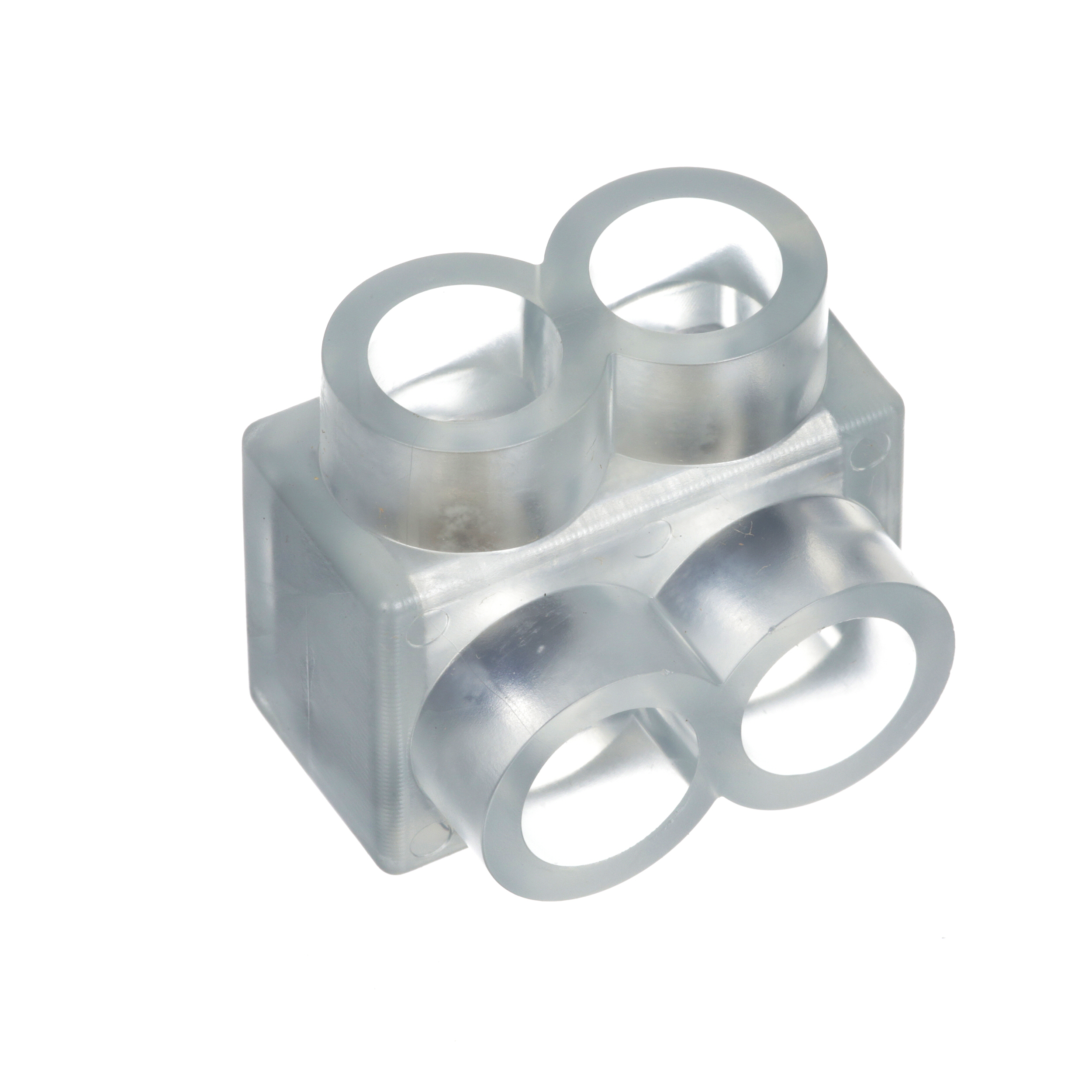

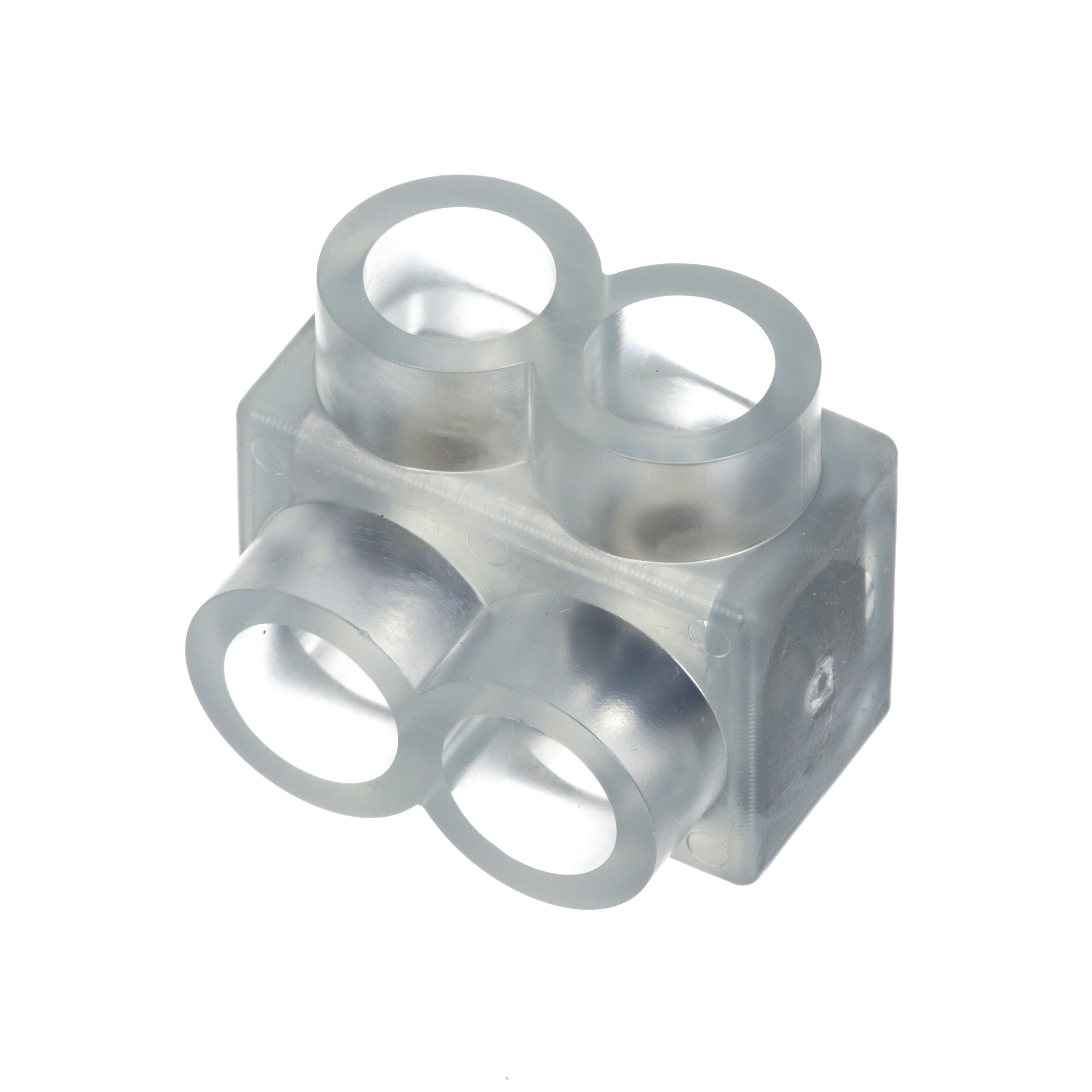

The PCSB2/0-2S-6 Multi-Tap Mechanical Connector has a flexible design that can be used as a tap, splice, or dead-end connector. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.

Technical Information

Applications
Aluminum or Copper Code Conductors
Base Material
Aluminum
Conductor Size
2/0-14 AWG Stranded Aluminum or Copper
Conductor Type
Aluminum/Copper
Material
Aluminum, PVC Insulation
Number of Ports
2
Standard
CSA,E2186,UL
Temperature Rating
90 degrees C
Type
Mechanical, Single-Sided

Packaging

Package Qty
6

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983421404
Finish
Tin-Plated
GTIN
00074983421404
Product UPC
07498342140
Used With
Aluminum and Copper Conductors

Dimensions

Height
1.38 in
Overall Length
1.52 in
Width
1.31 in

Certifications & Compliance

Country of Origin
USA
