Pan-Term® DNF10-250FIMB-Q Loose Piece Disconnect

Manufacturer: Panduit | Catalog # DNF10-250FIMB-Q | Electrozad South Part # 189520
$131.30 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL

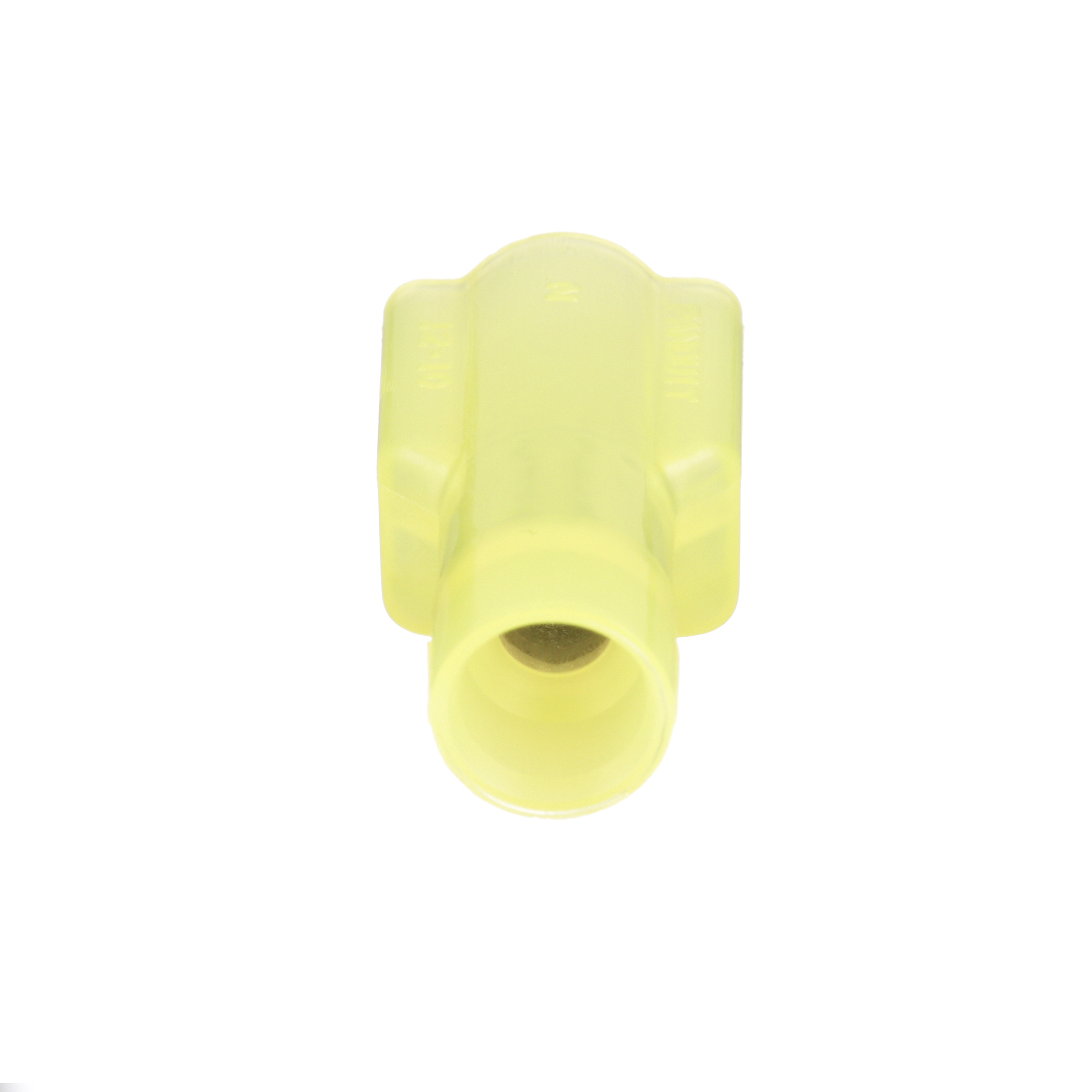

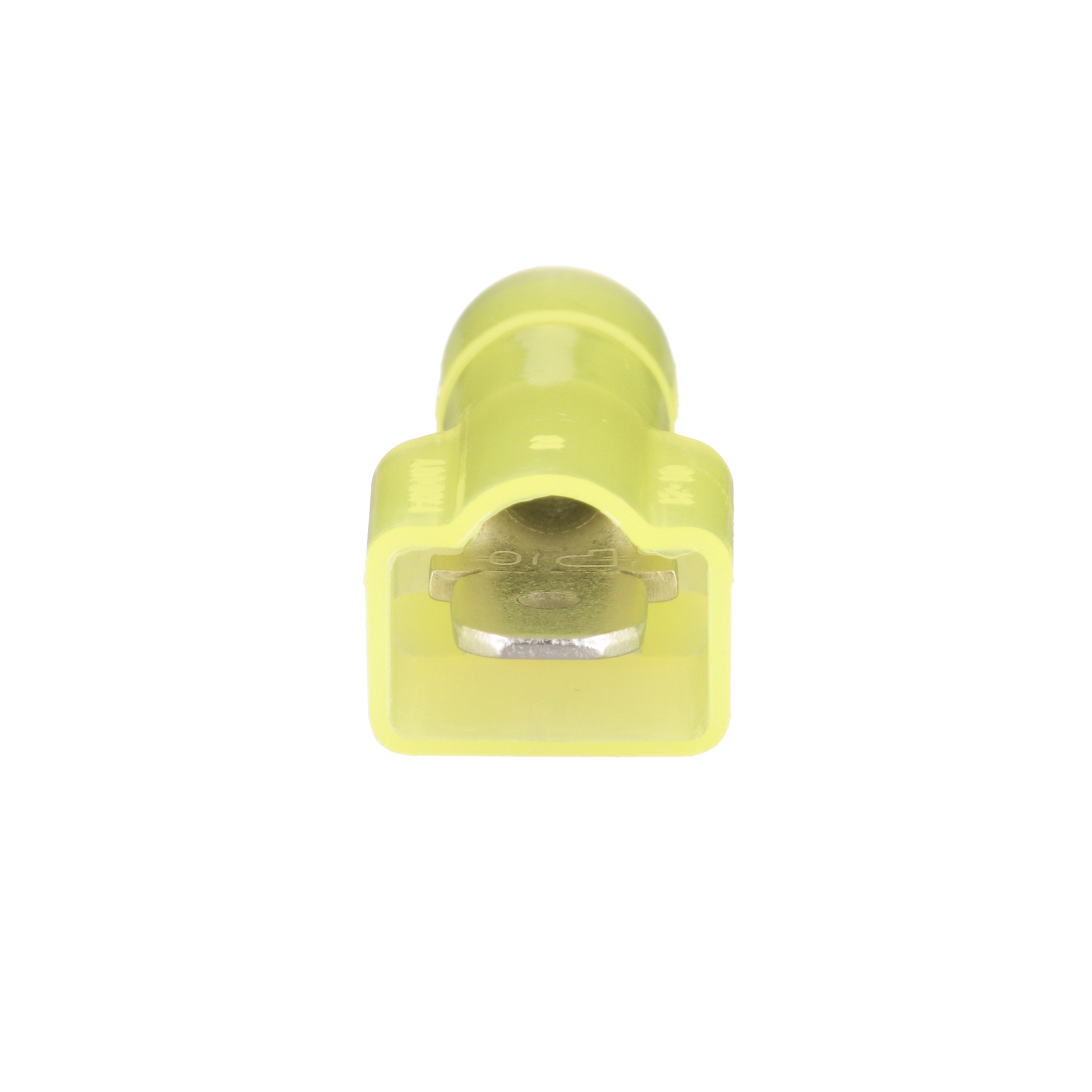

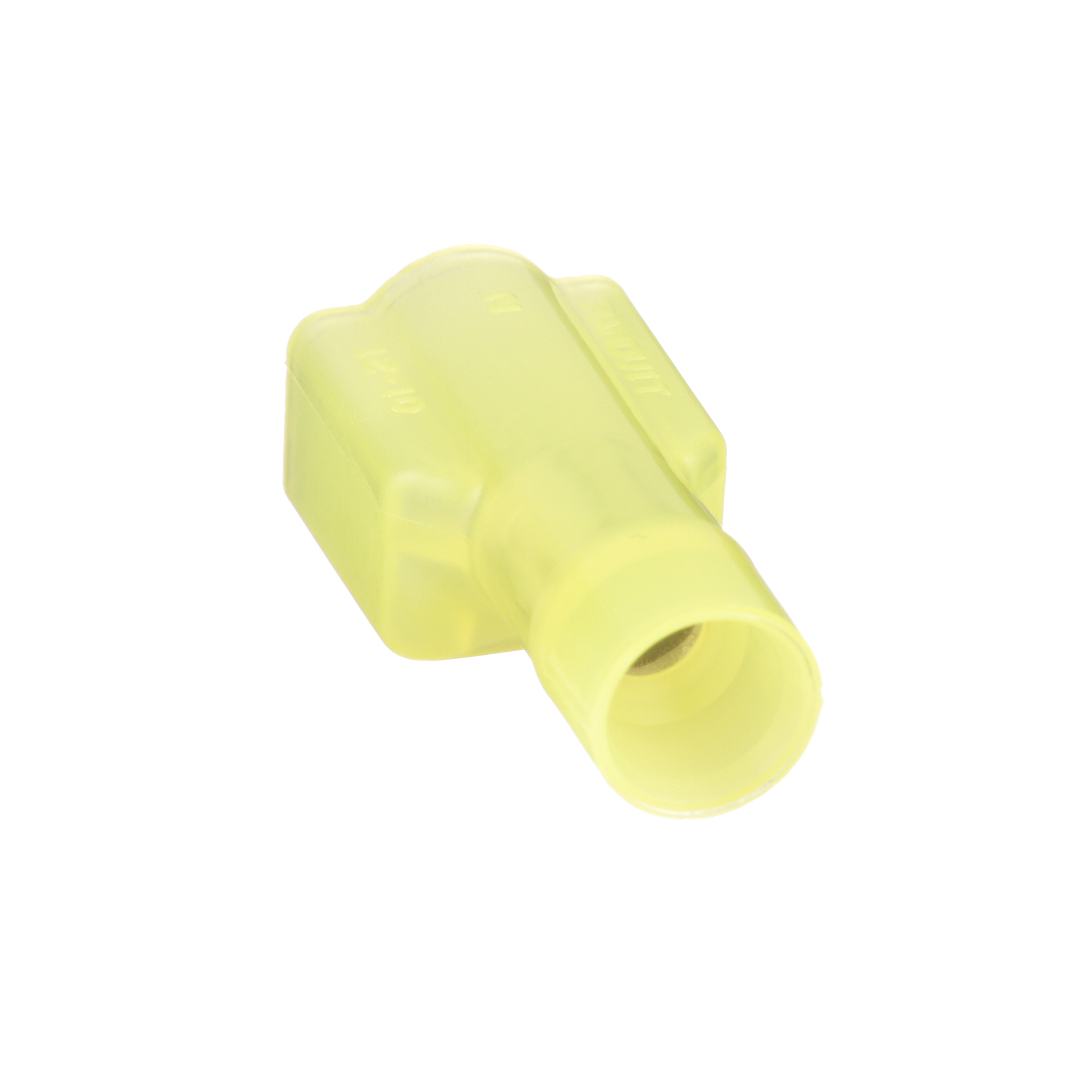

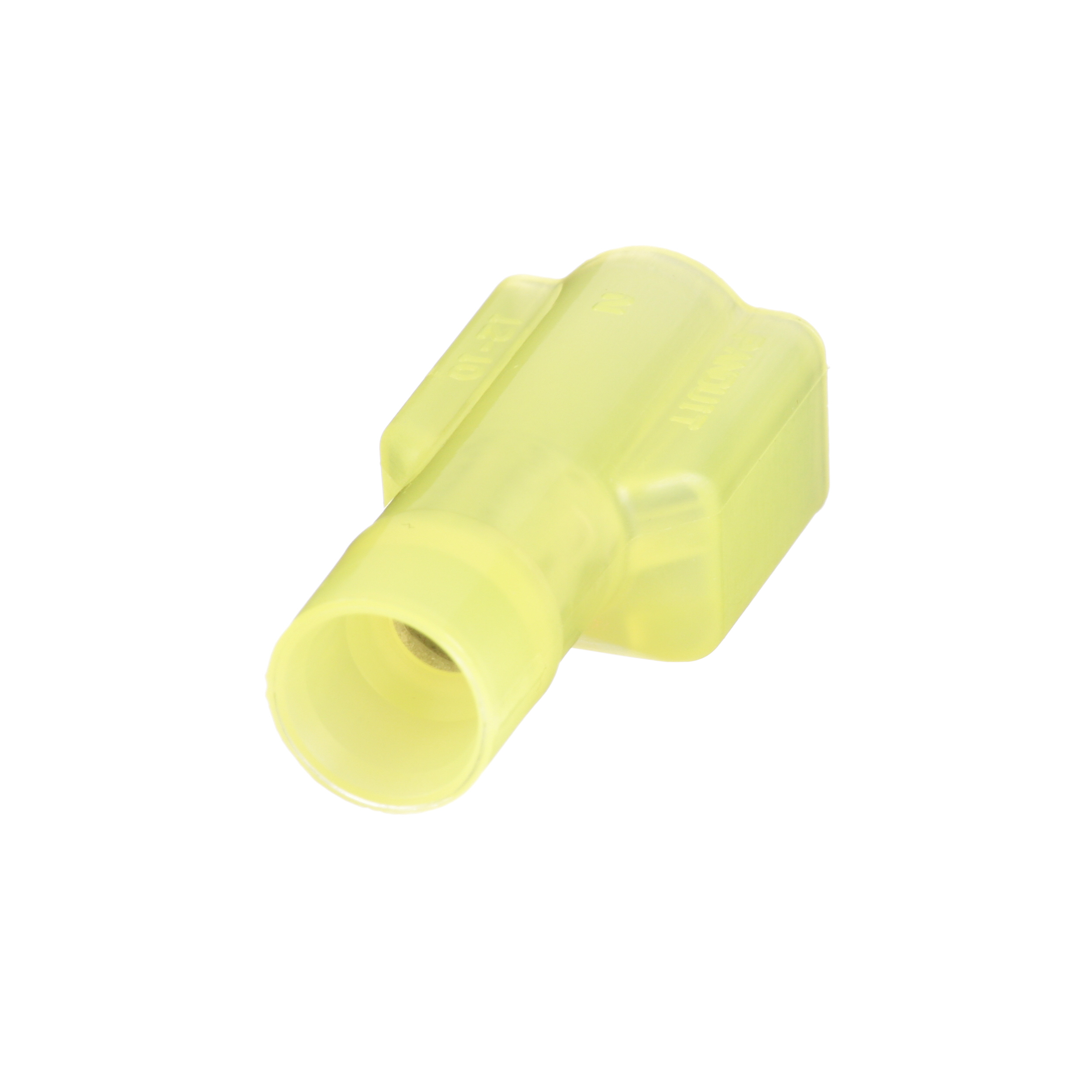

The vibration resistant male tab disconnect is made of copper and is nickel-plated. It is fully insulated in a yellow, oversized nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 12-10 AWG (4.0-6.0 mm..). It is 0.96" (24.4 mm) long and 0.22" (5.6 mm) wide. The disconnect has a standard barrel configuration and a butted seam barrel. It comes in bottles of 25.

Technical Information

Barrel Type
Butted Seam
Color Coding
Yellow
Conductor Size
12-10 AWG
Insulation Material
Nylon
Material
Copper
Max Operating Temperature
105 degrees C
Tab Size
1/4 x 0.032 in
TC Connection
Standard
Temperature Rating
221 degrees F
Type
Loose-Piece
Wire Size
#10 AWG

Packaging

Package Qty
25

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983119028
Color
Yellow
Finish
Nickel
GTIN
00074983119028
Product UPC
07498311902
UNSPSC
39121409

Dimensions

Height
0.36 in
Overall Length
0.96 in
Width
0.45 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
