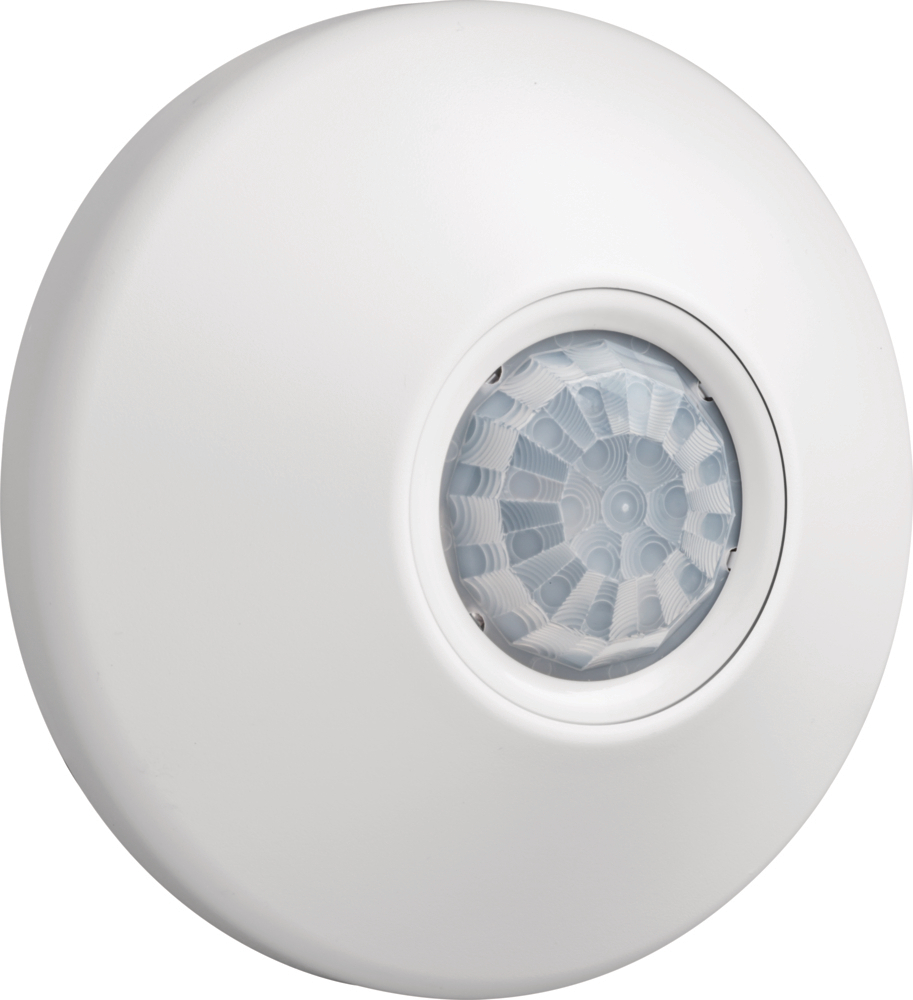

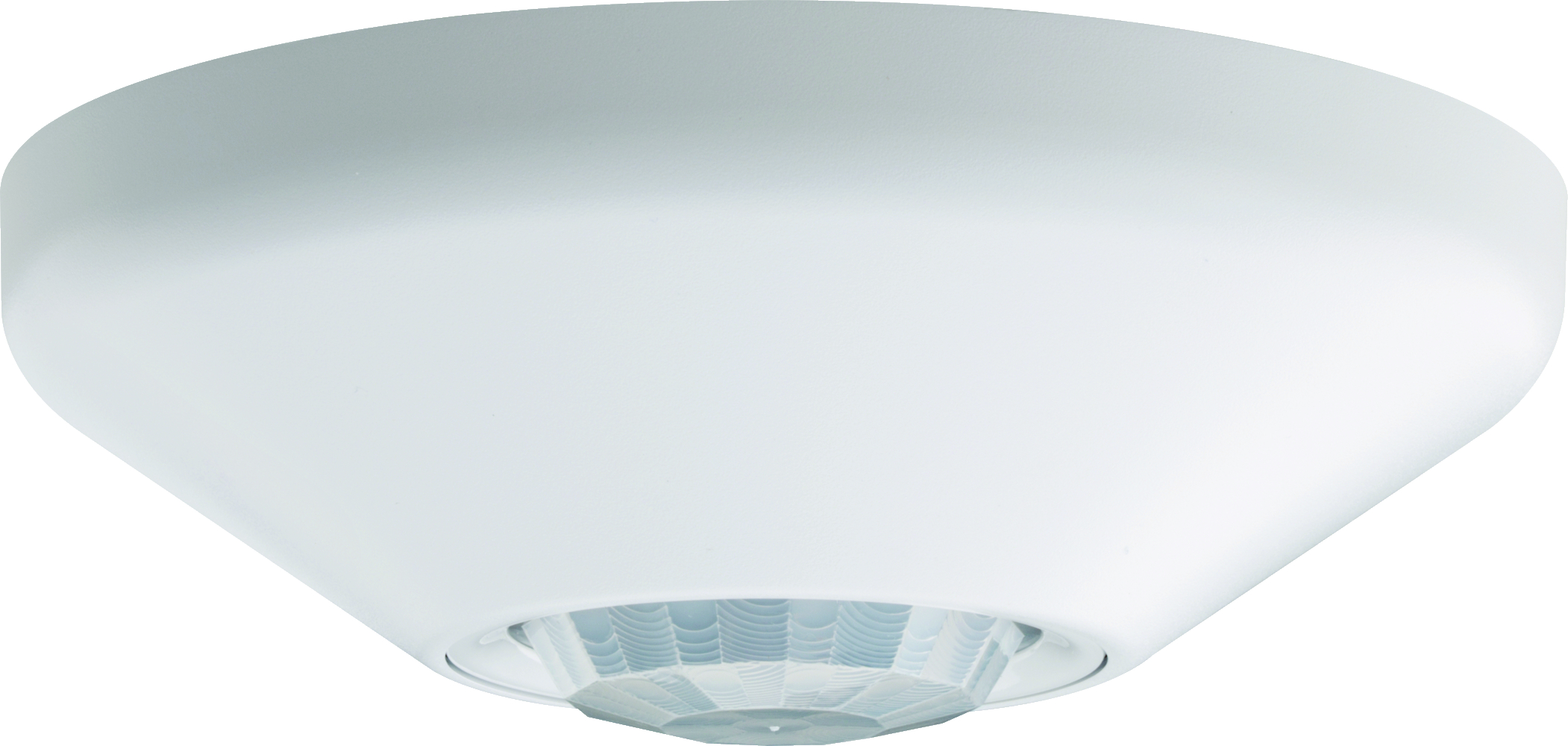

CEILING MOUNT SENSOR, PASSIVE DUAL TECHN

Manufacturer: Lithonia Lighting | Catalog # CMR PDT 9 | Electrozad South Part # 189890
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet Installation / Instruction Manual I INSTALL ASSEMBLY INSTRUCTIONS URL

Technical Information

Applications
For Automotive, Parking, Education, Government, Healthcare, Hospitality, Manufacturing, Offices and Banks, Power and Gas, Religious, Residential, Retail, Roadways, Bridges and Tunnels, Sports and Recreation, Transportation, Warehouses
Dimmable?
Yes
Lamp Life
87,600 hr
Lens Material
Plastic
Material
Plastic
Mounting Type
Flush
Power Source
Hardwired
Sensing Range
360 degrees
Temperature Rating
14 - 160 degrees F
Type
Passive Infrared/Microphonics

Manufacturer Information

Brand
Acuity Brands
Sub Brand
Sensor Switch

General Product Info

12-Digit UPC
745975809448
Color
White
Environment
Indoor
Environmental Conditions
Indoor
Finish
Matte
GTIN
00745975809448
Product UPC
74597580944
Shape
Round
Weight
4.005 lb

Dimensions

Height
1.5 in
Length
4.500 in
Warranty Length
5 yr
Width
2.500 in

Certifications & Compliance

Country of Origin
Mexico,Mexico
Overview
  • WARRANTY: 5-Year Limited Warranty
  • COVERAGE: 360 degree coverage
  • MOTION DETECTION: Best choice for small motion detection
  • COMPATIBLE: Enjoy the flexibility and convenience of programming sensor settings with your smartphone using the SensorSwitch Mobile App through camera flash programming
  • APPLICATION: For rooms with obstructions, these sensors offer Passive Dual Technology (PDT), which combines Microphonics noise detection and passive infrared (PIR) motion detection
  • ENERGY SAVINGS: Self-contained relay (no power pack needed)
  • MOUNTING: 12 ft radial coverage when mounted to standard 9 ft ceiling; 8-15 ft mounting heights provide 10-20 ft radial coverage
  • LAMP: 100-hour lamp burn-in timer mode
  • DIMENSIONS: 4.55 in W x 1.55 in D (116mm x 40mm)
  • RATINGS: Energy Management Equipment, UL916 (E167435), RoHS compliant
