PANDUIT NE2X4WH6 DUCT SLOTTED NORYL WIRING WHITE 2X4

Manufacturer: Panduit | Catalog # NE2X4WH6 | Electrozad South Part # 197853
$33.49 /ft
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure

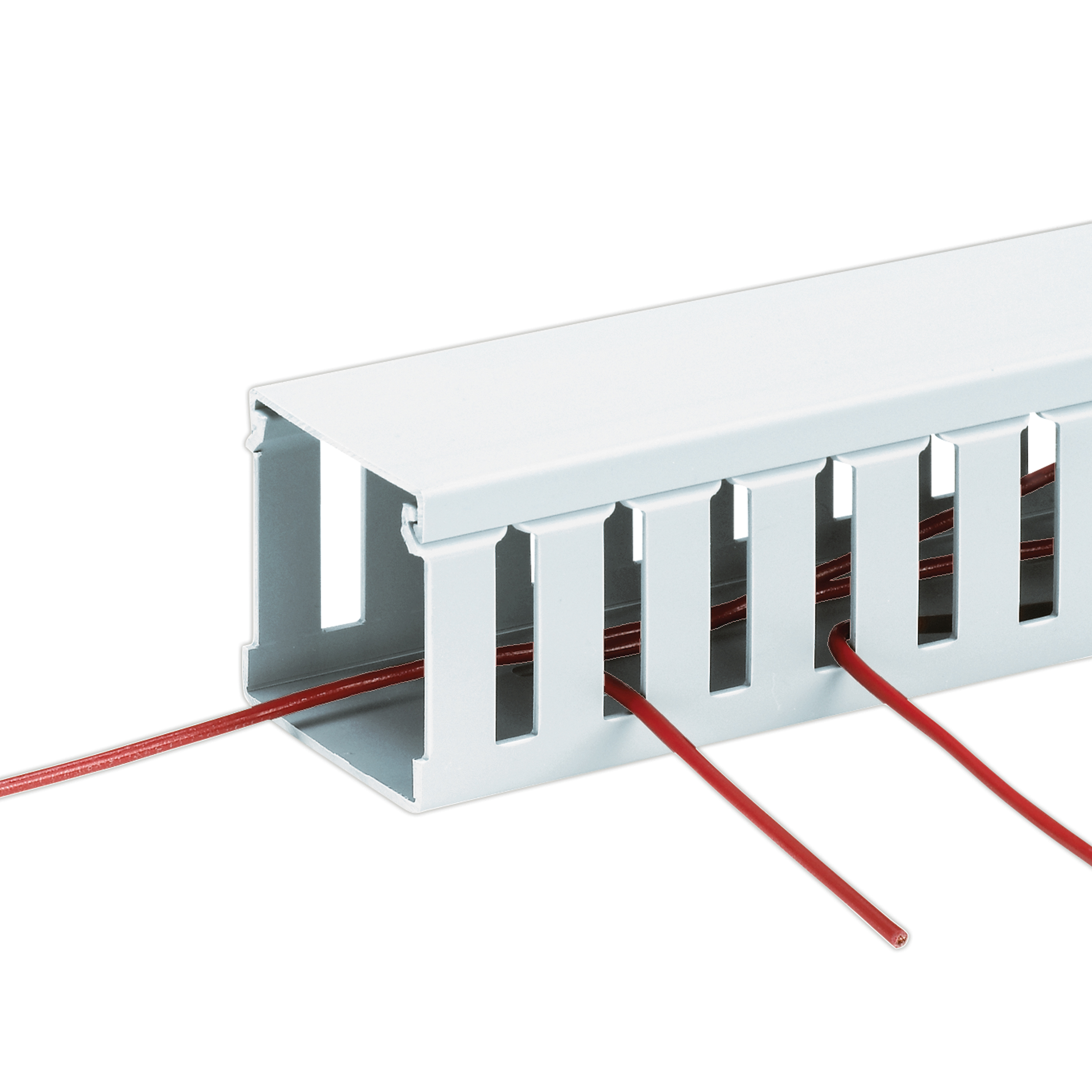

The NE2X4WH6 Halogen-Free Wide Slot Wiring Duct design provides greater rigidity and allows for a wide range of wire/bundle sizes. Upper and lower scorelines for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 95..C (203..F). Halogen-Free, Polyphenylene Oxide (PPO). Mounting holes provided. 4.06" x 2.14" (103.1 mm x 54.4 mm) and 6' (1.83 m) long. Cover sold separately. Color White. 6 pieces per package.

Technical Information

Material
Polyphenylene Oxide
Mounting Type
Mounting Holes
Size
54.4 x 103.1 mm
TC Connection
Standard Mounting Holes
Type
Type 4 Mild Steel Freestanding Enclosure

Packaging

Package Qty
6

Manufacturer Information

Brand
Panduit
Sub Brand
Panduct

General Product Info

12-Digit UPC
074983214969
Color
White
GTIN
00074983214969
Product UPC
07498321496

Dimensions

Height
4.06 in
Length
1.8 m
Overall Length
6 ft
Thickness
0.08 IN
Width
54.4 mm

Certifications & Compliance

Country of Origin
USA
